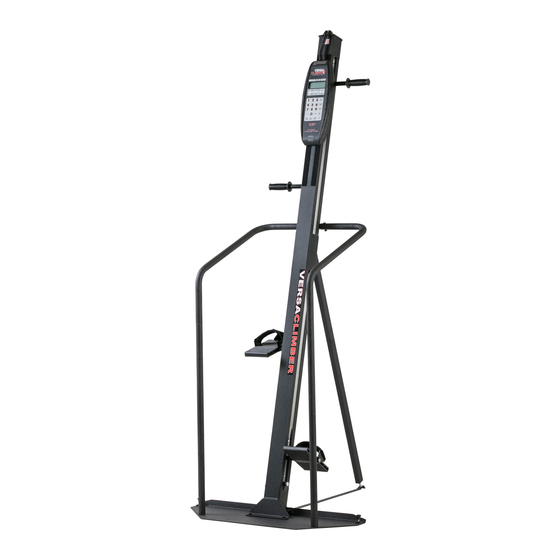

Summary of Contents for versa climber CL-108H

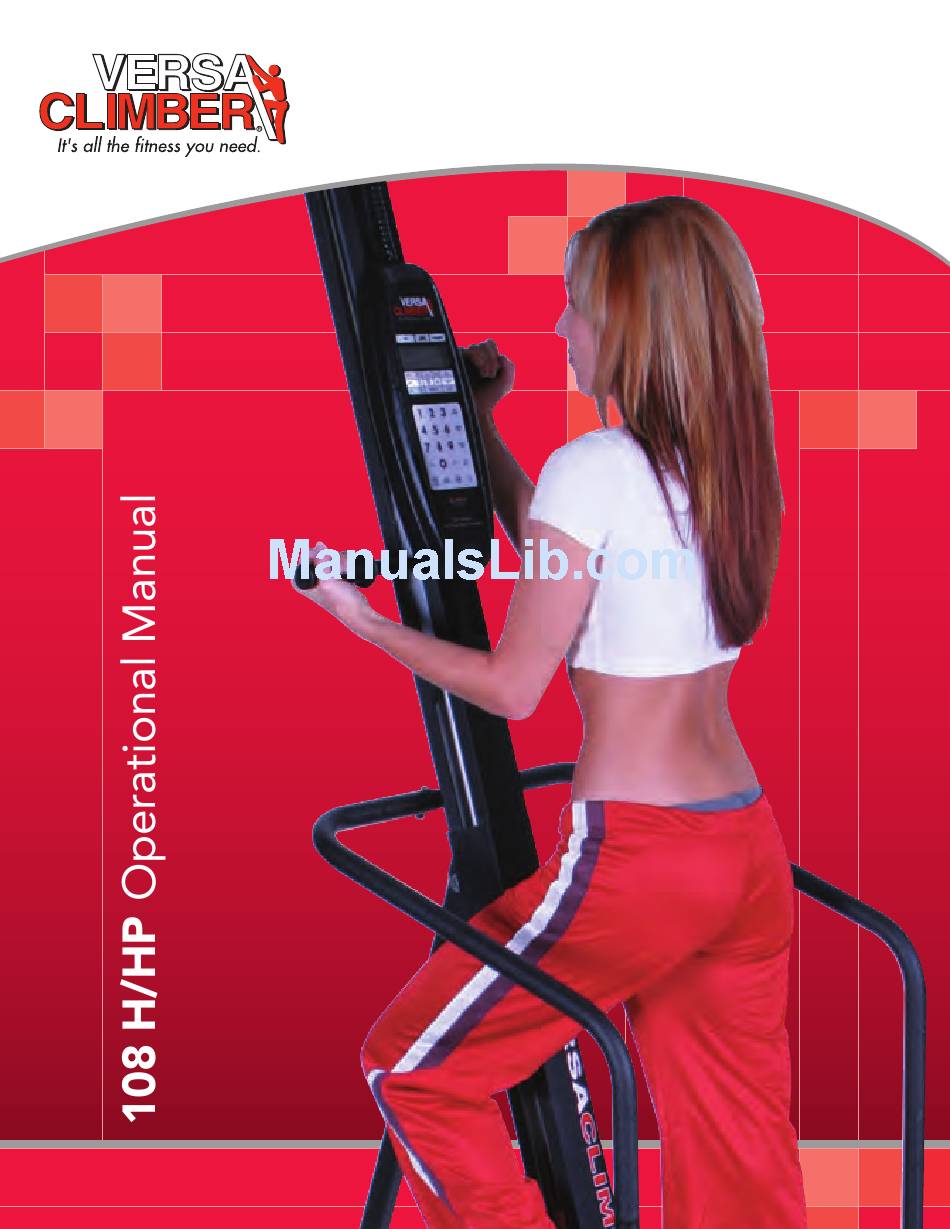

  • Page 1 108 H/HP Manual...
  • Page 2 A A s s s s e e m m b b l l y y & & O O p p e e r r a a t t i i o o n n s s M M a a n n u u a a l l H H o o m m e e M M o o d d e e l l V V e e r r s s a a C C l l i i m m b b e e r r C C L L - - 1 1 0 0 8 8 H H &...

  • Page 4: Table Of Contents

    T T a a b b l l e e O O f f C C o o n n t t e e n n t t s s Page Introduction....................1 Exercise Tips....................3 Exercise Guidelines ..................4 VersaClimber Specifications.................7 Display Module CL-108 H................8 User’s Guide....................9 Standard Mode.....................9 Program Mode....................12-14...

  • Page 6: Introduction

    VersaClimber. These guidelines are not specific individ- ual exercise prescriptions, but rather, general VersaClimber user information. Most functions and their operation are applicable to both CL-108H and CL-108HP Model VersaClimbers. Throughout this manual, references and instructions have been included for the CL-108HP VersaClimber model with Heart Rate Control.
  • Page 7 Consult your physician before beginning this or any other exercise program. This is especially important for individuals over the age of 30 and those that have known health problems. HEART RATE INC., IS NOT RESPONSIBLE FOR PERSONAL INJURY OR PROPERTY DAMAGE SUSTAINED BY OR THROUGH THE USE OF THE VERSACLIMBER.

  • Page 8: Exercise Tips

    EXERCISE TIPS 1. Consult your physician before starting this or any other exercise program especially if health problems are known. 2. While exercising, the foot pedals and hand grips are moving up and down. DO NOT ALLOW YOUNG CHILDREN OR ANYONE TO BE WITHIN 3 FEET OF ANY PART OF THE MACHINE WHILE IT IS IN USE.

  • Page 9: Exercise Guidelines

    CONTROL mode of the CL-108HP VersaClimber will guide you through a workout which slowly increases in intensity until you reach and maintain a specific heart rate. A 5 minute cool down period is recommended in all modes, gradually decreasing your climb rate and/or lowering the arms by grasping the hand rails.
  • Page 10 –An advanced athlete may want to begin at an intensity that is approximately equal to a run. The CL-108H VersaClimber model does not have internal heart rate monitoring system like the CL-108HP models. However, heart rate may be taken manually at any time before, during and after your workouts by referring to the next section.
  • Page 11 DURATION The duration of the workout depends on your level of conditioning and the intensity of the workout. Normally 15 to 30 minutes continuous climbing or stepping is average, which includes 5 - 10 minutes of warm up and 5 - 10 minutes of cool down. These periods should be at a comfortable easy pace.

  • Page 12: Versaclimber Specifications

    SPECIFICATIONS PHYSICAL CHARACTERISTICS CL-108H CL-108HP Height 7 Feet 6 Inches (90 inches) SAME Required Floor Space 36 Inches x 44 Inches SAME Weight 63 pounds SAME Structural Aluminum and Steel SAME Sliding and Rollings Bearings Lubricant Filled Nylon SAME Date Processing...

  • Page 13: Display Module Cl-108 H

    Display Module CL-108 H Page 8...

  • Page 14: User's Guide

    USER GUIDE The display module provides three modes of operation: STANDARD, PROGRAM, RACE (The CL-108HP Model provides an additional mode: HEART RATE CONTROL) A) STANDARD MODE displays exercise time, calorie burn rate, climbing speed, total distance climbed, and step stroke length. B) PROGRAM MODE allows the selection of one of 16 pre-programmed workout routines.
  • Page 15 2. Select a hand position at approximately shoulder height (See Photo B). Adjust the hand grips if necessary by unscrewing both handles. Unscrew the handles by turning the bottom of the handle toward you while you are standing on the machine. Reposition both handles by screwing them in with the rotation of the bottom of the han- dles going away from you.
  • Page 16 8. The following is an example of the CL-108H "STANDARD" readout: (On the CL- 108HP, models, the "HEART RATE" function in the upper middle window of the display has replaced the "CALORIES BURN RATE" function) 8:34 Averages your vertical feet climbed per minute.

  • Page 17: Program Mode

    11. TO CHANGE MODES DURING A WORKOUT, YOU MUST FIRST STOP CLIMBING OR STEPPING FOR A FEW SECONDS. Then select another mode and enter the appropriate data. 12. Record your total vertical distance climbed or stepped and total exercise time to use as a goal for your next workout.
  • Page 18 (The “START EXERCISE” function on the CL-108HP model is located in the lower left of the keypad.) A tone will sound as “START EXERCISE ” is pressed. 9. Below is an example of the CL-108H “PROGRAM ” readout: (On the CL- 108HP model, the “HEART RATE” function in the upper middle window of the display has replaced the “CALORIE BURN RATE ”...
  • Page 19 DO NOT OVER EXERT YOURSELF! IMMEDIATELY DISCONTINUE THIS OR ANY OTHER EXERCISE IF YOU FEEL FAINT, DIZZY, SHORTNESS OF BREATH OR ANY OTHER PHYSICAL DISCOMFORT. 10. Your calorie burn rate is displayed in the upper middle digits. This rate is dependent upon weight entered and the rate at which you are climbing.

  • Page 20: Race Mode

    RACE MODE 1. Press “ON/OFF” to turn computer “ON” or “OFF”. A tone will sound when the com- puter turns “ON” and when the computer turns “OFF”. 2. Press “RACE MODE ”. A tone will sound as the mode is selected. “RACE” will appear in the middle of the display to indicate “RACE MODE”.
  • Page 21 A tone will sound as “START EXERCISE” is pressed. Begin climbing immediately--as your opponent has begun to race! 9. The following is an example of a CL-108H “RACE” display readout: (The CL-108HP models have “HEART RATE” in place of the “CALORIE BURN RATE” function).
  • Page 22 11. To display total calories (optional), press “DISPLAY TOTAL CALORIES” located in the lower left of the keypad. The computer will ask you to “ENTER WEIGHT” in pounds. By pressing the large numbers on the keypad, your weight in the range of 70 - 350 lbs can be entered into the computer.

  • Page 23: Program Level Chart

    P P r r o o g g r r a a m m L L e e v v e e l l C C h h a a r r t t PROGRAM NUMBERS FEET PER MINUTE CLIMB RATES Minutes 9-10 10-11...
  • Page 24 Module Display CL-108 HP Page 19...

  • Page 25: (Heart Rate Control)

    HEART RATE MONITORING INSTRUCTIONS A Polar compatible strap is included with the VersaClimber 108HP. Any other Polar Compatible Heart Beat Transmitter strap will function with Model No. CL-108HP. Place the Transmitter on the chest just below the breast/pectoral muscles and adjust the strap so that it is held securely against skin.
  • Page 26 2. Press the “CHANGE MODE” button until the letters “HRC” are visible in the display indicating “HEART RATE CONTROL” mode. A tone will sound each time the mode is changed. Modes can only be changed while the Versaclimber is stopped. 3.
  • Page 27 7. To display total calories (optional), Press “DISPLAY CALORIES” located in the upper right of the keypad. The computer will ask you to “ENTER WEIGHT” in pounds. By pressing the large numbers on the keypad, your weight in the range of 70 -- 350 lbs can be entered into the computer.

  • Page 28: Oxygen Consumption

    OXYGEN CONSUMPTION MLS/LB = 0.1336 (Feet Per Minute Climb Rate) + 3.1219 MLS/LB FT / MIN Climb Rate TRAINING HEART RATES 1. Find your age at the bottom of the chart. Maximum Heart Rate 2. Beginners follow the column to 70% of your maximum heart rate. 3.

  • Page 29: Calorie Burn Rate Chart

    V V E E R R S S A A C C L L I I M M B B E E R R C C A A L L O O R R I I E E S S B B U U R R N N E E D D P P E E R R H H O O U U R R C C H H A A R R T T FEET PER MINUTE 1019 1041...

  • Page 30: Strength Exercises

    STRENGTH EXERCISE DURING AEROBIC CONDITIONING The following are strength exercises that can be performed during your aerobic work- out. To strengthen specific muscles, you can step or climb in a variety of positions to concentrate the work on those specific areas. Guidelines for lower body strength work- outs are outlined in the section “Working The Upper and Lower Body Separately”, next page.
  • Page 31 For the advanced athlete, a “quad burn” can be achieved by squatting down (while holding the stationary handgrips) so that the knees are at approximately a 90 degree angle. With the knees positioned on either side of the Versaclimber, start with short steps and gradually increase to the maximum comfortable stroke.
  • Page 32 The arms and shoulders can be exercised by standing on the base plate in front of the Versaclimber and driv- ing the moveable hand grips. Palms can be in the for- ward or reverse grip. Pull down with one arm and resist with the other arm, or push and pull with one arm while resisting with the other arm.

  • Page 33: Interval Training

    INTERVAL TRAINING Interval training is a training method for the athlete who wants an advanced workout to increase their anaerobic fitness level. The purpose of interval training is to provide peri- ods of very high intensity anaerobic activity, separated by periods of low intensity aero- bic recovery.

  • Page 34: Versaclimbing And Children

    VERSACLIMBING AND CHILDREN CHILDREN ON THE VERSACLIMBER MUST BE SUPERVISED AT ALL TIMES DURING THEIR WORKOUT. THE VERSACLIMBER IS NOT A TOY. SERIOUS PER- SONAL INJURY OR DAMAGE TO THE EQUIPMENT MAY OCCUR IF THE VER- SACLIMBER IS NOT USED PROPERLY. WARNING: UNDER NO CIRCUMSTANCES ARE TWO PEOPLE ALLOWED ON THE VERSACLIMBER AT THE SAME TIME! Under proper adult supervision, children can quickly learn a full range of fun and...

  • Page 35: Versaclimbing And The Overweight Person

    VERSACLIMBER AND THE OVERWEIGHT PERSON The VersaClimber can be comfortably used by individuals who are considered over- weight (over 30% body fat) without the impact trauma of aerobic dance and running exercises. Hip, knee, ankle, and back problems can be avoided by climbing on the VersaClimber because it provides a smooth, no pounding, safe exercise that is not traumatic to the joints.

  • Page 36: Top These Towers

    GET MOTIVATED! VersaClimbing can be enjoyed by all members of the family from children to mature adults. When used correctly, it is a safe, fun activity that people often get “hooked on”. The exhilarating feeling after this full body workout can actually make you look forward to your next workout, almost immediately! Encouragement in the form of family competitions may be needed for fitness goals to be achieved.

  • Page 37: Versaclimber Assembly Instructions

    VERSACLIMBER ASSEMBLY INSTRUCTIONS IF YOU HAVE ANY QUESTIONS AFTER YOU HAVE THOROUGHLY READ THE ASSEMBLY INSTRUCTIONS, CALL 714-850-9716 EXT.226 AND ASK FOR SERVICE. Your VersaClimber comes partially assembled. Please read these assembly instruc- tions thoroughly before setting up your VersaClimber. Clear an area away from any objects that might restrict your motion while setting up.
  • Page 38 1. Assemble the base plate to the post. Using a 1/2” wrench, attach base plate (26) to post (2) as shown. Use two flat head screws (25) and two lock nuts (23) found on the post. Tighten all nuts securely. Lay the post on the floor with the large VersaClimber label facing up.
  • Page 39 4. Attach the straight section of the hand rail to the base plate (26), using the flat head screw; tighten with 3/16” hex wrench (provided). Secure rails to base plate using 3/16” hex or Allen wrench. 5. Attach assembled hand rail to the receiving end on the post.
  • Page 40 7. Assemble the brace (16) and tie (22) to the post (7) as shown here. This requires two people. Hold the post upright so that the base plate (26) is on the floor, then attach the top of the brace (16) with bolt (15) and locknut (14).
  • Page 41 Three holes have been machined into the moving foot pedal bar (35). This allows the foot pedals to be positioned at a higher level, providing both visibility to the display module and handle grips access for children as short as 3’6” tall. See VersaClimbing and Children page 29.
  • Page 42 13. Adjust screw (24) at the bottom of the angle brace (16) up or down until blase plate lays flat on the surface on which it is placed. Then rotate the two levelers (54) located on the base plate to level the machine right to left.

  • Page 43: Routine Maintenance

    BATTERY A nine volt alkaline battery that have been provided for the CL-108H & HP models are non-rechargeable. It has a life expectancy of about 60 hours and can be purchased at any store that sells batteries. A nine volt “nicad” rechargeable battery can also be pur- chased.

  • Page 44: Lubrication

    provides input to the computer display console (9) and (9A). The computer is held on the machine by Velcro strips (8) and electronically connected to the cover (2) with a flexible coiled wire. The routine maintenance of the VersaClimber is very simple. You can extend the life of the machine, maintain its appearance and smooth climbing motion by following these few easy steps.
  • Page 45 If machine feels “sticky” or resist- ance increases use paint thinner in a spray bottle or on a rag to remove the thick lubricant from the inner-tracks. Wipe all upper and lower inner surfaces with paint thinner to remove dry lubricant. Move the machine through 20 -30 full cycles (pushing and pulling on the handles) and clean again.

  • Page 46: Versaclimber Assembly Sketches

    Page 41...
  • Page 47 Page 42...
  • Page 48 Page 43...
  • Page 49 W W A A R R R R A A N N T T Y Y P P A A R R T T S S Period starts from date on serial number. FOR VERSACLIMBER MODEL CL-108H, CL-108HP Warranty Parts Are Identified Per Item Numbers On Warranty Parts...

  • Page 50: Warranty Parts

    2 YEAR WARRANTY PARTS ITEM NO PART NO. PART DESCRIPTION 060-01006 Shaft, Pulley 7 - 108 Models 060-22-000 Post 7A - 1075 Models 065-04-000 Post 060-21-005 Label, Consumer (Blue) 060-04-002 Pedal 060-05-001 Pedal Shaft, Left 060-04-001 Pedal Shaft, Right 003-00-005 Roller 003-00-009 Slide...
  • Page 51 VERSACLIMBER 108H & 108HP THREE YEAR LIMITED WARRANTY 1. Heart Rate, Inc. (H.R.I.) warrants to the original purchaser that Institutional VersaClimbers are free from defects in material and workmanship under normal use and maintenance under a three year limited warranty subject to the terms and conditions Hereafter set forth. Except for the above warranty, it is expressly agreed that NO WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE or of a particular use nor any warranty of any kind whatsoever express, implied or statutory is made by Heart Rate Inc.(HRI)

  • Page 52: Warranty Validation Form

    V V E E R R S S A A C C L L I I M M B B E E R R W W A A R R R R A A N N T T Y Y V V A A L L I I D D A A T T I I O O N N F F O O R R M M (MODEL CL-108H and CL-108HP) To validate your Warranty Registration, please fill out the following form and return it to Heart Rate, Inc.
  • Page 54 A trusted name in fitness for nearly 30 years. Proudly made in USA since 1981. To learn more about other great VersaClimber accessories and options to enhance your workout, please visit us on line at www.versaclimber.com or call our toll free number at 1.800.237.2271 for more details.
