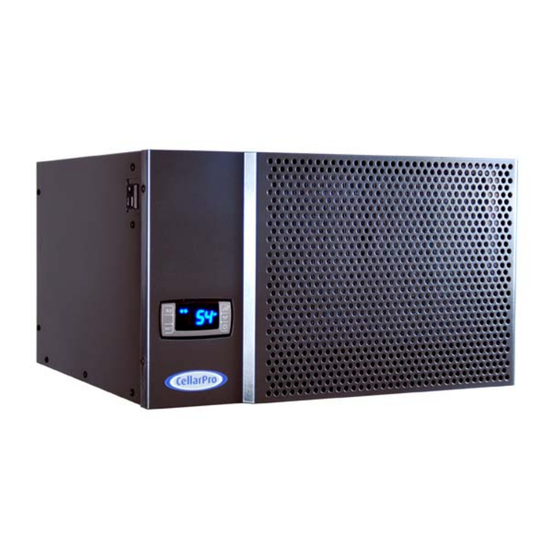

- Page 2 Website: www.cellarpro.com Serial Number*: ____________________ *We recommend that you take a minute to fill-in your CellarPro serial number above. The serial number has seven-digits and can be found on the printed label on the left side of your cooling unit.
- Page 3 [This page left blank]...
-
Page 4: Table Of Contents
T a b l e o f C o n t e n t s Prior to Installation Installation Instructions – Wine Cellars III. Operating Instructions IV. Troubleshooting Limited Warranty... -
Page 5: Prior To Installation
TOP of the cooling unit (as shown in the Picture B). In this configuration, the cavity at the REAR of the CellarPro is OPEN. Picture B Rear Vent Configuration Wait 24 hours before operating the cooling unit. -
Page 6: Installation Instructions - Wine Cellars
To figure out whether a CellarPro unit will work in your space, make sure that the cooling unit’s BTUH for a given cellar temperature is equal or greater than the thermal load shown. - Page 7 10.0°C and 29.4°C. They are designed for internal use only, and are not designed for exposure to the exterior. CellarPro cooling units are designed to maintain temperatures inside the cellar up to 16.6°C below the ambient temperature of the condenser air intake. For example, if the ambient temperature of the condenser air intake is 29.4°C, the cooling unit...
- Page 8 We offer a Wine Cellar Modification for cooling units that will be installed in wine cellars (as opposed to wine cabinets.) The Wine Cellar Modification provides a fitting and condensate tube at the back of the cooling unit to relieve excess moisture that may condense inside the cooling unit.
- Page 9 CellarPro cooling units must always be mounted in the upright position and located as close to the ceiling as possible inside the cellar. As warm air rises to the top of the cellar, the cooling unit pulls the warm air through the evaporator coils and removes the heat from the warm air.
- Page 10 Alternatively, the front of the cooling unit can be supported by a shelf and a diagonal brace. The shelf can be up to 13.25”(337mm) inches wide, and should be positioned on the right side of the cooling unit so that it doesn’t restrict the exhaust vent below the cooling unit, as follows: Once the cooling unit is installed, all cracks and gaps between the cooling unit and the cellar should be sealed.
- Page 11 OUTSIDE THE CELLAR Proper ventilation is critically important for the proper operation of your CellarPro cooling unit. The CellarPro cooling unit creates a significant amount of hot air, which must be exhausted into an appropriately-sized space in order for the heat to dissipate.
- Page 12 1. Evaporator Air Intake. The evaporator coils are located on the face of the cooling unit behind the grill. CellarPro cooling units are designed to be mounted at the highest point inside wine cellars, so that warm air – which rises – will be the first to pass over the evaporator coils, which will remove the heat from the air.
-
Page 13: Operating Instructions
I I I . O p e r a t i n g I n s t r u c t i o n s Overview Please follow the instructions in Chapter I prior to turning on your CellarPro cooling unit. - Page 14 Minimum Set Point to reduce the cycle “on” time. Most wine collectors store their wine in the range of 12.8 - 15.6°C. CellarPro cooling units are designed to maintain appropriate levels of humidity, ranging from 50 to 70 percent, inside wine cellars. In order to increase or decrease humidity inside the cellar, the Fon setting can be changed as described in the “Advanced Operation”...
- Page 15 Power On/Off Button Press “Power On/Off” to turn the unit on and off When the “Compressor On” indicator light is on, the Compressor is running. When the “Fan On” indicator light is on, the Fan is running Up and Down Buttons To view the “High Temp”...
- Page 16 Energy Saver Button To activate and deactivate the “Energy Saver” mode, press the “Energy Saver” button The “Energy Saver” indicator light will turn on when the cooling unit is in “Energy Saver” mode In “Energy Saver” mode, the Minimum Set Point increases 2.2°C and the Temperature Differential is unchanged Quick Chill Button...
- Page 17 Advanced Operation CellarPro cooling systems can be programmed with advanced settings to achieve more control over conditions inside the cellar. Conditions like humidity, the Temperature Differential, and alarm settings all can be modified for custom applications. To access the advanced settings, do the following: ...
- Page 18 8 minutes. Optional Protection Mechanisms CellarPro cooling systems can be programmed to turn off the compressor and condenser fan in the event of an HA2 alarm, as described below. If you’d like to turn on this protection mechanism, please call us toll-free at 877.726.8496...
- Page 19 The control panel also will flash a code for each alarm, as follows: Alarm Code What it means What to do P1, P2, P3 Probe Failure Call CellarPro at 877.726.8496 The temperature inside Check seals; the cellar is too warm Check if door was left open; (above 21.1°C for more...
-
Page 20: Troubleshooting
Hot weather conditions, insufficient insulation, inadequate ventilation, mis-sized cellar capacity and/or dirty condenser coils can all cause the cooling unit to run continuously. If your CellarPro wine cooling unit runs constantly, try the following: Make sure that both fans are spinning ... - Page 21 60°C for more than 2 hours, the HA2 alarm will display on the control panel. If this alarm happens when you first receive and start operating your CellarPro cooling unit, check for appropriate installation and ventilation (Chapter II). Also, make sure that there aren’t any obstructions to the intake and/or exhaust vents.
- Page 22 The LA2 Alarm has been triggered As noted above, the cooling unit is designed to measure the temperature of the condenser coils and, if the temperature drops below a certain point, the LA2 alarm will display on the control panel. To reduce the alarm temperature setting, do the following: 1.
-
Page 23: Limited Warranty
V . L i m i t e d W a r r a n t y For two years from the date of purchase, your CellarPro warranty covers all parts and labor to repair or replace any components in the wine cooling unit that prove to be defective in materials or workmanship.
