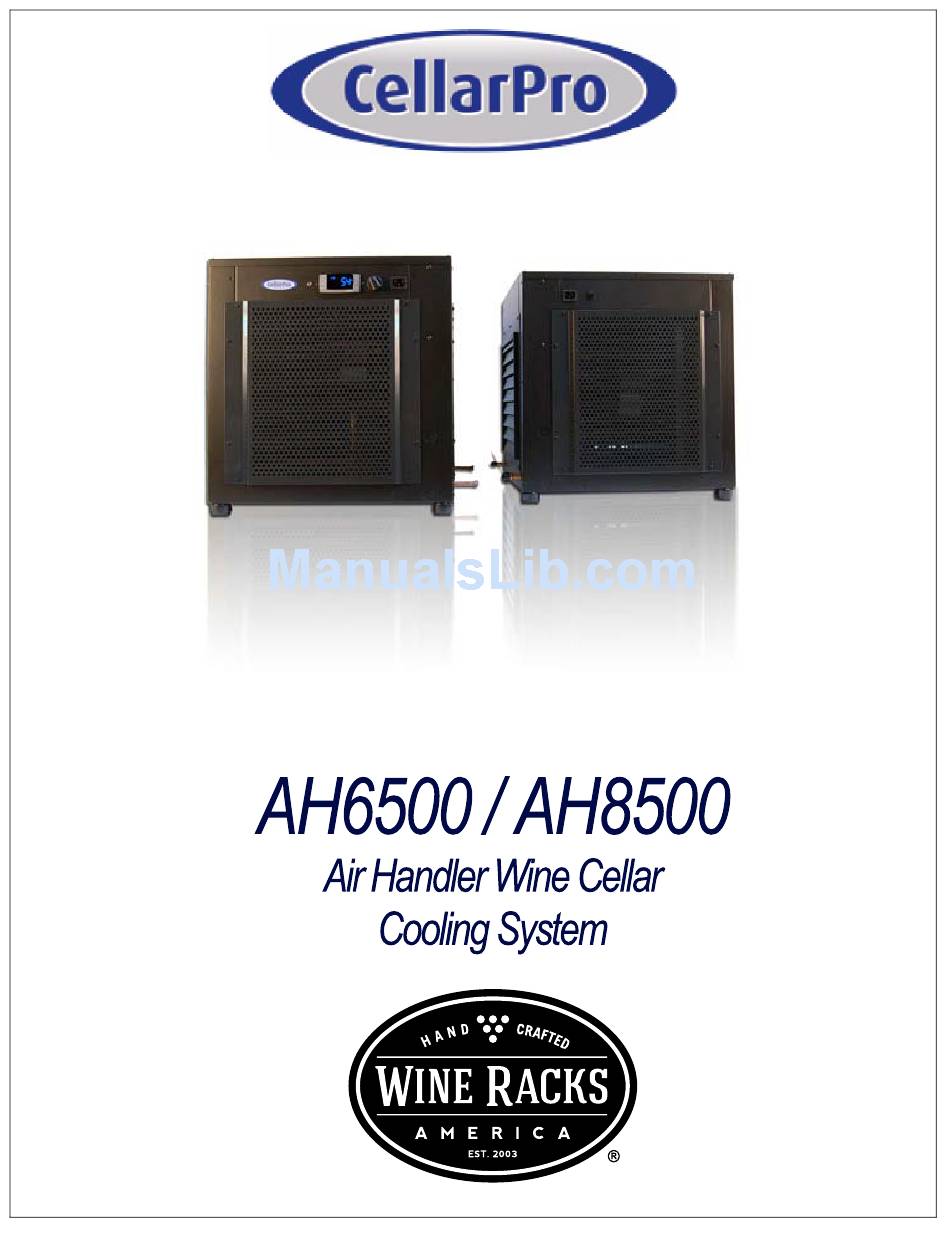

CellarPro AH8500 Owner's Manual

Air handler wine cellar cooling system
Hide thumbs Also See for AH8500:

Advertisement

Quick Links

See also: User Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the AH8500 and is the answer not in the manual?

Questions and answers

Related Manuals for CellarPro AH8500

Summary of Contents for CellarPro AH8500

  • Page 2 M a n u a l , a t www.cellarpro.com/customerservice If you still have questions, please don’t hesitate to contact your dealer or CellarPro directly. We can be reached during normal business hours at 707.794.8000. You also may contact us anytime via email at info@cellarpro.com.

  • Page 3: Table Of Contents

    T a b l e o f C o n t e n t s Specifications, Cut Sheets, and Cellar Construction II. Installation Instructions III. Operating Instructions IV. Troubleshooting V. Limited Warranty VI. Support and Data Service Sheet (Split Configuration)

  • Page 4: Specifications, Cut Sheets And Cellar Construction

    Weight WxDxH (inches) (lbs) (inches) (lbs) Model AH6500 18.6 x 37.1 x 19.3 33.0 x 37.1 x 18.5 AH8500 18.6 x 37.1 x 19.3 33.0 x 37.1 x 18.5 Vertical Self Contained No Humdifier With Humidifier Dimensions Weight Dimensions WxDxH...
  • Page 7 Cellar Construction Insulation CellarPro cooling units are designed to be installed inside wine cellars that have proper insulation, moisture barriers and an airtight seal from the environment outside the cellar. Interior walls and floor should have a minimum of R-...
  • Page 8 Evaporator/Condensor Ducting. CellarPro Air Handlers exhaust and return (hot and cold side) can be ducted up to 50 equivalent feet (100' total equivalent feet exhaust and return) with 10”...

  • Page 9: Installation Instructions

    II. Installation Instructions Configuration Options The Air Handler comes in three basic configurations:  Horizontal configuration - which can be installed inside or outside the cellar. Additionally it can be installed through the wall with a portion of the unit in the cellar and outside the cellar.
  • Page 11 Vertical Configuration. Through wall: Vertical units cannot be mounted in a through wall configuration. Remote ducted: Vertical units can be mounted remotely with the evaporator intake and discharge air are ducted to the cellar. The condenser can be configured with grills to vent the air provided that the location is suitably ventilated, or with duct adapters for ducting the intake, discharge, or both to a suitably ventilated area.
  • Page 12 Split Configuration. Models in the Split Configuration can be mounted as follows, with interconnecting wiring and refrigerant piping field provided by an experienced Refrigeration contractor: Remote ducted: The unit is mounted remote to the cellar, and the evaporator module intake and discharge air are ducted to the cellar. The condenser can be provided with grills to vent the air, or duct adapters to duct the intake, discharge, or both.
  • Page 14 Condensate Drain Line – description and layout The Air Handler has been designed to minimize the amount of condensation created when cooling. The condensate that does form on the evaporator will gather in a tray and be channeled to the drain, through a small trap, and then out through the side of the unit where it exits via a barbed fitting.
  • Page 15 Watts Standard 11.46 53.0 1464 With Humidifier 11.46 53.0 1579 With Heating 10.6 1220 11.46 53.0 1579 AH8500 / AH8500S Cord Connected Evaporator Module Condenser Module System Amps Amps Total (FLA) Power (FLA) Power Power @ 115V / Breaker Input...
  • Page 16 System Wiring - Self Contained Configuration / Cord Connected Models in the Horizontal or Vertical configurations are provided with two power cords for connection to two dedicated 115V/60HZ power receptacles. Each power receptacle must be on a separate circuit breaker, sized by model and module according to the electrical data table.
  • Page 19 Installing Refrigeration Lines The Evaporator and Condensing units should be piped according to the following piping schematic: Piping Legend 1. The 3/8"ODS liquid service valve located on Condenser Module. 2. Hermetic liquid line filter drier (shipped loose). Install with the directional flow arrow as shown.
  • Page 20 Split System Line Sizing Chart Suction Line Size by Length ("ODS) Minimum Over 25 feet Over 50 feet Liquid Line Suction Line Up to 25 feet up to 50 feet up to 100 feet Size ("ODS) Insulation Up to 100 Thickness Model feet...
  • Page 21 6. Disconnect the vacuum pump, but leave the system under vacuum. Use a charging scale to accurately weigh in the refrigerant. Charge liquid R-134a refrigerant through the liquid service valve according to the charge pounds indicated in the "System R- 134a Charge Guidelines"...
  • Page 22 Installation Tips and Guidelines  When brazing copper tubing to the service valves, use 95/5 solder and soldering flux. Do not use silver solder because it requires higher heat that will damage the service valves.  Make sure all electrical connections are secure. ...
  • Page 23 Summary Keep in mind the following guidelines when selecting your wine cooling unit from CellarPro:  If the cellar is too large for the cooling unit, the cooling unit will be unable to maintain proper, even temperatures inside the cellar.

  • Page 24: Operating Instructions

    Minimum Set Point to reduce the cycle “on” time. Most wine collectors store their wine in the range of 55 - 60° F. CellarPro cooling units are designed to maintain appropriate levels of humidity, ranging from 50 to 70 percent, inside wine cellars.
  • Page 25 Humidifier (optional): Recommended for installations where the ambient humidity is insufficient to maintain 50 to 70%RH inside the cellar. The humidity control is remote mounted with 10ft of interconnecting wire inside the cellar. Refer to separate manual for detailed installation and operating instructions for the humidifier and humidity controller.
  • Page 26 Control Locations by Configuration Control Panel: Maintains desired cellar environment. Factory settings are optimized for peak performance. Controller is described in detail in the following section. Fan Speed Selector Switch (Low/Med/High): The fans on both the evaporator and condenser modules operate on 3 speed settings: Low, Medium, and High. For optimum sound and energy efficiency, select the lowest fan speed that will maintain the desired cellar temperature.
  • Page 27 Bottle Probe Jack (Bottle Probe): A bottle probe is required if the evaporator (cold side) is ducted. The bottle probe is designed to plug into the face of the cooling unit and terminate inside the cellar measuring either air or liquid. Disconnecting the probe will automatically return the control to air temperature.
  • Page 28 Control Panel Instructions Digital Display The temperature displayed on the control indicates the real-time air temperature as measured by Probe 1 (P1) located behind the front grill of the cooling unit. Power “On” / “Off” Press “Power On/Off” to turn the unit on and off. When the “Compressor On”...
  • Page 29 Up and Down Buttons To view the “High Temp” recorded by the cooling unit, press the “Up” button once. To view the “Low Temp” recorded by the cooling unit, press the “Down” button once. To reset the “High Temp” or “Low Temp”, press the “Set”...
  • Page 30 Energy Saver Button To activate and deactivate the “Energy Saver” mode, press the “Energy Saver” button. The “Energy Saver” indicator light will turn on when the cooling unit is in “Energy Saver” mode. In “Energy Saver” mode, the Minimum Set Point increases 4°F and the Temperature Differential is unchanged.
  • Page 31 Remote Control / Display Instructions Digital The temperature displayed on the control is red instead of blue. Display Quick Chill To activate the “Quick Chill” mode, press the “Up” button for three Button seconds To deactivate “Quick Chill”, press the “Up” button for three seconds again Button The “Quick Chill”...
  • Page 32 Advanced Operation CellarPro cooling systems can be programmed with advanced settings to achieve more control over conditions inside the cellar. Conditions like humidity, the Temperature Differential, and alarm settings all can be modified for custom applications. To access the advanced settings, do the following: Press the “Set”...

  • Page 33: Troubleshooting

    12 minutes and off for 8 minutes. Please call CellarPro at 877.726.8496 to repair or replace Probe 1 The temperature inside the Check if the cellar has a leak...
  • Page 34 General Conditions  Cooling Unit Runs Constantly Improper installation, inadequate insulation, or a cellar that is too large will cause the cooling unit to run continuously and be difficult to troubleshoot. The cooling unit is designed to turn on when the air temperature in the cellar rises ABOVE the Minimum Set Point + Temperature Differential, and turn off when the air temperature falls below the Minimum Set Point.
  • Page 35 As noted above, the cooling unit is designed to measure the temperature of the condenser coils and, if the temperature drops below a certain point, the LA2 alarm will display on the control panel. Please contact CellarPro when the LA2 alarm has been triggered.
  • Page 36 Troubleshooting Issues – All Configurations Issue Possible Causes Potential Solutions No cooling: no refrigerant flow. No power to Power supply to Condensing Unit interrupted. compressor Restore power. If the "snowflake" icon is Check for loose wires and reconnect. illuminated on the High pressure Locate and correct source of high condensing temperature display control...
  • Page 37 Troubleshooting Issues – Split System Configuration Only Issue Possible Causes Potential Solutions No cooling: no refrigerant flow. No power to liquid Power supply to Evaporator interrupted. Restore solenoid valve coil power. If the "snowflake" icon is (valve control) Power supply to solenoid coil interrupted: loose illuminated on the wire.
  • Page 38 Continued - Troubleshooting Issues – Split System Configuration Only Issue Possible Causes Potential Solutions No cooling: Evaporator fan No power to fan Power supply to Evaporator interrupted. Restore not blowing. power. Power supply to fan interrupted: loose wire. If the "fan" icon is illuminated Inspect for loose fan wiring and reconnect.

  • Page 39: Limited Warranty

    All service provided by CellarPro under the above warranty must be performed by a designated repair center, unless otherwise specified by CellarPro. Purchaser is responsible for shipping the cooling unit to and from CellarPro or to and from a designated repair facility, and for removing and reinstalling the cooling unit from the wine cellar.

  • Page 40: Support And Data Service Sheet (Split Configuration)

    To activate the warranty, the system must be installed properly. In order for us to assess and approve the installation, the installing technician must complete the page below. The page can be faxed to 707.794.8005 or emailed to info@cellarpro. We will contact you once we receive and review this sheet. Technician Information...

This manual is also suitable for:

Ah6500
