1.10 Connectors

1.10.1

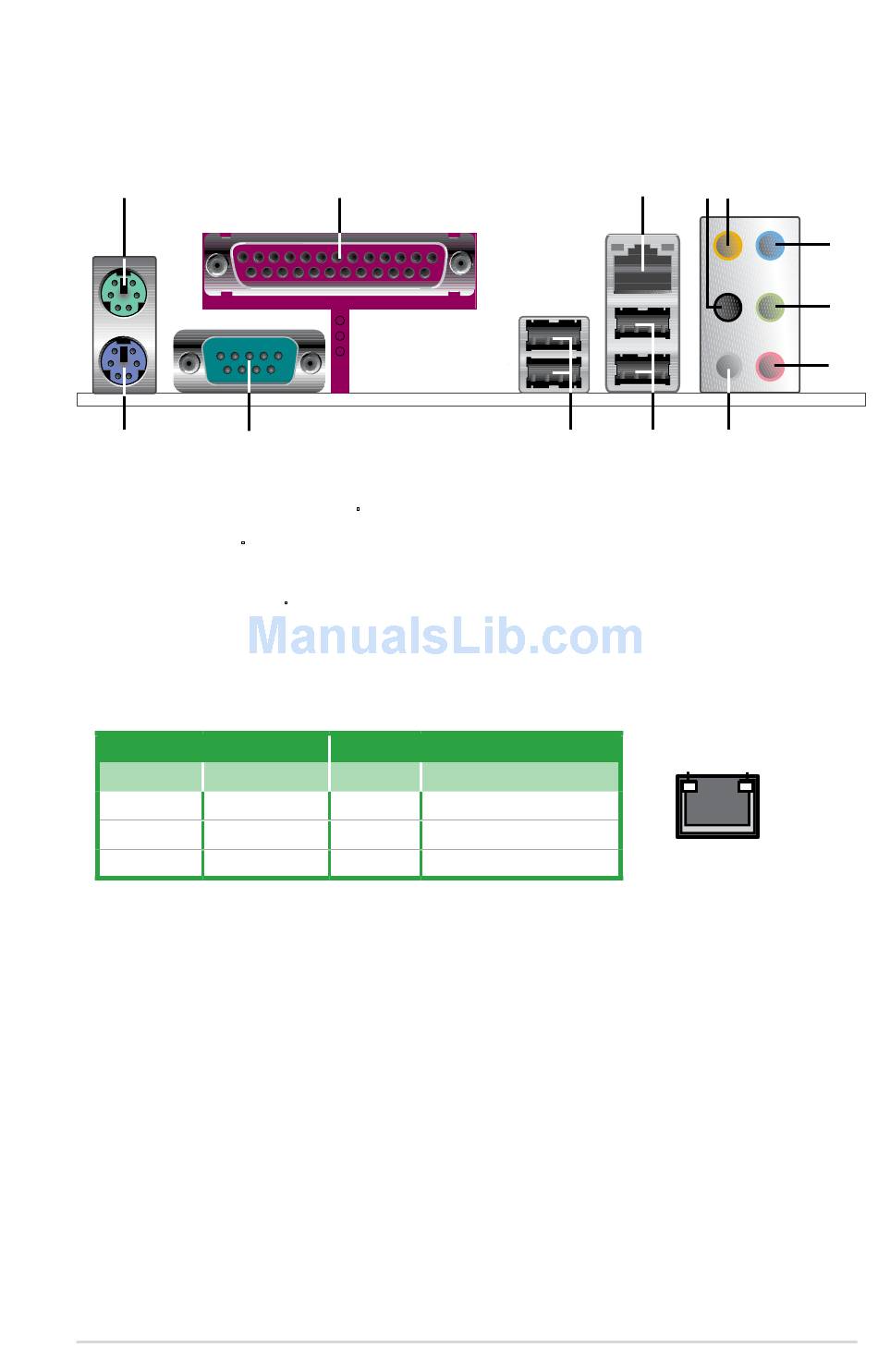

Rear panel connectors

1
12
13
1. PS/2 mouse port (green). This port is for a PS/2 mouse.
2. Parallel port. This 25-pin port connects a parallel printer, a scanner, or other
devices.
3. LAN (RJ-45) port. This port allows Gigabit connection to a Local Area
Network (LAN) through a network hub. Refer to the table below for the LAN
port LED indications.
LAN port LED indications
ACT/LINK LED
Status Description
OFF No link
YELLOW Linked
BLINKING Data activity
4. Rear Speaker Out port (black). This port connects the rear speakers in a
4-channel, 6-channel, or 8-channel audio configuration.
5. Center/Subwoofer port (orange). This port connects the center/subwoofer
speakers.
6. Line In port (light blue). This port connects the tape, CD, DVD player, or
other audio sources.
7. Line Out port (lime). This port connects a headphone or a speaker. In
4-channel, 6-channel, and 8-channel configuration, the function of this port
becomes Front Speaker Out.
8. Microphone port (pink). This port connects a microphone.
ASUS P5KPL-C/1600
2
SPEED LED
Status Description
OFF 10 Mbps connection
ORANGE 100 Mbps connection
GREEN 1 Gbps connection
3 4 5
11
10 9
ACT/LINK SPEED
LED
LAN port
6
7
8
LED
