Summary of Contents for KERN KERN FWN

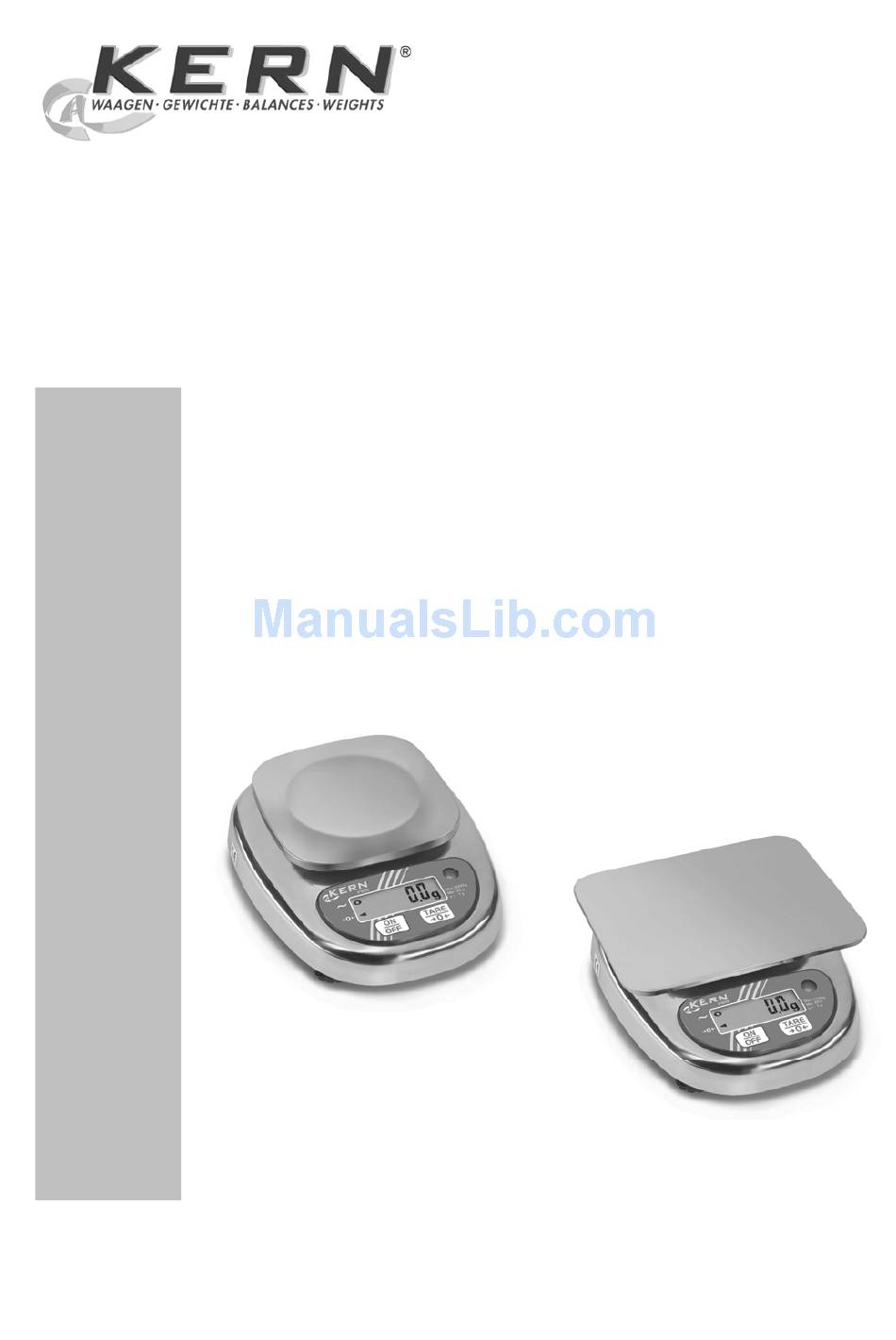

- Page 1 KERN & Sohn GmbH Ziegelei 1 Tel: +49-[0]7433- 9933-0 D-72336 Balingen Fax: +49-[0]7433-9933-149 E-Mail: info@kern-sohn.com Internet: www.kern-sohn.com Operating Manual Compact balance KERN FWN Version 1.1 04/2007 FWN-BA-e-0711...
-
Page 2: Table Of Contents
KERN FWN Version 1.1 04/2007 Operating Manual Compact balance Table of Contents Technical data __________________________________________________ 3 Declarations of conformity _______________________________________ 5 Electronic Compact Balance (verifiable)_________________________________ 6 Appliance overview _____________________________________________ 7 Description of parts _____________________________________________ 8 Basic Information (General)_______________________________________ 9 Proper use _______________________________________________________ 9... -
Page 3: Technical Data
1 Technical data (non verifiable models) KERN FWN 300-1IP FWN 1K0.5IP Readability (d) 0.1 g 0.5 g Weighing range (max) 300 g 1,000 g Reproducibility 0.1 g 0.5 g Linearity 0.2 g Recommended adjusting 200 g + 100g (M2) 1000 g (M3) weight (not supplied) (class) Stabilization time (typical) 2 sec. - Page 4 Verifiable model KERN FWN 3K1IPM Readability (d) Weighing range (max) 3,000 g Minimum load (Min) 20 g Verification value (e) Verification class Reproducibility Linearity Recommended adjusting 2000 g + 1000 g (M2) weight (not supplied) (class) Stabilization time (typical) 2 sec. Operating temperature -10°...
-
Page 5: Declarations Of Conformity
Manifestamos en la presente que el producto al que se refiere esta declaración está de acuerdo con las normas siguientes Dichiariamo con ciò che il prodotto al quale la presente dichiarazione si riferisce è Italiano conforme alle norme di seguito citate. Electronic Scale: KERN FWN Mark applied EU Directive Standards 89/336/EEC EN 61326... -
Page 6: Electronic Compact Balance (Verifiable)
Dichiariamo con ciò che il prodotto al quale la presente dichiarazione si riferisce è Italiano conforme alle norme di seguito citate. Questa dichiarazione sarà valida solo se accompagnata dal certificato di conformità della parte nominale. Electronic Scale: KERN FWN Model: FWN 3K1IPM EU Directive Standards EC-type-approval Issued by certificate no. -
Page 7: Appliance Overview
3 Appliance overview Model FWN 3K1IPM (verifiable) Models FWN 300-1IP, FWN 1K0.5IP (not verifiable) FWN-BA-e-0711... -
Page 8: Description Of Parts
4 Description of parts Display ON/OFF key Weighing plate Bubble level Taste RE-ZERO UNIT button (hidden) Four leveling feet Models FWN 300-1IP, FWN 1K0.5IP STABLE display Indicates that the weighed value is Weighing unit, g stable. ZERO display Indicates when the balance is stable. -
Page 9: Basic Information (General)
5 Basic Information (General) 5.1 Proper use The balance you purchased is intended to determine the weighing value of material to be weighed. It is intended to be used as a “non-automatic“ balance, i.e. the material to be weighed is manually and carefully placed in the centre of the weighing plate. -
Page 10: Monitoring Of Test Resources
5.4 Monitoring of Test Resources In the framework of quality assurance the measuring-related properties of the balance and, if applicable, the testing weight, must be checked regularly. The responsible user must define a suitable interval as well as type and scope of this test. Information is available on KERN’s home page (www.kern-sohn.com) with regard to the monitoring of balance test substances and the test weights required for this. -
Page 11: Unpacking, Setup And Commissioning
8 Unpacking, Setup and Commissioning 8.1 Installation Site, Location of Use The balances are designed in a way that reliable weighing results are achieved in common conditions of use. You will work accurately and fast, if you select the right location for your balance. Therefore, observe the following for the installation site: Place the balance on a firm, level surface;... -
Page 12: Unpacking
Information: The non verifiable models bear the air bubble level under the weighing plate. 8.3.1 Scope of delivery Serial accessories: KERN FWN • Balance • Weighing plate • Batteries (6 x AA 1.5 V) • Operating Manual 8.4 Battery operation When changing the batteries do not press to heavy on the weighing plate. -
Page 13: Mains Adapter (Optional)
8.5 Mains adapter (optional) Power is supplied via the external mains adapter. The stated voltage value of the mains adapter must be the same as the local voltage. Only use original KERN mains adapter. Using other makes requires consent by KERN. -
Page 14: Adjustment
8.7 Adjustment As the acceleration value due to gravity is not the same at every location on earth, each balance must be coordinated - in compliance with the underlying physical weighing principle - to the existing acceleration due to gravity at its place of location (only if the balance has not already been adjusted to the location in the factory). -
Page 15: Verification
Model FWN 300-1IP, FWN 1K0.5IP (not verifiable) • Press the [ON/OFF] key in order to switch off the power supply. • Press as well the [TARE] button and the [UNITS] button and press at the same time the [ON/OFF] key. CAL is displayed. Position of the UNITS key to call-up the adjustment function (not visible) UNITS key •... -
Page 16: Adjustment Switch And Seal
Verification instructions An EU type approval exists for balances described in their technical data as verifyable. If a balance is used where obligation to verify exists as described above, it must officially verified and re-verified in regular intervals. Re-verification of a balance is carried out according to the respective national regulations. -
Page 17: Weighing
9 Weighing Take care of the automatic switch-off function. When this equipment is switched ON and the stabilisation display is active, after approx. 5 minutes the automatic switch-off function will be activated. In order to deactivate this function, press [ON/OFF] and [TARE] at the same time. P-XX is displayed, and the balance returns to the weighing mode. -
Page 18: Service, Maintenance, Disposal
10 Service, maintenance, disposal 10.1 Cleaning Before cleaning, please disconnect the appliance from the operating voltage. Please do not use aggressive cleaning agents (solvents or similar agents), but a cloth dampened with mild soap suds. Ensure that no liquid penetrates into the device and wipe with a dry soft cloth. -
Page 19: Instant Help
11 Instant help In case of an error in the program process, briefly turn off the balance and disconnect from power supply. The weighing process must then be restarted from the beginning. Help: Fault Possible cause • The balance is not switched on. The displayed weight does not glow.
