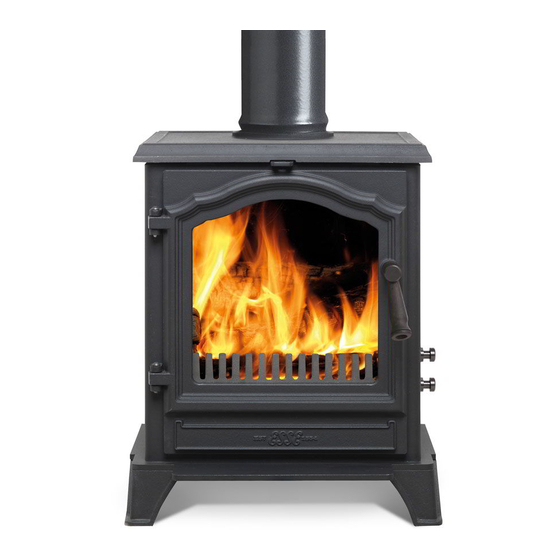

500
MULTI-FUEL STOVE
INSTALLATION & USER INSTRUCTIONS
(TO BE LEFT WITH THE CUSTOMER)
UK & Ireland
1
GUARANTEE
Conditions of Guarantee
Your ESSE stove is guaranteed against defects arising from faulty manufacture for one year subject to the following
express conditions. Failure to comply with these conditions will invalidate the guarantee.
•
Your ESSE dealer or a suitably qualified engineer must install the stove. Upon installation the receipt
must be kept as proof of purchase.
•
The guarantee is one year from date of purchase.
•
The guarantee does not cover parts deemed to be replaceable in the normal usage of the stove. These
parts are: firebars, ash pan, side and back bricks, base protection plates, baffle, door rope seal, fuel bar,
door glass.
How to Proceed With a Complaint
If you have cause for dissatisfaction with your stove, you should first contact your ESSE dealer, who will bring your
concerns to our attention, We will assess the nature of the complaint and either send replacements parts for your
dealer to fit, or nominate a regional engineer to inspect the appliance and carry out any remedial work that may be
necessary. If the fault is not actually due to faulty manufacture but some other cause i.e. misuse, failure to install
correctly, or failure to service at regular intervals, a charge will be made to cover the cost of the visit and any new
st
parts required. In the 1
year ESSE will only deal with the dealer direct.
Spare Parts
Only genuine ESSE spare parts are recommended, Parts that may need occasional replacement are:
Fire bricks
Firebars
Ash pan
Side and Back Bricks
Base Protection Plates
Baffle
Fuel Bar
ESSE Engineering Limited, Ouzledale Foundry, Long Ing, Barnoldswick, Lancashire, BB18 6BN
Tel: 01282 813235, Fax: 01282 816876, e-mail: enquiries@esse.com
Website: http://www.esse.com, On-line store: http://www.esseparts.com
12
12/09
