Summary of Contents for Esse Ironheart

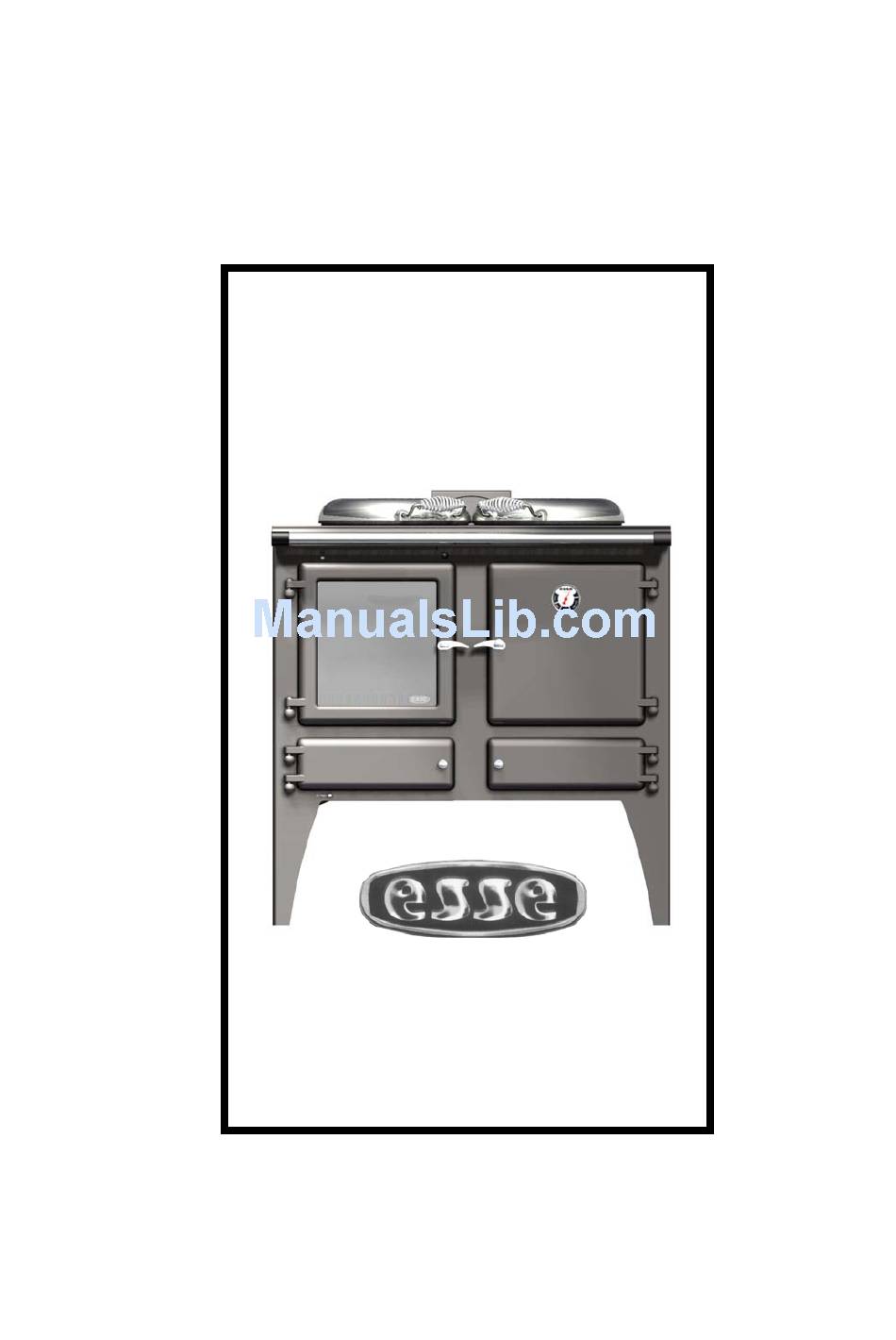

- Page 1 Installation and Operating Instructions for the ESSE Cookstove Save these Instructions Ouzledale Foundry Co. Limited, Long Ing, Barnoldswick, Lancashire BB18 6BN England...
-
Page 2: Table Of Contents
Table of Contents SAFETY NOTES..........................1 OPERATING INSTRUCTIONS Your Stove............................2 Lighting and Controlling the Fire......................2 Correct Running Temperatures......................5 Extended burning..........................5 Fuel..............................6 Operating the Oven and Hob......................6 Cleaning the Stove..........................7 INSTALLATION INSTRUCTIONS Chimney and Flue Information......................8 Flue Draught Guide.........................13 Positioning and Flue Connection.....................14 Parts Diagram..........................15... -
Page 3: Safety Notes
Safety Notes Properly installed, operated and maintained, this appliance will not emit fumes into the dwelling. However occasional fumes from de–ashing and re–fuelling may occur.Persistent fume emission is potentially dangerous and must not be tolerated. If fume emission does persist, open doors and windows to ventilate the room. -
Page 4: Operating Instructions

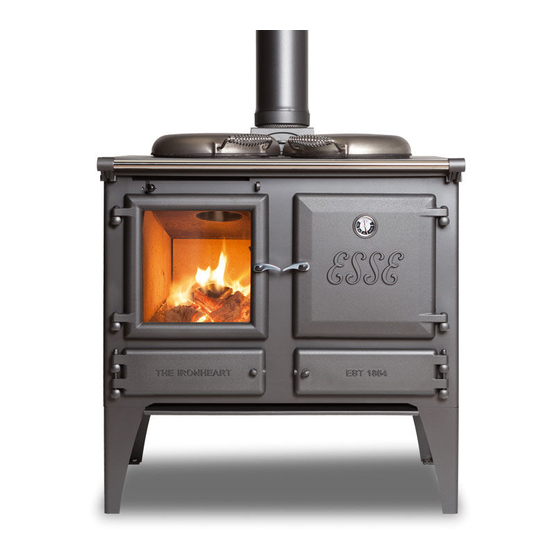

Operating Instructions our Stove Figure 1 shows the stove and its controls. The large glass door on the left is the loading door through which the fire is lighted and refuelled. The small door at the bottom on the left is the ash door. - Page 6 For Canada: Clearances may only be reduced by means approved by the regulatory authority. If the chimney connector goes horizontally through a wall, the floor protection must extend under the connector and 2”(50mm) beyond each side. WARNING: DO NOT STORE WOOD WITHIN THE CLEARANCE AREA...
-
Page 7: Correct Running Temperatures
Notes on Woodburning Wood burns most efficiently when the air for combustion is supplied from above the fire bed rather than below. The air supplied above the fire bed provides the oxygen necessary for the volatile gases (smoke), given off by the wood as it heats, to combust. This ensures that the gases are burnt and used to heat the stove instead of being wasted up the chimney or condensing and forming tarry deposits inside the stove, in the flue or on the stove glass. -
Page 8: Fuel
Types of wood for fuel For best results use well seasoned hardwood. Allow wood to dry out under cover in well–ventilated conditions for at least twelve months. Wood is ready for burning when radial cracks appear in the end of the logs. Burning wood that is not seasoned will result in tar being deposited in the stove, on the glass and in the flueways. -
Page 9: Cleaning The Stove
Cleaning the Stove The stove should only be cleaned when it is cold. The exterior can be dusted with a firm brush. Do not use a cloth, as this will drag on the paint finish leaving lint on the surface. As the stove top is used for cooking, normal wear and tear will occur. -
Page 10: Installation Instructions
Installation Instructions Important Installation Notes: a) When this stove is not properly installed, a house fire may result. To reduce the risk of fire, follow the installation instructions. Contact local building or fire officials about restrictions and installation inspection requirements in your area. b) For the US this room heater must be connected to: 1) A chimney complying with the requirements for Type HT chimneys in the Standard for Chimneys, Factory-Built, Residential Type and Building Heating Appliance, UL 103, or... -
Page 11: Chimney Connection
Chimney Connection The chimney connector is a single walled pipe used to connect the stove to the chimney. The chimney connector MUST be 6" in diameter, with a minimum thickness of 24 gauge black steel or 26 gauge blued steel. Aluminium and galvanized steel pipe is not acceptable for use with the woodstove. - Page 12 Chimney DO NOT CONNECT THIS UNIT TO A CHIMNEY FLUE SERVING ANOTHER APPLIANCE. DO NOT CONNECT TO ANY AIR DISTRIBUTION DUCT OR SYSTEM. This room heater must be connected to a factory built UL 103 HT chimney (ULC S629, in Canada) or a code-approved masonry chimney with a flue liner.
- Page 13 Combustible Wall Chimney Connector Pass-Throughs Method A. 12" (304.8 mm) Clearance to Combustible Wall Member: Using a minimum thickness 3.5" (89 mm) brick and a 5/8" (15.9 mm) minimum wall thickness clay liner, construct a wall pass-through. The clay liner must conform to ASTM C315 (Standard Specification for Clay Fire Linings) or its equivalent.
-
Page 14: Chimney Height
Pressure and Suction zones Effect of adjacent buildings, hills or tall created by wind trees on the exit of flue gases Figure 6. Chimney and flue performance. Chimney Height A masonry chimney or a listed factory-build chimney must be the required height above the roof and any other nearby obstructions. -
Page 15: Flue Draught Guide
Flue Draught The chimney can be checked, before the stove is installed, with a smoke match. If the chimney doesn’t pull the smoke it may suggest the chimney needs attention (see the Flue Diagnosis Table below). Note: This test is only a guide as an apparently poor flue may improve once the stove is installed, lit and the flue is warmed. -
Page 16: Positioning And Flue Connection
Flue Stabilizer A flue stabilizer can be fitted to reduce the draught through the stove if the flue draught is too high. The flue stabilizer should; be fitted in the same room as the stove, be the same size as the flue pipe and be fitted no closer than 28”... - Page 18 04/04 Esse North America Tel: (250) 743 2221 Fax: (250) 743 1229 Esse Firemaster UK Ouzledale Foundry Co Ltd, Long Ing, Barnoldswick, Lancashire, BB18 6BN Tel: 01282 813235 Fax: 01282 816876 www.ouzledale.co.uk...
