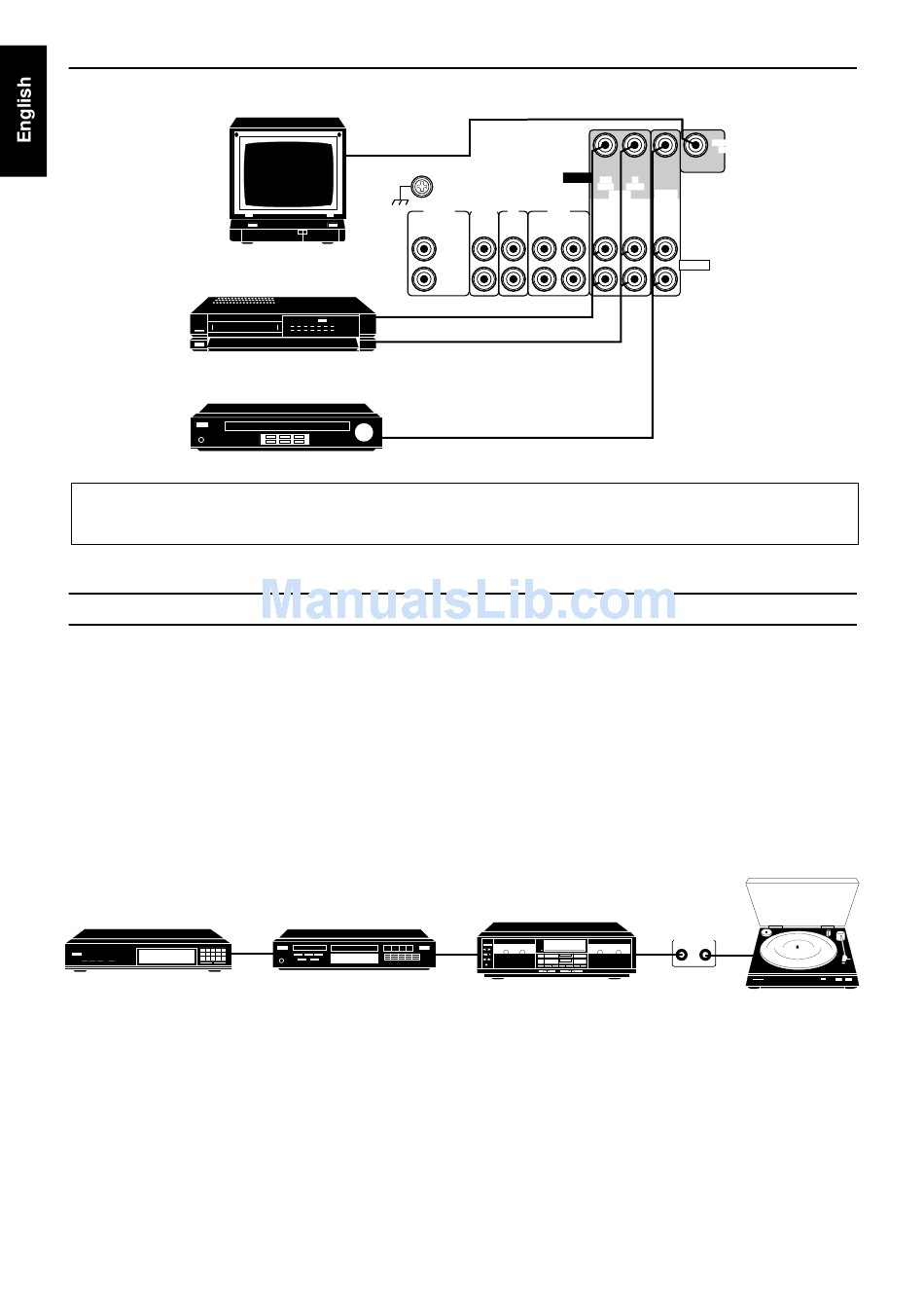

Video component connections
VHS
Video disc player
CAUTION:
If you connect a sound-increasing device such as a graphic equalizer between the source components and the amplifier, the
sound output through the amplifier may be distorted.

Connecting Audio Components for the COMPU LINK-3 Remote Control System

Tuner
Page 7
To video input
GND
PHONO
TV
To audio/video input
To audio/video output
VCR
To audio/video output
The COMPU LINK-3 remote control system allows you to control other JVC audio components from the
amplifier or vice versa. To use this system, connect your JVC audio components and the amplifier with the
cable (monaural mini-plug) supplied with those components.
If your audio component has two COMPU LINK-3 SYNCHRO jacks, you can use either one.
If it has only one COMPU LINK-3 SYNCHRO jack, connect it so that it is the last item in the series of
components. (for example, the turntable and the tuner in the diagram below)
Notes:
• The COMPU LINK-3 remote control system is the upgraded version of the COMPU LINK-1 and COMPU
LINK-2. Even if your component has the COMPU LINK-1 or COMPU LINK-2 jacks, you can still connect
it in the COMPU LINK-3 remote control system, but some functions may not work correctly.
• For more information about the COMPU LINK-3 (-1 and -2) remote control system, see page 24.
CD player
VIDEO
OUT
IN
(REC)
(PLAY)
VCR
TUNER
CD
TAPE
OUT
IN
OUT
IN
(REC)
(PLAY)
(REC)
(PLAY)
Cassette deck
MONITOR
OUT
VIDEO
LEFT
AUDIO
RIGHT
COMPU LINK – 3
SYNCHRO
Turntable
