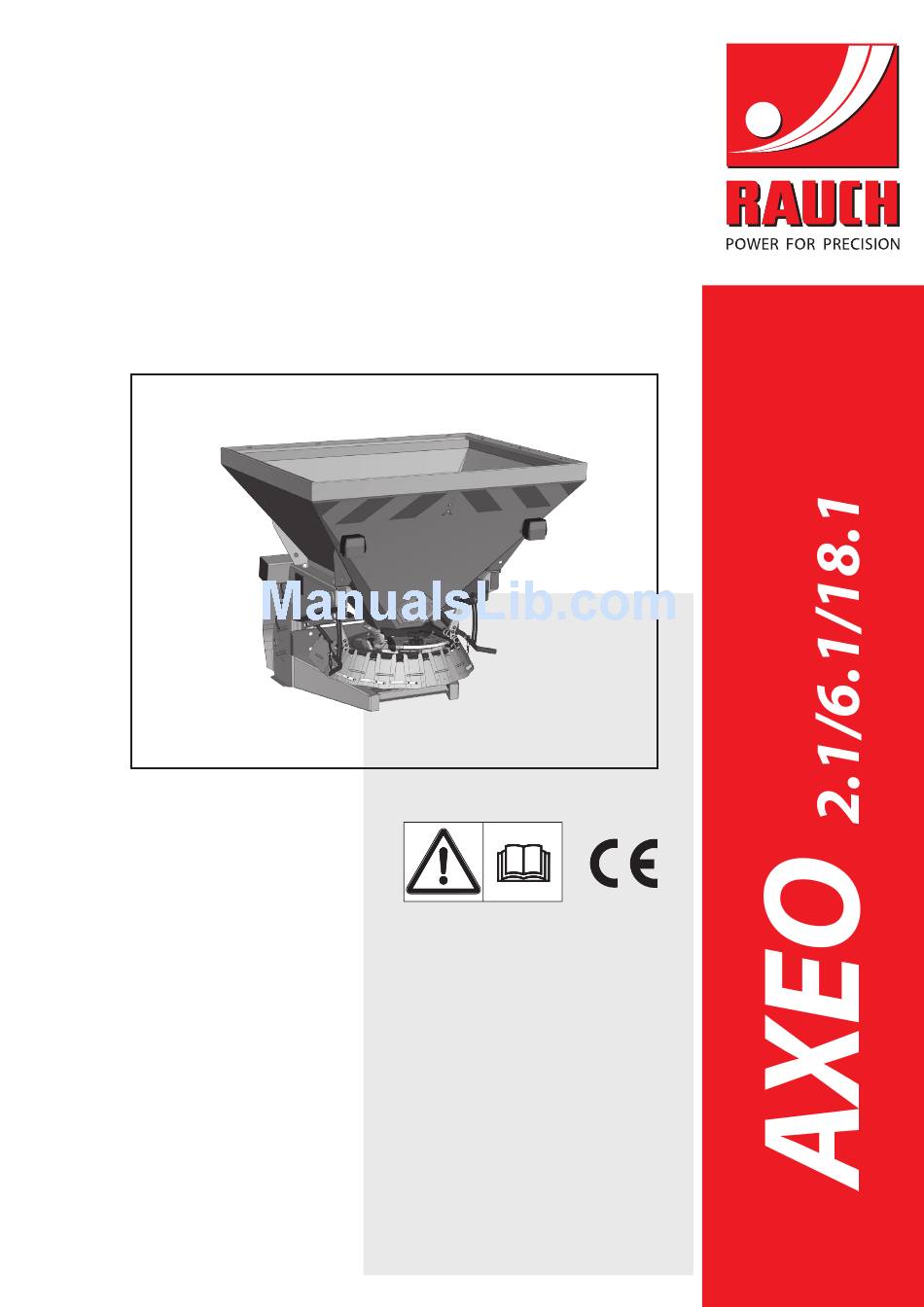

OPERATOR MANUAL
Please read carefully
before using the machine!
Store carefully for future
use!
This Operator Manual should be consi-
dered as part of the machine. Suppliers
of new and second-hand machines are
obliged to indicate in writing that the
Operator Manual has been delivered
with the machine.
Translation of the original
operating manual
d
5900854-
-en-0910

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 2.1 and is the answer not in the manual?

Questions and answers

Related Manuals for Rauch 2.1

Summary of Contents for Rauch 2.1

  • Page 1 OPERATOR MANUAL Please read carefully before using the machine! Store carefully for future use! This Operator Manual should be consi- dered as part of the machine. Suppliers of new and second-hand machines are obliged to indicate in writing that the Translation of the original operating manual Operator Manual has been delivered...

  • Page 2: Technical Improvements

    This consti- tutes no obligation to make such improvements or changes on machines that have already been sold. We will be pleased to answer any other questions that you might have. Yours sincerely RAUCH Landmaschinenfabrik GmbH...

  • Page 3: Table Of Contents

    Contents Preface Technical improvements Intended use and EU conformity Intended use ........... . . 1 Declaration of conformity .
  • Page 4 7.2.1 PTO drive ........
  • Page 5 9.2.1 Checking wear-prone parts ........89...
  • Page 6 Contents 10 Faults and possible causes 11 List of available accessories 11.1 Electric remote control (metering slider and spreading width limiter)..105 11.2 Hydraulic remote control (metering slider)......105 11.3 Hopper extensions .

  • Page 7: Intended Use And Eu Conformity

    Intended use and EU conformity Intended use and EU conformity Intended use The single-disc spreader AXEO may only be used in accordance with the infor- mation given in this operating manual. The single-disc spreader AXEO is constructed exclusively for the following appli- cations (intended use): in winter service for spreading material that can be delivered by chute, such ...

  • Page 8: Declaration Of Conformity

    Landstr. 14, 76547 Sinzheim, Germany We hereby declare that the product: single-disc spreader of the series AXEO Type: AXEO 2.1, AXEO 6.1, AXEO 18.1 complies with all relevant regulations of the EU Machine Directive 2006/42/EU. Technical documents compiled by: Rauch - Design Management Landstr.

  • Page 9: User Instructions

    User instructions User instructions About this operating manual This operating manual is a constituent part of the single-disc spreaderAXEO. The manual contains important instructions for safe, correct and economical use and maintenance of the single-disc spreader. Adherence to the manual helps to avoid dangers , reduce repair costs and downtime, and to increase the ma- chine's reliability and service life.

  • Page 10: Notes On Text Descriptions

    User instructions Notes on text descriptions 2.3.1 Instructions and procedures Steps that the operator must carry out are shown as a numbered list. 1. Instruction for action step 1 2. Instruction for action step 2 Instructions involving only one step are not numbered. The same applies for ac- tion steps that do not have a specific sequence.

  • Page 11: Safety

    Safety Safety This chapter contains basic safety instructions as well as working and traffic reg- ulations for using the AXEO single-disc spreader. All instructions in this chapter must be observed in order to work with and operate the single-disc spreader safely. There are additional warnings in the other chapters of this manual, which must also be observed.
  • Page 12 Safety Warning severity level The degree of danger is indicated by the signal word, and the levels are classified as follows: n DANGER Type and source of danger This advice warns of a danger posing an immediate threat to the health and life of persons.

  • Page 13: General Information On The Safety Of The Machine

    Safety General information on the safety of the machine The AXEO single-disc spreader is designed and manufactured to the state-of- the-art in technology and the generally accepted rules of engineering. Neverthe- less, operation and maintenance of the machine may pose a risk to life and limb of the operator or other persons, as well as causing damage to the machine or other assets in the surrounding area.

  • Page 14: Accident Prevention

    Safety 3.3.3 Accident prevention Safety and accident prevention regulations are governed by law in every country. The machine owner is responsible for ensuring compliance with the legal regula- tions in force in each country. The following instructions must also be observed: Never permit unsupervised operation of the single-disc spreader.

  • Page 15: Filling The Single-Disc Spreader

    Safety 3.4.3 Filling the single-disc spreader Never fill the spreader while the tractor engine is running. Prevent an uninten-  tional start of the tractor's engine by removing the ignition key. Use auxiliary equipment (e.g. bucket loader, feed screw conveyor, silo) to fill ...

  • Page 16: Operation

    Safety 3.4.5 Operation If the single-disc spreader malfunctions, stop the machine immediately and  secure it. Have the fault repaired immediately by qualified technicians. Never climb onto the spreader when it is running.  Operate the spreader only with the safety guard fitted in the hopper. The safe- ...

  • Page 17: Use Of The Spreading Material

    Safety Use of the spreading material Incorrect selection or use of spreading material may cause serious injury or envi- ronmental damage. When selecting the spreading material, inform yourself about its effects on  persons, the environment, and the machine. Follow the directions of the spreading material manufacturer exactly. ...

  • Page 18: Service And Maintenance

    Spare parts must at least comply with the technical standards specified by the  manufacturer. This is assured with genuine spare parts.RAUCH Self-locking nuts are designed to be used only once. Always use new self- ...

  • Page 19: Safety In Traffic

    Safety Only remove blockages in the spreader hopper with the machine at a stand-  still, and never use your hands or feet. Only use a suitable tool. To prevent blockages, always use the safety guard when filling the hopper. Before cleaning the spreader with water, steam or other cleaning agents, cov- ...

  • Page 20: Road Travel With The Single-Disc Spreader

    Safety 3.8.2 Road travel with the single-disc spreader Handling, steering, and braking performance of the tractor are affected by the at- tached spreader. For example, the high permissible load capacity will reduce the weight on the tractor's front axle, and may affect its steering. Be aware of the changed driving behaviour.

  • Page 21: Safety Equipment On The Machine

    Safety Safety equipment on the machine 3.9.1 Position of safety equipment Figure 3.1: Position of protective devices, warning and instruction notices, and reflectors [1] Instruction note agitator stop [12] Setting lever [2] Nameplate [13] Spreading disc cover [3] Serial number [14] Front spreading disc protector [4] Retainer for cable and hoses [15] Red reflector...

  • Page 22: Function Of Protective Devices

    Safety [1] Drive shaft guard Figure 3.2: Drive shaft guard 3.9.2 Function of protective devices The safety equipment is deigned to protect your health and life. Only operate the single-disc spreader with effective protective devices.  Description Function Protective screen in Prevents body parts from being pulled into the rotating hopper agitator.

  • Page 23: Warning And Instruction Stickers

    Safety Figure 3.3: Retainer for cable and hoses [1] Retainer for cable and hoses 3.10 Warning and instruction stickers There are various warning and instruction notices attached to the AXEO single- disc spreader (for attaching to the machine, see Figure 3.1).

  • Page 24: Warning Stickers

    Safety 3.10.1 Warning stickers Read operating manual and safety instructions. Read the operating manual and the safety instructions before putting the machine into operation. The operating manual explains in detail how to operate the spreader and contains valuable information on operation, care and maintenance.

  • Page 25: Instruction Stickers And Nameplate

    Safety 3.10.2 Instruction stickers and nameplate PTO speed The rated speed of the PTO shaft is 540 rpm. Agitator stop Rührwerk bei geschlossenem ACHTUNG! Schieber ausschalten! The agitator must be stopped when the metering slid- ers are closed. Switch the agitator off CAUTION! when the sliders are closed! Arrêter l'agitateur quand...

  • Page 26: Lighting System With Rear And Side Reflectors

    Lights must not be covered or obscured by dirt. The AXEO 18.1 single-disc spreader is factory-fitted with regulation rear and side indicators (for attaching to machine, see Figure 3.1). On the versions AXEO 6.1 and AXEO 2.1, the lighting system is available as an option.

  • Page 27: Machine Data

    Machine data Machine data Manufacturer RAUCH Landmaschinenfabrik GmbH Landstr. 14 D-76547 Sinzheim Germany Phone: +49 (0) 7221 / 985-0 Fax: +49 (0) 7221 / 985-200 Technical Service Centre RAUCH Landmaschinenfabrik GmbH Post box 1162 D-76545 Sinzheim Germany Phone: +49 (0) 7221 / 985-250...

  • Page 28: Specifications Of Basic Version

    Machine data Specifications of basic version Dimensions: Data AXEO 2.1 AXEO 6.1 AXEO 18.1 Overall width 100 cm 120 cm 150 cm Overall length 87 cm 95 cm 121 cm Filling height (basic version) 96 cm 123 cm 128 cm...

  • Page 29: Specifications For Extensions And Extension Combinations

    Specifications for extensions and extension combinations AXEO Series single-disc spreaders can be operated with different combinations of extensions. Capacity, dimensions, and weights will change, depending on the combination used. Extension AXEO 2.1 AX 100 Change in capacity 100 l Change in filling height...
  • Page 30 Machine data...

  • Page 31: Transport Without Tractor

    Transport without tractor Transport without tractor General safety instructions Read the following instructions before transporting the single-disc spreader: The spreader may only be transported without the tractor if the hopper is empty.  The operation may only be carried out by suitable, trained and expressly au- ...
  • Page 32 Transport without tractor...

  • Page 33: Commissioning

    When taking delivery of the single-disc spreader, check and make sure that the scope of delivery is complete. The standard equipment includes 1 Single-disc spreader AXEO 2.1,AXEO 6.1 or AXEO 18.1  1 Operating manual for single-disc spreader AXEO AXEO2.1/6.1/18.1 ...

  • Page 34: Hitching The Single-Disc Spreader To The Tractor

    Commissioning Hitching the single-disc spreader to the tractor 6.3.1 Preconditions n DANGER Danger from unsuitable tractor Using an unsuitable tractor for the AXEO single-disc spreader may result in serious accidents during operation or road travel. Only tractors that meet the technical requirements for the spreader may be used.
  • Page 35 Commissioning Hitching instructions: Hitching the AXEO 2.1/6.1 to the tractor with Class II linkage is only possible  with Class I clearance and the use of reducing sleeves. Hitching the AXEO 18.1 to the tractor with Class III linkage is only possible ...
  • Page 36 Commissioning Determining the hitching height The data specified for hitching height refers to the distance from the bottom edge of the spreading disc when the spreader is mounted horizontally. For the AXEO spreader it is given as 55 cm (dimension A). Determine the hitching height by measuring the distance from the bottom of ...

  • Page 37: Fitting The Pto Shaft

    Commissioning Fitting the PTO shaft Depending on version, the AXEO single-disc spreader can be fitted with a gear- box for driving the spreading disc and the agitator. n CAUTION Danger from unsuitable drive shaft. The universal drive shaft fitted should depend on the equipment and power specifications.

  • Page 38: Fitting And Removing The Pto Shaft

    Commissioning 6.4.2 Fitting and removing the PTO shaft n DANGER Danger of catching in the rotating drive shaft. Attaching and removing the universal drive shaft with the engine running may cause severe injuries (crushing, catching in the rotat- ing shaft). ...
  • Page 39 Commissioning 4. Slide drive shaft guard with hose clamp over the univer- sal drive shaft and place over the PTO stub neck (do not tighten). 5. Rotate drive shaft guard to locking position. Figure 6.4: Attach the universal drive shaft guard 6.

  • Page 40: Connect The Electric Actuators (Version E/H)

    Commissioning Connect the electric actuators (Version E/H) Depending on version, up to 3 electric actuators can be fitted to the AXEO single- disc spreader: One actuator for the electric metering slider (Version E),  One or two actuators for the electric adjustment of the spreading width (avail- ...
  • Page 41 Commissioning NOTICE The control units can be connected in series via an additional 12 V connection in the tractor (see Figure 6.10). Precise instructions are provided in the installation instructions for the control unit. Figure 6.8: Series connection of several control units...

  • Page 42: Connecting The Hydraulic Drive (Version H-100/200, E-100/200, Q-100/200)

    Commissioning Connecting the hydraulic drive (version H-100/200, E-100/200, Q-100/200) Depending on the version, the AXEO single-disc spreader can be fitted with a hy- draulic motor to drive the spreading disc and the agitator. You will need a single-acting control valve and a free return on the tractor. In ad- dition, a non-return valve is fitted in the return line.

  • Page 43: Connecting The Hydraulic Slider Control (Version H)

    Connecting the electric slider actuator: AXEO, Version Q NOTICE The single-disc spreaders AXEO 2.1 Q, AXEO 6.1 Q, and AXEO 18.1 Q are fit- ted with an electronic slider actuator. The electronic slider actuator is described in a separate operating manual for the Quantron K operating terminal, which is supplied with the Quantron K oper- ating terminal.

  • Page 44: Filling The Spreader Hopper

    Commissioning Filling the spreader hopper n DANGER Danger from running engine Working on the spreader while the engine is running may cause serious injuries from the mechanical components and escaping spreading material. Never fill the spreader hopper while the tractor engine is running. ...

  • Page 45: Parking And Unhitching The Single-Disc Spreader

    Commissioning 6.10 Parking and unhitching the single-disc spreader The spreader can be parked safely on the frame. n DANGER Risk of crushing between the tractor and the spreader. Persons standing between the tractor and the spreader while they are being parked or unhitched are in lethal danger. ...
  • Page 46 Commissioning Figure 6.9: Metering slider open, hydraulic cylinder at end stop Opening the metering slider: 1. Close the metering slider fully using the control valve. 2. Set the volume end stop to the maximum value. 3. Open the metering slider fully using the control valve. ...

  • Page 47: Machine Adjustments

    Machine adjustments Machine adjustments n DANGER Hazard from running engine Adjusting the single-disc spreader with the engine running may cause serious injuries from the mechanical components and ejected spreading material.  Wait until all rotating parts have come to a complete stop before making any adjustments.
  • Page 48 Machine adjustments The setting elements are used to adjust the spreading parameters of the spreader. Parameter Meaning Description Spreading vol- Adjustment of spreading volume by altering page 45 the opening of the metering slider. Spreading pat- Adapting the working width and spreading pat- tern tern by: Altering the drop point,...

  • Page 49: Adjusting The Spreading Disc Or Agitator Speed

    Machine adjustments Adjusting the spreading disc or agitator speed 7.2.1 PTO drive The speeds for spreading disc and agitator are given in the spreading table. NOTICE If adjusting the drop point is not sufficient for obtaining a symmetric spreading pattern, the vanes on the spreading disc can also be adjusted. See 7.6.3: Adjusting the spreading vanes, page...
  • Page 50 Machine adjustments Handwheel setting Speed in rpm Spreading ma- on the flow control terial valve Grit Salt and sand Fertiliser Fertiliser Fertiliser Adjustment values for 200 cm hydraulic motor Handwheel setting Speed in rpm Spreading mate- on the flow control rial valve Grit...

  • Page 51: Adjusting The Application Rate

    Adjusting the application rate NOTICE The single-disc spreaders AXEO 2.1 Q, AXEO 6.1 Q and AXEO AXEO 18.1 Q have an electronic slider actuation for adjusting the application rate. The electronic slider actuator is described in a separate operating manual for the Quantron K operating terminal.
  • Page 52 Machine adjustments Spreading volume is determined by the opening of the metering slider, which is adjusted using the number scale on the scale plate. The operator moves the pointer to the position specified beforehand in the spreading table or from a calibration test. That is the end stop position Open, which the slider adopts hydraulically or electrically (depending on the version) be- fore the spreading run.

  • Page 53: Adjusting The Drop Point

    (looking in the direction of travel). NOTICE As a reference point, use the positions that have been determined by RAUCH for various types of spreading material to produce a symmetric spreading pat- tern: E; Salt: Position F; Sand: Position J.

  • Page 54: Adjusting The Spreading Width Limiter

    Machine adjustments NOTICE If adjusting the drop point is not sufficient for obtaining a symmetric spreading pattern, the vanes on the spreading disc can also be adjusted. 7.6.3: Adjusting the spreading vanes, page  Adjusting the spreading width limiter The spreading width limiter permits different spreading widths of approx. 0.8 to 8 m to be adjusted for a mounting height of approx.
  • Page 55 Machine adjustments Adjustment: Figure 7.4: Limiting the spreading width [1] Setscrew [2] Setting lever with scale 1. Loosen the setscrew [1] on the spreading width limiter. 2. Move the adjustment lever [2] to the desired position. Adjustment lever upwards: spreading width increased. ...

  • Page 56: Adjusting A Spreading Pattern

    Machine adjustments Adjusting a spreading pattern 7.6.1 Symmetric and asymmetric spreading pattern Depending on type and condition of the spreading material, an asymmetric loca- tion of the spreading pattern can be created (spreading volume different on the left and right-hand sides). This can be balanced by adjusting the drop point (see 7.4: Adjusting the drop point, page...

  • Page 57: Sharp Limitation Of The Right-Hand Spreading Edge

    Machine adjustments 7.6.2 Sharp limitation of the right-hand spreading edge For a sharp limitation on the right-hand spreading edge, the spreading pattern must be adjusted to left-hand asymmetric spreading, as seen in the direction of travel. In order to obtain an even spreading pattern you must also adjust the one-sided delivery slider.

  • Page 58: Adjusting The Spreading Vanes

    Machine adjustments Notes on adjustment For sharp limitation of the spreading pattern at the right-hand spreading edge with volume balancing and even spreading material distribution: Determine the adjustment values for your spreading material (fertiliser chart).  Lower the right-hand spreading width limiter and close the one-sided delivery ...
  • Page 59 Machine adjustments Figure 7.11: Spreading density right in direction of travel White arrow: Spreading disc's direction of rotation Grey arrow: Adjustment of the spreading vanes in the direction opposite to the spreading disc's rotation 3. Move the spreading vanes backwards in the direction opposite to the spread- ing disc's rotation.
  • Page 60 Machine adjustments Increasing the spreading density on the left-hand side in direction of travel 1. Note the spreading disc's direction of rotation. See Figure 7.10. 2. Remove the screws of the spreading vanes with the associated nuts and washers. Figure 7.12: Spreading density left in direction of travel White arrow: Spreading disc's direction of rotation Grey arrow: Adjustment of the spreading vanes in the direction of spreading disc rotation 3.

  • Page 61: Using The Fertiliser Chart

    Machine adjustments Using the fertiliser chart 7.7.1 Information on the fertiliser charts The values in the fertiliser charts have been determined on the spreading mate- rial test system. The spreading materials specified have been purchased from the manufacturers or from dealers. Experience shows that due to storage, transport and other rea- sons, your spreading material –...

  • Page 62: Fertiliser Chart For Grit (3/5 Mm)

    Machine adjustments 7.7.2 Fertiliser chart for grit (3/5 mm) PTO speed: n = 450 rpm Spreading disc speed: 200 rpm   Drop point E Flow factor: 1.35   Hopper height: B = 33 cm Agitator type: RWK AX 160 ...
  • Page 63 Machine adjustments Spreading width [m] Spreading density [g/m ] 100 150 200 250 300 100 150 200 250 300 – – – – – – – – – Speed [km/h] – – – – – – – – – – –...

  • Page 64: Fertiliser Chart For Sand

    Machine adjustments 7.7.3 Fertiliser chart for sand PTO speed: n = 540 rpm Spreading disc speed: 230 rpm   Drop point J Flow factor: 0.78   Hopper height: B = 33 cm Agitator type: RWK AX 180  ...

  • Page 65: Fertiliser Chart For Rock Salt

    Machine adjustments 7.7.4 Fertiliser chart for rock salt PTO speed: n = 540 rpm Spreading disc speed: 230 rpm   Drop point F Flow factor: 1.22   Hopper height: B = 33 cm Agitator type: RWK AX 220 ...
  • Page 66 Machine adjustments Spreading width [m] Spreading density [g/m – – 12 13,5 – 10 11,5 13,5 14,5 – 10,5 13,5 15,5 17,5 10 11,5 15 17,5 19,5 10 10,5 12,5 16 22 11,5 13,5 18 22 25,5 Speed [km/h] 15 11,5 14,5 19 23 26,5 12,5 16 22 26,5 29,5 20 12,5 16...

  • Page 67: Fertiliser Chart For Refined Salt

    Machine adjustments 7.7.5 Fertiliser chart for refined salt PTO speed: n = 540 rpm Spreading disc speed: 230 rpm   Drop point F Flow factor: 1.38   Hopper height: B = 33 cm Agitator type: RWK AX 220 ...

  • Page 68: Spreading Width [M] Spreading Density

    Machine adjustments Spreading width [m] Spreading density [g/m – – – 11 12,5 10 6,5 8,5 11,5 13,5 15,5 Speed [km/h] 15 7,5 10,5 13,5 16 18,5 20 8,5 11,5 15,5 18,5 21,5 25 9,5 12,5 17 20,5 23,5 30 10,5 13,5 18,5 22,5 26...

  • Page 69: Fertiliser Chart For Fertiliser

    Machine adjustments 7.7.6 Fertiliser chart for fertiliser Basatop Sport Compo NPK: 20 - 5 - 10  Fertiliser density: 1.10 kg/l  One-sided delivery slider: 5  Application rate in kg/ha  Agitator type: RWK AX 140  Spreading width PTO speed (rpm) 1000 Spreading disc...
  • Page 70 Machine adjustments Cornufera NPK, Günther NPK: 20 - 5 - 8  Fertiliser density: 1.10 kg/l  One-sided delivery slider: 5  Application rate in kg/ha  Agitator type: RWK AX 140  Spreading width PTO speed (rpm) 1000 Spreading disc speed: rpm Hopper height: Drop point...
  • Page 71 Machine adjustments Spreading width PTO speed (rpm) 1000 Spreading disc speed: rpm Hopper height: Drop point Metering Flow rate km/h km/h km/h km/h slider (kg/min) 10 12 10 12 10 12 10 12 end stop 48,2 723 578 482 603 482 402 516 413 344 452 362 301 50,3 754 603 503 629 503 419 539 431 359 471 377 314 52,4...
  • Page 72 Machine adjustments ENTEC avant, COMPO NPK: 12 - 7 - 6  Fertiliser density: 1.13 kg/l  One-sided delivery slider: 5  Application rate in kg/ha  Agitator type: RWK AX 140  Spreading width PTO speed (rpm) 1000 Spreading disc speed: rpm Hopper height: Drop point...
  • Page 73 Machine adjustments Spreading width PTO speed (rpm) 1000 Spreading disc speed: rpm Hopper height: Drop point Metering Flow km/h km/h km/h km/h slider rate 10 12 10 12 10 12 10 12 end stop (kg/min) 69,4 1041 833 694 868 694 579 744 595 496 651 521 434 71,9 1079 863 719 899 719 599 770 616 514 674 539 449 74,1...
  • Page 74 Machine adjustments Floranid N32, COMPO NPK: 32 % N  Fertiliser density: 0.52 kg/l  One-sided delivery slider: 5  Application rate in kg/ha  Agitator type: RWK AX 140  Spreading width PTO speed (rpm) 1000 1000 Spreading disc speed: rpm Hopper height: Drop point...
  • Page 75 Machine adjustments Spreading width PTO speed (rpm) 1000 1000 Spreading disc speed: rpm Hopper height: Drop point Metering Flow km/h km/h km/h km/h slider rate 10 12 10 12 10 12 10 12 end stop (kg/min) 27,8 695 556 463 521 417 347 417 333 278 347 278 232 28,8 720 576 480 540 432 360 432 346 288 360 288 240 29,5...
  • Page 76 Machine adjustments Floranid permanent, COMPO NPK: 16 - 7 - 15  Fertiliser density: 1.01 kg/l  One-sided delivery slider: 5  Application rate in kg/ha  Agitator type: RWK AX 140  Spreading width PTO speed (rpm) 1000 Spreading disc speed: rpm Hopper height: Drop point...
  • Page 77 Machine adjustments Floral, calcium-ammonium nitrate NPK: 27% N  Fertiliser density: 1.07 kg/l  One-sided delivery slider: 5  Application rate in kg/ha  Agitator type: RWK AX 140  Spreading width PTO speed (rpm) 1000 1000 1000 Spreading disc speed: rpm Hopper height: Drop point...
  • Page 78 Machine adjustments Spreading width PTO speed (rpm) 1000 1000 1000 Spreading disc speed: rpm Hopper height: Drop point Metering Flow rate km/h km/h km/h km/h km/h slider end (kg/min) 10 12 10 12 10 12 10 12 10 12 stop 60,2 903 722 602 753 602 502 645 516 430 564 452 376 502 401 334 62,6...
  • Page 79 Machine adjustments Kornkali, K + S GmbH NPK: 40% K, 6% MgO  Fertiliser density: 1.15 kg/l  One-sided delivery slider: 5  Application rate in kg/ha  Agitator type: RWK AX 140  Spreading width PTO speed (rpm) 1000 Spreading disc speed: rpm Hopper height:...
  • Page 80 Machine adjustments Spreading width PTO speed (rpm) 1000 Spreading disc speed: rpm Hopper height: Drop point Meter- Flow km/h km/h km/h km/h ing slid- rate 10 12 10 12 8 10 12 er end (kg/min) stop 55,4 1039 831 693 831 665 554 693 554 462 594 475 396 57,6 1079 863 720 863 691 576 720 576 480 617 493 411 59,7...
  • Page 81 Machine adjustments Lawn Floranid NPK COMPO NPK: 20 - 5 - 8  Fertiliser density: 0.90 kg/l  One-sided delivery slider: 5  Application rate in kg/ha  Agitator type: RWK AX 140  Spreading width PTO speed (rpm) Spreading disc speed: rpm Hopper height: Drop point Metering slider...
  • Page 82 Machine adjustments Thomaskali, K + S GmbH NPK: 10% P - 15% K  Fertiliser density: 1.35 kg/l  Application rate in kg/ha  Agitator type: RWK AX 140  Spreading width PTO speed (rpm) 1000 1000 Spreading disc speed: rpm Hopper height: Drop point Metering...
  • Page 83 Machine adjustments Spreading width PTO speed (rpm) 1000 1000 Spreading disc speed: rpm Hopper height: Drop point Metering Flow km/h km/h km/h km/h slider rate 10 12 10 12 10 12 10 12 end stop (kg/min) 65,0 974 780 650 812 650 541 696 557 464 609 487 406 67,2 1008 807 672 840 672 560 720 576 480 630 504 420 69,5...

  • Page 84: Calibration Test

    Machine adjustments Calibration test For precise control of the spreading quantity we recommend running a new cali- bration test every time you change spreading material types. Carry out a calibration test: Before spreading for the first time.  If the quality of the spreading material changes significantly (e.g. dampness) ...

  • Page 85: Run Calibration Test

    Machine adjustments 7.8.2 Run calibration test n WARNING Risk of injury due to chemicals Discharged fertiliser may cause injuries to eyes and nasal mucous membrane.  Wear safety goggles during the calibration test.  Direct all persons out of the danger zone of the spreader before running the calibration test.
  • Page 86 Machine adjustments Implementation: n WARNING Risk of injury by rotating machine components. Contact with rotating machine components (universal drive shaft, spreading disc, and agitator) may cause bruises, abrasions. and crushing injuries. Body parts or objects may be caught and pulled in. ...

  • Page 87: Spreading Work

    Spreading work Spreading work General Information The modern technology and design of our single-disc spreaders, and exhaustive, continuous testing in our own spreading material test facilities ensure that you will have a perfect spreading pattern. Our machines are manufactured with great care. However, even if the equipment is used exactly as intended, variations in the spreading results and other faults cannot be completely excluded.

  • Page 88: General Instructions For The Agitator

    Spreading work Select the PTO and spreading disc speeds so that the spreading width is ob- tained without leaving deposits on the spreading disc. Lower PTO and spreading disc speeds reduce the wear of agitator and spreading disc. Particularly hard spreader material types, e.g. grit, increase the wear on the spreading vanes.

  • Page 89: Spreading Sequence

    Spreading work Spreading sequence The intended use of the single-disc spreader includes the observance of service, maintenance, and repair instructions specified by the manufacturer. Therefore, spreading operations always include the preparation and cleaning/mainte- nancework. n DANGER Risk of injury during spreading. Contact with the rotating machine components (universal drive shaft, spreading disc, agitator) can lead to injury.

  • Page 90: Spreading Grit

    Spreading work Cleaning/maintenance Page Open metering slider  Unhitch spreader from tractor  Maintenance and lubrication page 89  Spreading grit n WARNING Risk of injury caused by spreading material. Ejected spreading material can cause injury.  Do not spread if there are persons in the danger area. Observe the following when spreading grit: Use the RWK AX 160 agitator for spreading grit.

  • Page 91: Spreading Sand Or Moist Salt

    Spreading work Spreading sand or moist salt n WARNING Risk of injury caused by spreading material. Ejected spreading material can cause injury.  Do not spread if there are persons in the danger area. Observe the following when spreading sand or moist salt: Use the RWK AX 180 agitator when spreading sand or moist salt.

  • Page 92: Spreading Dry Salt

    Spreading work Spreading dry salt n WARNING Risk of injury caused by spreading material. Ejected spreading material can cause injury.  Do not spread if there are persons in the danger area. Observe the following when spreading dry salt: Use the RWK AX 220 agitator when spreading sand or moist salt. ...

  • Page 93: Spreading Granulated Fertiliser

    Spreading work Spreading granulated fertiliser n WARNING Risk of injury caused by spreading material. Ejected spreading material can cause injury.  Do not spread if there are persons in the danger area. Observe the following when spreading granulated fertiliser: Use the RWK AX 140 agitator for spreading granulated fertiliser. ...

  • Page 94: Discharging Residual Material

    Spreading work Discharging residual material In order to retain the value of your spreader and its spreading performance, we recommend emptying the hopper immediately after each use. 1. Disengage the PTO drive and switch off the tractor's engine. 2. Place a sheet under the spreader to catch the spreading material or place an adequately sized container under the outlet.

  • Page 95: Service And Maintenance

    3: Safety, page 5. Take particular note of the instructions in Section 3.7: Service and maintenance, page Wear-prone parts and bolted joints 9.2.1 Checking wear-prone parts Wearing parts are: Spreading vanes, agitator, hopper floor and thrust ring. Check the wearing parts. ...

  • Page 96: Checking The Bolted Joints

    Service and maintenance 9.2.2 Checking the bolted joints Bolted joints have been tightened to the specified torque and locked at the facto- ry. Vibrations and shocks, in particular during the initial operating hours, can loos- en bolted joints. With a new fertiliser spreader, check all bolted joints for tightness after ap- ...

  • Page 97: Metering Slider Adjustment

    Service and maintenance Metering slider adjustment Check that the metering slider opens smoothly before every working season, and during the season if necessary. n DANGER Risk of crushing and shearing. When working on power-operated components (adjusting lever, metering slider), there is a crushing and shearing risk. Pay attention to the shear points of the metering outlet and slider during all adjustment work.
  • Page 98 Service and maintenance 4. Take a pin [1] d = 25 mm and insert it into the meter- ing opening. Figure 9.2: Pin in the metering opening 5. Push the metering slider against the pin, and lock it in this position by tighten- ing the setscrew.

  • Page 99: Checking The Agitator For Wear

    Service and maintenance Checking the agitator for wear 9.5.1 Removing the agitator The agitator is secured with a bayonet fitting. 1. Open the service cover. 2. Turn the agitator clockwise up to the end stop. 3. Lift out the agitator upwards. Figure 9.4: Agitator finger NOTICE...

  • Page 100: Checking The Rwk Ax 140 Agitator For Wear

    Service and maintenance 9.5.2 Checking the RWK AX 140 agitator for wear If the spreading material no longer flows out of the outlet evenly, the agitator fin- ger must be replaced. [1] Plastic element [2] Agitator finger Figure 9.5: Agitator: RWK AX 140 Check the plastic element [1] for damage and wear.

  • Page 101: Checking The Rwk Ax 180 Agitator For Wear

    Service and maintenance 9.5.4 Checking the RWK AX 180 agitator for wear [1] Plastic element [2] Agitator fingers [3] Universal joint Figure 9.7: Agitator RWK AX 180 Check the plastic element [1] for damage and wear.   In case of excessive wear, the plastic element must be replaced. Check the agitator fingers 2 for damage and wear.

  • Page 102: Checking The Rwk Ax 220 Agitator For Wear

    Service and maintenance 9.5.5 Checking the RWK AX 220 agitator for wear [1] Plastic element [2] Agitator fingers [3] Universal joint Figure 9.8: Agitator RWK AX 220 Check the plastic element [1] for damage and wear.   In case of excessive wear, the plastic element must be replaced. Check the agitator fingers 2 for damage and wear.

  • Page 103: Checking The Thrust Ring For Wear

    Service and maintenance 9.5.6 Checking the thrust ring for wear Check the thrust ring for  damage and wear. Figure 9.9: Thrust ring Instructions for fitting the thrust ring: Align the groove with the outlet.  Make sure that the thrust ring is seated on the baseplate. ...

  • Page 104: Checking The Stop Ring In The Hopper For Wear

    Service and maintenance 9.5.7 Checking the stop ring in the hopper for wear Check the stop ring in the  hopper for damage and wear. Figure 9.10: Stop ring in the hopper Replacing spreading vanes Worn spreading vanes can be replaced. Determining the spreading vane type: n CAUTION Matching the spreading vane types...

  • Page 105: Gear Oil

    Service and maintenance Figure 9.11: Remove the spreading vane screws 1. Remove the self-locking nuts on the spreading vane and remove the spread- ing vane. 2. Mount the new spreading vane on the spreading disc. Make sure you have the correct spreading vane type. Figure 9.12: Use new self-locking nuts.

  • Page 106: Checking The Oil Level

    Service and maintenance 9.7.2 Checking the oil level The gearbox is maintenance-free and does not need to be lubricated under nor- mal conditions. Preconditions: The single-disc spreader must be horizontal to check the oil and to add oil.  PTO drive and tractor engine are stopped, the ignition key of the tractor is re- ...

  • Page 107: Lubrication Chart

    Service and maintenance Lubrication chart Lubrication points Lubricant Notes Drive shaft Grease See manufacturer's manual. Metering slider, one-sided Grease, oil Ensure smooth movement, and grease regularly. delivery slider Upper and lower hitch balls Grease Grease regularly. Joints, bushes Grease, oil Designed for dry operation but can be lightly greased.
  • Page 108 Service and maintenance...

  • Page 109: Faults And Possible Causes

    Faults and possible causes Faults and possible causes n GEFAHR Risk of injury and accident from omitted or inadequate trou- bleshooting. Delayed or incorrect repairs by unqualified persons may result in incalculable risks with negative consequences for persons, the machine, and the environment. ...
  • Page 110 Faults and possible causes Fault Possible cause/action Blockage of metering outlets Clear blockages. Proceed as follows:  through: lumps of spreading ma- 1. Park tractor, remove ignition key. terial, damp fertiliser, miscellane- 2. Open metering slider. ous impurities (leaves, straw, sack residues) 3.

  • Page 111: List Of Available Accessories

    The hopper tarpaulins can be screwed to the basic hopper as well as to the hop- per extensions. Hopper tarpaulin Application AP-X 2, foldable Basic hopper: AXEO 2.1  Extension: AX 100  AP-X 6, foldable Basic hopper: AXEO 6.1 ...

  • Page 112: Spreader Apron

    List of available accessories 11.5 Spreader apron Spreader apron Dimensions in cm (W x H) Application STS 2 120 x 100 Basic unit: AXEO 2.1  Basic unit: AXEO 6.1  STS 6 150 x 100 Basic unit: AXEO 2.1 ...

  • Page 113: Rwk Ax 180

    Figure 11.4:Agitator RWK AX 220 11.7 Adapter for mounting to Cat. 1N hitch This adapter enables the AXEO 2.1 single-disc spreader to be mounted on a trac- tor unit with Cat. 1N hitch. HINWEIS If the adapter for the AXEO 2.1 spreader is used, the maximum permissible pay-...

  • Page 114: Additional Lighting Blo 18

    List of available accessories 11.8 Additional lighting BLO 18 This lighting is fitted as standard to the AXEO 18.1 single-disc spreader. The AXEO 2.1 and AXEO 6.1 spreaders can be fitted with the lighting as an option. Lighting Application BLO 18 Rear lighting ...

  • Page 115: Axle Load Calculation

    Axle load calculation Axle load calculation 12.1 Calculation of the total weight n CAUTION Overload danger Mounted units on the front or rear three-point linkage must not cause the approved total weight to be exceeded. The front axle of the tractor must always be loaded with at least 20 % of the unladen weight of the tractor.
  • Page 116 Axle load calculation You will need the following data for the calculation: Character Meaning Calculation [unit] [kg] Unladen weight of tractor. [kg] Front-axle load of the unladen tractor. [kg] Rear-axle load of the unladen tractor. [kg] Total weight of front-mounted unit or front bal- last.
  • Page 117 Axle load calculation Rear-mounted unit or front-rear combinations Calculation of minimum ballast at • • • • 0 2 T – --------------------------------------------------------------------------------------------- front G V min Vmin Enter the calculated minimum ballast requirement in the table. Front-mounted unit • • •...

  • Page 118: Axle Loads Table

    Axle load calculation Tyre load capacity Enter double the value (two tyres) of the approved tyre load capacity (for example, see tyre man- ufacturer's documentation) in the table. 12.2 Axle loads table Actual value from Approved value Twice approved calculation from operator's tyre load capacity manual...

  • Page 119: Disposal

    Disposal Disposal 13.1 Safety n WARNING Environmental pollution due to unsuitable disposal of hy- draulic and gear oil Hydraulic oil and gear oil are not fully biodegradable. Therefore, oil must be prevented from entering the environment in an uncon- trolled manner. ...

  • Page 120: Disposal

    Disposal 13.2 Disposal The following points apply without restriction. The precautions laid down as a re- sult of national regulations must be observed implicitly. 1. All components, auxiliary and operating substances must be removed from the single-disc spreader by specialist personnel. Hereby, these components and substances must be cleanly separated into categories.

  • Page 121: Guarantee And Warranty

    Warranty claims are rendered void if RAUCH original spare parts were not used. Therefore, the directions in the operating manual must be observed. In all cases of doubt contact our sales representatives or the factory directly.

This manual is also suitable for:

6.118.1Axeo 2.1Axeo 6.1Axeo 18.1

Table of Contents
