Rauch AXENT ISOBUS AXENT 100.1 Complementary Instructions

Hide thumbs Also See for AXENT ISOBUS AXENT 100.1:
Table of Contents

Advertisement

Quick Links

Download this manual

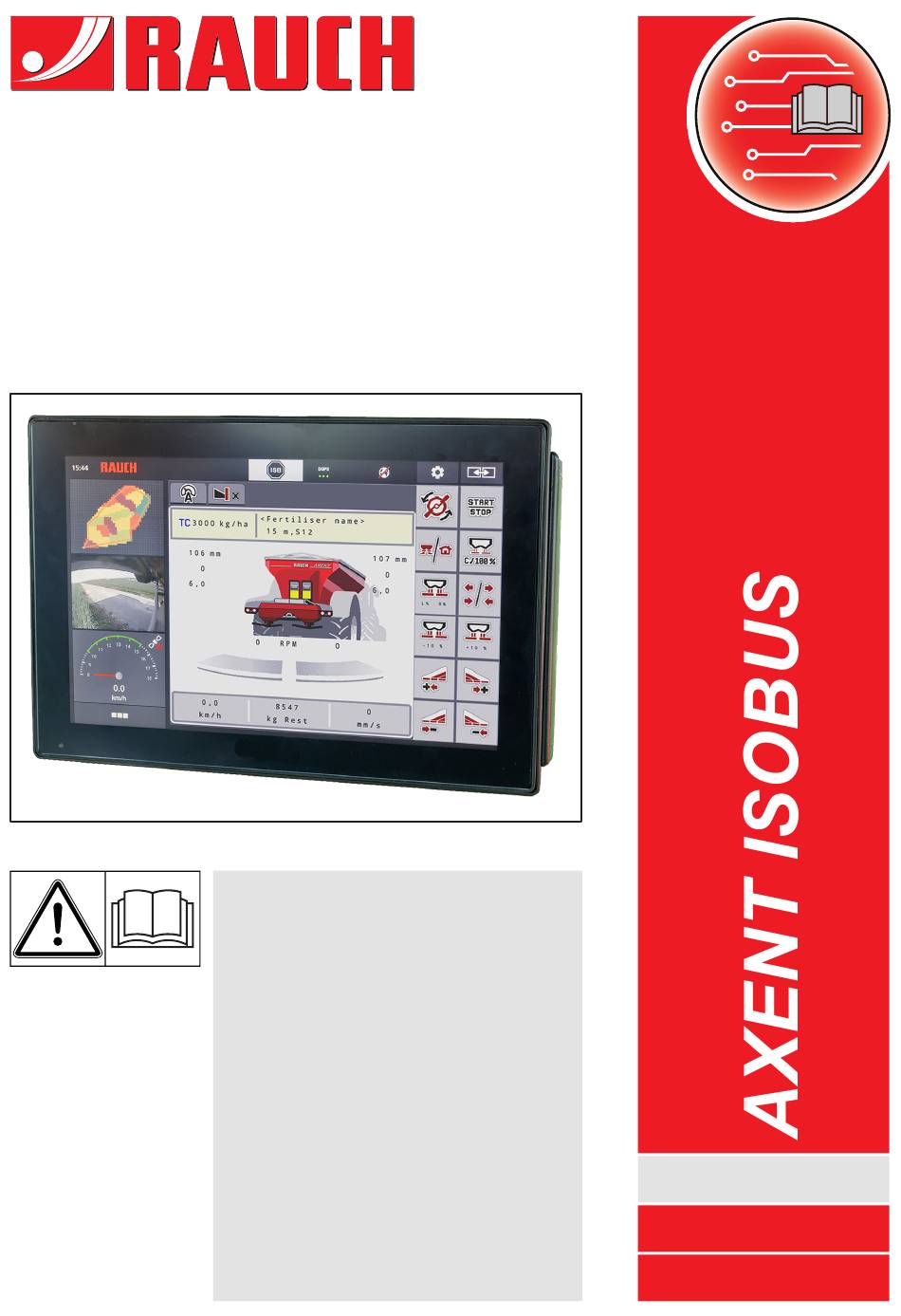

Complementary instructions
Read carefully before
using the machine!
Keep for future reference.
This operator's manual/mounting manual
is to be considered as part of the
machine. Suppliers of new and second-
hand machines are required to document
in writing that the operator's manual/
mounting manual was delivered with the
machine and handed over to the
Version 5.02.00
customer..
m
5901646-
-en-0322
Original instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AXENT ISOBUS AXENT 100.1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Rauch AXENT ISOBUS AXENT 100.1

Summary of Contents for Rauch AXENT ISOBUS AXENT 100.1

  • Page 1 Complementary instructions Read carefully before using the machine! Keep for future reference. This operator's manual/mounting manual is to be considered as part of the machine. Suppliers of new and second- hand machines are required to document in writing that the operator's manual/ mounting manual was delivered with the machine and handed over to the Version 5.02.00...
  • Page 2 We do not accept any obligation to make such improvements or changes on machines that have already been sold. We will be pleased to answer any other questions that you might have. Yours sincerely RAUCH Landmaschinenfabrik GmbH...

  • Page 3: Table Of Contents

    Table of contents Table of contents 1 User instructions About this operator’s manual Meaning of warnings Notes on text descriptions 1.3.1 Instructions and procedures 1.3.2 Lists 1.3.3 References 1.3.4 Menu hierarchy, keys and navigation 2 Layout and function Display 2.1.1 Description of the working screen 2.1.2 Display fields...
  • Page 4 Table of contents 4.5.1 Application rate 4.5.2 Setting the working width 4.5.3 Flow factor 4.5.4 Drop point 4.5.5 Calibration 4.5.6 Disc type 4.5.7 Rotation speed 4.5.8 Boundary spreading mode 4.5.9 Boundary spreading quantity 4.5.10 Calculate OptiPoint 4.5.11 GPS Control info 4.5.12 Fertilizer charts Fertliser settings (LIME-PowerPack)
  • Page 5 Table of contents 5.1.1 Overloading in automatic operating mode 5.1.2 Overloading in manual operating mode Fertilizer spreading 5.2.1 Working with sections 5.2.2 Spreading with the automatic operating mode (AUTO km/h + AUTO kg) 5.2.3 Idle measurement 5.2.4 Spreading with the AUTO km/h operating mode 5.2.5 Spreading with the MAN km/h operating mode 5.2.6...
  • Page 6 Table of contents 5901646 AXENT ISOBUS...

  • Page 7: User Instructions

    1. User instructions User instructions About this operator’s manual This operator's manual is an integral part of the machine control unit. The operator’s manual contains important instructions for safe, proper, and economic use and maintenance of the machine control unit. Compliance with its stipulations helps to avoid risks, reduce repair costs and downtime, and to increase the reliability and service life of the machine controlled with it.

  • Page 8: Notes On Text Descriptions

    1. User instructions CAUTION! Type and source of danger This warning warns of a potentially dangerous situation for personal health. Ignoring these warnings leads to injury. Always observe the measures described to prevent this danger. NOTICE! Type and source of danger This warning warns of material and environmental damage.

  • Page 9: Menu Hierarchy, Keys And Navigation

    1. User instructions References to other documents are shown as information or instructions without the exact chapter or page number: • Example: Follow the instructions in the operator’s manual of the universal drive shaft manufacturer. 1.3.4 Menu hierarchy, keys and navigation Menus are the entries listed in the main menu window.

  • Page 10: Layout And Function

    2. Layout and function Layout and function Due to the great variety of different ISOBUS-compatible terminals, this chapter is limited to the functions of the electronic machine control system without indicating a specific ISOBUS terminal. • Please observe the instructions for the operation of your ISOBUS terminal in the corresponding operator's manual.

  • Page 11: Display Fields

    2. Layout and function Fig. 1: Machine control unit display Overloading operating mode display [11] Spreading disc speed, right/left Right/left pre-metering slide display [12] Conveyor belt display Large area spreader filling level display [13] Fertilizer information display (fertilizer name, Current opening position of left/right pre- working width and spreading disc type) metering slide Button: Adjustment in the fertilizer chart...
  • Page 12 2. Layout and function • Forward speed • Flow factor (FF) • ha trip • kg trip • m trip • kg left • m left • ha left • Idle time (Time until the next idle measurement) • Torque for the spreading disc drive •...

  • Page 13: Display Of The Metering Slide Status

    2. Layout and function 2.1.3 Display of the metering slide status Fig. 3: Display of the metering slide status Spreading operation inactive Machine in spreading operation Section deactivated Section deactivated Section activated Section activated In boundary spreading mode, you can immediately deactivate an entire spreading side. This is particularly helpful for a quick spreading operation in field corners.

  • Page 14: Display Of Sections

    2. Layout and function 2.1.4 Display of sections Fig. 4: Display of the section states Section/boundary spreading toggle key Right section is reduced by several partial Reduce right section button sections Activated sections on entire working width Further display and setting options are explained in chapter 5.2.1 Working with sections. We recommend restarting the terminal in the following cases: •...

  • Page 15: Library Of Icons Used

    2. Layout and function Library of icons used The AXENT ISOBUS machine control unit displays icons for the individual menus and functions on the screen. 2.2.1 Navigation Icon Meaning Go to the left; previous page Go to the right; next page Back to the previous menu Back to main menu Switch between working screen and menu window...

  • Page 16: Working Screen Icons

    2. Layout and function Icon Meaning Hopper cover Fertilizer settings Machine settings Fast emptying System/Test Information Weighing/Trip counter 2.2.3 Working screen icons Icon Meaning Start spreading and control of application rate The spreading operation has started; stop the application rate regulation Start spreading discs Rotate the spreading discs;...
  • Page 17 2. Layout and function Icon Meaning Sections on the left side, boundary spreading on the right spreading side Sections on the right side, boundary spreading on the left spreading side Boundary spreading on the left, right or both spreading sides Selection of the surplus/shortage quantity on the left, right or both spreading sides (%) Quantity adjustment + (plus) Quantity adjustment - (minus)
  • Page 18 2. Layout and function Icon Meaning Reducing the spreading disc speed (minus) Left spreading side inactive Left spreading side active Right spreading side inactive Right spreading side active Reduce left section (minus) In boundary spreading mode: Pressing and holding (> 500 ms) immediately deactivates an entire spreading side. Increase left section (plus) Reduce section, right (minus) In boundary spreading mode:...

  • Page 19: Other Icons

    2. Layout and function 2.2.4 Other icons Icon Meaning Start idle measurement, in the main menu Limited border spreading mode, in the working screen Full border spreading mode, in the working screen Limited border spreading mode, in the main menu Full border spreading mode, in the main menu Manual overloading is active Automatic overloading is active...
  • Page 20 2. Layout and function Icon Meaning Decrease – (minus) pre-metering slide opening Decrease (minus) conveyor belt speed; Terminals with 2x6 function keys only Increase (plus) conveyor belt speed; Terminals with 2x6 function keys only EMC control deactivated Loss of the GPS signal (GPS J1939) The minimum mass flow is undercut The maximum mass flow is exceeded.

  • Page 21: Structural Menu Overview

    2. Layout and function Structural menu overview AXENT ISOBUS 5901646...
  • Page 22 2. Layout and function 5901646 AXENT ISOBUS...

  • Page 23: Attachment And Installation

    3. Attachment and installation Attachment and installation Tractor requirements Before installing the machine control unit, ensure that your tractor meets the following requirements: • A minimum voltage of 11 V must always be guaranteed, even if multiple loads are connected simultaneously (e.g., air conditioning system, lights) •...

  • Page 24: Overview Of Actuators And Sensors

    3. Attachment and installation 3.2.3 Overview of actuators and sensors The following overviews do not represent the exact position of actuators and sensors at the machine. This sub-chapter only serves for information on the assemblies and sensors controlled by the electronic system. Fig.

  • Page 25: Metering Slide Preparation

    3. Attachment and installation Fig. 6: Overview of actuators and sensors at the AXENT large area spreader and fertilizer spreading unit AXIS-PowerPack Comb roller Drop point actuator, left Belt drive Dosing slider actuator, left Belt speed sensor Left agitator Forward speed sensor (at right wheel) Interface connector for spreading units Metering slide actuator, right [10] Ultrasonic sensors...
  • Page 26 3. Attachment and installation The machine has an electronic slide actuator to set the application rate. Please observe the operator's manual for your machine. 5901646 AXENT ISOBUS...

  • Page 27: Operation

    4. Operation Operation CAUTION! Risk of injury due to ejected fertilizer In the case of a fault, it is possible that the metering slide unexpectedly opens during road transport to the spreading location. There is a risk of slipping and personal injury due to ejected fertilizer.

  • Page 28: Navigation Within The Menus

    4. Operation Press ACK. The alarm message is acknowledged and disappears. As long as the safety hood is open, the warning symbol is displayed in the top of the operating screen. Navigation within the menus Please refer to chapter 1.3.4 Menu hierarchy, keys and navigation for important notes regarding the display and navigation between menus.

  • Page 29: Functional Description: Status Indicator

    4. Operation Press ESC. The previous settings are retained. You will return to the previous menu. Functional description: Status indicator The control unit provides information on the current filling levels and sensor conditions of the large area spreader and the attached AXIS-PowerPack spreading unit or LIME-PowerPack. 4.3.1 Spreading material supply The AXENT conveyor belt is started up with opening of the AXENT pre-metering slides.

  • Page 30: Main Menu

    4. Operation The filling level sensor for the AXENT hopper is not at the hopper base. At the time of empty notification, the remaining spreading material in the hopper is usually sufficient for a few overloading operations. Despite the alarm message, the AXENT ISOBUS machine control unit attempts full overloading of the residual quantity.

  • Page 31: Fertilizer Settings

    4. Operation Sub-menu Meaning Description SpreadLight Activation/deactivation of operating 4.12 Operating lights lights (SpreadLight) Working screen Switches to the working screen Fertiliser settings Fertilizer and spreading operation 4.5 Fertilizer settings settings Machine settings Tractor and machine settings 4.7 Machine settings Fast emptying Direct access to menu for fast emptying 4.8 Fast emptying...
  • Page 32 4. Operation Fig. 10: Fertiliser settings AXIS-H menu, tab 1 and 2 Fig. 11: Fertiliser settings menu, tab 3 and 4 Sub-menu Meaning Description Fertiliser name Fertilizer selected from the fertilizer 4.5.12 Fertilizer charts chart Appl. rate (kg/ha) Input of target value for the application 4.5.1 Application rate rate in kg/ha Working width (m)
  • Page 33 4. Operation Sub-menu Meaning Description Start calibration Accessing the sub-menu for executing 4.5.5 Calibration the calibration Normal disc speed Input of the desired spreading disc 4.5.7 Rotation speed speed Influences the EMC mass flow control Spreading disc Setting of the disc type mounted on the Selection list: AXIS-PowerPack •...

  • Page 34: Application Rate

    4. Operation Sub-menu Meaning Description GPS-Control info Display of information of the GPS 4.5.11 GPS Control info Control parameters Fertiliser chart Management of fertilizer charts 4.5.12 Fertilizer charts Calibrate AXMAT AXIS-H 50.2 only Please observe the operator's Open the sub-menu for calibration of manual for the special the AXMAT function equipment...

  • Page 35: Setting The Working Width

    4. Operation Press the Appl. rate (kg/ha) [1] button on the touch screen. The number input window is displayed. Fig. 12: Entering the application rate on the touch screen Button Application rate Button Fertiliser chart Enter the new value in the input field. Press OK .
  • Page 36 4. Operation With identical basic settings (km/h, working width, kg/ha), the following applies: • If the flow factor is increased, the dosing quantity is reduced • If the flow factor is reduced, the dosing quantity is increased An error message is displayed if the flow factor is outside the preset range. See chapter 7 Alarm messages and possible causes.

  • Page 37: Drop Point

    4. Operation Minimum factor The machine control unit automatically sets the minimum factor to one of the following values, depending on the entered value: • The minimum factor is 0.2 if the entered value is less than 0.5 • The minimum factor is 0.4 if you enter a value over 0.5. 4.5.4 Drop point With the AXIS EMC mineral fertilizer spreader, the drop point is set via the electrical drop point...
  • Page 38 4. Operation The calibration must either be conducted with a running PTO at a standstill or while driving over a test section. • Remove both spreading discs. • Move the drop point to the calibration position (value 0). Entering the working speed: Access the menu Fertiliser settings >...
  • Page 39 4. Operation Press Start/Stop. The metering slide of the previously selected section opens and the calibration is started. The calibration can be stopped at any time by pressing the ESC key. The metering slide is closed and the display shows the Fertiliser settings menu. The calibration time is not relevant to the accuracy of the results.

  • Page 40: Disc Type

    4. Operation Weigh the collected weight (taking into account the empty weight of the collecting vessel). Enter the weight under the Calibrated quantity menu entry. Press OK. The new value is saved in the machine control unit. The Flow factor calculation menu is displayed. The flow factor must be between 0.4 and 1.9.
  • Page 41 4. Operation For optimal empty run measurement, check the correct input in the Fertiliser settings menu. • The entries in the Spreading disc and Normal disc speed menu items must correspond to the actual settings of your machine. The factory default speed is set to 750 rpm. If you want to set a different speed, you must change the saved value.

  • Page 42: Boundary Spreading Mode

    4. Operation 4.5.8 Boundary spreading mode AXIS-Honly In this menu, you can select a suitable spreading mode at the field boundary. Fig. 13: Setting values for boundary spreading mode Full border spreading Limited border spreading Access the menu Fertiliser settings. Switch to tab 2.

  • Page 43: Calculate Optipoint

    4. Operation 4.5.10 Calculate OptiPoint In the Calculate OptiPoint menu, you can enter the parameters to calculate the optimum turn-on and turn-off distances in the headlands. For an accurate calculation, it is very important to enter the distance factor for the fertilizer used. For the aerodynamic factor of the fertilizer used please refer to the fertilizer chart of the machine.

  • Page 44: Gps Control Info

    4. Operation Number Meaning Description Distance from the field border (in meters) at which the metering Turn on distance slides open. Distance from the field border (in meters) at which the metering Turn off distance slides close. On this page, you can manually adjust the parameters. See chapter 5.2.7 GPS control. Changing the values Open the desired list entry.

  • Page 45: Fertilizer Charts

    4. Operation Fig. 15: Menu GPS-Control info 4.5.12 Fertilizer charts In this menu, you can create and manage your own fertilizer charts. Selecting a fertilizer chart affects the machine, fertilizer settings and the machine control unit. The set application rate is overwritten by the stored value from the fertilizer chart.
  • Page 46 4. Operation Access the menu Fertiliser settings > Fertiliser charts. Fig. 16: Menu Fertiliser charts Indicates a fertilizer chart filled with values Empty fertilizer chart Indicates an active fertilizer chart Chart number Fertilizer chart name field Select an empty fertilizer chart. The name field consists of the fertilizer name, the working width and the spreading disc type.
  • Page 47 4. Operation Selecting a fertilizer chart Access the menu Fertiliser settings > Open and back to fertiliser settings. Select the desired fertilizer chart. The display shows the selection window. Select the option Open and back to spreading mat. settings. The Fertiliser settings menu is displayed and the selected element is loaded into the fertilizer settings as the active fertilizer chart.
  • Page 48 4. Operation Press the Fertilizer chart button [2] on the touch screen. The active fertilizer chart is displayed. Fig. 17: Managing the fertilizer chart via the touch screen Button Application rate Button Fertiliser chart Enter the new value in the input field. Press OK.

  • Page 49: Fertliser Settings (Lime-Powerpack)

    4. Operation Fertliser settings (LIME-PowerPack) The machine control unit automatically detects the attached spreading unit upon connection of the ISOBUS connector to the large area spreader AXENT. Some menu entries differ depending on whether the AXIS-PowerPack fertilizer spreading unit or the LIME-PowerPack lime spreading unit is attached.

  • Page 50: Application Rate

    4. Operation Sub-menu Meaning Description Working width (m) Determination of the working width to 4.6.2 Setting the working width be spread Flow factor Input of flow factor of the fertilizer used 4.6.3 Flow factor Normal disc speed Input of the desired spreading disc 4.6.5 Rotation speed speed Influences the EMC mass flow control...

  • Page 51: Setting The Working Width

    4. Operation Press the Appl. rate (kg/ha) [1] button on the touch screen. The number input window is displayed. Fig. 19: Entering the application rate on the touch screen Button Application rate Button Fertiliser chart Enter the new value in the input field. Press OK .
  • Page 52 4. Operation • If the flow factor is increased, the dosing quantity is reduced • If the flow factor is reduced, the dosing quantity is increased An error message is displayed if the flow factor is outside the preset range. See chapter 7.1 Meaning of the alarm messages.

  • Page 53: Disc Type

    4. Operation 4.6.4 Disc type The mounted spreading disc type has a default factory setting. If you have mounted different spreading discs on your machine, you must enter the correct type. Access the menu Fertiliser settings > Spreading disc. Activate spreading disc type U2. The Fertiliser settings window is displayed with the new spreading disc type.
  • Page 54 4. Operation Fig. 21: Machine settings menu, tab 3 and 4 Not all parameters are displayed simultaneously on one screen. You can switch to the next or previous menu windows (tabs) using the left/right arrow keys. Sub-menu Meaning Description AUTO/MAN mode Specifying automatic or manual 4.7.1 AUTO/MAN mode operating mode...
  • Page 55 4. Operation Sub-menu Meaning Description +/- appl. rate (%) Pre-setting the application rate To be entered in a separate change for the different input window spreading types Task Control Activation of the ISOBUS Task Controller functions for documentation and for application map spreading •...

  • Page 56: Auto/Man Mode

    4. Operation Sub-menu Meaning Description Manual mode 4.7.8 Opening adjustment No function in lime operation Pre-metering (mm) To be entered in a separate input window. No function in lime operation +/- opening (%) Pre-setting of the opening To be entered in a separate adjustment for pre-metering slide input window.

  • Page 57: Quantity

    4. Operation Menu Meaning Description AUTO km/h + AUTO kg Selecting automatic mode with automatic Page 90 weighing AUTO km/h Selecting automatic mode Page 93 MAN km/h Adjustment of forward speed for manual mode Page 94 MAN scale Dosing slide adjustment for manual mode Page 94 This operating mode is suitable for spreading slug pellets or fine seeds.

  • Page 58: Overloading Function Operating Mode

    4. Operation Specifying the application rate reduction: Access the menu Machine settings > +/- appl. rate (%). Enter the percentage by which the application rate is to be adjusted. Press OK. 4.7.3 Overloading function operating mode The overloading function with different operating modes is described in chapters 5.1 Overloading and 6.1 Overloading.

  • Page 59: Settings For Lime Operation

    4. Operation See also 5.1.1 Overloading in automatic operating mode and 6.1 Overloading. n Manual (AXIS-PowerPack only) CAUTION! Risk of slipping and environmental damage due to ejected fertiliser If overloading is active, overflow in the fertiliser spreader may occur and excessive fertiliser may leak unexpectedly from the hopper.

  • Page 60: Belt Speed

    4. Operation Access the menu Machine settings > AUTO/MAN mode. Select the AUTO km/h or MAN km/h menu item. You can start lime operation. Fig. 23: Operating screen in lime operation Symbol of active lime operating mode Starting the spreading operation AUTO km/h 4.7.5 Belt speed...

  • Page 61: Opening The Pre-Metering Slides

    4. Operation Only available in manual mode: During operation, the conveyor belt speed can be adjusted by the preset value (mm/s) at any time by pressing the Speed +/Speed - function keys. The pre-configuration can be reset with the C 100 % key. Access the menu Machine settings >...
  • Page 62 4. Operation Exact calculation of the number of speed pulses over 100 m is very important for the precise discharge of the fertilizer quantity. Preparing the speed calibration Conduct the calibration on the field. This reduces the influence of the ground characteristics on the calibration result.
  • Page 63 4. Operation Fig. 25: Tractor profile Tractor name field Confirm the profile selection Display of the number of pulses over 100 m Delete profile Open Name field [1]. Enter the name of the profile. The profile is active. The name is restricted to 16 characters. We recommend using the name of the tractor for ease of understanding.

  • Page 64: Fast Emptying

    4. Operation Press Stop. The display shows the number of received pulses. The new pulse count is saved. The profile menu is displayed again. Fast emptying In order to quickly clean the machine after spreading or to quickly empty any residual material, you can select the Fast emptying menu.
  • Page 65 4. Operation Carrying out the fast emptying process: Access the menu Main menu > Fast emptying. CAUTION! Risk of injury due to automatic adjustment of the drop point With AXIS EMC, the Approach drop point Yes = Start alarm message appears. When you press the Start/Stop function key, the drop point automatically moves to position 0.

  • Page 66: System/Test

    4. Operation CAUTION! Risk of injury due to automatic adjustment of the drop point With AXIS EMC, the Approach drop point Yes = Start alarm message appears. When you press the Start/Stop function key, the drop point automatically moves to position 0. After the calibration, the drop point automatically moves to the preset value again.

  • Page 67: Total Data Counter

    4. Operation Sub-menu Meaning Description Service Service settings Password-protected; only accessible for service personnel 4.9.1 Total data counter In this menu, all of the spreader's counter readings are displayed. • spread quantity in kg • spread area in ha • spread time in h •...
  • Page 68 4. Operation CAUTION! Risk of injury due to moving machine parts During the tests, machine parts may move automatically. Before carrying out the tests, ensure that nobody is present in the danger zone of the machine. Sub-menu Meaning Description Voltage Checking the operating voltage Metering slider Moving the left and right metering...
  • Page 69 4. Operation Access the menu System / Test > Test/diagnosis. Press the left/right arrows to navigate to the Sensor cover menu entry. The display shows the status of the actuators/sensors. Fig. 29: Test/diagnosis; Example: Sensor cover Signal display; 1: Safety hood is closed; 0: Signal bar graph Safety hood is open n Example Lime functions...
  • Page 70 4. Operation Press Start/Stop. The test for control of the selected equipment is started. Press Start/Stop again. The test is completed. n Example: metering slides Access the menu Test/diagnosis > Metering slider. The status of the motors/sensors is displayed. Fig. 31: Test/diagnosis; Example: Metering slider Signal display Position display Signal bar graph...
  • Page 71 4. Operation Access the menu System / Test > Test/diagnosis. Select the LIN bus menu item. The display shows the status of the actuators/sensors. Fig. 32: System / Test; Example: Test/diagnosis Status display Connected equipment Start self-test Linbus participant status notification The devices indicate various conditions: •...

  • Page 72: Service

    4. Operation 4.9.3 Service An input code is required to configure the settings in the Service menu. These settings can only be modified by authorized service personnel. 4.10 Info The Info menu provides information on the machine control unit. This menu provides information on the configuration of the machine. The information list depends on the equipment of the machine.

  • Page 73: Trip Counter

    4. Operation Sub-menu Meaning Description Trip counter Display of the fertilizer quantity spread, 4.11.1 Trip counter area spread, and spread distance Rest (kg, ha, m) For weighing spreaders only: Display of 4.11.2 Rest (kg, ha, m) the remaining quantity in the hopper Meter counter Display of the distance traveled since Reset (zeroing) by pressing the...

  • Page 74: Rest (Kg, Ha, M)

    4. Operation Clear trip counter Access the sub-menu Weighing/Trip count. > Trip counter. The values for spread quantity, area, and distance calculated since the last deletion are displayed. Press the Delete trip counter button. All values of the trip counter are reset to 0. 4.11.2 Rest (kg, ha, m) In the Rest (kg, ha, m) menu, you can obtain the remaining quantity in the hopper.

  • Page 75: Operating Lights (Spreadlight)

    4. Operation In this menu, set the weighing value for the empty hopper to 0 kg. For taring the scales, the following requirements have to be fulfilled: • the hopper is empty, • the machine is at a standstill, • the PTO is switched off, •...

  • Page 76: Special Functions

    4. Operation In the automatic mode, the operating lights are switched on as soon as the metering slides open and the spreading process starts. Access the menu Main menu > SpreadLight. Put a check mark in the menu item SpreadLight AUTO [3]. The operating lights are switched on when the metering slides open.

  • Page 77: Using The Joystick

    4. Operation Menu/value Conversion of metric to imperial units ha left 1 x 2.4710 ac (ac left) Working width (m) 1 x 3.2808 ft Rate (kg/ha) 1 x 0.8922 lbs/ac Mounting height cm 1 x 0.3937 in Menu/value Conversion of metric to imperial units lbs left 1 x 0.4536 kg ac left...
  • Page 78 4. Operation n CCI A3 joystick Fig. 37: CCI A3 Joystick, front and rear Light sensor Plastic grid (replaceable) Display/touch panel Shift key n CCI A3 Joysticks operating levels You can switch between three operating levels with the shift key. The level that is currently active is displayed by the positioning of a light strip at the bottom edge of the display.
  • Page 79 4. Operation Fig. 38: CCI A3 joystick, operating level display Level 1 active Level 3 active Level 2 active n CCI A3 joystick button functions The joystick offered is pre-programmed with specific functions at the factory. The meaning and function of the icons can be found in Chapter 2.2 Library of icons used. Please note that the functions of the buttons vary depending on machine type (AXIS-M, AXIS-H).
  • Page 80 4. Operation Fig. 39: Button functions Level 1 Fig. 40: Button functions Level 2 5901646 AXENT ISOBUS...

  • Page 81: Wifi Module

    4. Operation Fig. 41: Button functions Level 3 If you would like to adjust the button functions on the three levels, please note the instructions in the joystick operator’s manual. 4.13.3 WIFI module n Special equipment A WiFi module can be used for communication between a smartphone and the ECU. The following functions are possible: •...
  • Page 82 4. Operation Fig. 42: WiFi module You can find more information on assembly of the WiFi module and communication with the smartphone in the WiFi module assembly instructions. • The WiFi password is: quantron. 5901646 AXENT ISOBUS...

  • Page 83: Spreading Operation With Axis-Powerpack

    5. Spreading operation with AXIS-PowerPack Spreading operation with AXIS-PowerPack Overloading 5.1.1 Overloading in automatic operating mode Overloading is fully automatic and always in the same sequence. The sensor conditions and overloading can be observed on the operating screen. However, the messages are displayed without sound.

  • Page 84: Overloading In Manual Operating Mode

    5. Spreading operation with AXIS-PowerPack Function/control Operating screen display u Press the start/stop key at the end of work. u Stop spreading discs. The pre-metering slides automatically close as soon as the spreading discs have stopped. 5.1.2 Overloading in manual operating mode Overloading is started and stopped by pressing the Start overloading key if a spreader side is empty.

  • Page 85: Fertilizer Spreading

    5. Spreading operation with AXIS-PowerPack Function/control Operating screen display u Open the pre-metering slides. u The conveyor belt starts up simultaneously. u Fertiliser flow runs into the spreading unit hopper. u Adjust the conveyor belt speed and the opening of the pre-metering slides.
  • Page 86 5. Spreading operation with AXIS-PowerPack Button Spreading type Activate section on both sides Section on the left, boundary spreading function on the right possible Section on the right, boundary spreading function on the left possible AXIS-H only Boundary spreading function on both sides Press the function key several times until the desired spreading type is displayed.
  • Page 87 5. Spreading operation with AXIS-PowerPack • Each section can be reduced or increased in steps. • Section control is possible from the outside to the inside or vice versa. See Fig. 44 Automatic section control We recommend restarting the terminal in the following cases: •...
  • Page 88 5. Spreading operation with AXIS-PowerPack Fig. 44: Automatic section control Field edge Tramline in the field Headlands tramline Sections 1 to 4: Section reduction on the right hand side Sections 5 to 7: further section reductions 5901646 AXENT ISOBUS...
  • Page 89 5. Spreading operation with AXIS-PowerPack n Spreading operation with one section and in boundary spreading mode During spreading operation, the sections can be changed gradually and limited border spreading can be deactivated. The figure below shows the operating screen with boundary spreading activated and a section activated.

  • Page 90: Spreading With The Automatic Operating Mode (Auto Km/H + Auto Kg)

    5. Spreading operation with AXIS-PowerPack 5.2.2 Spreading with the automatic operating mode (AUTO km/h + AUTO kg) The AUTO km/h + AUTO kg operating mode allows for continuous regulation of the application rate during the spreading operation. The mass flow control is corrected at regular intervals on the basis of this information.

  • Page 91: Idle Measurement

    5. Spreading operation with AXIS-PowerPack We recommend displaying the flow factor in the working screen (refer to 2.1.2 Display fields), in order to monitor the mass flow control while spreading. In case of any problems with flow factor control (clogging, ...), after troubleshooting at a standstill, switch to the Fertilizer settings menu and enter the flow factor 1.0.
  • Page 92 5. Spreading operation with AXIS-PowerPack When starting the spreading disc for the first time, the machine control adjusts the idling torque of the system. See 7.1 Meaning of the alarm messages. If the alarm message is displayed repeatedly even though the transmission oil is warm: •...

  • Page 93: Spreading With The Auto Km/H Operating Mode

    5. Spreading operation with AXIS-PowerPack When the metering slides are closed, an idle measurement is always carried out in the background (without alarm message)! Do not reduce the engine speed during the idle measurement in the headlands! The tractor and hydraulics circuit must have reached their operating temperature! n Manual idle measurement In the case of unusual changes in the flow factor, start the idle measurement manually.

  • Page 94: Spreading With The Man Km/H Operating Mode

    5. Spreading operation with AXIS-PowerPack AXIS-H only: Press Spreading disc start. Press Start/Stop. The spreading starts. 5.2.5 Spreading with the MAN km/h operating mode If there is no speed signal, the MAN km/h operating mode is active. Access the menu Machine settings > AUTO/MAN mode. Select the MAN km/h menu item.
  • Page 95 5. Spreading operation with AXIS-PowerPack The manual mode is only applied: • If there is no speed signal (radar or wheel sensor not available or defective) • when spreading slug pellets or fine seeds The MAN scale operating mode is appropriate for slug pellets and fine seeds since the automatic mass flow control cannot be activated due to the low weight reduction.

  • Page 96: Gps Control

    5. Spreading operation with AXIS-PowerPack AXIS-H only: Press Spreading disc start. Press Start/Stop. The spreading starts. To change the metering slide opening, press the MAN+ or MAN- function key. L% R% for selecting the side of the metering slide opening MAN+ to increase the dosing slider opening or MAN- to reduce the dosing slider opening.
  • Page 97 5. Spreading operation with AXIS-PowerPack For the use of the GPS control functions of the machine control unit, the GPS-Control setting in the Machine settings menu must be activated! Fig. 49: Spreading operation display in the operating screen with GPS Control The OptiPoint function calculates the optimal turn on and turn off position for spreading in the headlands based on the settings in the machine control unit;...
  • Page 98 5. Spreading operation with AXIS-PowerPack Fig. 50: Distance on (measured from field border) Turn on distance Field border If you want to change the switch-on position in the field, you need to adjust the Turn on dist. (m) value. • A lower value for this distance means that the switch-on position is closer to the field border.
  • Page 99 5. Spreading operation with AXIS-PowerPack Fig. 51: Distance off (measured from field border) Turn off distance Field border If you want to change the switch-off position, you need to adjust the Turn off dist. (m) accordingly. • A lower value means that the switch-off position is closer to the field border. •...

  • Page 100: Spreading Operation With Lime-Powerpack

    6. Spreading operation with LIME-PowerPack Spreading operation with LIME-PowerPack Overloading Overloading is fully automatic and always in the same sequence. Requirement: • The automatic operating mode is active. ○ See 4.7.3 Overloading function operating mode Function/control Operating screen display u Press Spreading disc start. u Spreading operation start.

  • Page 101: Settings

    6. Spreading operation with LIME-PowerPack Lime operation is speed-dependent: The speed of the conveyor belt and opening of the pre-metering slide are automatically adjusted to the forward speed to ensure even lime spreading. 6.2.1 Settings Entering the application rate Access the menu Fertiliser settings > Appl. rate (kg/ha). The currently applied application rate is displayed.

  • Page 102: Starting The Spreading Operation

    6. Spreading operation with LIME-PowerPack 6.2.2 Starting the spreading operation Fig. 52: Operating screen in lime operation Symbol of active lime operating mode Starting the spreading operation AUTO km/h Function/control Operating screen display u Press Spreading disc start. The pre-metering slides open automatically. u Spreading operation start.
  • Page 103 6. Spreading operation with LIME-PowerPack Function/control Operating screen display u Press Start/Stop in the headlands. The conveyor belt is stopped. The pre-metering slides remain open. u Press start/stop again during travel into the field. The conveyor belt is started. u Press Start/Stop at the end of the operation. The conveyor belt is stopped.

  • Page 104: Alarm Messages And Possible Causes

    7. Alarm messages and possible causes Alarm messages and possible causes Meaning of the alarm messages Various alarm messages can be displayed on the ISOBUS terminal display. No. Message in display Meaning and possible cause Fault in dosing system, stop ! The motor of the metering system cannot reach the specified target value: •...
  • Page 105 7. Alarm messages and possible causes No. Message in display Meaning and possible cause 17 Error by setting drop point The drop point adjustment cannot reach the specified target value. • Fault, for instance with the power supply • No position feedback 18 Error by setting drop point The drop point adjustment cannot reach the specified target value.
  • Page 106 7. Alarm messages and possible causes No. Message in display Meaning and possible cause 29 The agitator motor is overloaded. The agitator is blocked. • Blockage • Defective connection 30 The discs shall be activated before opening the Correct software operation metering sliders.
  • Page 107 7. Alarm messages and possible causes No. Message in display Meaning and possible cause 52 Error at hopper cover The position of the hopper cover could not be reached. • Blockage • Defective actuator 53 Defect at hopper cover The hopper cover actuator cannot reach the target value for the movement.
  • Page 108 7. Alarm messages and possible causes No. Message in display Meaning and possible cause 79 Cover open! Switch is not operated, the overloading function is not possible. The safety hood is open and not properly closed. 80 Stop loading! The message is displayed on switching over to the system/test menu during operation.

  • Page 109: Fault/Alarm

    7. Alarm messages and possible causes No. Message in display Meaning and possible cause 93 This disc type requires a modification on the Spreading disc S1 is installed and the machine TELIMAT device. Please follow the mounting is equipped with TELIMAT. Spreading errors instructions! possible during border spreading •...
  • Page 110 7. Alarm messages and possible causes In the case of different ISOBUS terminals, acknowledging the alarm messages may differ. You can use various keys to acknowledge other messages with a yellow frame: • Enter • Start/Stop For this purpose, follow the instructions on screen. 5901646 AXENT ISOBUS...

  • Page 111: Special Equipment

    8. Special equipment Special equipment Illustration Designation Level sensor CCI A3 joystick WiFi module AXENT ISOBUS 5901646...

  • Page 112: Guarantee And Warranty

    • Claims for damage other than to the RAUCH devices will not be accepted. This also means that no liability will be accepted for damage resulting from spreading errors. Unauthorized modifications of the RAUCH devices may result in consequential damage, for which the manufacturer will not accept any liability.
