Installation Guide
Elise3
5.1.2

Network Settings

Under System > Network the network settings are shown. All network settings can be
edited in this view if DHCP is disabled, but only the Host name if DHCP is enabled.

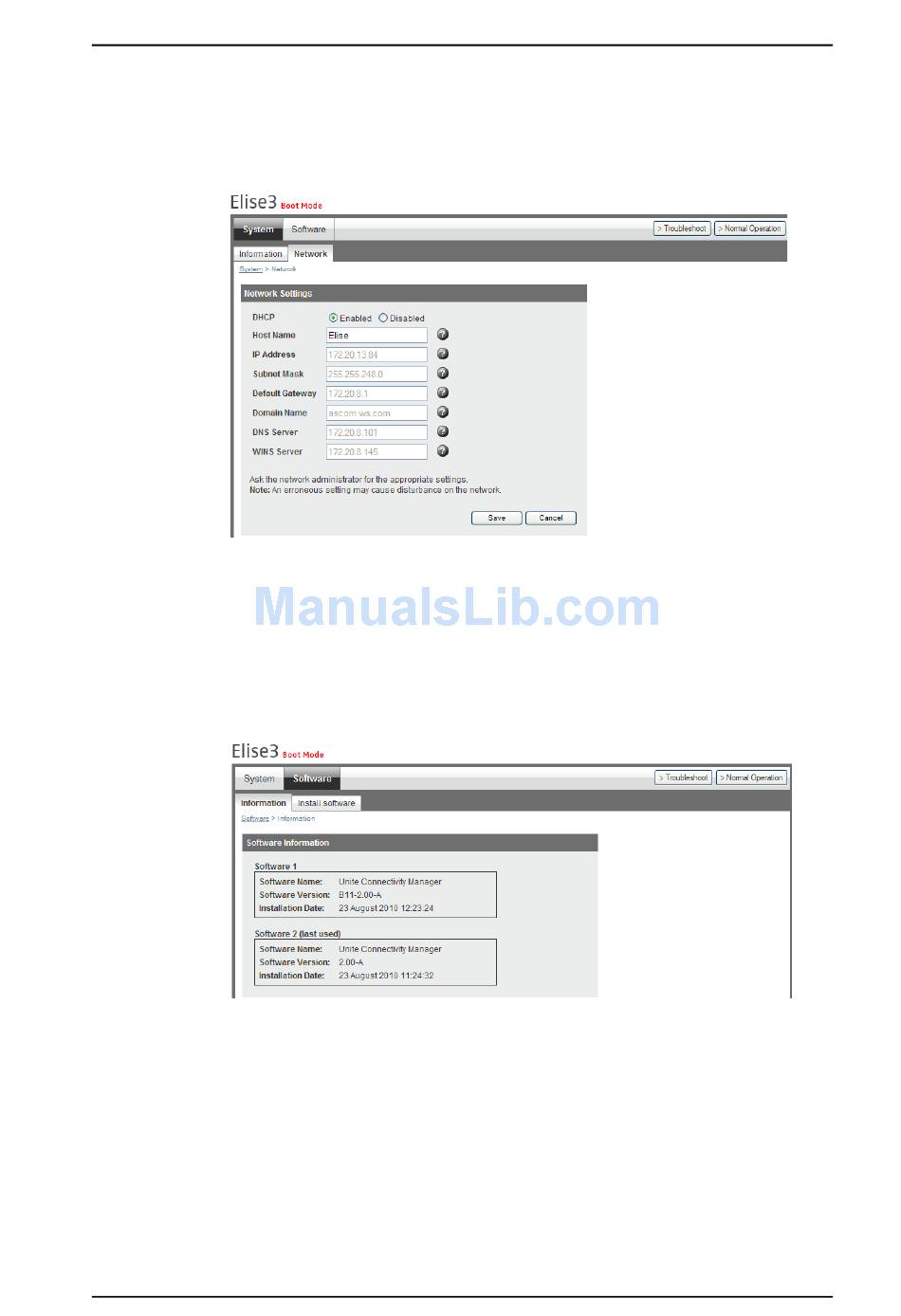

Figure 20. System network settings in Boot Mode
5.1.3

Software Information

Under Software > Information the installed software name, version and installation date
are shown. If two versions have been installed, information about both versions and also
which version that was last used by the module is shown. The format of the installation
date is dependent on the PC's language settings.
Figure 21. Software information in Boot Mode
5.1.4

Install Software in Boot Mode

Installing new software is normally done from the application's web interface, refer to the
application documentation. But if the application's web interface cannot be reached it is
possible to put Elise3 in Boot Mode, access the modules web interface and install new
software from there.
Note: It is not recommended to use the module's Management port when installing
software.
12 April 2011 Ver. D
Figure 18.
Figure 19.
TD 92679GB
26
