ASSEMBLY

Assembly requires two persons. Place all parts of the elliptical in a cleared area and remove the packing
materials. Do not dispose of the packing materials until assembly is completed.
In addition to the included tool(s), assembly requires a Phillips screwdriver and a rubber
mallet .

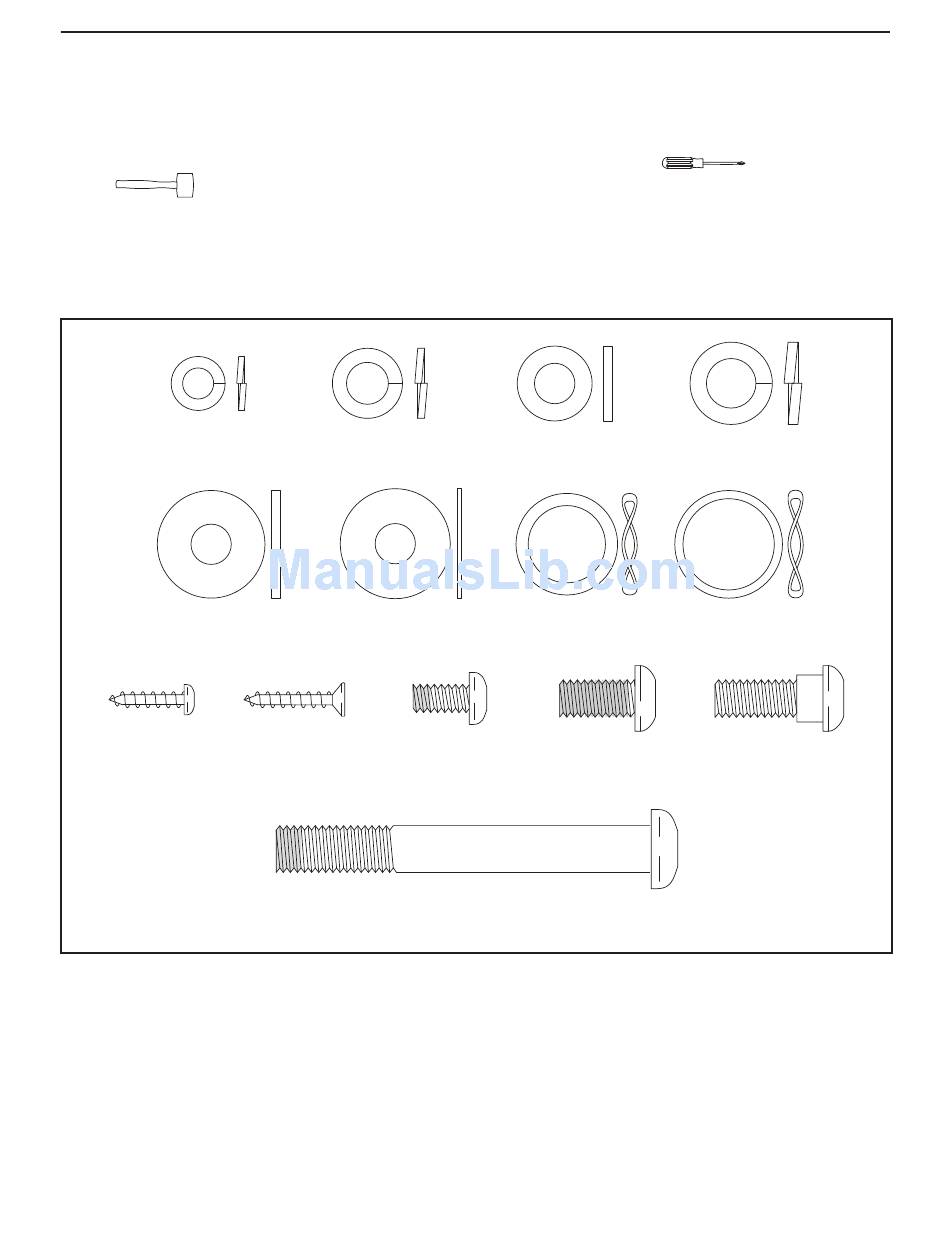

As you assemble the elliptical, use the drawings below to identify small parts. The number in parentheses below
each drawing is the key number of the part, from the PART LIST near the end of this manual. The number fol-
lowing the parentheses is the quantity needed for assembly. Note: If a part is not in the hardware kit, check
to see if it has been preassembled.
M6 Split Washer M8 Split Washer
M8 x 16mm x 2mm M10 Split
(103)–14
(112)–8
Washer (120)–2 Washer (123)–4
M8 x 23mm x 2mm Small Wave Medium Wave
M8 x 23.5mm x 1mm
Washer (126)–2 Washer (118)–2 Washer (119)–2
Washer (110)–2
M4 x 16mm M4 x 19mm M6 x 12mm Patch M8 x 16mm M8 x 23mm Shoulder
Screw (93)–12 Flat Head Screw (111)–8 Patch Screw Patch Screw (121)–2
Screw (117)–1 (102)–16
M10 x 80mm Patch
Screw (100)–4
5
