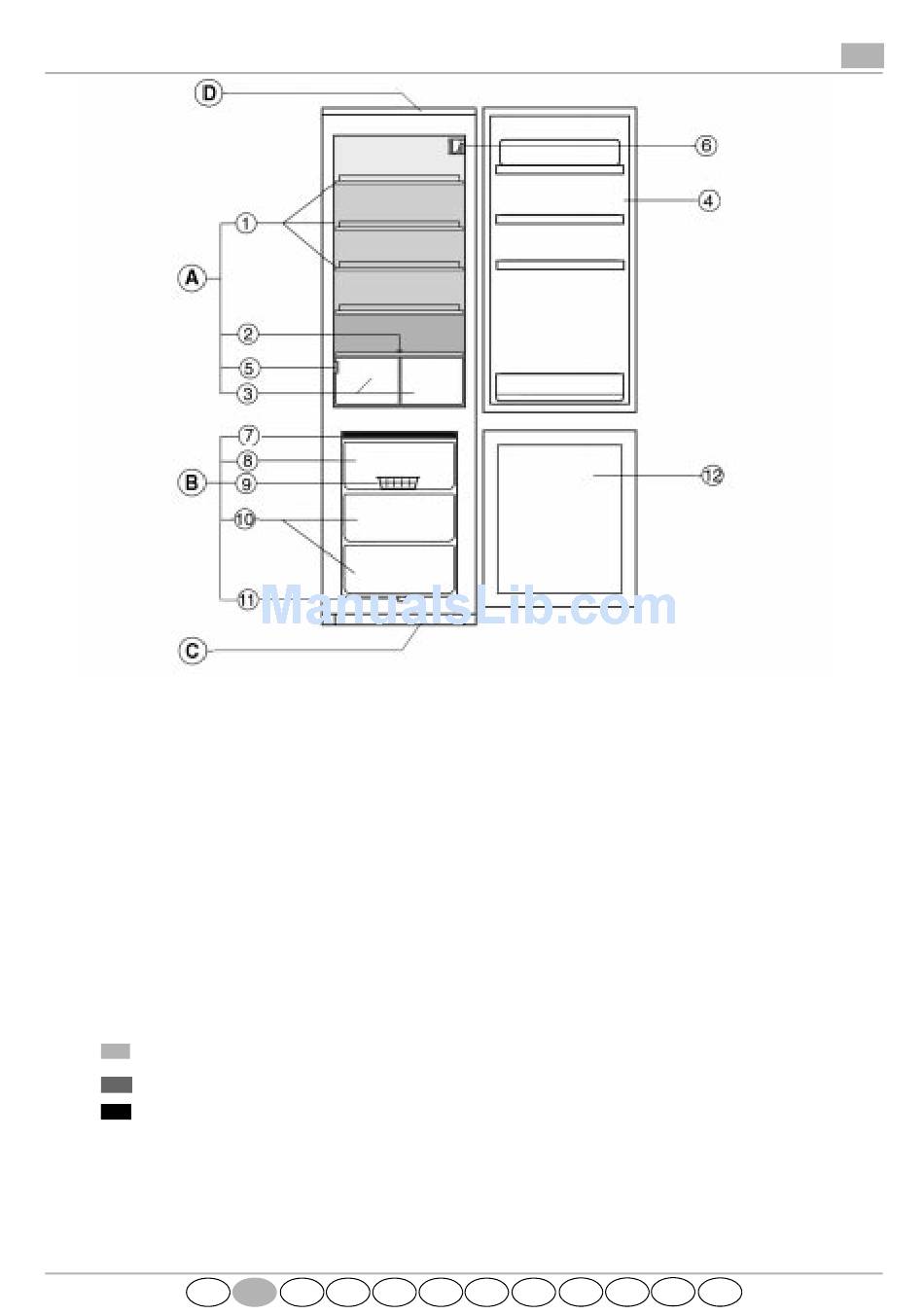

Refrigerator compartment

1. Rack with adjustable height
(according to model)
• rack inclination is adjustable
• one of the racks has a hinged section
that can be flipped up to
accommodate bottles (if supplied)
2. Glass separator panel
3. Crisper drawers
4. Refrigerator inner door panel with door
trays
5. Rating plate (at the side of the crisper
drawers)
6. Thermostat control knob/light
Least cold zone
Intermediate temperature zone
Coldest zone
Notes: the number of shelves and the shape of accessories may vary, depending on the model.
All shelves, door trays and racks are removable.
Warning: refrigerator accessories must not be washed in a dishwasher.
D
PRODUCT DESCRIPTION SHEET
GB
F
NL
E
B.

Freezer compartment

7.
Rack (if supplied) for ice cube trays or
ice packs (depending on model)
8.
Freezing section
Ice cube tray
9.
10. Tray/s (depending on model) for storing
frozen foods
11. Defrost water drain
12. Freezer inner door panel
C)
Removable plinth
D)
Control panel
P
I
GR
S
DK
N
FIN
GB
