Controls may be located internally or externally, depending on the model. For all models,
temperature is adjusted by an interior knob.

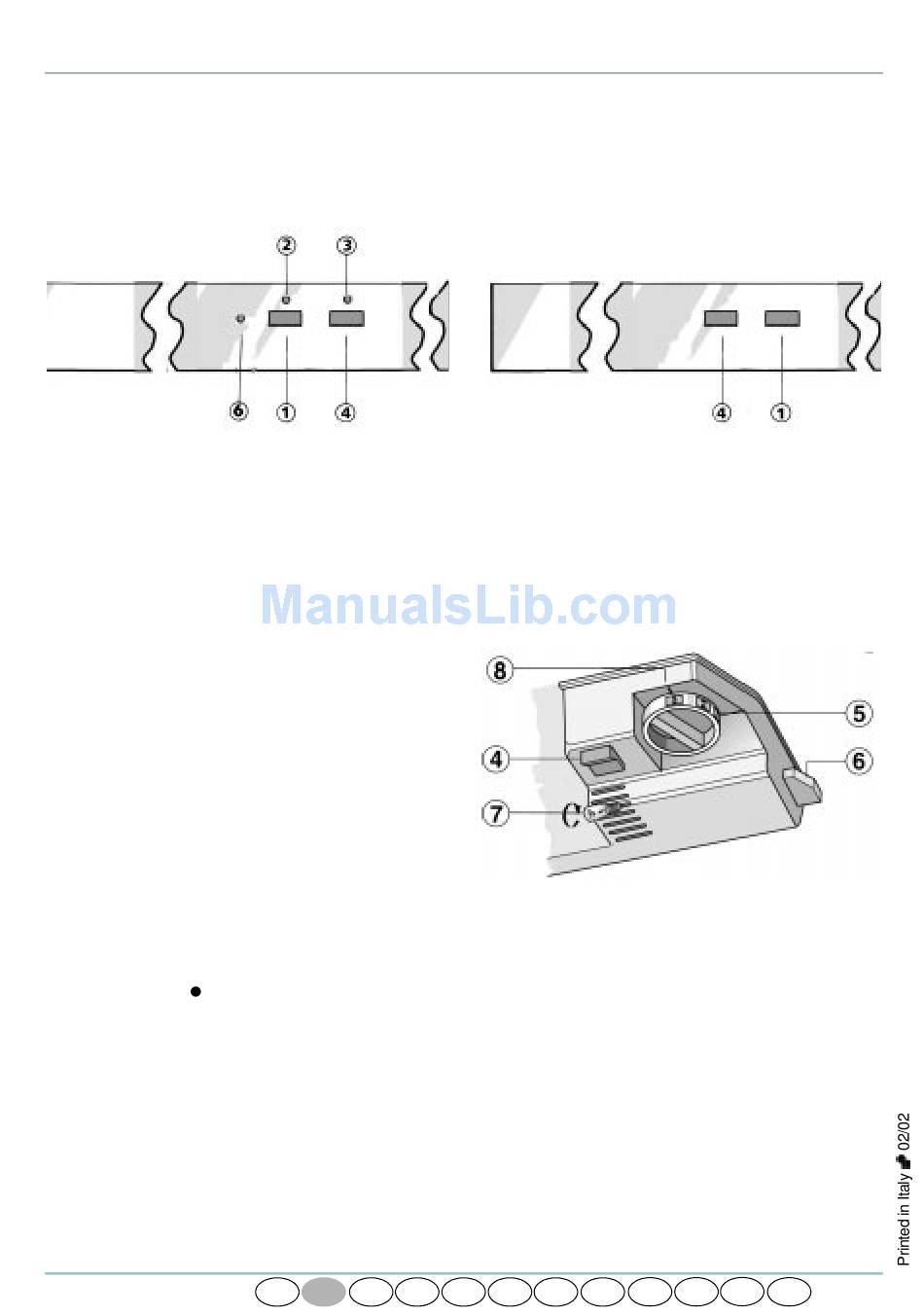

Version with external controls
1. Main ON/OFF button
2. Power ON green indicator LED
3. Fast freeze yellow indicator LED
4. Fast freeze button
6. Internal light switch
Version with internal controls
4. Yellow indicator led (freezing)
5. Principal thermostat control knob
6. Internal light switch
7. Lamp (max 15W)
8. Thermostat control reference
Thermostat set to
: no refrigeration, no light
Thermostat set to 1:
Thermostat set to 5:
The average recommended thermostat setting is 2-3.
Note: the ambient air temperature, the frequency of opening the door and the position of the appliance can
affect the internal temperatures of the refrigerator. These factors must be taken into account when setting
the thermostat.
5019 637 33023

CONTROL PANEL

least cold internal temperature
coldest internal temperature
D
GB
F
To remove the bulb, unscrew in an anti-clockwise
direction as illustrated
NL
E
P
I
S
N
DK
GR
FIN
