CYBEX Plate Loaded 16120 Smith Press Owner's Manual page 18

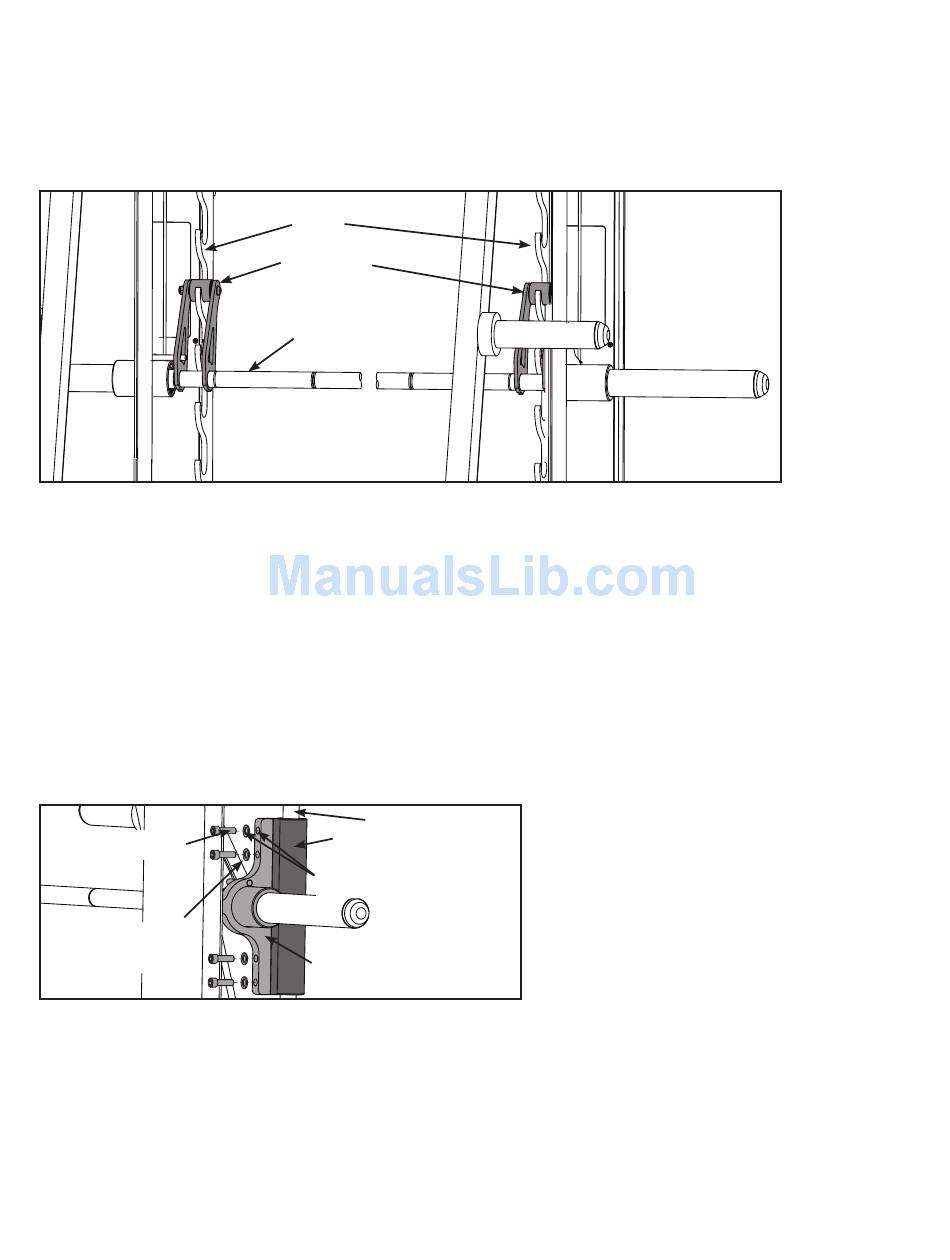

5. Install weight bar assembly.
Carefully place weight bar on frame and secure in place by latching bar catch on hooks.
•
Verify each bar catch is hooked properly on the hook.
•
Slide bearing housing up (located at bottom of guide shaft) and align holes with weight bar
•
bracket.
Locate four Socket Head Cap Screws (SHCS), four washers and loctite from shipping package.
•
Place a small drop of loctite on the four SHCS and in threaded holes of weight bar bracket.
•
Place washer over SHCS.
•
Using a 5/16" Allen wrench tighten the four SHCS securing the weight bar bracket to the bearing
•
housing.
Repeat step 5 for opposite side.
•
SHCS (Qty 4)
Washers
(Qty 4)
Cybex Plate Loaded 16120 Smith Press Owner's Manual
Hook
Bar Catch
Weight Bar
Guide Shaft
Bearing Housing
Loctite
Weight Bar Bracket
18
