M4-Atx Connection Diagram - mini-box M4-ATX Installation Manual

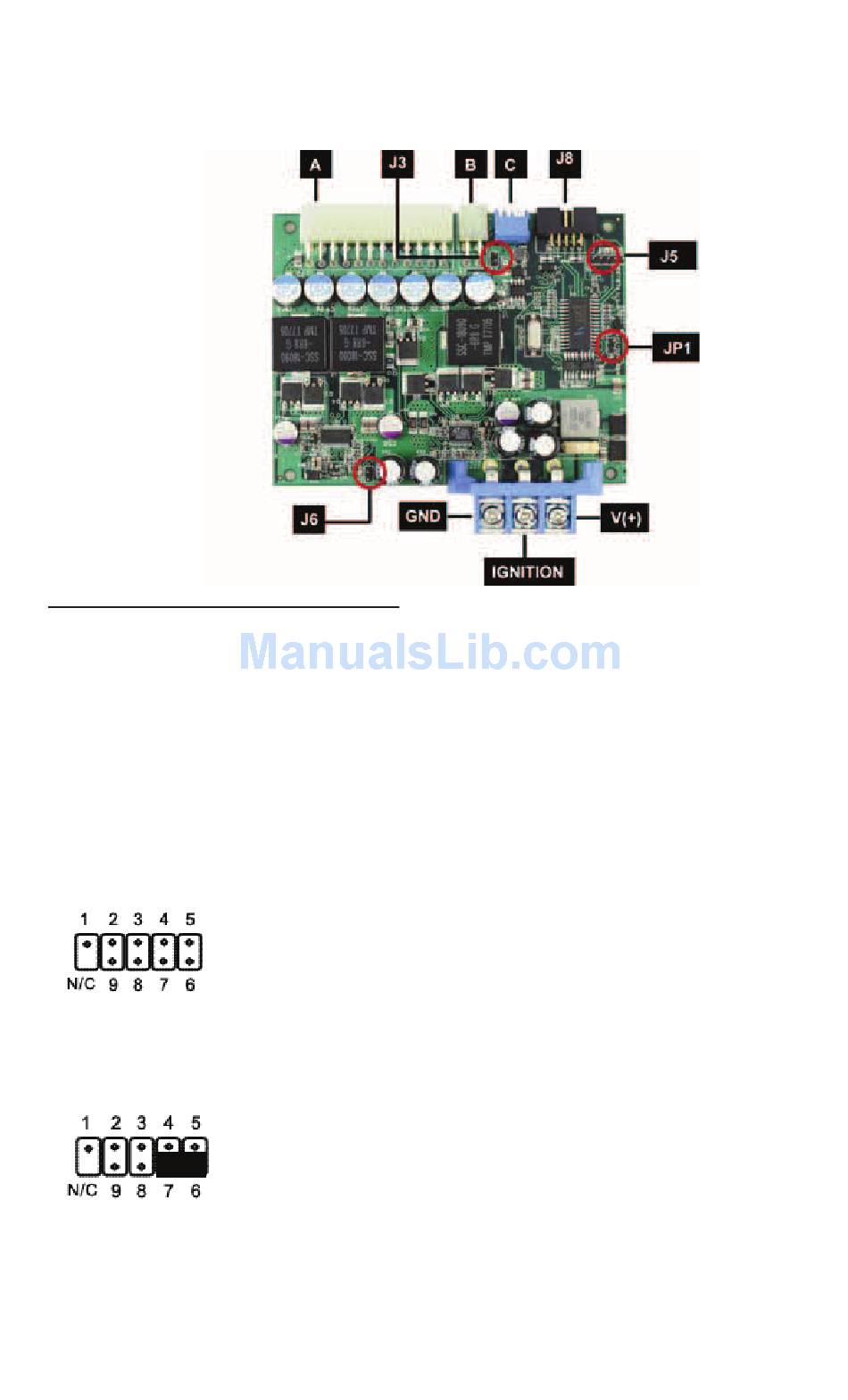

Power Input Connectors (bottom, right)
Left Battery negative (GND)
Center Ignition (
(mode P0)
Right Battery positive (+)
(A) ATX Power Output Connector 20/24 pin connector
(B) 12V-ATX power output connector 4 pin
(C) Configuration dip switches
(J5) For internal use only (do not use)
(J6) Amplifier THUMP wire harness (connects to the M4-ATX pin header)
(J3) Fan Header. Positive pin is closest to "J3" marking.
(J8) USB, Motherboard ON/OFF and THUMP (Thump also available on J6)
1) GND
2) GND
3) USB D+
4) USB D-
5) Vcc
M4-ATX User Guide

1.2 M4-ATX Connection diagram

To start connect to Battery +).
6) To Motherboard ON/OFF
7) To motherboard ON/OFF
8) Amplifier Thump
9) GND
19 N/C (key)
J8 shown with cable harness connected to the
motherboard ON-OFF header (pin 7 and 6)
Do not use in the standard PSU mode
