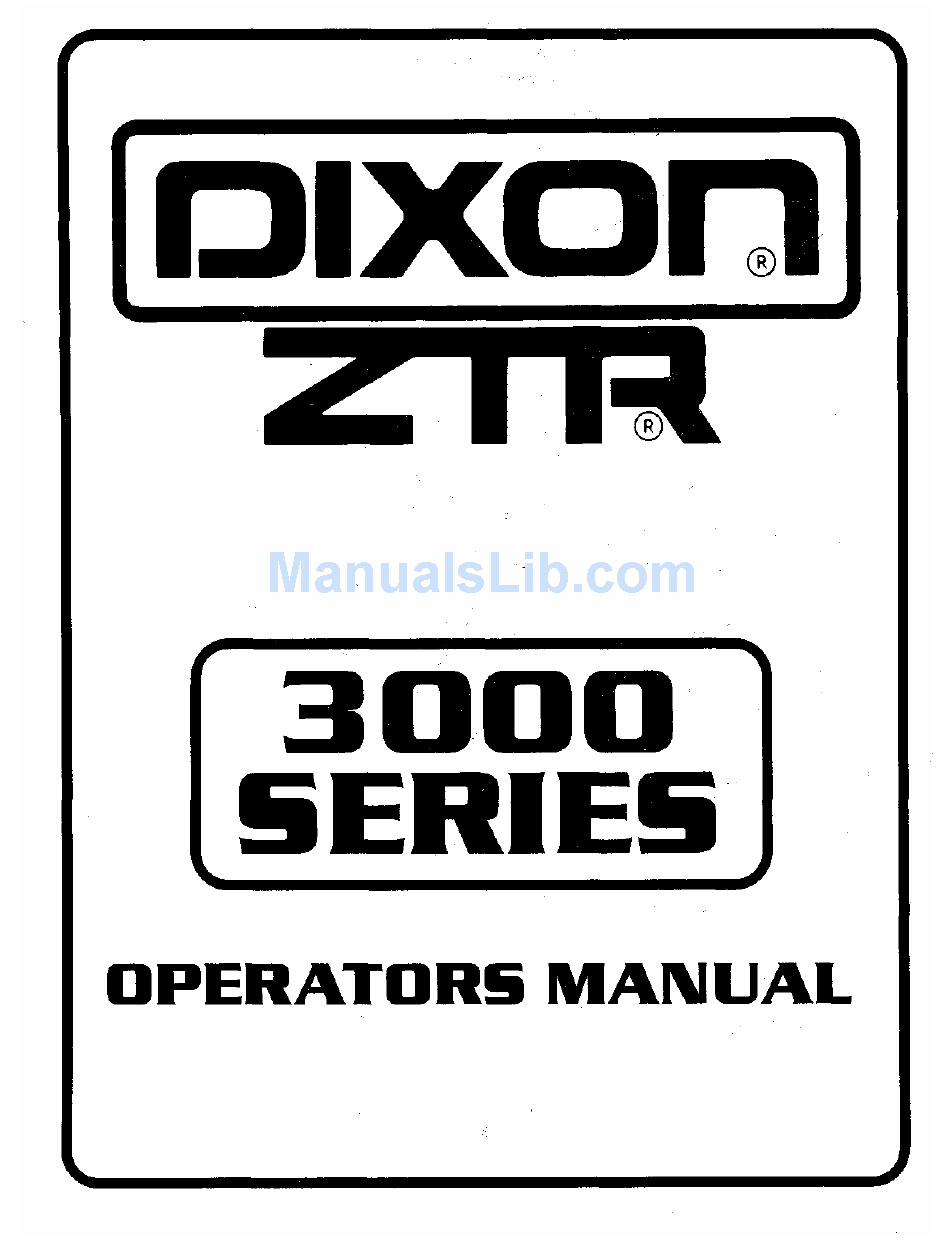

Dixon 3000 Series Operator's Manual

Hide thumbs Also See for 3000 Series:

Operator's manual (44 pages)

Operator's manual (42 pages)

Operator's manual (38 pages)

Table Of Contents

Table of Contents

Quick Links

Need help?

Do you have a question about the 3000 Series and is the answer not in the manual?

Questions and answers

Harry Shuler

May 15, 2025

Is there any way you can show me a picture of the whole bottom of the 3362 Dixon zrt

1 comments:

Mr. Anderson

May 22, 2025

The bottom of the Dixon ZTR 3362 includes a mower deck made of 11-gauge stamped steel with a 36" cut width. It uses a single blade driven by an electric clutch. Each rear wheel is independently driven by chain and sprockets through a friction mechanical drive. The chassis features twin 12-gauge side frames and a 7-gauge transmission and engine base plate.

This answer is automatically generated

Summary of Contents for Dixon 3000 Series

Page 2: Important Read Carefully
The information in this operator's manual applies to all Dixon 3000 Series Model Mowers. Your Dixon dealer will gladly provide a check-out ride, and answer any questions. See your dealer for warranty service, parts and repairs.
Page 3 INDEX SAFETY............Pages 1 -6 WARRANTY POLICY........Page SPECIFICATIONS........Pages 8 -10 SEAT ADJUSTMENT........Page CONTROLS..........Pages 12 -15 OPERATION INSTRUCTIONS....Pages 16 -21 CARE AND MAINTENANCE...... Pages 22 - 29 STANDARD SERVICE PARTS LIST ……. Page Pages 31 - 33 TROUBLESHOOTING.........
Page 4 A SAFETY RIDING LAWNMOWERS, IF IMPROPERLY OPERATED, CAN CAUSE SERIOUS INJURY OR DEATH The most common causes of injury to the operator or bystander... BLADE CONTACT RUN-OVER TIP-OVER RUN-OVER Page 1...
Page 5: Safety Alert Symbol
SAFETY SAFETY SYMBOLS: SAFETY ALERT SYMBOL - When you see this symbol, BE ALERT to the potential for injury. Follow recommended safety precautions and safe operating practices. Danger indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.
Page 6: General Operation
SAFETY This cutting mower is capable of amputating hands and feet, and throwing objects. Failure to observe the following safety instructions could result in serious injury or death. GENERAL OPERATION: • Read, understand, and follow all instructions in the manual and on the mower before starting. •...
Page 7: Slope Operation
If you cannot back up the slope or if you feel uneasy on it, do not mow it. Mow across the slope with your Dixon ZTR - never up or down. Remove obsta cles such as rocks, tree limbs, etc.
Page 8 SAFETY CHILDREN: Tragic accidents can occur if the operator is not alert to the presence of children. Children are attracted to lawn mowers and the mowing activity. NEVER assume children will stay where they were last seen. Be alert to avoid accidents. •...
Page 9 SAFETY SERVICE: • Use extra care in handling gasoline and other fuels. They are flammable and vapors are explosive. Use only an approved container. Never remove gas cap or add fuel with the engine running. Allow engine to cool before refueling.
Page 10 (c) Belts / chains / sprockets / cutting blades. (d) Engines - All engines used on Dixon ZTR m owers are warranted by each individual engine manufacturer. (e) Any costs or expense of providing substitute equipment while repair work is being performed on a warranted mower.
Page 11: Specifications
SPECIFICATIONS Model ZTR 3303 CHASSIS: The monocoque design chassis of the 3000 Series Models incorporates CMC Laser and CNC brake processes to form the twin 12 gauge side frames and 7 gauge transmission and engine base plate. BODY: All body parts are made of rotational molded polyethylene. Front body contains access panel for battery service.
Page 12 SPECIFICATIONS Model ZTR3304 CHASSIS: The monocoque design chassis of the 3000 Series Models incorporates CMC Laser and CNC brake processes to form the twin 12 gauge side frames and 7 gauge transmission and engine base plate. BODY: All body parts are made of rotational molded polyethylene. Front body contains access panel for battery service.
Page 13 SPECIFICATIONS Model ZTR 3362 CHASSIS: The monocoque design chassis of the 3000 Series Models incorporates CNC Laser and CNC brake processes to form the twin 12 gauge side frames and 7 gauge transmission and engine base plate. BODY: All body parts are made of rotational molded polyethylene. Front body contains access panel for battery service.
Page 14 SEAT ADJUSTMENT INSTRUCTIONS Models ZTR 3303 - ZTR 3304 - ZTR 3362 Raise and push seat assembly forward. Model ZTR 3 303 - loosen four seat bolts, P/N 3077, and slide seat forward or backward to desired position. Models ZTR 3304 & ZTR 3362 - Loosen five nuts, P/N 3205, and slide seat forward or backward to desired position.
Page 15 CONTROLS Page 12...
Page 16: To Set Parking Brake
CONTROLS The Dixon ZTR has a unique transaxle that requires only two drive levers to control braking, turning, speed, and direction. On initial operation, set throttle speed on slow and operate with mower blade "OFF" To avoid "over-controlling" the mower, use a light touch on the drive levers. Slight movements using fingertip control is all that is necessary.
Page 17 CONTROLS: TO GO FORWARD: From neutral position, gently push both drive levers forward. To increase speed, move levers farther forward. TO GO BACKWARD: From neutral position, gently pull both drive levers toward you. TURNING: Turning is controlled by moving one drive lever slightly forward or rearward of the other. To turn left, move left lever rearward of the right lever.
Page 18: Mower Deck Cut Height Lift Lever
CONTROLS: BLADE DRIVE: Models ZTR 3303 - ZTR 3304 Located to left of operator. To engage the mower blade, turn lever on floor slowly to the "ON" position. To disengage mower blade, turn lever to the "OFF position. BLADE DRIVE: Model ZTR 3362 Located on control panel, on operator's right.
Page 19: Before Operating Mower
OPERATION INSTRUCTIONS The safe and succes sful operation of the 3000 Series Models will depend upon the operator having the correct knowledge of all controls used on the mower and making good judgements about the terrain to be mowed. NEVER allow anyone to operate the mower without complete knowledge of all controls and their functions.
Page 20 Raise weight slightly off of seat. Engine should stop. c. If any Safety Check fails, do not operate the mower until the system has been checked and repaired by an Authorized Dixon ZTR Dealer. Page 17...
Page 21: Starting Instructions
OPERATION INSTRUCTIONS STARTING INSTRUCTIONS: 1. Move throttle control to "Choke" position if engine is cold, full throttle if warm. 2. Insert ignition key and turn to "Start" position. When engine starts, release ignition key. Key will return to "Run" position. 3.
Page 22 OPERATION INSTRUCTIONS MOWING WITH A MULCHING ATTACHMENT: Mulching or recycling the grass clippings requires a totally different mowing approach than would be normal when side discharging or bagging the grass. There may be instances or conditions where it is not possible to hide all of the recycled or mulched clippings. In order to achieve the best results, please read and follow the mulching tips listed below: Set the engine speed control to the wide open or full setting.
Page 23 OPERATION INSTRUCTIONS MOWING WITH A GRASS CATCHER ATTACHMENT: In order to achieve optimum performance when mowing with a grass catching attachment, please read and follow the tips listed below. Set engine speed control to the wide open or full setting. Do Not Attempt To Cut Grass When It Is Wet.
Page 24 OPERATION INSTRUCTIONS SIDE DISCHARGE OF THE CLIPPINGS: In order to achieve optimum performance when side discharging the grass clippings, please read and follow the tips listed below. Additional information can be found in the troubleshooting guide on Page 31. Be sure that deflector is properly installed on the discharge chute.
Page 25: Maintenance Schedule
Please remember that if you are in doubt as to the correct service procedures to be followed, these and other service situations can be handled by a Dixon ZTR dealer who is familiar with the service of your mower.
Page 26: Cutter Blade Maintenance
CARE AND MAINTENANCE - 3000 SERIES MODELS CUTTER BLADE MAINTENANCE: NOTE: Observe proper blade position prior to removal. 1. Safely raise front of mower. 2. Hold or block blade from turning. Wear heavy, thick gloves when holding onto cutter blade, avoid the sharp edge of the blade.
Page 27: Belt Tension
CARE AND MAINTENANCE - 3000 SERIES MODELS BELT TENSION: Manual Clutch: No Adjustment Electric Clutch: Adjust idler shock mount per diagram. DECK REMOVAL - MANUAL CLUTCH - MODELS ZTR 3303 & ZTR 3304: 1. Place cut height lever in lowest cut position.
Page 28 CARE AND MAINTENANCE - 3000 SERIES MODELS DECK REMOVAL - ELECTRIC CLUTCH - MODEL ZTR 3362: 1. Place cut height lever in lowest cut position. 2. Loosen nut on belt idler shock mount until belt can be removed from electric clutch pulley on the bottom of the engine.
Page 29: Fuel Shut Off Valve
CARE AND MAINTENANCE - 3000 SERIES MODELS FUEL SHUT OFF VALVE: The fuel shut off valve is located at the bottom rear of the fuel tank. Always turn the valve to the "OFF" position when the mower is stored or not in use.
Page 30 CARE AND MAINTENANCE - 3000 SERIES MODELS HOT oil may cause burns. CAUTION Allow engine to cool before draining oil. CHANGING THE ENGINE OIL: MODELS ZTR 3303 - ZTR 3304 - ZTR 3362 1. The "snap lock" oil drain valve is located on the left side of the engine crankcase.
Page 31: Drive System Adjustments
CARE AND MAINTENANCE - 3000 SERIES MODELS DRIVE SYSTEM ADJUSTMENTS: Due to both the complex nature of the transmission and the number of special tools required for service, adjustments should be entrusted to your dealer. There are a number of simple owner service items which greatly influence the performance of the drive system.
Page 32: Warranty
CARE AND MAINTENANCE - 3000 SERIES MODELS WHEELS AND TIRES: Correct tire pressure is important for correct operation of mower. Models ZTR 3303-ZTR 3304 Front Tires 410 X 350 X 4 Air Pressure 16-21 l bs. Rear Tires 16 X 650 X 8 Air Pressure 8 -14 lbs.
Page 33: Standard Service Parts List
STANDARD SERVICE PARTS LIST MODELS ZTR 3303 & ZTR 3304: Standard: P/N 2483 BLADES: Hi-Lift: P/N 2484 BELTS: Engine To Mower Deck: P/N 7725 Engine To Transmission: P/N 7650 MODEL ZTR 3362: BLADES: Standard: P/N 1324 Hi-Lift: P/N 1351 - right side P/N 1352 -l e f t side BELTS: Engine To Mower Deck:...
Page 34: Troubleshooting
Examination of one or more of the above will generally produce a quality cut. The Troubleshooting Chart suggests practices and adjustments that may be helpful i n improving cut quality. Your Dixon ZTR dealer is also available to provide assistance to you. SITUATION CAUSES...
Page 35: Drive System
TROUBLESHOOTING DRIVE SYSTEM: SITUATION CAUSES REMEDY Mower pulls to one Drive adjustment Consult your dealer for repair side or the other Poor driving Operation of mower Review operators section performance of owners manual Page32...
Page 36: Electrical System
TROUBLESHOOTING ELECTRICAL SYSTEM: SITUATION CAUSES REMEDY Starter will not Circuit breaker engaged Push button to reset Consult your dealer for repair turn engine over Dead battery Charge battery Starter will not turn engine over Battery discharge Poor connections on Tighten or replace as required battery Battery water low Wrong battery installed...
Page 37: Owner Information
DIXON INDUSTRIES, INC A BLOUNT COMPANY AIRPORT INDUSTRIAL PARK PO BOX 1569 COFFEYVILLE KS 67337 O945 316 251 2OOO FAX 316 251 4117 OWNER INFORMATION D A T E P U R C H A S E D M O W E R M O D E L N U M B E R P U R C H A S E D F R O M Name Address...
Page 38 The Engine Exhaust from this product contains chemicals known to the State Of WARNING: California to cause cancer, birth defects or other reproductive harm. ® Dixon and ZTR are registered trademarks of Dixon Industries, Inc. DIXON INDUSTRIES, INC. A BLOUNT Intermational, Inc. Company PO BOX 1569 Part No.

This manual is also suitable for:

Ztr 3303 Ztr 3304 Ztr 3362
