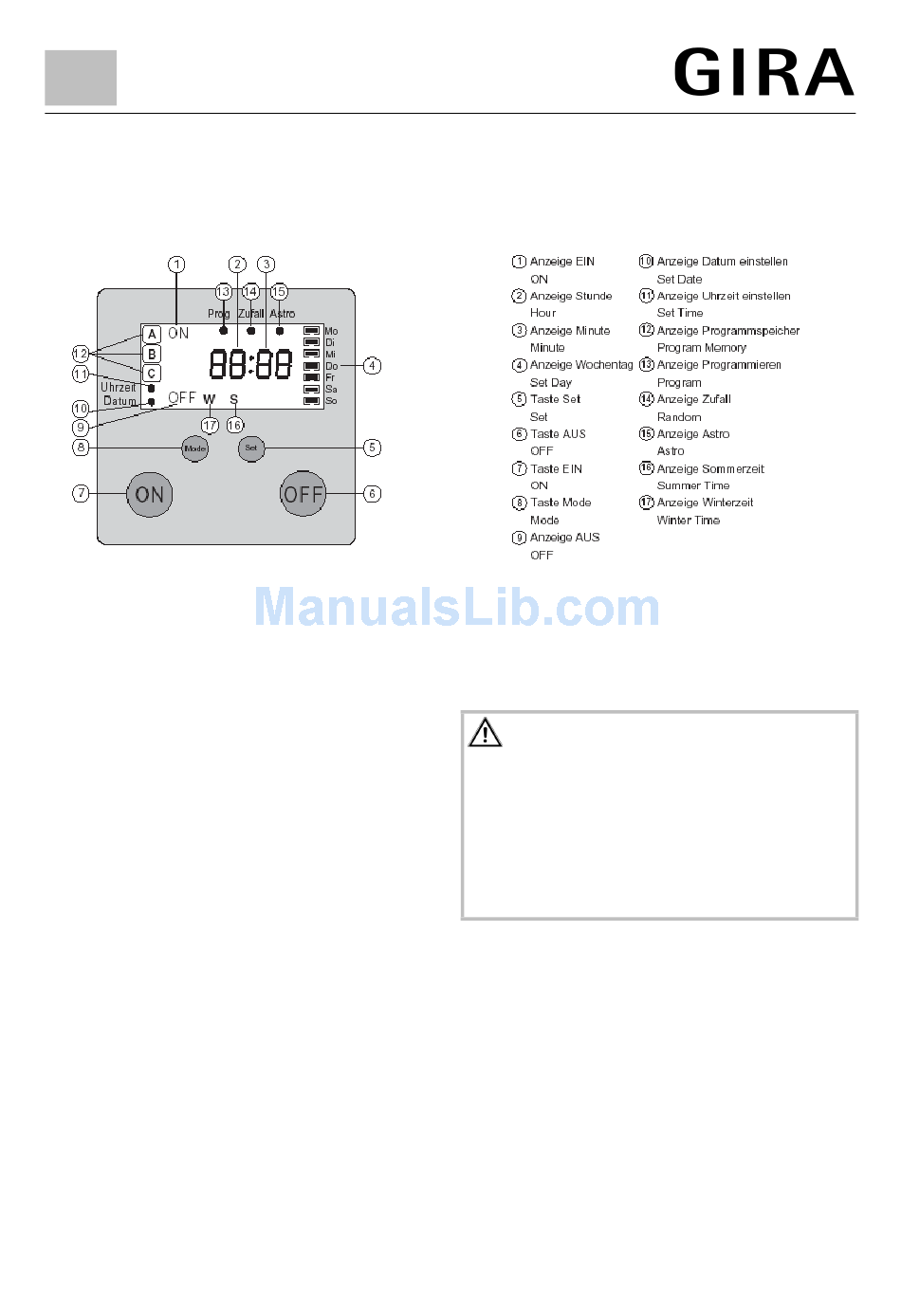

Electronic timer
GIRA
Info
Installation Instructions
Electronic timer
Attachment
Contents
1.
Warning
2.
Function
3.
Installation Instructions
4.
Programming
4.1. Setting Current Data
4.2. Astro Function
4.3. Random Function
4.4. Factory Setting and Reset
4.5. Programming Individual Switching Time Events
4.6. Deleting Switching Time Events
4.7. Programming an Astro Time Shift
5.
Mode Selection
5.1. Selecting the Program Memory
5.2. Selecting the Time Switch Function
5.3. Manual Operation
5.4. Winter/Summer Time Selection
6.
What To Do in Case of Mains Failure?
7.
Specifications
8.
What happens if...
9.
Acceptance of guarantee
2. Function
This attachment is installed into a 60 mm flush box
(recommendation: deep box) in conjunction with the
insert.
Electronic timer
1. Warning
Caution: The installation and assembly of electrical
equipment may only be performed by a skilled elec-
trician.
This electronic timer has been designed for switch-
ing lamps. For the lamp load ratings, please refer to
the Specifications of the flush-mounted insert. Do
not switch any other loads.
The device facilitates the programmed, time-control-
led switching of various lighting fittings (please refer to
Specifications) up to a maximum of 1000 W.
3/07
Order no.: 0385 xx
Page 1 of 14
