Fetch TV Set Top Box Quick Start Manual

Fetch tv set top box
Hide thumbs

Advertisement

Table of Contents

Quick Start Guide
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Set Top Box and is the answer not in the manual?

Questions and answers

Related Manuals for Fetch TV Set Top Box

Summary of Contents for Fetch TV Set Top Box

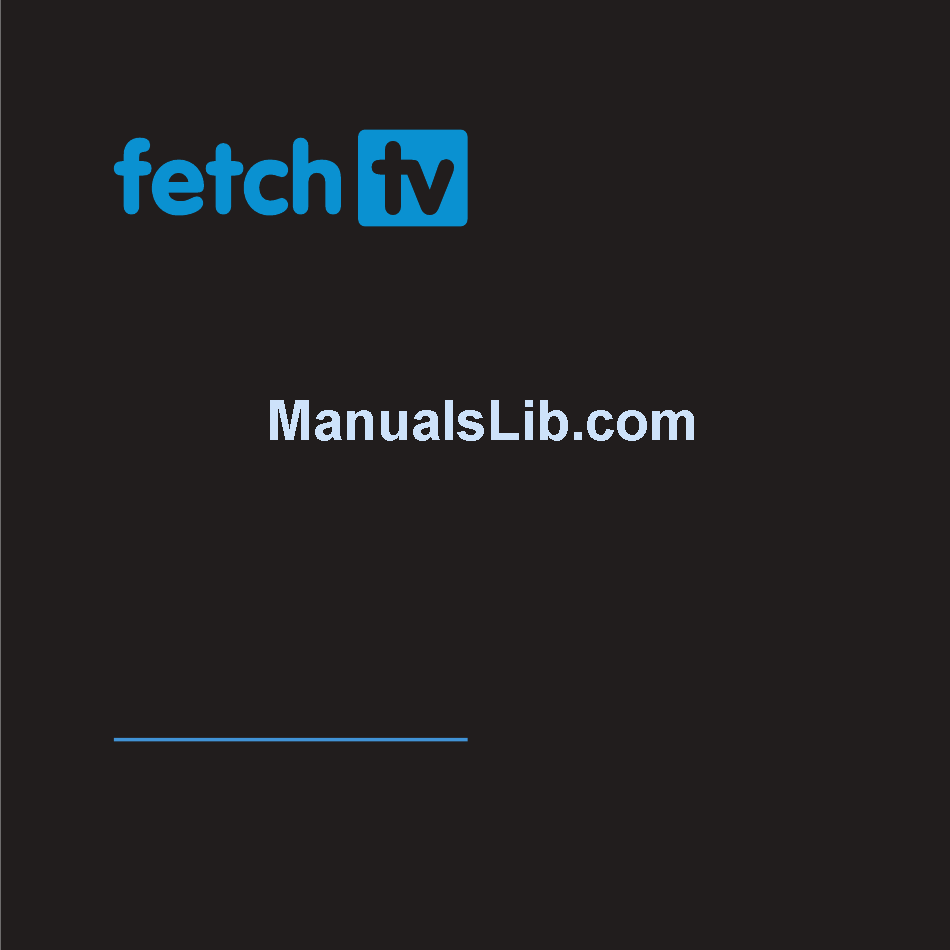

  • Page 1 Quick Start Guide...
  • Page 3 This booklet tells you all you need to know about setting up, and guides you through the five steps to get you ready to turn on Fetch TV. It also provides you with important safety and usage information. It’s Fetch TV and it’s ready when you are.

  • Page 4: Unpacking The Box

    2 AA Batteries 1 RJ45 Ethernet Cable (2m) You may not need to use: 1 RYW Composite Cable (1.5m) You may also have received: PLC Adaptors, or Wireless Bridge Devices if you ordered them from your Fetch TV Service Provider...

  • Page 5: Installation Tips

    Position the STB horizontally on a clean, dry, steady surface with 5cm of space all around it. The Fetch TV STB is designed to operate from Don’t stack it on audiovisual appliances that a 100V-240V 50Hz AC power source only.

  • Page 6: Wireless Bridge

    Connect the STB to your modem Fetch TV is delivered by broadband, so you need Connection Option 1 – Ethernet Cable: Modem direct to STB to connect your STB to You can use this option if your TV and STB are close the modem.
  • Page 7 You can use this option if you cannot connect using Ethernet Cable and you ordered PLC Adaptors with your Fetch TV service. The PLC adaptor will transmit your Fetch TV service to your STB using the existing power cables inside your walls.
  • Page 8 Connection Option 4 – Wireless Bridge You can use this option if you ordered the Wireless Bridge with your Fetch TV service. Install the Wireless Bridge using the instructions included with it. Locate one device near your broadband modem, and the other near your TV and STB.
  • Page 9 Connecting the Set Top Box 1. Plug the other end (not connected to the wall) of the existing antenna cable into the to your TV Antenna socket labelled Antenna-IN on the back of your STB. 2. Plug one end of the second antenna cable...
  • Page 10 Definition programming. Only the HDMI There are various ways to connect cable is required. the Fetch TV STB to your TV or home 1. Plug the HDMI cable into the port labelled theatre system. The one you choose HDMI on the back of the STB.
  • Page 11 Alternative Option 2 Analogue Composite Video and Analogue Stereo Audio This mode delivers Standard Definition viewing only. Use this type of connection when or if your TV display has no other video input types available. Use the Yellow/Red/ White cable when connecting. 1.
  • Page 12 Turning On Fetch TV This is the home stretch where you activate the devices you have connected to turn on Fetch TV. Connect the STB to Power 1. Plug one end of the power cable into the power socket of the power adaptor.
  • Page 13 7. The final set up screen will take a few moments to load and then the Fetch TV menu will appear on the screen. 8. Fetch TV is now ready for you.

  • Page 14: Remote Control

    Remote Control The remote control brings Fetch TV to life every time you use it. It has all the functions you need for quick and easy viewing. To make your remote control work, remove the battery cover, insert the two batteries supplied, and replace the cover.

  • Page 15: Front Panel

    Fetch TV Set Top Box Front Panel IR Sensor Rec/Remote Internet Standby/ Power Button Back Panel Audio Audio Left Right HDMI Power Tuner Tuner Output Output Input Output Output Socket Input 12V AC OPTICAL ANTENNA INTERNET VIDEO AUDIO HDMI POWER...

  • Page 16: Troubleshooting

    Troubleshooting If you’re having trouble getting Fetch TV to work 5. If you are using the Remote Control 1 (Page 12) and check some of the tips below before you contact the STB button on the remote control does not flash your Service Provider for assistance.

  • Page 17: Specifications

    Specifications Input Connector Specification Signal Power DC Male jack Input 100-240V (5.5mm diameter) Output 12.0V 4A Antenna Belling-Lee UHF (IEC169) 75 Ohms Channel Bandwidth 7 or 8 MHz Broadband RJ-45 Ethernet IPv4, IPv6 Input Connector Specification Signal Composite Video RCA Phono 1Vp/p 75 Ohms PAL –...
  • Page 18 Compliance Contact Fetch TV Product Code M605T Level 5, 61 Lavender Street This product complies with the following Standards: Milsons Point NSW 2061 Electrical Safety AS/NZS 60065.1-2008 ABN: 36 130 669 500 RF Emissions AS/NZS CISPR 13 and 22 www.fetchtv.com.au...
  • Page 20 © Fetch TV Pty Limited. ABN 36 130 669 500. All rights reserved. Fetch TV Pty Limited is the owner of the trade marks Fetch TV. The set top box and the Fetch TV service may only be used lawfully and in accordance with relevant terms of use of which you are notified by your service provider. You may only use the recording functionality of the set top box for the purpose of viewing programs at your address at a more convenient time.
