Connections

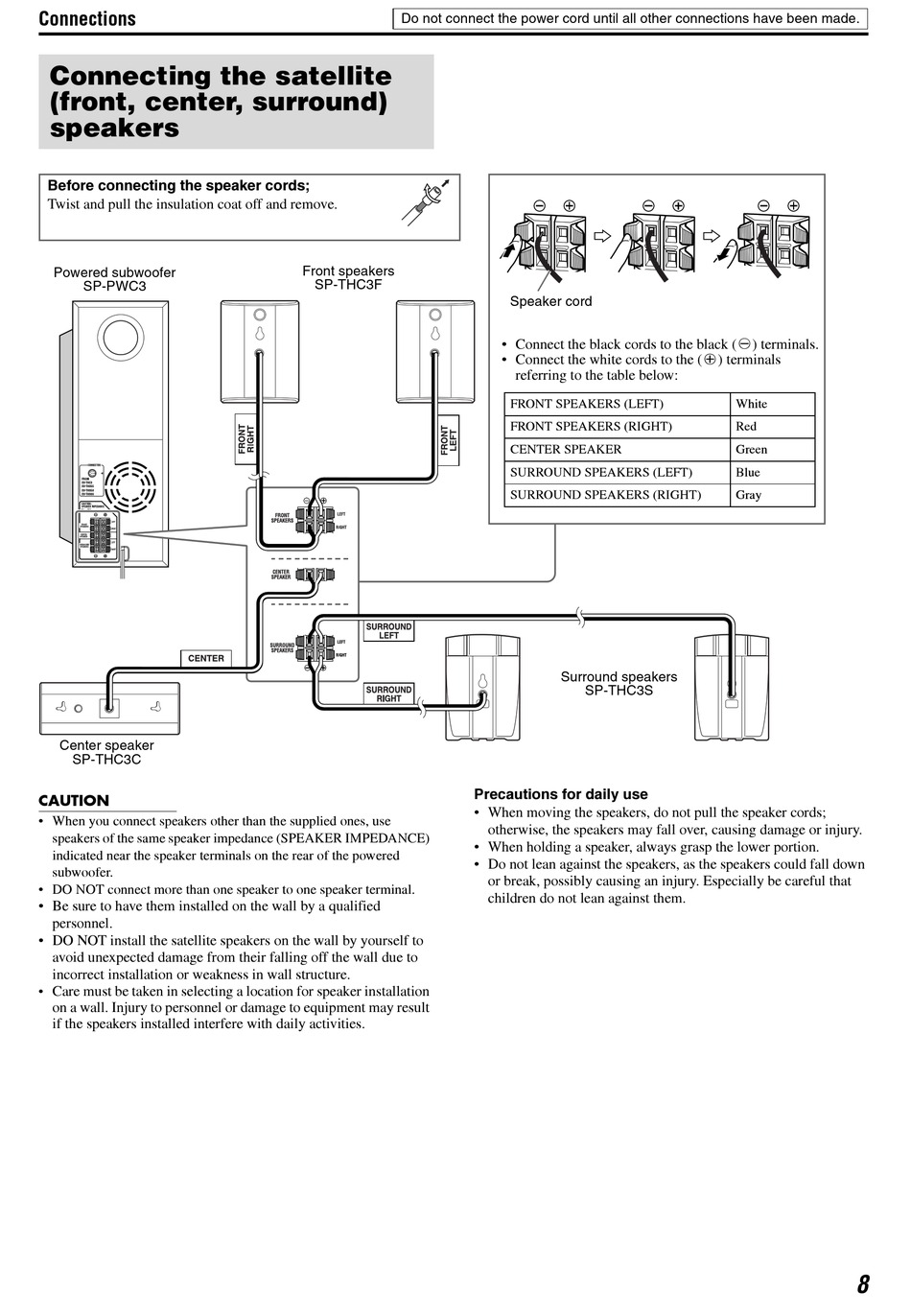

Connecting the satellite
(front, center, surround)
speakers
Before connecting the speaker cords;
Twist and pull the insulation coat off and remove.
Powered subwoofer
SP-PWC3
FROM
XV-THC3
XV-THS55
XV-THS58
XV-THS66
4Ω 16Ω
Center speaker
SP-THC3C
CAUTION
• When you connect speakers other than the supplied ones, use
speakers of the same speaker impedance (SPEAKER IMPEDANCE)
indicated near the speaker terminals on the rear of the powered
subwoofer.
• DO NOT connect more than one speaker to one speaker terminal.
• Be sure to have them installed on the wall by a qualified
personnel.
• DO NOT install the satellite speakers on the wall by yourself to
avoid unexpected damage from their falling off the wall due to
incorrect installation or weakness in wall structure.
Care must be taken in selecting a location for speaker installation
•
on a wall. Injury to personnel or damage to equipment may result
if the speakers installed interfere with daily activities.
Do not connect the power cord until all other connections have been made.
Front speakers
SP-THC3F
Precautions for daily use
• When moving the speakers, do not pull the speaker cords;
• When holding a speaker, always grasp the lower portion.
• Do not lean against the speakers, as the speakers could fall down
Speaker cord
• Connect the black cords to the black (r) terminals.
• Connect the white cords to the (q) terminals
referring to the table below:
FRONT SPEAKERS (LEFT)
FRONT SPEAKERS (RIGHT)
CENTER SPEAKER
SURROUND SPEAKERS (LEFT)
SURROUND SPEAKERS (RIGHT)
Surround speakers
SP-THC3S
otherwise, the speakers may fall over, causing damage or injury.
or break, possibly causing an injury. Especially be careful that
children do not lean against them.
White
Red
Green
Blue
Gray
8
