Using the BlackVue

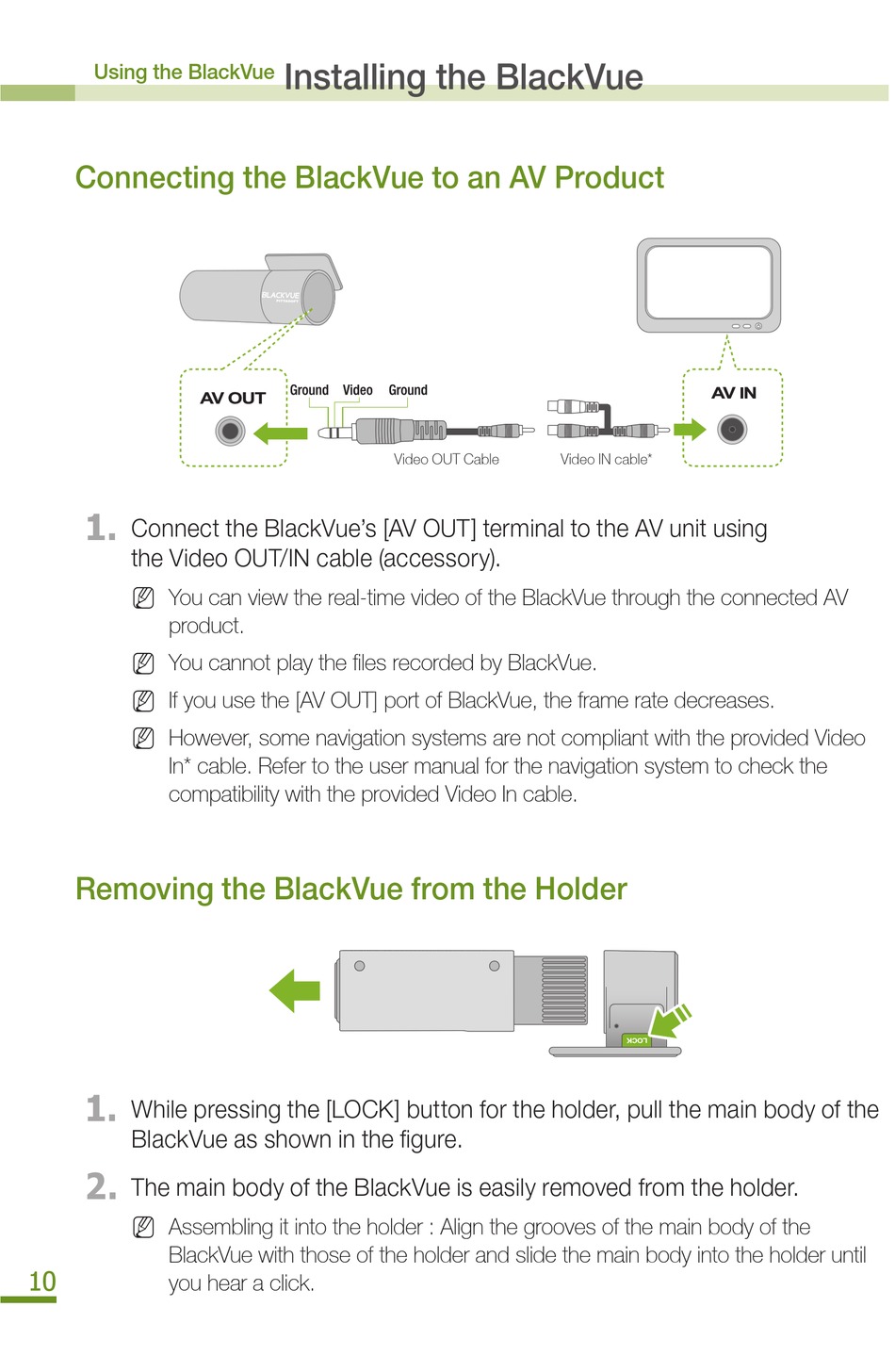

Connecting the BlackVue to an AV Product
1.
Connect the BlackVue's [AV OUT] terminal to the AV unit using
the Video OUT/IN cable (accessory).
N YouXcanXviewXtheXreal-timeXvideoXofXtheXBlackVueXthroughXtheXconnectedXAVX X
product.
N YouXcannotXplayXtheXfilesXrecordedXbyXBlackVue. X
N IfXyouXuseXtheX[AVXOUT]XportXofXBlackVue,XtheXframeXrateXdecreases. X
N However,XsomeXnavigationXsystemsXareXnotXcompliantXwithXtheXprovidedXVideoX X
In*Xcable.XReferXtoXtheXuserXmanualXforXtheXnavigationXsystemXtoXcheckXtheX
compatibilityXwithXtheXprovidedXVideoXInXcable.
Removing the BlackVue from the Holder
1.
While pressing the [LOCK] button for the holder, pull the main body of the
BlackVue as shown in the figure.
2.
The main body of the BlackVue is easily removed from the holder.
N AssemblingXitXintoXtheXholderX:XAlignXtheXgroovesXofXtheXmainXbodyXofXtheX X
BlackVueXwithXthoseXofXtheXholderXandXslideXtheXmainXbodyXintoXtheXholderXuntilX
10
youXhearXaXclick.X
Installing the BlackVue
VideoXOUTXCable VideoXINXcable*
