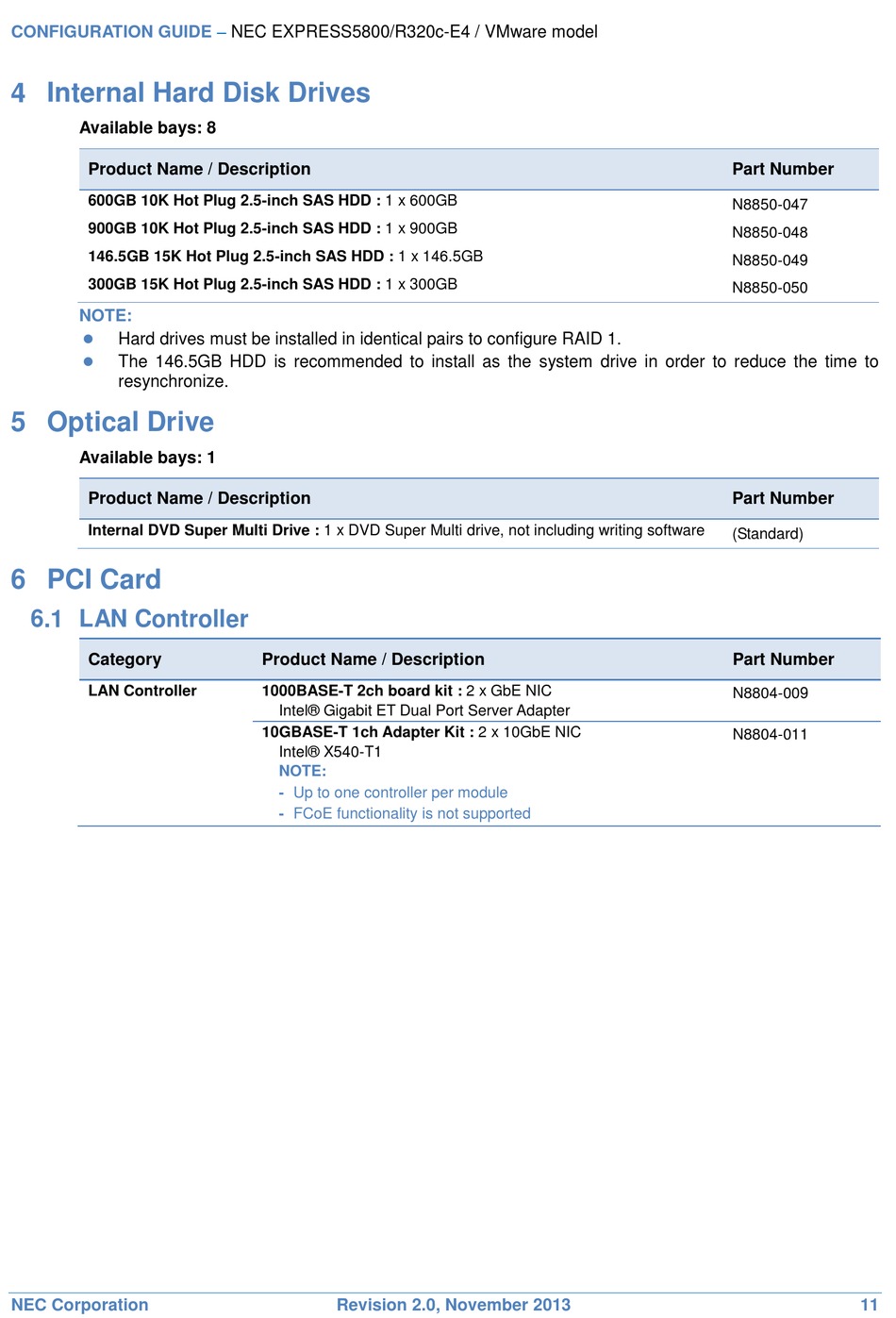

CONFIGURATION GUIDE

4 Internal Hard Disk Drives

Available bays: 8
Product Name / Description
600GB 10K Hot Plug 2.5-inch SAS HDD : 1 x 600GB
900GB 10K Hot Plug 2.5-inch SAS HDD : 1 x 900GB
146.5GB 15K Hot Plug 2.5-inch SAS HDD : 1 x 146.5GB
300GB 15K Hot Plug 2.5-inch SAS HDD : 1 x 300GB
NOTE:

Hard drives must be installed in identical pairs to configure RAID 1.

The 146.5GB HDD is recommended to install as the system drive in order to reduce the time to
resynchronize.

5 Optical Drive

Available bays: 1
Product Name / Description
Internal DVD Super Multi Drive : 1 x DVD Super Multi drive, not including writing software

6 PCI Card

6.1 LAN Controller

Category
LAN Controller
NEC Corporation
–
NEC EXPRESS5800/R320c-E4 / VMware model
Product Name / Description
1000BASE-T 2ch board kit : 2 x GbE NIC
Intel® Gigabit ET Dual Port Server Adapter
10GBASE-T 1ch Adapter Kit : 2 x 10GbE NIC
Intel® X540-T1
NOTE:
- Up to one controller per module
- FCoE functionality is not supported
Revision 2.0, November 2013
Part Number
N8850-047
N8850-048
N8850-049
N8850-050
Part Number
(Standard)
Part Number
N8804-009
N8804-011
11
