CONFIGURATION GUIDE

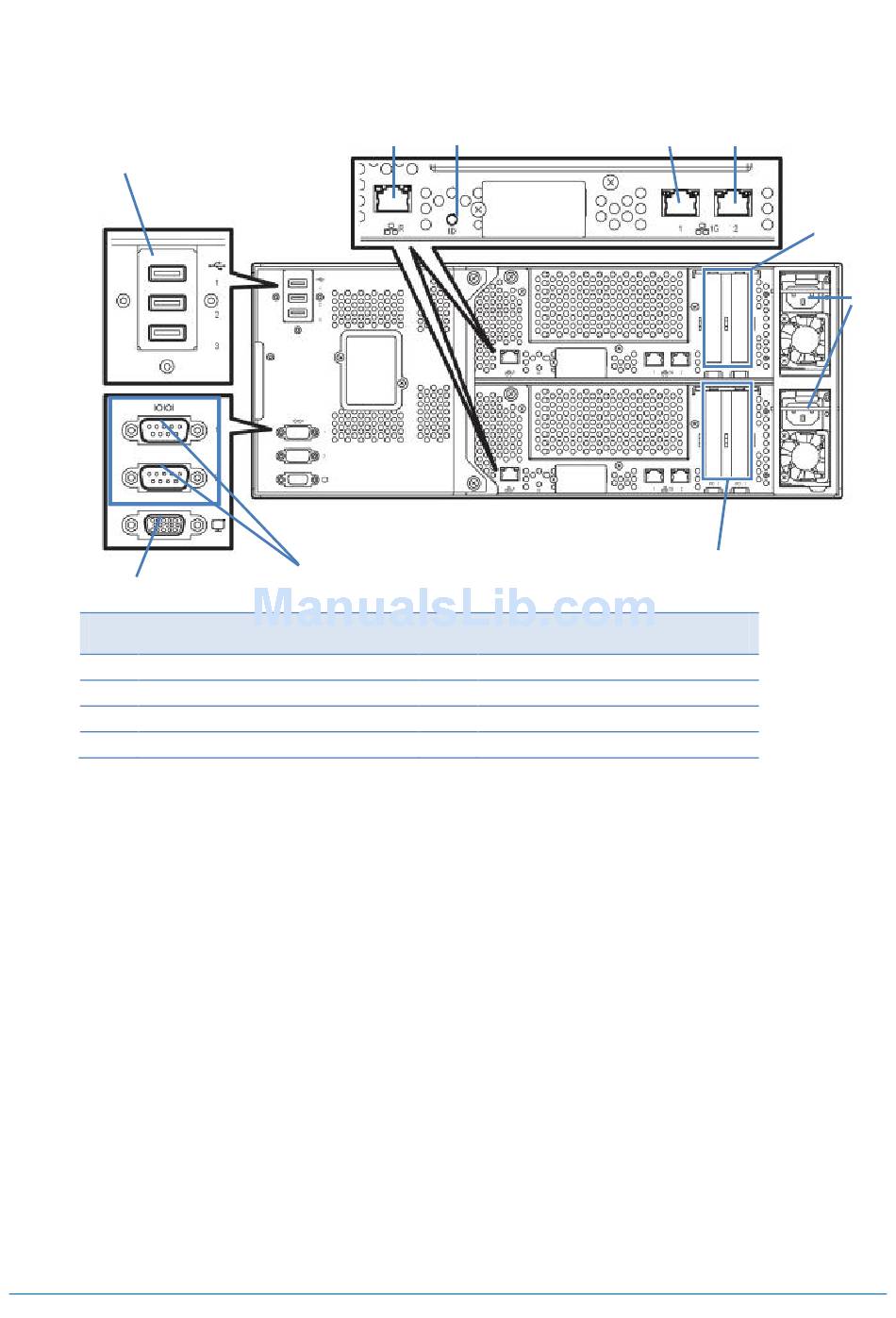

Rear View
A
H
Legend
A.
USB Connectors
B.
Management LAN Connector
C.
Module ID LED
D.
Data LAN Connectors
1
For service personnel only.
NEC Corporation
–
NEC EXPRESS5800/R320c-E4 / VMware model
G
Revision 2.0, November 2013
B
C
E.
AC Inlet
F.
PCI Slots (Low-Profile)
G.
Serial Port Connector
H.
VGA Connector
D
D
F
1
F
