ADP-1120/ADP-1150/ADP-1170/ADP-1190
Display Monitor User Manual
Release Date
April 2005
May 2007
Aug. 2007
®2005 Aplex Technology, Inc.
Aplex Technology, Inc.
9F-5, No. 2, Jian Pa Road, Chung Ho City, Taipei County, Taiwan
Tel: 886-2-82262881
ADP-1120/ADP-1150/ADP-1170/ADP-1190 User Manual
All Rights Reserved.
Fax: 886-2-82262883
E-mail:
aplex@aplex.com.tw
Revision
Published in Taiwan
URL: www.aplex.com.tw
V0.1
V0.2
V0.3
1
Advertisement
Table of Contents
Related Manuals for Aplex ADP-1120
Summary of Contents for Aplex ADP-1120

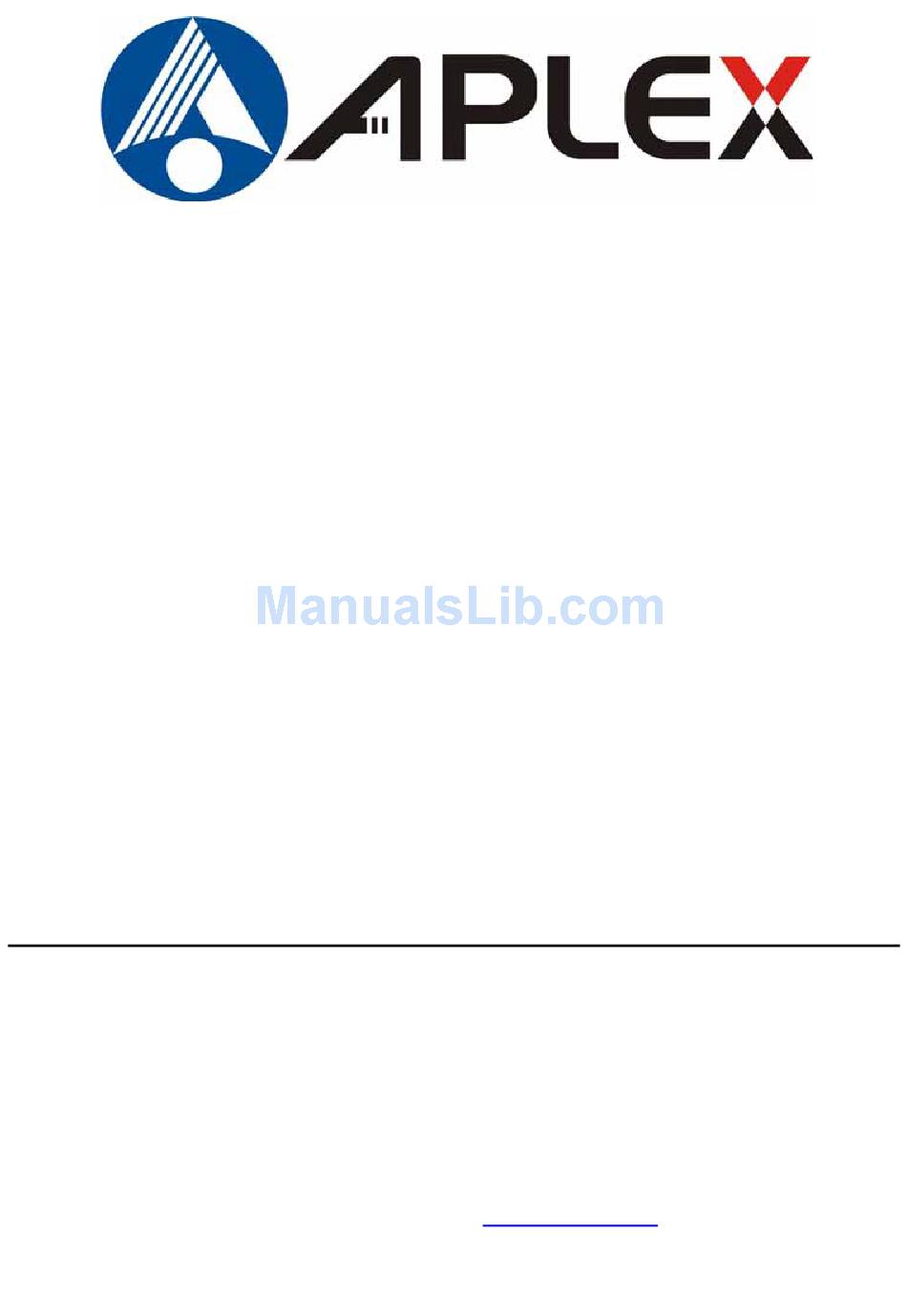

- Page 1 Revision April 2005 V0.1 May 2007 V0.2 Aug. 2007 V0.3 ®2005 Aplex Technology, Inc. All Rights Reserved. Published in Taiwan Aplex Technology, Inc. 9F-5, No. 2, Jian Pa Road, Chung Ho City, Taipei County, Taiwan Tel: 886-2-82262881 Fax: 886-2-82262883 E-mail: aplex@aplex.com.tw...
-
Page 2: Warning
Disclaimer This information in this document is subject to change without notice. In no event shall Aplex Technology Inc. be liable for damages of any kind, whether incidental or consequential, arising from either the use or misuse of information in this document or in any related materials. -
Page 3: Table Of Contents
2.1 Front Panel Controls………….………………………………….…..……12 2.2 OSD Controls………………………………………………………………12 2.3 Main Menu…..……………………………………………………………..13 2.4 AD Board (TB-6020) OSD Functions……………………………………15 Figures Figure 1.1: Dimensions of ADP-1120….……………………………………..6 Figure 1.2: Dimensions of ADP-1150….……………………………………..7 Figure 1.3: Dimensions of ADP-1170…..…………………………………….8 Figure 1.4: Dimensions of ADP-1190…..…………………………………….8 Figure 1.5: Overall View……………………………………………………….10 Figure 1.6: Rear View…………………..……………………………………...10... -
Page 4: Features
Automatic screen, setup (OSD), brightness, contrast, horizontal/vertical position, image Controls/Indicators lock, color balance, video information, power on and sync detected OS Compatibility Win 95/98, XP, 2000, NT 4.0, QNX, Linux Input: 100~240 10% VAC, auto ranging, output: +12VDC@5A Internal Power Adapter ADP-1120/ADP-1150/ADP-1170/ADP-1190 User Manual... -
Page 5: Ordering Information
15” industrial display monitor (steel bezel) with resistive touch screen ADP-1170 17” industrial display monitor (steel bezel) ADP-1170T 17” industrial display monitor (steel bezel) with resistive touch screen ADP-1190 19” industrial display monitor (steel bezel) ADP-1190T 19” industrial display monitor (steel bezel) with resistive touch screen ADP-1120/ADP-1150/ADP-1170/ADP-1190 User Manual... -
Page 6: Dimensions
1.3 Dimensions Figure 1.1: Dimensions of the ADP-1120 ADP-1120/ADP-1150/ADP-1170/ADP-1190 User Manual... -
Page 7: Figure 1.2: Dimensions Of Adp-1150
Figure 1.2: Dimensions of the ADP-1150 ADP-1120/ADP-1150/ADP-1170/ADP-1190 User Manual... -
Page 8: Figure 1.3: Dimensions Of Adp-1170
Figure 1.3: Dimensions of the ADP-1170 ADP-1120/ADP-1150/ADP-1170/ADP-1190 User Manual... - Page 9 Figure 1.4: Dimensions of the ADP-1190 ADP-1120/ADP-1150/ADP-1170/ADP-1190 User Manual...
-
Page 10: Brief Description

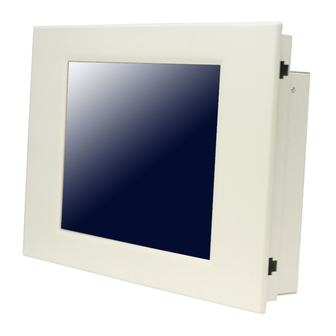

1.4 Brief Description of the ADP-1120, ADP-1150, ADP-1170 & 1190 The ADP-1120, the ADP-1150, the ADP-1170 and the ADP-1190 feature an excellent viewing ability for monitoring and control applications. It is available with resistive touch screen that is easy to use and maintain. -
Page 11: Display Mode
1.5 Display Mode Display Mode Hori. Sync (KHz) Vert. Sync. (Hz) VGA 640 x 480 SVGA 800 x 600 XGA 1024 x 768 1152 x 864 SXGA 1280 x 1024 ADP-1120/ADP-1150/ADP-1170/ADP-1190 User Manual... -
Page 12: Front Panel Controls
2. Select the icon that you wish to adjust with the ( or +/-) key in the menu. 3. Press (Menu) and then choose the item with the ( or +/-) key. 4. Press (Menu) and then adjust the quality with the ( or +/-) key. ADP-1120/ADP-1150/ADP-1170/ADP-1190 User Manual... -
Page 13: Main Menu
In the Main menu, there are the following items: Color Image Setting Position OSD Menu Language Misc Exit For Color, check out the following: Contrast Brightness Color Adjust Color Temp Back For Image setting, check out the following: Clock Phase Gamma Sharpness Back ADP-1120/ADP-1150/ADP-1170/ADP-1190 User Manual... - Page 14 Germany Spanish Traditional Chinese Simplified Chinese Japanese In the Misc menu, there are: Signal Source Select VGA: Analogue VGA Input Select DVI: Digital DVI-D Input Select AV: Composite Video Input Select SV: S-Video Video Input Reset Back ADP-1120/ADP-1150/ADP-1170/ADP-1190 User Manual...
-
Page 15: Ad Board (Tb-6020) Osd Functions
(don’t let them go) until the AC power cord is connected, and wait for 2 to 3 seconds. When “RGB” appears, repeat the above steps. 3.) Functions of OSD Keys Auto Adjust Up/Left Down/Right Power Menu/Entry Power Indicator ADP-1120/ADP-1150/ADP-1170/ADP-1190 User Manual... -
Page 16: Appendix
Appendix_____________________________ Panel Mounting The ADP-1120/1150/1170/1190 display monitor is designed to be panel-mounted as shown in Figure A. Just carefully place the unit through the hole and tighten the given 8 screws from the rear to secure the mounting. Figure A: Panelmounting of the ADP1120/1150/1170/1190 Rack Mounting (optional) The ADP-1120/1150/1170/1190 display monitor can be rack-mounted as an option.
