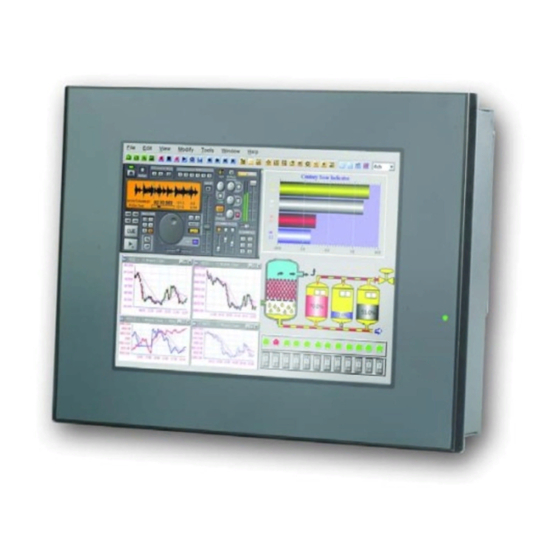

ADP-1101 Display Monitor

User Manual

Release Date
Revision
April 2005
V0.1
May 2007
V0.2
®2005 Aplex Technology, Inc.
All Rights Reserved.
Published in Taiwan
Aplex Technology, Inc.
9F-5, No. 2, Jian Pa Road, Chung Ho City, Taipei County, Taiwan
Tel: 886-2-82262881
Fax: 886-2-82262883
E-mail:
aplex@aplex.com.tw
URL: www.aplex.com.tw
ADP-1101 User Manual
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ADP-1101 and is the answer not in the manual?

Questions and answers

Related Manuals for Aplex ADP-1101

Summary of Contents for Aplex ADP-1101

  • Page 1: User Manual

    ADP-1101 Display Monitor User Manual Release Date Revision April 2005 V0.1 May 2007 V0.2 ®2005 Aplex Technology, Inc. All Rights Reserved. Published in Taiwan Aplex Technology, Inc. 9F-5, No. 2, Jian Pa Road, Chung Ho City, Taipei County, Taiwan Tel: 886-2-82262881...

  • Page 2: Warning

    Disclaimer This information in this document is subject to change without notice. In no event shall Aplex Technology Inc. be liable for damages of any kind, whether incidental or consequential, arising from either the use or misuse of information in this document or in any related materials.

  • Page 3: Table Of Contents

    1.5 Display Mode……………………………………………………………….8 Chapter 2 2.1 Front Panel Controls………….………………………………….…..…….9 2.2 OSD Controls………………………………………………………………..9 2.3 Main Menu…..……………………………………………………………..10 2.4 AD Board (TB-6020) OSD Functions……………………………………12 Figures Figure 1.1: Dimensions of ADP-1101….……………………………………..6 Figure 1.4: Front View…..….………………………………………………….7 Figure 1.5: Rear View…………………..……………………………………...8 Appendix Panelmounting…..…………………………………………………………….13 ADP-1101 User Manual...

  • Page 4: Features

    ● IP65-certified plastic front panel ● Mounting: panel mount ● Input signal: analog RGB ● OSD on the rear side ● Dimensions: 317(W) x 243(H) x 43.5mm (D) ● Cutout Dimensions: 303(W) x 229mm (H) ● Gross Weight: 4.2kg ADP-1101 User Manual...
  • Page 5 ● Vibration: 1G peak, 10~150Hz ● Shock: 30G peak acceleration (11 msec.duration) ● EMC: CE, FCC Class A Ordering Information ADP-1101 10.4” industrial display monitor (plastic bezel) ADP-1101T 10.4” industrial display monitor with sealed touch screen (plastic bezel) ADP-1101 User Manual...

  • Page 6: Dimensions

    1.3 Dimensions Figure 1.1: Dimensions of the ADP-1101 ADP-1101 User Manual...

  • Page 7: Brief Description

    1.4 Brief Description of the ADP-1101 The ADP-1101 features an excellent viewing ability for monitoring and control applications. It is available with resistive touch screen that is easy to use and maintain. The front panel of the display monitor is sealed with gasket for NEMA 4/IP 65 rating when it is panel-mounted in a NEMA rated cabinet or enclosure.

  • Page 8: Display Mode

    `Figure 1.3: Rear View of ADP-1101 1.5 Display Mode Display Mode Hori. Sync (KHz) Vert. Sync. (Hz) VGA 640 x 480 SVGA 800 x 600 XGA 1024 x 768 1152 x 864 SXGA 1280 x 1024 ADP-1101 User Manual...

  • Page 9: Front Panel Controls

    2. Select the icon that you wish to adjust with the ( or +/-) key in the menu. 3. Press (Menu) and then choose the item with the ( or +/-) key. 4. Press (Menu) and then adjust the quality with the ( or +/-) key. ADP-1101 User Manual...

  • Page 10: Main Menu

    In the Main menu, there are the following items: Color Image Setting Position OSD Menu Language Misc Exit For Color, check out the following: Contrast Brightness Color Adjust Color Temp Back For Image setting, check out the following: Clock Phase Gamma Sharpness Back ADP-1101 User Manual...
  • Page 11 Germany Spanish Traditional Chinese Simplified Chinese Japanese In the Misc menu, there are: Signal Source Select VGA: Analogue VGA Input Select DVI: Digital DVI-D Input Select AV: Composite Video Input Select SV: S-Video Video Input Reset Back ADP-1101 User Manual...

  • Page 12: Ad Board (Tb-6020) Osd Functions

    (don’t let them go) until the AC power cord is connected, and wait for 2 to 3 seconds. When “RGB” appears, repeat the above steps. 3.) Functions of OSD Keys Auto Adjust Up/Left Down/Right Power Menu/Entry Power Indicator ADP-1101 User Manual...

  • Page 13: Appendix

    Appendix_____________________________ Panel Mounting The ADP-1101 display monitor is designed to be panel-mounted as shown in Figure A. Just carefully place the unit through the hole and tighten the given 8 screws from the rear to secure the mounting. Figure A: Panelmounting of the ADP1101...
