ADP-1XX4
15", 17", and 19" Steel Enclosure Industrial Display
User Manual
Release Date
Revision
Oct. 2017
V1.0
®2017 Aplex Technology, Inc.
All Rights Reserved.
Published in Taiwan
Aplex Technology, Inc.
15F-1, No.186, Jian Yi Road, Zhonghe District, New Taipei City 235, Taiwan
URL:
http://www.aplextec.com/zh/home.php
Tel: 886-2-82262881 Fax: 886-2-82262883
ADP-1XX4 User Manual
0
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Aplex ADP-1194
Summary of Contents for Aplex ADP-1194
-
Page 1: User Manual
15”, 17”, and 19” Steel Enclosure Industrial Display User Manual Release Date Revision Oct. 2017 V1.0 ®2017 Aplex Technology, Inc. All Rights Reserved. Published in Taiwan Aplex Technology, Inc. 15F-1, No.186, Jian Yi Road, Zhonghe District, New Taipei City 235, Taiwan URL: http://www.aplextec.com/zh/home.php... -
Page 2: Revision History
Revision History Reversion Date Description 2017/10/06 Official Version ADP-1XX4 User Manual... -
Page 3: Warning
Warning!___________________________ This equipment generates, uses and can radiate radio frequency energy and if not installed and used in accordance with the instructions manual, it may cause interference to radio communications. It has been tested and found to comply with the limits for a Class A computing device pursuant to FCC Rules, which are designed to provide reasonable protection against such interference when operated in a commercial environment. -
Page 4: Packing List
Packing List Accessories (as ticked) included in this package are: □ Adaptor □ Driver & manual CD disc □ Other.___________________(please specify) Safety Precautions Follow the messages below to prevent your systems from damage: ◆ Avoid your system from static electricity on all occasions. ◆... - Page 5 Table of Contents Revision History………………………………………………………………………………….1 Warning!………………………………………………………………………………….……..….2 Packing List/Safety Precautions…………………………………………………………..3 Chapter 1 Getting Started 1.1 Features………………………………………..……………………………………….5 1.2 Specifications…………………………………………………………………………5 1.3 Dimensions……..…….………...……………...……………………………….…7 1.4 Brief Description of ADP-1XX4 Series.…………..…………………..9 Chapter 2 2.1 AD Board OSD Functions………….……..…..……….…………………..…10 2.2 OSD Controls……………………………..…..…..………………………….…..11 2.3 Main Menu………………………………..….………………………………..12 Appendix A: AD Board 15 Board Image………………………………….………………………………………..15 Board Dimensions….………………..…………….………………………………..16...
-
Page 6: Features
Default: VGA input, Optional: DVI, RCA, and S-Video input 1.2 Specifications ADP-1154 ADP-1174 ADP-1194 IO Port Power 1 x 3-pin 11~32 V DC terminal block connector OSD Control Membrane OSD on the front side (default), OSD on the rear side (for option) 15”... - Page 7 Environment Specifications Operating Temperature 0 ~ 50 °C Storage Temperature -20 ~ 60 °C 10 ~ 90% @40°C Non-condensing, without touch screen Storage Humidity CE/FCC Class A Certificate ADP-1XX4 User Manual...
-
Page 8: Dimensions
1.3 Dimensions Figure 1.1: Dimensions of ADP-1154 Figure 1.2: Dimensions of ADP-1174 ADP-1XX4 User Manual... - Page 9 Figure 1.3: Dimensions of ADP-1194 ADP-1XX4 User Manual...
-
Page 10: Brief Description Of Adp-1Xx4 Series

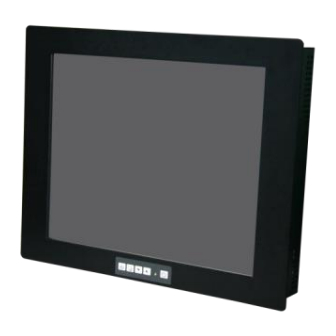

1.4 Brief Description of ADP-1XX4 Series ADP-1XX4 are designed steel chassis display, which comes with 15”, 17” and 19” color TFT LCD with 1024 x 768, and 1280 x 1024 resolution. ADP-1XX4 support multiple mounting such as panel mount, VESA 75 x 75 mount, and rack mount.These display come with 1 x VGA input, but can option to DVI, RCA, or S-Video signal. -
Page 11: Ad Board Osd Functions
Chapter 2 2.1 AD Board OSD Functions Auto Adjust Up/Left Down/Right Power Menu/Entry Power Indicator Power switch: To turn ON or OFF the power Shift the icon to the right side or shift it up Shift the icon to the left side or shift it down Menu: To enter OSD menu for related icon and item. -
Page 12: Osd Controls
When the Burn-in Mode is Unable to Eradicate… If the “RGB” is still on the top left corner of the screen, press to enter “Miscellaneous” and choose “Reset”, and then Yes, and press . When the screen goes black, disconnect power and repeat the above steps. If the “RGB”... -
Page 13: Main Menu
2.3 Main Menu In the Main menu, there are the following items: Color Image Setting Position OSD Menu Language Misc. Exit For Color, check out the following: Contrast Brightness Color Adjust ... - Page 14 In the Position, there are the following: H. Position V. Position Back In the OSD menu, there are: OSD H. Pos. OSD V. Pos. OSD Timer Back ADP-1XX4 User Manual...
- Page 15 In the Language menu, there are: English Frances Germany Spanish Traditional Chinese Simplified Chinese Japanese In the Misc menu, there are: Signal Source Select VGA: Analogue VGA Input Select DVI: Digital DVI-D Input Select AV: Composite Video Input Select SV: S-Video Video Input ...
-
Page 16: Appendix A: Ad Board
Appendix A: AD Board Board Image Figure A: Image of AD Board VA-3600D ADP-1XX4 User Manual... -
Page 17: Board Dimensions
Board Dimensions Figure B: Dimensions of AD Board VA-3600D ADP-1XX4 User Manual... -
Page 18: Appendix B: Panel Mounting And Vesa Mounting
Appendix B: Panel Mounting and VESA Mounting The ADP-1XX4 is designed to be panel-mounted and VESA mounted as shown in Picture. Just carefully place the unit through the hole and tighten the given screws from the rear to secure the mounting. Figure C: Panel Mounting and VESA Mounting of ADP-1XX4 Notice：...
