Installation, Operation and
KHM
85% + EFFICIENCY
OIL FIRED HI-BOY FURNACE
KHM-100
KHM-200
INSTALLATIONS MUST MEET ALL LOCAL AND FEDERAL
CODES THAT MAY DIFFER FROM THIS MANUAL
Please read the manual in its entirety before beginning installation.
This manual must be kept with the furnace for future reference.
GRANBY FURNACES INC.
PO Box 637
12118 Hwy 209
Parrsboro Nova Scotia Canada
B0M 1S0
902-254-2543
www.granbyindustries.com
Service Manual
SERIES
01-30-2014

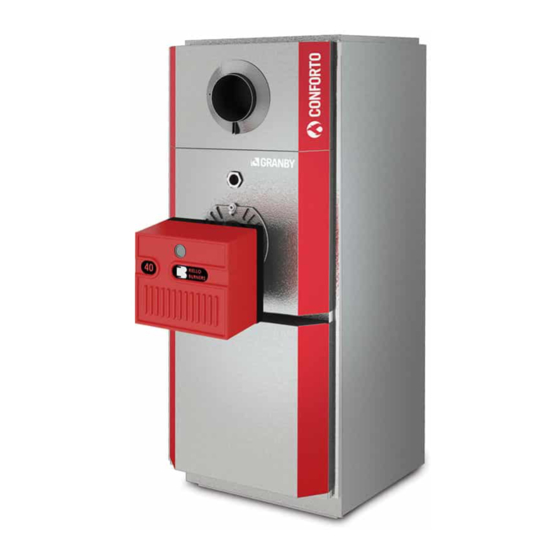

KHM-100 Illustration
G2012-E2 Rev. F
