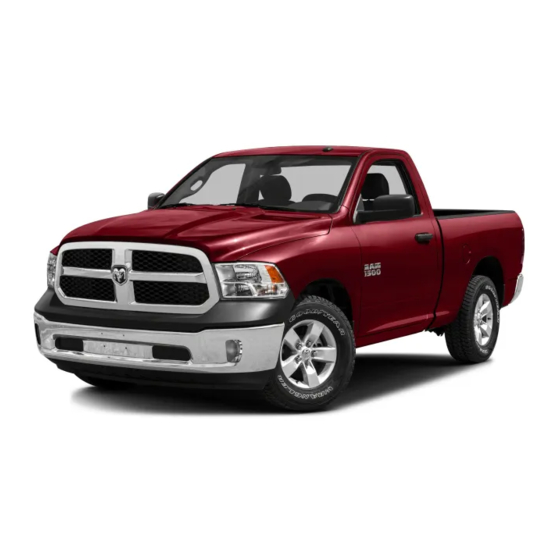

Dodge RAM 1500 User Manual

Ram trucks
Hide thumbs Also See for RAM 1500:
Table of Contents

Advertisement

Advertisement

Table of Contents
loading

Summary of Contents for Dodge RAM 1500

  • Page 2 If you are the first registered retail owner of your vehicle, you may obtain a complimentary printed copy of the Owner’s Manual, Navigation/Uconnect Manuals or Warranty Booklet ® by calling 1-866-726-4636 (U.S.) or 1-800-387-1143 (Canada) or by contacting your dealer. IMPORTANT This User Guide is intended to familiarize you with the important features of your vehicle.
  • Page 3: Table Of Contents

    T A B L E O F C O N T E N T S INTRODUCTION/WELCOME Uconnect 8.4AN ... . . 129 ® STEERING WHEEL AUDIO WELCOME FROM CHRYSLER CONTROLS ....150 GROUP LLC .
  • Page 4 T A B L E O F C O N T E N T S WHAT TO DO IN EMERGENCIES MAINTENANCE PROCEDURES ..260 MAINTENANCE SCHEDULE — ROADSIDE ASSISTANCE ..206 GASOLINE ENGINE .
  • Page 5: Introduction/Welcome

    I N T R O D U C T I O N / W E L C O M E WELCOME FROM CHRYSLER GROUP LLC Congratulations on selecting your new Chrysler Group LLC vehicle. Be assured that it represents precision workmanship, distinctive styling, and high quality - all essen- tials that are traditional to our vehicles.
  • Page 6 I N T R O D U C T I O N / W E L C O M E VEHICLES SOLD IN CANADA With respect to any vehicles sold in Canada, the name Chrysler Group LLC shall be deemed to be deleted and the name Chrysler Canada Inc. used in substitution (excluding legal lines).
  • Page 7 If your symptoms persist, please see an authorized dealer. CHRYSLER, DODGE, JEEP, RAM, SRT, MOPAR and Uconnect are registered trade- marks of Chrysler Group LLC. COPYRIGHT ©2014 CHRYSLER GROUP LLC...
  • Page 8: Controls At A Glance

    C O N T R O L S A T A G L A N C E DRIVER COCKPIT 1. Headlight Switch pg. 39 2. Electronic Vehicle Information Center (EVIC) Controls Or Driver Information Display (DID) Controls pg. 151 3. Turn Signal/Wiper/Washer/High Beams Lever pg. 38 4.
  • Page 9 C O N T R O L S A T A G L A N C E 11. Switch Panel 12. Power Inverter Outlet pg. 159 13. Glove Compartment 14. Power Outlet 15. Shifter 16. Hood Release (below steering wheel at base of instrument panel) pg. 239 17.
  • Page 10: Instrument Cluster

    C O N T R O L S A T A G L A N C E INSTRUMENT CLUSTER 1. Temperature Gauge 2. Tachometer 3. Voltmeter (See page 206 for Instrument Cluster Warning Lights.)
  • Page 11 C O N T R O L S A T A G L A N C E 4. Electronic Vehicle Information Center (EVIC) Or Driver Information Display (DID) 5. Oil Pressure Gauge 6. Speedometer 7. Fuel Gauge (See page 212 for Instrument Cluster Indicator Lights.)
  • Page 12: Getting Started

    G E T T I N G S T A R T E D KEY FOB This feature allows the driver to operate the ignition switch with the push of a button, as long as the Remote Keyless Entry (RKE) transmitter is in the passen- ger compartment.
  • Page 13: Locking And Unlocking The Doors

    G E T T I N G S T A R T E D NOTE: In case the ignition switch does not change with the push of a button, the RKE transmitter (Key Fob) may have a low or dead battery. In this situation a back up method can be used to operate the ignition switch.
  • Page 14 G E T T I N G S T A R T E D RKE Air Suspension (Remote Lowering Of Vehicle) — If Equipped • This vehicle is equipped with a feature that can lower the vehicle to a height which will improve ease of passenger entry/exit and cargo loading/unloading.
  • Page 15: Keyless Enter-N-Go

    G E T T I N G S T A R T E D KEYLESS ENTER-N-GO™ The Keyless Enter-N-Go™ system is an enhancement to the vehicle's Key Fob. This feature allows you to lock and unlock the vehicle's door(s) without having to push Key Fob lock or unlock buttons, as well as starting and stopping the vehicle with the push of a button.
  • Page 16 G E T T I N G S T A R T E D Engine Starting/Stopping Starting With a valid Keyless Enter-N-Go™ Key Fob inside the vehicle: 1. Shift the transmission into PARK or NEUTRAL. 2. While pushing the brake pedal, push the ENGINE START/STOP button once.
  • Page 17: Remote Start

    G E T T I N G S T A R T E D REMOTE START • Push REMOTE START button on the Key Fob twice within five seconds. Pushing the REMOTE START button a third time shuts the engine off. •...
  • Page 18: Seat Belt Systems

    G E T T I N G S T A R T E D To Disarm The System: • Push the Key Fob UNLOCK button or cycle the ignition to the ON/RUN position. The Vehicle Security Alarm is designed to protect your vehicle; however, you can create conditions where the Vehicle Security Alarm will give you a false alarm.
  • Page 19: Supplemental Restraint System (Srs) - Air Bags

    G E T T I N G S T A R T E D WARNING! • In a collision, you and your passengers can suffer much greater injuries if you are not properly buckled up. You can strike the interior of your vehicle or other passengers, or you can be thrown out of the vehicle.
  • Page 20 G E T T I N G S T A R T E D • The Advanced Front Air Bags will not deploy in all frontal collisions, including some that may produce substantial vehicle damage — for example, some pole collisions, truck underrides, and angle offset collisions.
  • Page 21 G E T T I N G S T A R T E D Supplemental Side Air Bags • This vehicle is equipped with Supplemental Seat-Mounted Side Air Bags (SABs) located in the outboard side of the front seats. The SABs are marked with a SRS AIRBAG label sewn into the outboard side of the seats.
  • Page 22: Child Restraints

    G E T T I N G S T A R T E D CHILD RESTRAINTS Children 12 years or younger should ride properly buckled up in a rear seat, if available. According to crash statistics, children are safer when properly restrained in the rear seats rather than in the front.
  • Page 23 G E T T I N G S T A R T E D Locating The LATCH Lower Anchorages The lower anchorages are round bars that are found at the rear of the seat cushion where it meets the seatback. They are just visible when you lean into the rear seat to install the child restraint.
  • Page 24 G E T T I N G S T A R T E D 2. Attach the lower hooks or connectors of the child restraint to the lower anchorages in the selected seating position. 3. If the child restraint has a tether strap, connect it to the top tether anchorage. See below for directions to attach a tether anchor.
  • Page 25 G E T T I N G S T A R T E D 6. Finally, pull up on any extra webbing to tighten the lap portion around the child restraint while you push the child restraint rearward and downward into the vehicle seat.
  • Page 26 G E T T I N G S T A R T E D 3. Lift the cover (if equipped) and attach the hook to the square opening in the sheet metal. Tighten the tether strap according to the child seat manufacturer’s instructions.
  • Page 27 G E T T I N G S T A R T E D 4. Attach the hook to the center tether strap loop (see diagram). Tighten the tether strap according to the child seat manufacturer’s instructions. NOTE: If there are child seats in both of the outboard (left and right) seating posi- tions, the tether strap hooks of both child seats should be connected to the center...
  • Page 28 G E T T I N G S T A R T E D 3. Pass the tether strap hook under the head restraint behind the child seat, though the tether strap loop behind the seat and over to the right or left outboard tether strap loop.
  • Page 29 G E T T I N G S T A R T E D Installing Three Child Restraints: 1. Place a child restraint on each out- board rear seat. Route the tether straps following the directions for right and left seating positions, above. 2.
  • Page 30: Head Restraints

    G E T T I N G S T A R T E D WARNING! • In a collision, an unrestrained child, even a tiny baby, can become a projectile inside the vehicle. The force required to hold even an infant on your lap could become so great that you could not hold the child, no matter how strong you are.
  • Page 31: Front Head Restraints

    G E T T I N G S T A R T E D Front Head Restraints To raise the head restraint, pull upward on the head restraint. To lower the head restraint, press the adjustment button, located on the base of the head restraint, and push downward on the head restraint.
  • Page 32: Front Seats

    G E T T I N G S T A R T E D FRONT SEATS Power Seats The seat switch controls forward/backward and up/down. The recline switch controls the angle of the seatback. • Push the switch forward or rearward and the seatback will move in either direction. Power Seat Switches 1 —...
  • Page 33: Manual Seats

    G E T T I N G S T A R T E D Memory Seat The memory seat feature allows you to save the driver's seat position (excluding lumbar position), driver's outside mirror position, adjustable brake and accelerator pedals, Automatic Temperature Control (ATC) temperature setting and radio station preset settings.
  • Page 34: Heated/Ventilated Seats

    G E T T I N G S T A R T E D CAUTION! Do not place any article under a power seat or impede its ability to move as it may cause damage to the seat controls. Seat travel may become limited if movement is stopped by an obstruction in the seat’s path.
  • Page 35: Front Heated Seats

    G E T T I N G S T A R T E D Vehicle Equipped With Remote Start On models that are equipped with remote start, this feature can be programmed to come on during a remote start. If your vehicle is equipped with a touchscreen, this feature can be programmed through the Uconnect system.
  • Page 36: Heated Steering Wheel

    G E T T I N G S T A R T E D REAR HEATED SEATS The rear heated seat switches are located on the rear of the center console. • Press the heated seat button once to turn the High setting On. •...
  • Page 37 G E T T I N G S T A R T E D Vehicle Equipped With Remote Start On models that are equipped with remote start, this feature can be programmed to come on during a remote start. If your vehicle is equipped with a touchscreen, this feature can be programmed through the Uconnect system.
  • Page 38: Tilt Steering Column

    G E T T I N G S T A R T E D TILT STEERING COLUMN The tilt lever is located on the steering column below the turn signal lever. • To tilt the column, simply pull the tilt lever rearward toward you and then move the steering wheel upward or downward as desired.
  • Page 39: Operating Your Vehicle

    O P E R A T I N G Y O U R V E H I C L E ENGINE BREAK-IN RECOMMENDATIONS A long break-in period is not required for the engine and drivetrain (transmission and axle) in your vehicle. Drive moderately during the first 300 miles (500 km).
  • Page 40: Turn Signals/Wiper/Washer/High Beams Lever

    O P E R A T I N G Y O U R V E H I C L E TURN SIGNALS/WIPER/WASHER/HIGH BEAMS LEVER Turn Signal/Wiper/Washer/High Beam Lever Turn Signals/Lane Change Assist Tap the lever up or down once and the turn signal (right or left) will flash three times and automatically turn off.
  • Page 41: Headlight Switch

    O P E R A T I N G Y O U R V E H I C L E HEADLIGHT SWITCH Automatic Headlights/Parking Lights/Headlights • Rotate the headlight switch, located on the instrument panel to the left of the steering wheel, to the first detent for parking lights and to the second detent for headlights •...
  • Page 42: Cargo Light

    O P E R A T I N G Y O U R V E H I C L E Cargo Light The cargo light is strategically placed lighting that helps illuminate the bed area of the truck. A cargo light symbol will illuminate in the cluster to indicate the light is on. •...
  • Page 43 O P E R A T I N G Y O U R V E H I C L E Accel/Decel To Increase Speed • When the Electronic Speed Control is set, you can increase speed by pushing the RES + button. The drivers preferred units can be selected through the instrument panel settings if equipped.
  • Page 44: Eight-Speed Automatic Transmission - If Equipped

    O P E R A T I N G Y O U R V E H I C L E Resume • To resume a previously selected set speed in memory, push the RESUME/ACCEL switch and release. Cancel • Push the CANCEL switch or apply the brakes to cancel the set speed and maintain the set speed memory.
  • Page 45: Electronic Range Select (Ers) Operation

    O P E R A T I N G Y O U R V E H I C L E ELECTRONIC RANGE SELECT (ERS) OPERATION • Electronic Range Select (ERS) allows you to limit the highest available trans- mission gear, and can be activated during any driving condition.
  • Page 46 O P E R A T I N G Y O U R V E H I C L E ELECTRONIC RANGE SELECT (ERS) OPERATION — EIGHT-SPEED TRANSMISSION • The Electronic Range Select (ERS) shift control allows the driver to limit the highest available gear when the transmission shifter switch is in the DRIVE position...
  • Page 47: 1500 Air Suspension System

    O P E R A T I N G Y O U R V E H I C L E 1500 AIR SUSPENSION SYSTEM The air suspension system provides full time load leveling capability along with the benefit of being able to adjust vehicle height by the push of a button. Automatic height changes will occur based on vehicle speed and the current vehicle height.
  • Page 48: Air Suspension Modes

    O P E R A T I N G Y O U R V E H I C L E Aero Mode (Lowers the vehicle approximately .6 in (15 mm) – 1500 Models Only - This position provides improved aerodynamics by lowering the vehicle. The vehicle will automatically enter Aero Mode when the vehicle speed remains between 62 mph (100 km/h) and 66 mph (106 km/h) for greater than 20 seconds or if the vehicle speed exceeds 66 mph (106 km/h).
  • Page 49 O P E R A T I N G Y O U R V E H I C L E Transport Mode To assist with flat bed towing, the air suspension system has a feature which will put the vehicle into Entry/Exit height and disable the automatic load leveling system. Refer to “Electronic Vehicle Information Center (EVIC)/Driver Information Display (DID)”...
  • Page 50: 2500-3500 Air Suspension System

    O P E R A T I N G Y O U R V E H I C L E 2500-3500 AIR SUSPENSION SYSTEM The air suspension system provides full time rear load leveling capability for all loading conditions including towing. Description Normal Ride Height (NRH) - This is the standard position of the suspension and...
  • Page 51 O P E R A T I N G Y O U R V E H I C L E Air Suspension Modes The Air Suspension system has multiple modes to protect the system in unique situations: Tire Jack Mode To assist with changing a spare tire, the air suspension system has a feature which allows the automatic leveling to be disabled.
  • Page 52: Manual Climate Controls Without Touchscreen

    O P E R A T I N G Y O U R V E H I C L E MANUAL CLIMATE CONTROLS WITHOUT TOUCHSCREEN Manual Climate Controls 1 — Rotate Blower Control 4 — Push A/C Button 2 — Push Air Recirculation Button 5 —...
  • Page 53: Manual Climate Controls With Touchscreen

    O P E R A T I N G Y O U R V E H I C L E MANUAL CLIMATE CONTROLS WITH TOUCHSCREEN Uconnect® 8.4 Manual Climate Controls 1 — Max A/C Indicator 6 — Blower Speed Up Button 2 —...
  • Page 54: Air Recirculation

    O P E R A T I N G Y O U R V E H I C L E Climate Control Knobs 1 — A/C Button 5 — Rotate Blower Control 2 — Temperature Control Buttons 6 — OFF Button 3 —...
  • Page 55: Automatic Climate Controls With Touchscreen

    O P E R A T I N G Y O U R V E H I C L E AUTOMATIC CLIMATE CONTROLS WITH TOUCHSCREEN Touchscreen Automatic Climate Controls 1 — MAX A/C Button 8 — Passenger Temperature Down 2 — A/C Button 9 —...
  • Page 56 O P E R A T I N G Y O U R V E H I C L E Climate Control Knobs 1 — A/C Button 7 — Rear Defroster Button 2 — Driver Temperature Up 8 — Passenger Temperature Down 3 —...
  • Page 57: Parksense® Front And Rear Park Assist

    O P E R A T I N G Y O U R V E H I C L E Heated Mirrors The mirrors are heated to melt frost or ice. This feature is activated whenever you turn on the defroster. PARKSENSE®...
  • Page 58: Parkview® Rear Back-Up Camera

    O P E R A T I N G Y O U R V E H I C L E PARKVIEW® REAR BACK-UP CAMERA • You can see an on-screen image of the rear surroundings of your vehicle whenever the shift lever is put into REVERSE. The ParkView Rear Back-Up Camera image ®...
  • Page 59: Power Sliding Rear Window

    O P E R A T I N G Y O U R V E H I C L E POWER SLIDING REAR WINDOW The switch for the power sliding rear window is located on the overhead console. • Push the switch right to open the glass and pull the switch left to close the glass.
  • Page 60: Power Sunroof

    O P E R A T I N G Y O U R V E H I C L E POWER SUNROOF • The power sunroof switch is located on the overhead console. Opening Sunroof Express Open Press the switch rearward and release it within one-half second.
  • Page 61: Wind Buffeting

    O P E R A T I N G Y O U R V E H I C L E Pinch Protection Feature This feature will detect an obstruction in the opening of the sunroof during Express Close operation. If an obstruction in the path of the sunroof is detected, the sunroof will automatically retract.
  • Page 62: Electronics

    E L E C T R O N I C S YOUR VEHICLE'S SOUND SYSTEM 1. Uconnect Voice Command Button pg. 113 ® 2. Uconnect Phone Button pg. 142 ® 3. Steering Wheel Audio Controls (Left) pg. 150 4. Steering Wheel Audio Controls (Right) pg. 150 5.
  • Page 63 E L E C T R O N I C S 7. 9-1-1 Button pg. 71 8. Uconnect 8.4 Radio pg. 97 ® 9. Screen Off Button 10. Back Button 11. Tune/Scroll Knob/Browse/Enter Button 12. Media Hub: Audio Jack, USB Port, and SD Card Slot (located center console) pg.
  • Page 64: Identifying Your Radio

    E L E C T R O N I C S IDENTIFYING YOUR RADIO Uconnect® 3.0 • Two buttons on the faceplate on either side of the display Uconnect® 3.0 Uconnect® 5.0 • 5” Touchscreen • Three buttons on the faceplate on ei- ther side of the display Uconnect®...
  • Page 65: Uconnect® Access

    E L E C T R O N I C S Uconnect® 8.4AN • 8.4” Touchscreen • Climate button on the touchscreen in lower menu bar • HD Button will be visible on right side of screen when viewing AM or FM •...
  • Page 66 E L E C T R O N I C S • Listen to your text messages or send free-form text messages with your voice while keeping your hands on the wheel, using the Voice Texting feature. Requires a cell phone that supports Bluetooth Message Access Profile (MAP).
  • Page 67 E L E C T R O N I C S Uconnect® Access Registration (Uconnect® 8.4A/8.4AN, U.S. 48 Contiguous States, Alaska And Hawaii) To unlock the full potential of Uconnect Access in your vehicle, you first need to ® register with Uconnect Access.
  • Page 68 E L E C T R O N I C S 8. Once you are logged in to your Mopar Owner Connect account, you will create a personal Uconnect Security PIN. The Uconnect Security PIN will be required ® ® to authenticate you when accessing your account via Uconnect Care or perform- ®...
  • Page 69 E L E C T R O N I C S Pandora® (www.pandora.com) • Enter your Pandora username/email address and password, then click “Save.” ® • Create a new Pandora account. ® Slacker Radio (www.slacker.com) • Enter your Slacker username/email address and password, then click “Save.” •...
  • Page 70 E L E C T R O N I C S Purchasing WiFi Hotspot While In Your Vehicle You must set up a Uconnect Access Payment Account online (log in to ® moparownerconnect.com, go to Edit Profile, then Uconnect Payment Account, to ®...
  • Page 71 E L E C T R O N I C S Get started with your Uconnect Access apps by pressing the Uconnect “Apps” ® ® button on the menu bar at the bottom right corner of the radio touchscreen. Available apps and features are organized by the tabs on the left of the screen: Favorite Apps —...
  • Page 72 E L E C T R O N I C S Maintaining Your Uconnect® Access Account Reinstalling An App (Uconnect® 8.4A/8.4AN) You can easily correct many Application related issues you may be experiencing by resetting the App back to the factory setting. From the vehicle’s radio touchscreen, complete the following steps: 1.
  • Page 73 E L E C T R O N I C S Built-In Features (Uconnect® 8.4AN Only) CAUTION! • Ignoring the rearview mirror light could mean you may not have 9-1-1 Call service if needed. If the rearview mirror light is illuminated, have an authorized dealer service the 9-1-1 Call system immediately.
  • Page 74 E L E C T R O N I C S 2. Emergency 9-1-1 Call (If Equipped) — The rearview mirror contains a 9-1-1 button that, when pressed, may place a call from your vehicle to a local 9-1-1 operator to request help from local police, fire or ambulance personnel.
  • Page 75 E L E C T R O N I C S 6. Stolen Vehicle Assistance — If your vehicle is stolen, contact local law enforce- ment immediately to file a stolen vehicle report. Once this report has been filed, Uconnect care can help locate your vehicle.
  • Page 76 E L E C T R O N I C S NOTE: Your four digit Uconnect Security PIN is required to confirm the request. ® • You can set-up notifications for your account to receive an email or text (SMS) message every time a command is sent.
  • Page 77 E L E C T R O N I C S Voice Texting — Want to dictate a personal message? Register with Uconnect ® Access to take advantage of a new, cloudbased Voice Texting service, an enhance- ment to Voice Text Reply. Voice Texting allows you to compose a new text or reply to an incoming text message.
  • Page 78 E L E C T R O N I C S Sample Commands For Voice Text Reply And Voice Texting Example Command Action Send a message to specific contact in “Text John Smith” address book Send 123 - 456 - 7890 a message from “Text 123 - 456 - 7890”...
  • Page 79 E L E C T R O N I C S Launch the Uconnect Access App on your smartphone, and login with your ® username and password that was set up during registration, (this is your moparownerconnect.com login). Accept the Terms and Conditions. •...
  • Page 80 E L E C T R O N I C S Each time you want to use a Via Mobile app in your vehicle, the Uconnect Access ® App must be running on your smartphone and the smartphone must be paired via Bluetooth ®...
  • Page 81 E L E C T R O N I C S If equipped, the Via Mobile apps can be found by selecting the “Apps” button on the touchscreen in the lower right corner of the radio touchscreen. Via Mobile apps are listed under the “All Apps”...
  • Page 82 E L E C T R O N I C S Via Mobile Apps — If Equipped • Aha™ by HARMAN — Aha™ by HARMAN makes it easy to instantly access your favorite Web content on the go. Choose from over 40,000+ stations spanning internet radio, personalized music, news, entertainment, hotels, weather, audio- books, Facebook , Twitter...
  • Page 83: Uconnect ® 3.0

    E L E C T R O N I C S Uconnect® 3.0 Uconnect® 3.0 Radio 1 — RADIO Button 8 — SEEK Up Button 2 — INFO Button 9 — ON/OFF Button/Volume Knob 3 — MEDIA Button 10 — BROWSE/ENTER Button/ 4 —...
  • Page 84: Radio Operation

    E L E C T R O N I C S Audio • Push the AUDIO button on the radio faceplate. • The Audio Menu shows the following options for you to customize your audio settings. Treble, Mid, Bass, Fade, Balance, Speed Adjusted Volume, Loudness and Auto Volume Offset •...
  • Page 85 E L E C T R O N I C S USB/Audio Jack (AUX) Operation USB/iPod® • USB/iPod Mode is entered by either inserting a USB Jump Drive or iPod cable ® ® into the USB port or by pressing the MEDIA button located left of the display. Once in Media Mode, select “USB/iPod”...
  • Page 86: Uconnect ® 5.0

    E L E C T R O N I C S Uconnect® 5.0 Uconnect® 5.0 1 — Radio Mode 7 — Rotate Volume Control 2 — Compass Information 8 — Rotate Tune/Scroll Knob 3 — Media Mode 9 — Mute Button 4 —...
  • Page 87 E L E C T R O N I C S Clock Setting To start the clock setting procedure, perform the following: 1. Push the SETTINGS button on the faceplate on the right side of the display, then press the “Clock & Date” button on the touchscreen. 2.
  • Page 88 E L E C T R O N I C S Radio Operation Seek Up/Down Buttons • Press to seek through radio stations in AM, FM or SXM bands. • Hold either button to bypass stations without stopping. Store Radio Presets •...
  • Page 89 E L E C T R O N I C S Disc Operation (If Equipped) Your vehicle may have a remote CD player located in the lower center console storage bin, or in the lower center bench seat bin. • CD/Disc Mode is entered by either inserting a CD/Disc or by pressing the MEDIA button located on the side of the display.
  • Page 90 E L E C T R O N I C S Bluetooth® If using a Bluetooth - equipped device, you may also be able to stream music to your ® vehicle's sound system. • Press the MEDIA button on the faceplate, then press the “source” button on the touchscreen.
  • Page 91 E L E C T R O N I C S PRE-DEFINED VOICE TEXT REPLY RESPONSES Yes. Stuck in Traffic. See you later. Start without me. I’ll be Late. Okay. Where are you? I will be <number> minutes late. Call me. Are you there yet? I’ll call you later.
  • Page 92 E L E C T R O N I C S Uconnect® 5.0 VOICE RECOGNITION QUICK TIPS Introducing Uconnect® Start using Uconnect Voice Recognition with these helpful quick tips. It provides ® the key Voice Commands and tips you need to know to control your Uconnect ®...
  • Page 93 E L E C T R O N I C S Get Started 1. U.S. residents can visit UconnectPhone.com to check mobile device and feature compatibility and to find phone pairing instructions. 2. Reduce background noise. Wind and passenger conversations are examples of noise that may impact recognition.
  • Page 94 E L E C T R O N I C S Basic Voice Commands The basic Voice Commands below can be given at any point while using your Uconnect system. ® Push the VR button . After the beep, say: •...
  • Page 95 E L E C T R O N I C S Radio Use your voice to quickly get to the AM, FM or SiriusXM™ Satellite Radio stations ® you would like to hear. (Subscription or included SiriusXM™ Satellite Radio trial required.) Push the VR button .
  • Page 96 E L E C T R O N I C S Media Uconnect offers connections via USB, SD, Bluetooth and auxiliary ports (If ® ® Equipped). Voice operation is only available for connected USB and iPod devices. ® (Remote CD player optional and not available on all vehicles.) Push the VR button .
  • Page 97 E L E C T R O N I C S Phone Making and answering hands-free phone calls is easy with Uconnect . When the ® Phonebook button is illuminated on your touchscreen, your system is ready. U.S. residents can visit UconnectPhone.com to check mobile device and feature compatibility and to find phone pairing instructions.
  • Page 98 E L E C T R O N I C S Voice Text Reply Uconnect will announce incoming text messages. Push the Phone button ® say Listen. (Must have compatible mobile phone paired to Uconnect system.) ® 1. Once an incoming text message is read to you, push the Phone button .
  • Page 99: Uconnect® 8.4A

    E L E C T R O N I C S Uconnect® 8.4A Uconnect® 8.4A AT A GLANCE Uconnect® 8.4A Radio Screen 1 — Status Bar 5 — Climate Button 2 — Menu Bar 6 — Controls Button 3 — Uconnect Apps Button 7 —...
  • Page 100 E L E C T R O N I C S • Press “+” or “–” next to Set Time Hours and Set Time Minutes to adjust the time. • If these features are not available, uncheck the Sync with GPS box. •...
  • Page 101 E L E C T R O N I C S RADIO Uconnect® 8.4A Radio Screen 1 — Radio Station Presets 5 — Seek Down 2 — Toggle Between Presets 6 — Direct Tune To A Radio Station 3 — Choose Radio Band 7 —...
  • Page 102 E L E C T R O N I C S Store Radio Presets Your radio can store 36 total preset stations, 12 presets per band (AM, FM and SXM). They are shown at the top of your radio screen. To see the 12 preset stations per band, press the arrow button on the touchscreen at the top right of the screen to toggle between the two sets of six presets.
  • Page 103 E L E C T R O N I C S SiriusXM Parental Controls • You can skip or hide certain channels from view if you do not want access to them. Press the “Apps” button on the touchscreen, then the “Settings” button on the touchscreen, next press the “Sirius Setup”...
  • Page 104 E L E C T R O N I C S Replay Lets you replay up to 44 minutes of the content of the current SiriusXM channel. Replay Option Option Description Play/Pause Press to Pause content playback. Press Pause/Play again to resume playback.
  • Page 105 E L E C T R O N I C S MEDIA HUB — PLAYING iPod®/USB/MP3 DEVICES There are many ways to play music from iPod /MP3 players or USB devices through ® your vehicle's sound system. Press your “Media” button on the touchscreen to begin. Uconnect®...
  • Page 106 E L E C T R O N I C S USB Port Connect your iPod or compatible device using a USB cable into the USB Port. USB ® Memory sticks with audio files can also be used. Audio from the device can be played on the vehicles sound system while providing metadata (artist, track title, album, etc.) information on the radio display.
  • Page 107 E L E C T R O N I C S iPod®/CD/AUX CONTROLS iPod®/CD/AUX Controls 1 — Repeat Music Track 5 — Music Track Information 2 — Music Track And Time 6 — Show Songs Currently In Cue To 3 — Shuffle Music Tracks Be Played 4 —...
  • Page 108 E L E C T R O N I C S NAVIGATION (DEALER-ACTIVATED OPTION) • Your Uconnect 8.4A is “Navigation-Ready,” and can be equipped with Naviga- ® tion at an extra cost. Please see your dealer for details. • The information in the section below is only applicable if the Navigation has been activated.
  • Page 109 E L E C T R O N I C S Finding Points Of Interest (POI) • From the main Navigation menu, press the “Where To?” button on the touch- screen, then press the “Points of Interest” button on the touchscreen. •...
  • Page 110 E L E C T R O N I C S Go Home • A Home location must be saved in the system. From the Main Navigation menu, press the “Where To?” button on the touchscreen, then press the “Go Home” button on the touchscreen.
  • Page 111: Pairing A Phone

    E L E C T R O N I C S Taking A Detour • To take a detour you must be navigating a route. • Press the “Detour” button on the touchscreen. NOTE: If the route you are currently taking is the only reasonable option, the device might not calculate a detour.
  • Page 112: Making A Phone Call

    E L E C T R O N I C S Complete The Pairing Procedure • When prompted on the phone, verify with the radio password shown on the Uconnect Screen. ® • If your phone asks you to accept a connection request from Uconnect , select ®...
  • Page 113 E L E C T R O N I C S Phonebook • Uconnect radios will automatically download your phonebook from your paired ® phone, if this feature is supported by your phone. Entries are updated each time that the phone is connected. If your phone book entries do not appear, check the settings on your phone.
  • Page 114 E L E C T R O N I C S PRE-DEFINED VOICE TEXT REPLY RESPONSES Yes. Stuck in Traffic. See you later. Start without me. I’ll be Late. Okay. Where are you? I will be <number> min- utes late. Call me.
  • Page 115 E L E C T R O N I C S Uconnect® 8.4A/8.4AN VOICE RECOGNITION QUICK TIPS Introducing Uconnect® Start using Uconnect Voice Recognition with these helpful quick tips. It provides ® the key Voice Commands and tips you need to know to control your Uconnect 8.4AN ®...
  • Page 116 E L E C T R O N I C S Get Started 1. U.S. residents can visit UconnectPhone.com to check mobile device and feature compatibility and to find phone pairing instructions. 2. Reduce background noise. Wind and passenger conversations are examples of noise that may impact recognition.
  • Page 117 E L E C T R O N I C S Basic Voice Commands The basic Voice Commands below can be given at any point while using your Uconnect system. ® Push the VR button . After the beep, say: •...
  • Page 118 E L E C T R O N I C S Radio Use your voice to quickly get to the AM, FM or SiriusXM™ Satellite Radio stations ® you would like to hear. (Subscription or included SiriusXM™ Satellite Radio trial required.) Push the VR button .
  • Page 119 E L E C T R O N I C S Media Uconnect offers connections via USB, SD, Bluetooth and auxiliary ports (If ® ® Equipped). Voice operation is only available for connected USB and iPod devices. ® (Remote CD player optional and not available on all vehicles.) Push the VR button .
  • Page 120 E L E C T R O N I C S Phone Making and answering hands-free phone calls is easy with Uconnect . When the ® Phonebook button is illuminated on your touchscreen, your system is ready. U.S. residents can visit: •...
  • Page 121 E L E C T R O N I C S Voice Text Reply Uconnect will announce incoming text messages. Push the Phone button ® say Listen. (Must have compatible mobile phone paired to Uconnect system.) ® 1. Once an incoming text message is read to you, push the Phone button .
  • Page 122 E L E C T R O N I C S Climate (8.4A/8.4AN) Too hot? Too cold? Adjust vehicle temperatures hands-free and keep everyone comfortable while you keep moving ahead. (If vehicle is equipped with climate control.) Push the VR button .
  • Page 123 E L E C T R O N I C S Navigation (8.4A/8.4AN) The Uconnect navigation feature helps you save time and become more productive ® when you know exactly how to get to where you want to go. (Navigation is optional on the Uconnect 8.4A system.
  • Page 124 E L E C T R O N I C S Uconnect® Access — If Equipped (8.4A/8.4AN) An included trial and/or subscription is required to take advantage of the Uconnect ® Access services in the next section of this guide. To register with Uconnect Access, ®...
  • Page 125 E L E C T R O N I C S Register (8.4A/8.4AN) 1. Press the “Apps” button on the bottom of the 8.4-inch touchscreen. 2. If a pop-up message appears, press “Register” or go to the “Favorite Apps” or “All Apps”...
  • Page 126 E L E C T R O N I C S Mobile App (8.4A/8.4AN) Securely link your mobile device to your vehicle with the Uconnect Access App. ® Once you have downloaded the App, you may start your vehicle or lock it from virtually any distance.
  • Page 127 E L E C T R O N I C S Voice Texting (8.4A/8.4AN) You must be registered with Uconnect Access and have a compatible MAP – ® enabled smartphone to use your voice to send a personalized text message. (Not compatible with iPhone ®...
  • Page 128 E L E C T R O N I C S Yelp® (8.4A/8.4AN) Once registered with Uconnect Access, you can use your voice to search for the ® most popular places or things around you. . After the beep, say: Launch YELP® 1.
  • Page 129 E L E C T R O N I C S SiriusXM Travel Link™ (8.4A/8.4AN — US Market Only) Need to find a gas station, view local movie listings, check a sports score or the 5 - day weather forecast? SiriusXM Travel Link™ is a suite of services that brings a wealth of information right to your Uconnect 8.4AN system.
  • Page 130 E L E C T R O N I C S Additional Information © 2014 Chrysler Group LLC. All rights reserved. Mopar, Mopar Owner Connect and Uconnect are registered trademarks of Chrysler Group LLC. Android is a trademark of Google Inc. SiriusXM and all related marks and logos are trademarks of SiriusXM Radio Inc.
  • Page 131: Uconnect® 8.4An

    E L E C T R O N I C S Uconnect® 8.4AN Uconnect® 8.4AN AT A GLANCE Uconnect® 8.4AN Radio Screen 1 — Status Bar 6 — Uconnect Navigation Button ® 2 — View Small Navigation Map 7 — Climate Button 3 —...
  • Page 132 E L E C T R O N I C S • If the time is not displayed at the top of the screen, press the “Controls” button on the touchscreen or the “Apps” button on the touchscreen and then the “settings” button on the touchscreen.
  • Page 133 E L E C T R O N I C S RADIO Uconnect® 8.4AN Radio 1 — Radio Station Presets 6 — Seek Down 2 — Toggle Between Presets 7 — Direct Tune To A Radio Station 3 — Choose Radio Band 8 —...
  • Page 134 E L E C T R O N I C S Direct Tune • Tune directly to a radio station by pressing the “Tune” button on the screen, and entering the desired station number. Store Radio Presets • Your radio can store 36 total preset stations, 12 presets per band (AM, FM and SXM).
  • Page 135 E L E C T R O N I C S Jump • Automatically tells you when Traffic & Weather for a favorite city is available, and gives you the option to switch to that channel. Press “Jump” to activate the feature.
  • Page 136 E L E C T R O N I C S Replay Lets you replay up to 44 minutes of the content of the current SiriusXM channel. Replay Option Option Description Play/Pause Press to Pause content playback. Press Pause/Play again to resume playback.
  • Page 137 E L E C T R O N I C S MEDIA HUB — PLAYING iPod®/USB/MP3 DEVICES Uconnect® 8.4AN Media Hub 1 — USB Charge Only Port 3 — USB Port 2 — SD Card Port 4 — Audio/AUX Jack There are many ways to play music from iPod /MP3 players or USB devices through ®...
  • Page 138 E L E C T R O N I C S USB Port • Connect your iPod or compatible device using a USB cable into the USB Port. ® USB Memory sticks with audio files can also be used. Audio from the device can be played on the vehicles sound system while providing metadata (artist, track title, album, etc.) information on the radio display.
  • Page 139 E L E C T R O N I C S iPod®/CD/AUX CONTROLS iPod®/CD/AUX Controls 1 — Repeat Music Track 5 — Music Track Information 2 — Music Track And Time 6 — Show Songs Currently In Cue To 3 — Shuffle Music Tracks Be Played 4 —...
  • Page 140 E L E C T R O N I C S NAVIGATION • Press the “Nav” button on the touchscreen in the menu bar to access the Navigation system. Changing The Navigation Voice Prompt Volume 1. Press the “View Map” button on the touchscreen from the Nav Main Menu. 2.
  • Page 141 E L E C T R O N I C S Finding Points Of Interest • From the main Navigation menu, press the “Where To?” button on the touch- screen, then press the “Points of Interest” button on the touchscreen. •...
  • Page 142 E L E C T R O N I C S Go Home • A Home location must be saved in the system. From the Main Navigation menu, press the “Where To?” button on the touchscreen, then press the “Go Home” button on the touchscreen.
  • Page 143 E L E C T R O N I C S Taking A Detour • To take a detour you must be navigating a route. • Press the “Detour” button on the touchscreen. NOTE: If the route you are currently taking is the only reasonable option, the device may not calculate a detour.
  • Page 144 E L E C T R O N I C S To access SiriusXM Travel Link, press “Apps” button on the touchscreen, then press the “SiriusXM Travel Link” button on the touchscreen. NOTE: SiriusXM Travel Link requires a subscription, sold separately after the five (5) year trial subscription included with your vehicle purchase.
  • Page 145 E L E C T R O N I C S Start Pairing Procedure On Mobile Phone • Search for available devices on your Bluetooth enabled mobile phone. This is ® usually within Settings or Options under “Bluetooth.” See your mobile phone’s manual for details.
  • Page 146 E L E C T R O N I C S Transfer Ongoing Call Between Handset And Vehicle During an on-going call, press the “Transfer” button on the touchscreen to transfer an on-going call between handset and vehicle. Common Phone Commands (Examples) •...
  • Page 147 E L E C T R O N I C S Voice Text Reply (Not Compatible With iPhone®) Once your Uconnect system is paired with a compatible mobile device, the system ® can announce a new incoming text message, and read it to your over the vehicle audio system.
  • Page 148 E L E C T R O N I C S VOICE COMMAND QUICK REFERENCE Uconnect® 8.4AN Voice Command Quick Reference If the Uconnect Voice Command button exists on your steering wheel, you ® have the Voice Command feature, which is optimized for the driver. The Voice Command feature lets you keep your hands on the wheel and your eyes on the road.
  • Page 149 E L E C T R O N I C S Available Radio Button On The Touchscreen Voice Commands Steering Wheel Radio Media Climate Naviga- Phone Buttons to APPS Mode Mode Controls tion Mode Push: Uconnect AM/FM Destina- ® Media Tem- Voice Com- &...
  • Page 150 E L E C T R O N I C S Voice Command Examples – Uconnect® 8.4AN While In: Voice Command Example: GENERAL “Go to Radio” (Media, Climate, Naviga- tion, Phone, Apps) – Settings, and Con- trols are not Voice Command accessible “Cancel”...
  • Page 151 E L E C T R O N I C S While In: Voice Command Example: PHONE “Dial 123-456-7890” (phone number) “Call John Smith mobile” (home, office, Call Initiation (Requires that phone has other) been Bluetooth paired with radio) ® “Redial”...
  • Page 152: Steering Wheel Audio Controls

    E L E C T R O N I C S While In: Voice Command Example: APPS “Show Fuel prices” “Show Current Weather” – provides access to Forecast as well SiriusXM Travel Link (Traffic function is “Show Weather map” – multiple map not voice command accessible within formats available SiriusXM Travel Link)
  • Page 153: Electronic Vehicle Information Center (Evic) Or Driver Information Display (Did)

    E L E C T R O N I C S ELECTRONIC VEHICLE INFORMATION CENTER (EVIC) OR DRIVER INFORMATION DISPLAY (DID) The EVIC/DID features an interactive display that is located in the instrument cluster. Pushing the controls on the left side of the steering wheel allows the driver to select vehicle information and Personal Settings.
  • Page 154: Programmable Features

    E L E C T R O N I C S PROGRAMMABLE FEATURES Programmable Features The EVIC/DID can be used to view or change the following settings. Push the UP or DOWN button until System Setup displays, then push RIGHT button.
  • Page 155 E L E C T R O N I C S Uconnect® Customer Programmable Features The Uconnect system allows you to access Customer Programmable feature ® settings such as Display, Voice, Clock, Safety & Driving Assistance, Lights, Doors & Locks, Auto-On Comfort, Engine Off Options, Compass Settings (Uconnect 5.0,) ®...
  • Page 156 E L E C T R O N I C S Instrument Cluster Reconfigurable Screen Setup The following settings allow you to change what information is displayed in the instrument cluster as well as the location that information is displayed. Digital Speedometer •...
  • Page 157 E L E C T R O N I C S Fuel Economy • Push the UP or DOWN arrow button until the Fuel Economy icon is highlighted. The screen will display the following: • Average Fuel Economy/Miles Per Gallon •...
  • Page 158: Universal Garage Door Opener (Homelink )

    E L E C T R O N I C S UNIVERSAL GARAGE DOOR OPENER (HomeLink®) HomeLink replaces up to three hand-held transmitters that operate devices such as ® garage door openers, motorized gates, lighting or home security systems. The HomeLink unit is powered by your vehicles 12 Volt battery.
  • Page 159 E L E C T R O N I C S Programming A Rolling Code NOTE: For programming Garage Door Openers that were manufactured after 1995. These Garage Door Openers can be identified by the “LEARN” or “TRAIN” button located where the hanging antenna is attached to the Garage Door Opener.
  • Page 160: Using Homelink

    E L E C T R O N I C S Programming A Non-Rolling Code NOTE: For programming Garage Door Openers manufactured before 1995. 1. Turn the ignition switch to the ON/RUN position. 2. Place the hand-held transmitter 1 to 3 in (3 to 8 cm) away from the HomeLink ®...
  • Page 161: Power Inverter

    E L E C T R O N I C S POWER INVERTER A 115 Volt, 150 Watt power inverter outlet is located on the lower instrument panel next to the climate control knob. This outlet can power cellular phones, electronics and other low power devices requiring power up to 150 Watts.
  • Page 162 E L E C T R O N I C S • Inside the top storage tray. Power Outlet — Center Console • Inside the upper lid of the center storage compartment — if equipped. Power Outlet — Storage Compartment •...
  • Page 163 E L E C T R O N I C S • The rear center console power outlet can be switched to “battery” powered all the time by switching the power outlet rear center console fuse in the fuse panel. Power Outlet Fuse Locations 1 —...
  • Page 164: Off-Road Capabilities

    O F F - R O A D C A P A B I L I T I E S ELECTRONICALLY SHIFTED FOUR WHEEL DRIVE OPERATION The four position electronically shifted transfer case provides four mode posi- tions: • Two-wheel drive high range (2WD) •...
  • Page 165 O F F - R O A D C A P A B I L I T I E S These five position electronically shifted transfer cases provide five mode posi- tions: • Two-wheel drive high range (2WD) • Four-wheel drive automatic range (4WD AUTO) •...
  • Page 166 O F F - R O A D C A P A B I L I T I E S Shifting Procedure Shifting between 2WD and 4WD AUTO or 4WD LOCK can be made with the vehicle stopped or in motion at speeds up to 55 mph (88 km/h). Shifting between 2WD, 4WD AUTO and 4WD LOCK into 4WD LOW must be made with the transmission in NEUTRAL and the vehicle stopped or rolling at 2 to 3 mph (3 to 5 km/h).
  • Page 167: Utility

    U T I L I T Y TONNEAU COVER The Tonneau Cover can be removed and reinstalled by using the locking clamps located underneath the Tonneau Cover. NOTE: Be sure that the Tonneau Cover is secured before driving. EASY-OFF TAILGATE To simplify mounting of a camper unit with an overhang, the tailgate can be removed.
  • Page 168: Pickup Box

    U T I L I T Y PICKUP BOX You can carry wide building materials (sheets of plywood, etc.) by building a raised load floor. Place lumber across the box in the indentations provided above the wheel housings and in the bulkhead dividers to form the floor. There are stampings in the sheet metal on the inner side bulkheads of the box in front of and behind both wheel housings.
  • Page 169 U T I L I T Y Turning Cargo Camera On Or Off — With Uconnect® 8.4A/8.4AN 1. Press the “Controls” button located on the bottom of the Uconnect display. ® 2. Press the “Cargo Camera” button to turn the Cargo Camera system ON. NOTE: The Cargo Camera image may be deactivated by touching the Uconnect display.
  • Page 170: Rambox

    U T I L I T Y RAMBOX® RamBox® Features 1 — Bed Extender 2 — Bed Rail Tie-Down System Adjustable Cleats 3 — Storage Bin 4 — Press The Button To Open The RamBox system is an integrated pickup box storage and cargo management ®...
  • Page 171: Bed Extender

    U T I L I T Y RamBox® Integrated Box Side Storage Bins The cargo storage bins provide watertight, lockable, illuminated storage for up to 150 lbs (68 kg) of evenly distributed cargo. • To open a storage bin, press and release the pushbutton located on the lid. •...
  • Page 172 U T I L I T Y 4. Rotate the center handle horizontally to secure the side gates in the closed position. 5. Lock the center handle using the vehicle key to secure the panel into place and assist against theft. Divider Position There are 11 divider slots along the bed inner panels which allow for various positions to assist in managing your cargo.
  • Page 173 U T I L I T Y • To remove the cleats from the utility rail, remove the end cap by pushing up on the locking tab, located on the bottom of the end cap. Slide the cleat off the end of the rail.
  • Page 174: Towing & Payload

    U T I L I T Y TOWING & PAYLOAD NOTE: For additional trailer towing information (maximum trailer weight ratings) refer to the following website addresses: • ramtrucks.com/en/towing_guide/ • ramtruck.ca (Canada) • rambodybuilder.com TOW/HAUL MODE When driving in hilly areas, towing a trailer, carrying a heavy load, etc., and frequent transmission shifting occurs, press the TOW/HAUL switch to select TOW/HAUL mode.
  • Page 175: Integrated Trailer Brake Module

    U T I L I T Y INTEGRATED TRAILER BRAKE MODULE The Integrated Trailer Brake Controller allows you to automatically or manually activate the Electric Trailer Brakes and Electric Over Hydraulic Trailer Brakes for a better braking performance when towing a trailer. NOTE: The Integrated Trailer Brake Controller is located in the center stack below the climate controls.
  • Page 176 U T I L I T Y GAIN Adjustment Buttons (+/-) • Pressing the +/- buttons, located on the left side of the module, will increase/decrease the brake control power output to the trailer brakes in 0.5 increments. The GAIN setting can be increased to a maximum of 10 or decreased to a minimum of 0 (no trailer braking).
  • Page 177: Recreational Towing (Behind Motorhome, Etc.)

    U T I L I T Y RECREATIONAL TOWING (BEHIND MOTORHOME, ETC.) Towing This Vehicle Behind Another Vehicle Towing Condition Wheels OFF Two-Wheel Four-Wheel Drive Models The Ground Drive Models See Instructions • Automatic transmission in PARK Flat Tow NONE •...
  • Page 178 U T I L I T Y Recreational Towing — Two-Wheel Drive Models DO NOT flat tow this vehicle. Damage to the drivetrain will result. Recreational towing (for two-wheel drive models) is allowed ONLY if the rear wheels are OFF the ground. This may be accomplished using a tow dolly or vehicle trailer. If using a tow dolly, follow this procedure: 1.
  • Page 179 U T I L I T Y Recreational Towing — Four-Wheel Drive Models NOTE: Both the manual shift and electronic shift transfer cases must be shifted into NEUTRAL (N) for recreational towing. Automatic transmissions must be shifted into PARK for recreational towing. Manual transmissions must be placed in gear (NOT in NEUTRAL) for recreational towing.
  • Page 180 U T I L I T Y Shifting Into NEUTRAL (N) Use the following procedure to prepare your vehicle for recreational towing. WARNING! You or others could be injured or killed if you leave the vehicle unattended with the transfer case in the NEUTRAL (N) position without first fully engaging the parking brake.
  • Page 181 U T I L I T Y 8. Repeat steps 6 and 7 with automatic transmission in DRIVE or manual transmis- sion in first gear. 9. Shift the transmission to NEUTRAL. Firmly apply the parking brake. Turn OFF the engine. For vehicles with Keyless Enter-N-Go™, press and hold the ENGINE START/STOP button until the engine shuts off.
  • Page 182 U T I L I T Y 4. Start the engine. Shift the transmission into NEUTRAL. Depress the clutch pedal on a manual transmission. • With manual shift transfer case, shift the transfer case lever to the desired position. • With electronic shift transfer case with rotary selector switch, press and hold the transfer case NEUTRAL (N) button until the NEUTRAL (N) indicator light turns off.
  • Page 183: 1500 3.0L Diesel

    1 5 0 0 3 . 0 L D I E S E L DIESEL ENGINE BREAK-IN RECOMMENDATIONS • The 3.0 turbocharged diesel engine does not require a break-in period due to its construction. Normal operation is allowed, providing the following recommenda- tions are followed: •...
  • Page 184: Extreme Cold Weather

    1 5 0 0 3 . 0 L D I E S E L CAUTION! If the “Water in Fuel Indicator Light” remains on, DO NOT START the engine before you drain the water from the fuel filters to avoid engine damage. Refer to “Maintenance Procedures/Draining Fuel/Water Separator Filter”...
  • Page 185: Diesel Fuel Filter/Water Separator

    1 5 0 0 3 . 0 L D I E S E L DIESEL FUEL FILTER/WATER SEPARATOR Draining Fuel/Water Separator If the “Water in Fuel” indicator light is illuminated and an audible chime is heard five times, you should stop the engine and drain the water from the separator. The drain plug is located on the bottom of the Fuel Filter and Water Separator assembly which is located above the rear axle next to the fuel tank.
  • Page 186: Exhaust Regeneration

    1 5 0 0 3 . 0 L D I E S E L EXHAUST REGENERATION This engine meets all required EPA diesel engine emissions standards. To achieve these emissions standards, your vehicle is equipped with a state-of-the-art engine and exhaust system. These systems are seamlessly integrated into your vehicle and managed by the Powertrain Control Module (PCM).
  • Page 187: Cool-Down Idle Chart

    1 5 0 0 3 . 0 L D I E S E L Exhaust Filter Full — Power Reduced See Dealer The PCM derates the engine in order to limit the likelihood of permanent damage to the after-treatment system. If this condition is not corrected and a dealer service is not performed, extensive exhaust after-treatment damage can occur.
  • Page 188: Adding Fuel - Diesel Engine Only

    1 5 0 0 3 . 0 L D I E S E L ADDING FUEL — DIESEL ENGINE ONLY Your vehicle is equipped with a cap-less fuel system. Most fuel cans will not open the flapper door. A funnel is provided to open the flapper door to allow emergency refueling with a fuel can.
  • Page 189: Diesel Exhaust Fluid

    1 5 0 0 3 . 0 L D I E S E L DIESEL EXHAUST FLUID Diesel Exhaust Fluid (DEF) sometimes known simply by the name of its active component, UREA – is a key component of selective catalytic reduction (SCR) systems, which help diesel vehicles meet stringent emission regulations.
  • Page 190: Adding Diesel Exhaust Fluid

    1 5 0 0 3 . 0 L D I E S E L Adding Diesel Exhaust Fluid The DEF gauge (located in the instrument panel) will display the level of DEF remaining in the tank. Completely fill the DEF tank through the diesel exhaust fluid fill location (located behind the fuel door) at every maintenance interval or before if prompted by the Electronic Vehicle Information Center (EVIC)/Driver Information Display (DID).
  • Page 191 1 5 0 0 3 . 0 L D I E S E L NOTE: • The DEF gauge may take up to five seconds to update after adding a gallon or more of Diesel Exhaust Fluid (DEF) to the DEF tank. If you have a fault related to the DEF system, the gauge may not update to the new level.
  • Page 192 1 5 0 0 3 . 0 L D I E S E L Diesel Exhaust Fluid (DEF) Fault Warning Messages There are different messages which are displayed if the vehicle detects that the DEF system has been filled with a fluid other than DEF, has experienced component failures, or when tampering has been detected.
  • Page 193: 6 . 7 L C U M M I N S ® D I E S E L

    6 . 7 L C U M M I N S ® D I E S E L DIESEL ENGINE BREAK-IN RECOMMENDATIONS The Cummins turbocharged diesel engine does not require a break-in period due to ® its construction. Normal operation is allowed, providing the following recommenda- tions are followed: •...
  • Page 194: Engine Idling

    6 . 7 L C U M M I N S ® D I E S E L Water In Fuel Message If a Water In Fuel message or indicator appears in the cluster and a chime sounds five times, the fuel/water separator will need to be drained immediately to prevent engine damage.
  • Page 195: Diesel Exhaust Brake (Engine Braking)

    6 . 7 L C U M M I N S ® D I E S E L DIESEL EXHAUST BRAKE (ENGINE BRAKING) The Exhaust Brake switch is located on the switch bank below the audio system. This switch is used to enable exhaust brake modes. Pressing the exhaust brake switch once will enable full strength exhaust brake mode, indicated by a yellow icon in the EVIC/DID.
  • Page 196: Idle-Up Feature (Automatic Transmission Only)

    6 . 7 L C U M M I N S ® D I E S E L IDLE-UP FEATURE (AUTOMATIC TRANSMISSION ONLY) Speed Control Switches 1 — Push CANCEL 2 — Push ON/OFF 3 — Push Resume/Accel 4 — Push Set/Decel The Idle-Up Feature uses the speed control switches to increase engine idle speed and quickly warm the vehicle’s interior.
  • Page 197: Engine Mounted Fuel Filter/Water Separator

    6 . 7 L C U M M I N S ® D I E S E L ENGINE MOUNTED FUEL FILTER/WATER SEPARATOR Draining Fuel/Water Separator If the “Water in Fuel” indicator light is illuminated and an audible chime is heard five times, you should stop the engine and drain the water from the separator.
  • Page 198: Underbody Mounted Fuel Filter/Water Separator

    6 . 7 L C U M M I N S ® D I E S E L CAUTION! • Diesel fuel will damage blacktop paving surfaces. Drain the filter into an appropriate container. • Do not prefill the fuel filter when installing a new fuel filter. There is a possibility debris could be introduced into the fuel filter during this action.
  • Page 199: Exhaust Regeneration

    6 . 7 L C U M M I N S ® D I E S E L The underbody mounted filter housing will cause the engine not to run if: • No filter is installed. NOTE: • Using a fuel filter that does not meet the manufacturer's filtration and water separating requirements can severely impact fuel system life and reliability.
  • Page 200 6 . 7 L C U M M I N S ® D I E S E L Perform Service Your vehicle will require emissions maintenance at a set interval. To help remind you when this maintenance is due, the Electronic Vehicle Information Center (EVIC)/ Driver Information Display (DID) will display “Perform Service”.
  • Page 201: Cool-Down Idle Chart

    6 . 7 L C U M M I N S ® D I E S E L Exhaust Filter Full — Power Reduced See Dealer The PCM derates the engine in order to limit the likelihood of permanent damage to the after-treatment system.
  • Page 202: Adding Fuel - Diesel Engine Only

    6 . 7 L C U M M I N S ® D I E S E L ADDING FUEL — DIESEL ENGINE ONLY Your vehicle is equipped with a cap-less fuel system. Most fuel cans will not open the flapper door.
  • Page 203: Diesel Exhaust Fluid

    6 . 7 L C U M M I N S ® D I E S E L DIESEL EXHAUST FLUID Diesel Exhaust Fluid (DEF) sometimes known simply by the name of its active component, UREA – is a key component of selective catalytic reduction (SCR) systems, which help diesel vehicles meet stringent emission regulations.
  • Page 204: Diesel Exhaust Fluid Storage

    6 . 7 L C U M M I N S ® D I E S E L Diesel Exhaust Fluid Storage Diesel Exhaust Fluid (DEF) is considered a very stable product with a long shelf life. If DEF is kept in temperatures between 10° to 90°F (-12° to 32°C), it will last a minimum of one year.
  • Page 205 6 . 7 L C U M M I N S ® D I E S E L DEF Fill Procedure 1. Remove cap from DEF tank (located behind the fuel door on drivers side of the vehicle). 2. Insert DEF container or fill nozzle into DEF fill location and fill DEF tank.
  • Page 206 6 . 7 L C U M M I N S ® D I E S E L Speed Limited to 5 MPH in XXX mi Refill DEF — This message will continuously display if the “DEF Low Refill Soon” message is ignored, and the frequency of occurance of the chime will increase unless up to 2 gallons (7.5 Liters) of DEF is added to the tank.
  • Page 207 6 . 7 L C U M M I N S ® D I E S E L NOTE: Under some circumstances this mileage counter may start with a value of less than 150 miles (241 km). For example, if recurring faults are detected in a time interval of less than 40 hours, the counter may restart at the value where it stopped when a previous fault was temporarily remedied, or at a minimum of 50 miles (80 km).
  • Page 208: What To Do In Emergencies

    W H A T T O D O I N E M E R G E N C I E S ROADSIDE ASSISTANCE Dial toll-free 1-800-521-2779 for U.S. Residents or 1-800-363-4869 for Canadian Residents. • Provide your name, vehicle identification number, license plate number, and your location, including the telephone number from which you are calling.
  • Page 209 W H A T T O D O I N E M E R G E N C I E S When the malfunction indicator is illuminated, the system may not be able to detect or signal low tire pressure as intended. TPMS malfunctions may occur for a variety of reasons, including the installation of replacement or alternate tires or wheels on the vehicle that prevent the TPMS from functioning properly.
  • Page 210: Brake Warning Light

    W H A T T O D O I N E M E R G E N C I E S - Brake Warning Light This light monitors various brake functions, including brake fluid level and parking brake application. If the brake light turns on it may indicate that the parking brake is applied, that the brake fluid level is low, or that there is a problem with the anti-lock brake system reservoir.
  • Page 211: Charging System Light

    W H A T T O D O I N E M E R G E N C I E S - Malfunction Indicator Light (MIL) The Malfunction Indicator Light (MIL) is part of an onboard diagnostic system called OBD II that monitors engine and automatic transmission control systems. The light will illuminate when the key is in the ON/RUN position before engine start.
  • Page 212: Air Bag Warning Light

    W H A T T O D O I N E M E R G E N C I E S - Anti-Lock Brake (ABS) Light This light monitors the Anti-Lock Brake System (ABS). The light will turn on when the ignition switch is turned to the ON/RUN position and may stay on for as long as four seconds.
  • Page 213 W H A T T O D O I N E M E R G E N C I E S - Transmission Temperature Warning Light This light indicates that there is excessive transmission fluid temperature that might occur with severe usage such as trailer towing. If this light turns on, stop the vehicle and run the engine at idle, with the transmission in NEUTRAL, until the light turns off.
  • Page 214: Instrument Cluster Indicator Lights

    W H A T T O D O I N E M E R G E N C I E S INSTRUMENT CLUSTER INDICATOR LIGHTS - Turn Signal Indicator The arrows will flash with the exterior turn signals when the turn signal lever is operated.
  • Page 215: If Your Engine Overheats

    W H A T T O D O I N E M E R G E N C I E S - Fuel Cap/Loose Gas Cap Message If a “gas cap” message appears, tighten the gas cap until a “clicking” sound is heard. Press the odometer reset button to turn the message off.
  • Page 216: Jacking And Tire Changing

    W H A T T O D O I N E M E R G E N C I E S JACKING AND TIRE CHANGING Jack Location The jack and jack tools are stored under the front passenger seat. Removal Of Jack And Tools •...
  • Page 217 W H A T T O D O I N E M E R G E N C I E S 1500 Series Trucks • Remove the jack and tool bag by removing the wing bolt and sliding the jack and tool bag from under the seat.
  • Page 218: Removing The Spare Tire

    W H A T T O D O I N E M E R G E N C I E S Removing The Spare Tire • Remove the spare tire before attempting to jack up the truck. Attach the wheel wrench to the jack extension tube.
  • Page 219 W H A T T O D O I N E M E R G E N C I E S Preparations 1. Park the vehicle on a firm, level surface. Avoid ice or slippery areas. 2. Turn on the Hazard Warning flasher. 3.
  • Page 220 W H A T T O D O I N E M E R G E N C I E S 3. Placement of the jack: 1500 Series Trucks • When changing a front wheel, place the scissors jack under the rear portion of the lower control arm as shown below.
  • Page 221 W H A T T O D O I N E M E R G E N C I E S Front 4x4 Jacking Location • Operate the jack using the jack drive tube and the wheel wrench. The tube extension may be used but is not required.
  • Page 222 W H A T T O D O I N E M E R G E N C I E S • For 4x2 and 4x4 trucks, when changing a rear wheel, assemble the jack drive tube to the jack and connect the drive tube to the extension tube. Place the jack under the axle between the wheel and the shock bracket with the drive tubes extending to the rear.
  • Page 223 W H A T T O D O I N E M E R G E N C I E S 2500/3500 Series Trucks • For 2500/3500 4x2 series trucks, when changing a front wheel, place the bottle jack under the frame rail behind the wheel. Locate the jack as far forward as possible on the straight part of the frame.
  • Page 224 W H A T T O D O I N E M E R G E N C I E S • For 2500/3500 4x4 series trucks, when changing the front wheel, assemble the jack drive tube to the jack and connect the drive tube to the extension tube. Place the jack under the axle as close to the tire as possible with the drive tubes extending to the front.
  • Page 225 W H A T T O D O I N E M E R G E N C I E S • Lower the jack to its fully closed position. If the bottle jack will not lower by turning the dial (thumbwheel) by hand, it may be necessary to use the jack drive tube in order to lower the jack.
  • Page 226 W H A T T O D O I N E M E R G E N C I E S 4. Place the jack and tools in the storage position holding the jack by the jack turn-screw, slip the jack and tools under the seat so that the bottom slot engages into the fastener on the floor.
  • Page 227 W H A T T O D O I N E M E R G E N C I E S 2500/3500 Series Trucks 1. Tighten the jack all the way down by turning the jack turn-screw clockwise until the jack is snug. 2.
  • Page 228: Wheel Nuts

    W H A T T O D O I N E M E R G E N C I E S Wheel Nuts All wheel nuts should be tightened occasionally to eliminate the possibility of wheel studs being sheared or the bolt holes in the wheels becoming elongated. This is especially important during the first few hundred miles/kilometers of operation to allow the wheel nuts to become properly set.
  • Page 229 To Stow The Flat Or Spare NOTE: RAM 1500 vehicles equipped with aluminum wheels cannot be stored under the vehicle because the wheel retainer will not fit through the wheel pilot hole. Secure the flat tire in the bed of the truck. Have the flat tire repaired or replaced immediately.
  • Page 230 W H A T T O D O I N E M E R G E N C I E S WARNING! • Do not attempt to change a tire on the side of the vehicle close to moving traffic. Pull far enough off the road to avoid the danger of being hit when operating the jack or changing the wheel.
  • Page 231: Jump-Starting Procedures

    W H A T T O D O I N E M E R G E N C I E S JUMP-STARTING PROCEDURES If your vehicle has a discharged battery it can be jump-started using a set of jumper cables and a battery in another vehicle or by using a portable battery booster pack. Jump-starting can be dangerous if done improperly so please follow the procedures in this section carefully.
  • Page 232: Jump-Starting Procedure

    W H A T T O D O I N E M E R G E N C I E S WARNING! • Take care to avoid the radiator cooling fan whenever the hood is raised. It can start anytime the ignition switch is ON. You can be injured by moving fan blades.
  • Page 233 W H A T T O D O I N E M E R G E N C I E S 4. Connect the opposite end of the negative (-) jumper cable to a good engine ground (exposed metal part of the discharged vehicle’s engine) away from the battery and the fuel injection system.
  • Page 234: Emergency Tow Hooks

    W H A T T O D O I N E M E R G E N C I E S EMERGENCY TOW HOOKS • If your vehicle is equipped with tow hooks, they are mounted in the front. • For off-road recovery, it is recommended to use both of the front tow hooks to minimize the risk of damage to the vehicle.
  • Page 235: Manual Park Release - Eight Speed Transmission

    W H A T T O D O I N E M E R G E N C I E S Center Console Shifter • Firmly set the parking brake. • Turn the Key Fob to the ACC or ON/ RUN position without starting the en- gine.
  • Page 236 W H A T T O D O I N E M E R G E N C I E S • Using the screwdriver or similar tool, push the Manual Park Release lever locking tab (just below the middle of the lever) to the right. Manual Park Release Lever Locking Tab •...
  • Page 237 W H A T T O D O I N E M E R G E N C I E S To Reset The Manual Park Release: • Push the locking tab to the right, to unlock the lever. • Rotate the Manual Park Release lever forward to its original position, until the locking tab snaps into place to secure the lever.
  • Page 238: Towing A Disabled Vehicle

    W H A T T O D O I N E M E R G E N C I E S...
  • Page 239: Freeing A Stuck Vehicle

    W H A T T O D O I N E M E R G E N C I E S FREEING A STUCK VEHICLE • If your vehicle becomes stuck in mud, sand or snow, it can often be moved using a rocking motion.
  • Page 240: Event Data Recorder (Edr)

    W H A T T O D O I N E M E R G E N C I E S EVENT DATA RECORDER (EDR) This vehicle is equipped with an Event Data Recorder (EDR). The main purpose of an EDR is to record, in certain crash or near crash-like situations, such as an air bag deployment or hitting a road obstacle, data that will assist in understanding how a vehicle’s systems performed.
  • Page 241: Maintaining Your Vehicle

    M A I N T A I N I N G Y O U R V E H I C L E OPENING THE HOOD 1. Pull the hood release lever located below the steering wheel at the base of the instrument panel. 2.
  • Page 242: Engine Compartment

    M A I N T A I N I N G Y O U R V E H I C L E ENGINE COMPARTMENT 3.6L Engine 1. Air Cleaner Filter 2. Engine Oil Fill (Under Cover) 3. Brake Fluid Reservoir 4.
  • Page 243 M A I N T A I N I N G Y O U R V E H I C L E 6. Washer Fluid Reservoir 7. Engine Coolant Reservoir 8. Engine Coolant Pressure Cap 9. Engine Oil Dipstick...
  • Page 244 M A I N T A I N I N G Y O U R V E H I C L E 5.7L Engine 1. Air Cleaner Filter 2. Transmission Fluid Dipstick 3. Engine Oil Fill 4. Brake Fluid Reservoir 5.
  • Page 245 M A I N T A I N I N G Y O U R V E H I C L E 6. Engine Oil Dipstick 7. Power Distribution Center (Fuses) 8. Washer Fluid Reservoir 9. Engine Coolant Reservoir 10. Engine Coolant Pressure Cap...
  • Page 246 M A I N T A I N I N G Y O U R V E H I C L E 6.4L Engine 1. Engine Coolant Reservoir 2. Transmission Fluid Dipstick 3. Engine Oil Fill 4. Brake Fluid Reservoir 5.
  • Page 247 M A I N T A I N I N G Y O U R V E H I C L E 7. Power Distribution Center (Fuses) 8. Washer Fluid Reservoir 9. Power Steering Reservoir 10. Engine Oil Dipstick 11. Air Cleaner Filter...
  • Page 248: L Diesel Engine

    M A I N T A I N I N G Y O U R V E H I C L E 3.0L Diesel Engine 1. Air Cleaner Filter 2. Engine Oil Fill 3. Brake Fluid Reservoir 4. Aux Power Distribution Center (Fuses) 5.
  • Page 249 M A I N T A I N I N G Y O U R V E H I C L E 6. Power Distribution Center (Fuses) 7. Washer Fluid Reservoir 8. Engine Coolant Reservoir 9. Engine Oil Dipstick...
  • Page 250 M A I N T A I N I N G Y O U R V E H I C L E 6.7L Diesel Engine With 68RFE Transmission — If Equipped 1. Batteries 2. Engine Coolant Reservoir 3. Transmission Fluid Dipstick 4.
  • Page 251 M A I N T A I N I N G Y O U R V E H I C L E 7. Power Steering Fluid Reservoir 8. Power Distribution Center (Fuses) 9. Engine Oil Dipstick 10. Engine Oil Fill 11.
  • Page 252 M A I N T A I N I N G Y O U R V E H I C L E 6.7L Diesel Engine With AS69RC Transmission — If Equipped 1. Batteries 2. Engine Coolant Reservoir 3. Transmission Fluid Dipstick 4.
  • Page 253 M A I N T A I N I N G Y O U R V E H I C L E 7. Washer Fluid Reservoir 8. Power Steering Fluid Reservoir 9. Engine Oil Dipstick 10. Engine Oil Fill 11. Air Cleaner Filter...
  • Page 254: Gas Fluid Capacities

    M A I N T A I N I N G Y O U R V E H I C L E GAS FLUID CAPACITIES U.S. Metric Fuel (Approximate) 1500 Regular Cab Shortbed/Crew Quad Cab 26 Gallons 98 Liters Models 1500 Regular Cab Longbed/Crew Quad Cab 32 Gallons 121 Liters...
  • Page 255: Gas Fluids, Lubricants And Genuine Parts

    M A I N T A I N I N G Y O U R V E H I C L E GAS FLUIDS, LUBRICANTS AND GENUINE PARTS Engine Component Fluid, Lubricant, or Genuine Part Engine Coolant recommend MOPAR ® Antifreeze/Coolant 10 Year/150,000 Mile Formula OAT (Organic Additive Technol- ogy).
  • Page 256 M A I N T A I N I N G Y O U R V E H I C L E CAUTION! • Mixing of engine coolant (antifreeze) other than specified Organic Additive Technology (OAT) engine coolant (antifreeze), may result in engine damage and may decrease corrosion protection.
  • Page 257: 1500 3.0 Diesel Fluid Capacities

    M A I N T A I N I N G Y O U R V E H I C L E Component Fluid, Lubricant, or Genuine Part Rear Axle – 1500 Models recommend MOPAR ® Synthetic Gear Lubricant SAE 75W-140 (MS-8985).
  • Page 258: 1500 3.0 Diesel Fluids, Lubricants And Genuine Parts

    M A I N T A I N I N G Y O U R V E H I C L E 1500 3.0 DIESEL FLUIDS, LUBRICANTS AND GENUINE PARTS Engine Component Fluid, Lubricant, or Genuine Part Engine We recommend you use MOPAR Antifreeze/Coolant 10 Year/ ®...
  • Page 259 M A I N T A I N I N G Y O U R V E H I C L E CAUTION! • Mixing of engine coolant (antifreeze) other than specified Organic Additive Technology (OAT) engine coolant (antifreeze), may result in engine damage and may decrease corrosion protection.
  • Page 260: 6.7L Cummins® Diesel Fluid Capacities

    M A I N T A I N I N G Y O U R V E H I C L E 6.7L CUMMINS® DIESEL FLUID CAPACITIES U.S. Metric Fuel (Approximate) 2500/3500 Standard Cab 28 Gallons 106 Liters Longbed Models 2500/3500 Crew/Mega 31 Gallons 129 Liters...
  • Page 261 M A I N T A I N I N G Y O U R V E H I C L E Component Fluid, Lubricant, or Genuine Part We recommend you use MOPAR Fuel Filter. Must meet 3 micron ® rating.
  • Page 262: Maintenance Procedures

    M A I N T A I N I N G Y O U R V E H I C L E Chassis Component Fluid, Lubricant, or Genuine Part Automatic Transmission – If Equipped Only use ATF+4 Automatic Transmission ® (Six-Speed 68RFE) –...
  • Page 263 M A I N T A I N I N G Y O U R V E H I C L E Your authorized dealer will reset the oil change indicator message after completing the scheduled oil change. If a scheduled oil change is performed by someone other than your authorized dealer, the message can be reset by referring to the steps described under “Instrument Cluster Warning Lights”...
  • Page 264 M A I N T A I N I N G Y O U R V E H I C L E...
  • Page 265 M A I N T A I N I N G Y O U R V E H I C L E...
  • Page 266 M A I N T A I N I N G Y O U R V E H I C L E...
  • Page 267: Maintenance Schedule - 1500 3.0L Diesel Engine

    M A I N T A I N I N G Y O U R V E H I C L E MAINTENANCE SCHEDULE — 1500 3.0L DIESEL ENGINE Your vehicle is equipped with an automatic oil change indicator system. The oil change indicator system will remind you that it is time to take your vehicle in for scheduled maintenance.
  • Page 268 M A I N T A I N I N G Y O U R V E H I C L E...
  • Page 269 M A I N T A I N I N G Y O U R V E H I C L E...
  • Page 270 M A I N T A I N I N G Y O U R V E H I C L E...
  • Page 271 M A I N T A I N I N G Y O U R V E H I C L E...
  • Page 272: Maintenance Schedule - 6.7L Cummins® Diesel Engine

    M A I N T A I N I N G Y O U R V E H I C L E MAINTENANCE SCHEDULE — 6.7L CUMMINS® DIESEL ENGINE CAUTION! Failure to perform the required maintenance items may result in damage to the vehicle.
  • Page 273 M A I N T A I N I N G Y O U R V E H I C L E Replace the engine oil and oil filter every 15,000 miles (24 000 km) or six months, or sooner if prompted by the oil change indicator system. Under no circumstances should oil change intervals exceed 15,000 miles (24 000 km) or six months, whichever comes first.
  • Page 274 M A I N T A I N I N G Y O U R V E H I C L E...
  • Page 275 M A I N T A I N I N G Y O U R V E H I C L E...
  • Page 276 M A I N T A I N I N G Y O U R V E H I C L E...
  • Page 277: Fuses

    M A I N T A I N I N G Y O U R V E H I C L E FUSES Power Distribution Center The Power Distribution Center is located in the engine compartment near the battery. This center contains cartridge fuses, micro fuses, relays, and circuit breakers. A description of each fuse and component may be stamped on the inside cover, otherwise the cavity number of each fuse is stamped on the inside cover that corresponds to the following chart.
  • Page 278 M A I N T A I N I N G Y O U R V E H I C L E Cavity Cartridge Fuse Micro Fuse Description 40 Amp Green Body Controller #3 / Interior Lights 40 Amp Green Blower Motor 40 Amp Green Body Controller #4 / Power Locks...
  • Page 279 M A I N T A I N I N G Y O U R V E H I C L E Cavity Cartridge Fuse Micro Fuse Description 30 Amp Pink Vehicle System Interface Module #1– If Equipped 10 Amp Red Active Grill Shutter 20 Amp Yellow Horn...
  • Page 280 M A I N T A I N I N G Y O U R V E H I C L E Cavity Cartridge Fuse Micro Fuse Description 20 Amp Yellow Brake Vacuum Pump Gas/Diesel – (Gas Engine & If Equipped 1500 LD Diesel) 10 Amp Red (Cummins Diesel...
  • Page 281: Tire Pressures

    M A I N T A I N I N G Y O U R V E H I C L E CAUTION! • When installing the power distribution center cover, it is important to ensure the cover is properly positioned and fully latched. Failure to do so may allow water to get into the power distribution center and possibly result in an electrical system failure.
  • Page 282: Spare Tires - If Equipped

    M A I N T A I N I N G Y O U R V E H I C L E SPARE TIRES — IF EQUIPPED NOTE: For vehicles equipped with Tire Service Kit instead of a spare tire, please refer to “Tire Service Kit”...
  • Page 283: Wheel And Wheel Trim Care

    M A I N T A I N I N G Y O U R V E H I C L E Full Size Spare — If Equipped The full size spare is for temporary emergency use only. This tire may look like the originally equipped tire on the front or rear axle of your vehicle, but it is not.
  • Page 284: Replacement Bulbs

    M A I N T A I N I N G Y O U R V E H I C L E REPLACEMENT BULBS All of the inside bulbs are brass or glass-wedge base. Aluminum base bulbs are not approved. Interior Bulbs Bulb Number Overhead Console Lamps...
  • Page 285: Customer Assistance

    C U S T O M E R A S S I S T A N C E CHRYSLER GROUP LLC CUSTOMER CENTER P.O. Box 21–8004 Auburn Hills, MI 48321–8004 Phone: 1–866–726–4636 CHRYSLER CANADA INC. CUSTOMER CENTER P.O. Box 1621 Windsor, Ontario N9A 4H6 Phone: 1–800–465–2001 (English) Phone: 1–800–387–9983 (French) ASSISTANCE FOR THE HEARING IMPAIRED To assist customers who have hearing difficulties, the manufacturer has installed...
  • Page 286: Reporting Safety Defects In The United States

    • A street address is required when ordering manuals (no P.O. Boxes). • The Owner's Manual and User Guide electronic files are also available on the Chrysler, Jeep, Ram Truck, Dodge and SRT websites. • Click on the “For Owners” tab, select “Owner/Service Manuals”, then select your desired model year and vehicle from the drop down lists.
  • Page 287: Mopar® Accessories

    M O P A R ® A C C E S S O R I E S AUTHENTIC ACCESSORIES BY MOPAR® • In choosing Authentic Accessories you gain far more than expressive style, premium protection, or extreme entertainment, you also benefit from enhancing your vehicle with accessories that have been thoroughly tested and factory- approved.
  • Page 288: Faq's

    F A Q ’ s FREQUENTLY ASKED QUESTIONS GETTING STARTED How do I install my LATCH Equipped Child Seat? pg. 21 How do I program my Front Seat Memory? pg. 31 OPERATING YOUR VEHICLE How does the Electronic Range Select (ERS) operate? pg. 43 ELECTRONICS Which radio is in my vehicle? •...
  • Page 289 F A Q ’ s OFF-ROAD CAPABILITIES How do I shift into different four-wheel drive selections? pg. 162 UTILITY How do I know how much I can tow with my Ram Truck? pg. 172 How do I adjust the gain on the Integrated Trailer Brake Module? pg. 173 WHAT TO DO IN EMERGENCIES How do I change a flat tire? pg.
  • Page 290: Index

    I N D E X Access Brake System ... . .260 Uconnect ... . .63 Master Cylinder ..260 ®...
  • Page 291 I N D E X Points to Remember ..260 Fuel Requirements ..252 Pressure Cap ...260 Jump Starting .
  • Page 292 I N D E X Headlight ....39 Lights Headlights Engine Temperature Warning . .207 Automatic ... . .39 .
  • Page 293 I N D E X Paint Care ....260 Seat Belt Maintenance ..260 Panic Alarm ....11 Seat Belts ParkSense System, Front And...
  • Page 294 I N D E X Tires Uconnect 8.4AN ..129 ® Air Pressure ...279 Uconnect Access ...63 ®...
  • Page 295 N O T E S...
  • Page 296 N O T E S...
  • Page 297 N O T E S...
  • Page 298 N O T E S...
  • Page 299: Driving And Alcohol

    This guide has been prepared to help you get quickly acquainted with your new RAM and to provide a convenient reference source for common questions. However, it is not a substitute for your Owner’s Manual. For complete operational instructions, maintenance procedures and important safety messages, please consult your Owner’s Manual, Navigation/Uconnect Manuals and...
  • Page 300 Download a FREE electronic copy of the Owner’s Manual and Warranty Booklet by visiting: WWW.RAMTRUCKS.COM/EN/OWNERS/MANUALS OR WWW.RAMTRUCKS.COM/EN/WARRANTY (U.S.); WWW.OWNERS.MOPAR.CA/EN (CANADA). 15D241-926-AA RAM TRUCKS 1500/2500/3500 SECOND EDITION USER GUIDE...

Table of Contents
