Multiple Control Panels; Valve Module - Compool Cp3800 Installation & Operating Instructions Manual

Compool Cp3800
9.
Note Install a second Spa-side Remote to control additional functions.

Multiple Control Panels

It is possible to add additional Control Panels.
• To install an additional Control Panel
1.
2.
Note If two Control Panels are being wired where each communication cable is run back to the
Power Center, a coupler (model 6COND-DUAL) is required.

Valve Module

The Valve Module (model MOD-VLV3) allows the system to control three additional Valve
Actuators.
• To install Valve Module
1.
2.
3.
4.
5.
6.
SPA Activates Spa mode.
REM1 Activates AUX1 equipment.
REM2 Activates AUX2 equipment.
REM3 Activates AUX3 equipment
REM4 Activates AUX4 equipment.
REM5 Activates AUX5 equipment.
REM6 Activates AUX6 equipment.
REM7 Activates AUX7 equipment.
Use labels provided to identify each button on the Spa-side Remote.
Mount Control Panel as described earlier.
Run the communication cable between each Control Panel. Two connectors are provided
on the back of each Control Panel to allow "daisy chaining".
VLV1
1 2
WITH O
N
VLV2
COMPOOL 11040A

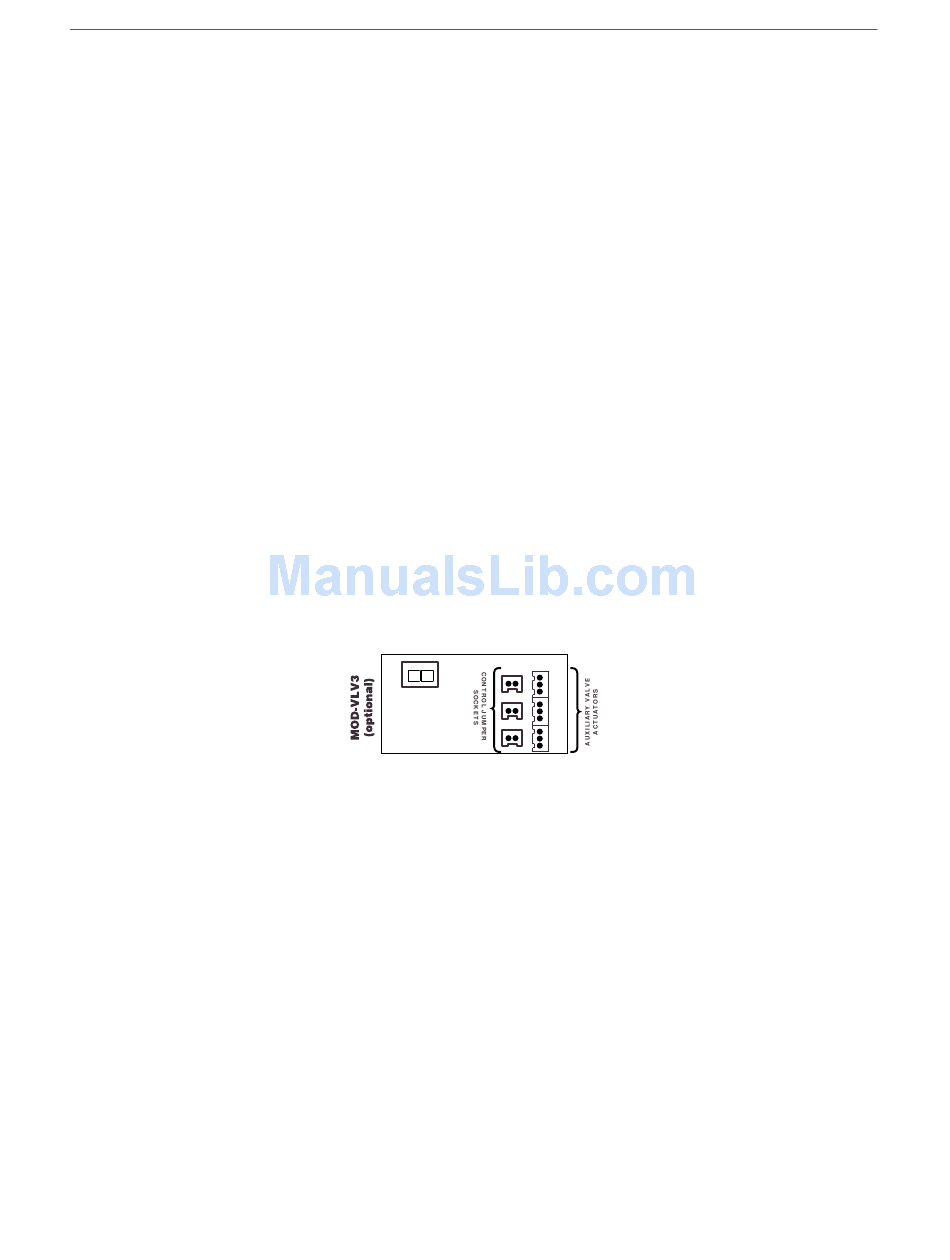

MOD-VLV3
Attach Valve Module to the top of the Power Center circuit board.
Run Valve Actuator cable(s) to the Valve Module.
Plug each Valve Actuator cable into the 3-pin sockets (VLV1, VLV2, or VLV3).
Locate the 2-conductor jumper wires included with Valve Module kit. Each individually
controlled Valve Actuator will require a separate jumper wire.
Connect one end of the jumper wire into CONTROL JUMPERS socket on the Valve
Module. Connect the other end of the jumper wire into the Power Center circuit board at
the appropriate relay socket (SPA, FLTR, AUX1, AUX2, AUX3, AUX4, AUX5, AUX6,
AUX7, EHTR, SOL PUMP, 2SPD, FLRCL).
The D.I.P. switch, located at the upper left-side of Valve Module, allows combining the
operation of Valve Actuators.
VLV2
WITH
VLV3
VLV1
VLV2
VLV3
