Compool Cp3800

Underwater Lights

Lx3800
High voltage pool/spa lights require GFCI protection. To meet electrical code requirements,
the pool/spa light must be connected directly to the GFCI. Do not use a GFCI circuit breaker.

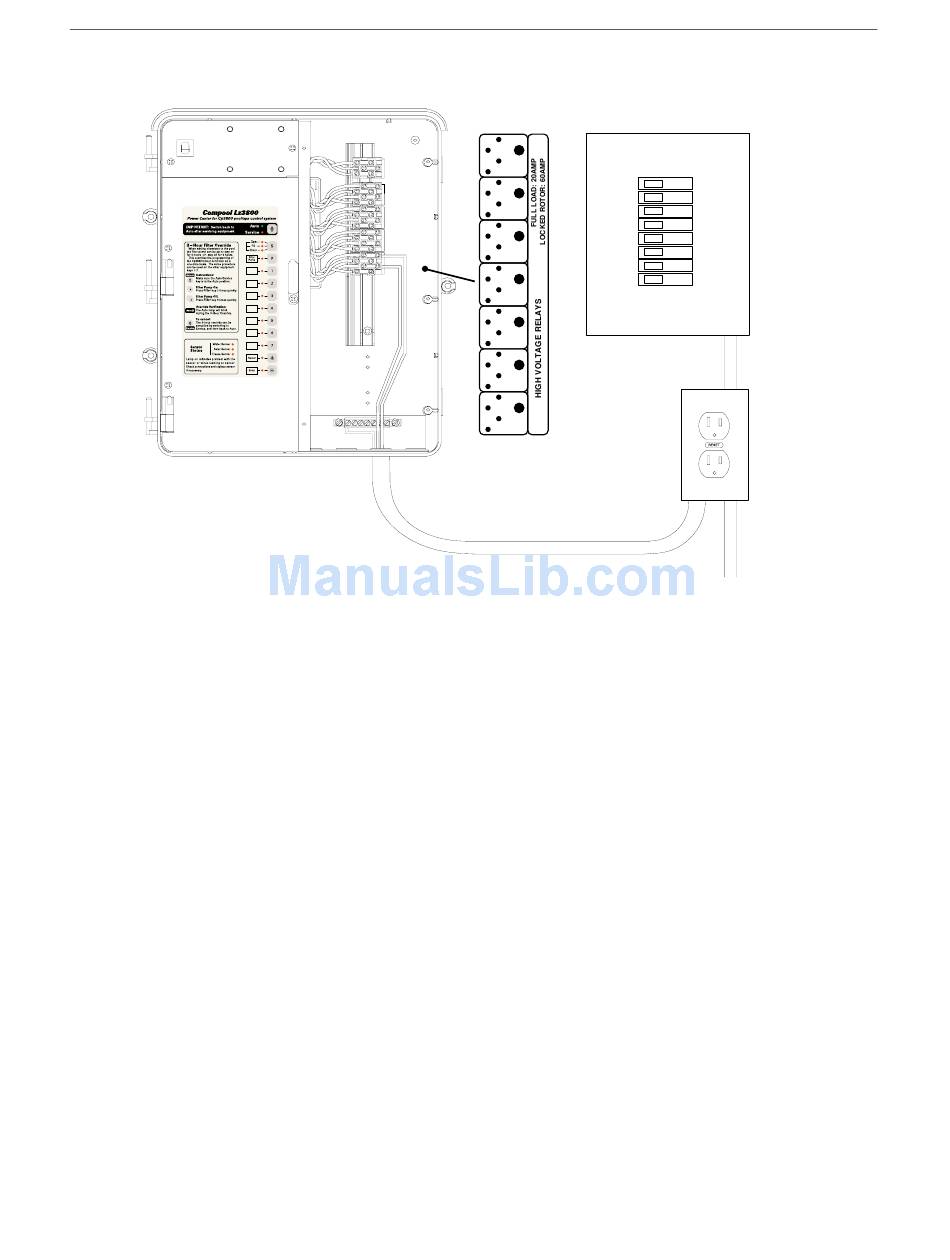

• To wire high voltage pool/spa light
1.
2.
3.
4.
5.
Note The example above assumes the pool or spa light is 500 watts or less. If the pool has two
500 watt lights, the second light needs to be wired to LOAD 2 of the relay terminal block. Install
a jumper wire between LINE 1 and LINE 2 of the relay terminal block.
Install a GFCI receptacle next to the Sub-panel.
Connect neutral and hot wire from circuit breaker to the LINE SIDE of the GFCI
receptacle.
Connect white wire from the light to the LOAD SIDE of the GFCI receptacle.
Connect the other wire from the light to LOAD 1 of the relay terminal block.
Connect a wire from LINE 1 of the relay terminal block to the LOAD SIDE of the GFCI
receptacle.
SUB-PANEL
LINE 1
LINE 2 R1
LOAD 1
LOAD 2
LINE 1
LINE 2 R2
LOAD 1
LOAD 2
LINE 1
LINE 2 R3
LOAD 1
LOAD 2
LINE 1
LINE 2 R4
LOAD 1
LOAD 2
LINE 1
LINE 2 R5
LOAD 1
LOAD 2
LINE 1
LINE 2 R6
LOAD 1
LOAD 2
LINE 1
LINE 2 R7
LOAD 1
LOAD 2
11
GFCI
TO LIGHT
