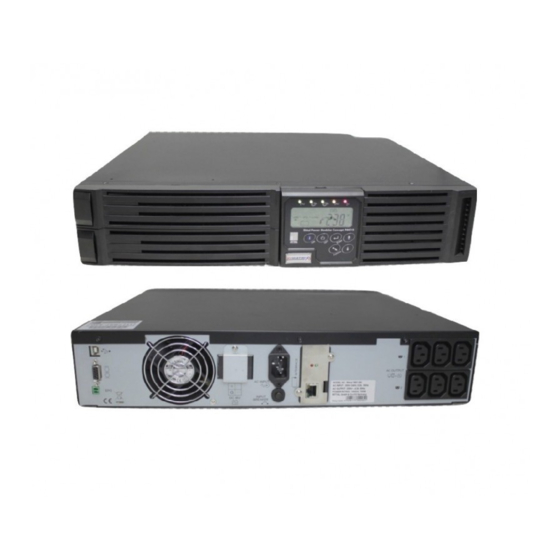

Rittal PMC12 User Manual

1phase ups-system with online-double-conversion technology powerrange 1 - 3 kva
Hide thumbs Also See for PMC12:
Table of Contents

Advertisement

Quick Links

See also: Owenrs Manual , Instruction Manual
R i t t a l GmbH & Co. KG
Auf dem Stützelberg
D – 3 5 7 4 5 H e r b o r n
Germany
Email: Info@rittal.de
http://www.rittal.com
Service -Tel. : (+49) - (0)2772 / 505 - 9052

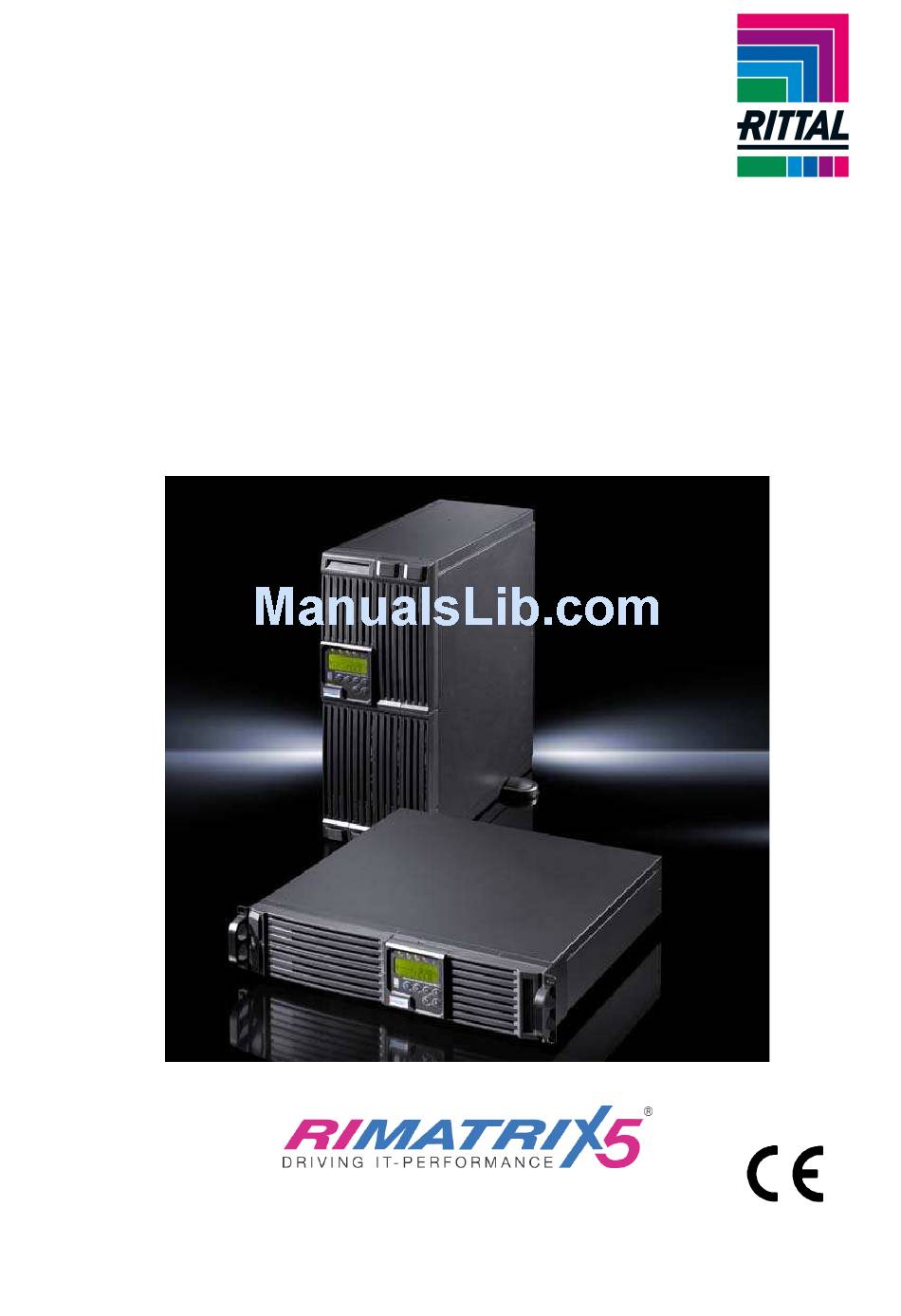

Rittal PMC12 UPS – User Manual
1phase UPS-System with online-double-conversion technology
Powerrange 1 - 3 kVA
(Art.-Nr. 7857.430, 7857.431, 7857.432, 7857.482, 7857.483)
FRIEDHELM L O H GROUP
A 38333 13 IT 74e.doc

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PMC12 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Rittal PMC12

Summary of Contents for Rittal PMC12

  • Page 1 Germany Email: Info@rittal.de http://www.rittal.com Service -Tel. : (+49) - (0)2772 / 505 - 9052 Rittal PMC12 UPS – User Manual 1phase UPS-System with online-double-conversion technology Powerrange 1 - 3 kVA (Art.-Nr. 7857.430, 7857.431, 7857.432, 7857.482, 7857.483) FRIEDHELM L O H GROUP...
  • Page 2 Microsoft Windows is a registered trademark of Microsoft Corporation. Acrobat Reader is a registered trademark of Adobe Systems Incorporated.

  • Page 3: Table Of Contents

    UPS F ......7 RONT ANEL ISPLAY 7.2......26 OFTWARE NSTALLATION 3.1.1. Symbols on the LCD Display Panel ..7 8. OPTIONAL COMMUNICATION 3.2. PMC12 ....8 ANEL ESCRIPTION 3.3. PMC12 ANEL ESCRIPTION COMPACT CARD ............27 3.4. & UPS C PERATING ODES ONFIGURATION 8.1.

  • Page 4: Important Safety Instruction

    Important Safety Instruction tion of the PMC12 UPS-System may be 1. Important Safety Instruction performed only by instructed personnel. 1.1. Documentation Notes 2. Observe the valid regulations for the electrical installation for the country in The audience for this guide is the technical...

  • Page 5: Proper Use

    1.5. Proper This UPS is designed for providing power to IT systems. A use different from that described here is considered to be an improper use. Rittal cannot accept any liability for damage resulting from the improper use or the non-observance of this guide.

  • Page 6: Product Introduction

    Product Introduction the UPS to integrate even in the most difficult of 2. Product Introduction environments with space constraints. 2.1. General Characteristics This UPS is equipped with fully digitalised control logic for greater functionality and True online technology continuously supplies enhanced high level of power protection.

  • Page 7: Ups Functional Descriptions

    UPS Functional Descriptions 3.1.1. Symbols on the LCD Display Panel 3. UPS Functional Descriptions 3.1. UPS Front Panel Display Item Symbol Description Utility or Bypass LINE Source Battery Low Battery Abnormal UPS Overloading Site Wiring Fault Working Service Mode UPS Shutoff UPS Abnormal FAIL Lock...

  • Page 8: Pmc12

    UPS Functional Descriptions 3.2. Rear Panel Description PMC12 230V 1KVA 2KVA 3KVA USB Port RS232 Port Emergency Power Off (EPO) Dry Contact Signal inputs Communication Card Options Slot External Battery Connector AC power connection socket AC Outlets Two programmable outlets Utility Input fuse holder 10.
  • Page 9 UPS Functional Descriptions 3.3. Rear Panel Description PMC12 compact 2KVA 12 11 3KVA 1. USB Port 2. RS232 Port 3. Emergency Power Off (EPO) Dry Contact Signal inputs 4. Communication Card Options Slot 5. External Battery Connector 6. AC power connection socket 7.

  • Page 10: Operating Modes & Ups C

    To save the settings press “OK”. To activate the configuration you have to restart the UPS- 3.4. Operating Modes & UPS System. Configuration Install the “Rittal PMC12 UPS-Software“ from 3.4.2. Using the Software the enclosed CD or download it from 1. Run the program „UPSMonitor“ http://www.rimatrix5.com/service_support/downloads.asp.

  • Page 11: Communication Porte

    UPS Functional Descriptions Turn outlet OFF when battery lower …% - select this option to automatically disable the outlet at the specified remaining battery power capacity(%) during battery mode to shed the less critical loads to prolong battery back-up time for the other more critical loads connected to the UPS.

  • Page 12: True Rs232 Port Descriptions

    Installation and Operation 4. Installation and Operation 3.5.1. True RS232 Port Descriptions The RS232 interface shall be set as follows: Warning! Read the Safety Instruction guide Baud Rate 2400 bps (page 5 to 6) before installing the Data Length 8 bits UPS! Stop Bit 1 bit...

  • Page 13: Set Up

    Installation and Operation 4.3.2. Power Module + Battery Module 5. This UPS is not designed for outdoor use. Step 1 Step 2 Relative humidity 30%~90% (non condensation) 4.3. Set up 4.3.3. Rack-Mount Configuration Setup Step 1 4.3.1. Tower Configuration Setup UPS-Manual...

  • Page 14: Operation

    Installation and Operation Step 2 4.4. Operation 4.4.1. Start Up In Normal Mode 1. Make sure the voltage of Utility matches with the input voltage window of the UPS. 2. Connect the UPS to the wall Receptacle of the Utility. Turn on the UPS “ON” switch to start up the UPS.

  • Page 15: Start-Up In Battery Mode (Cold Start)

    Installation and Operation must be completely restarted to get back to Normal Mode. drawing D drawing H 4.4.3. Check Measured Values & Figures detected by UPS If you would like to check the measured values drawing E & messages, please use scroll up and scroll 6.

  • Page 16: Ups Default Data And Special Function Execution

    Installation and Operation quency Synchronized Window) drawing T (Inverter Output Voltage) drawing U1(UPS Operation Mode) drawing V(Output Voltage Fine Tuning). drawing M drawing Q1 drawing N drawing Q2 drawing O 4.4.4. UPS Default Data and Special drawing R1 Function Execution 1.

  • Page 17: Ups Default Settings And Their Alternatives

    Installation and Operation 3. Press scroll up key pad, you may exe- cute special functions. The functions include Buzzer ON (as drawing Q1) or buzzer OFF (as drawing Q2, Alarm silence for UPS warning) and self-test OFF (as drawing Q2). UPS will execute battery test for 10 seconds, if the self-test is successful, it show as drawing U1...

  • Page 18: Ups Is Off Due To Unknown Reason And Is Trouble Thooting

    3. The UPS is turned off completely. Utility. Your Setting changes are complete. 4.4.8. Bypass Mode The PMC12 can be switched to Bypass Mode 4.4.6. UPS is off due to unknown reason any time during online mode (see 4.4.5.6). and is trouble thooting It can be switched to bypass by pressing the 1.
  • Page 19 Installation and Operation 4.5. Status & Alarm Buzzer The following table helps to define some of the common UPS statuses with respect to their buzzer beep descriptions. Buzzer Beep Status Definitions Descriptions UPS faulty, Inverter Long Continuous shutdown. All functions Beep inhabited.

  • Page 20: Status & Alarm Buzzer 4.6. Battery Replacement

    Was the used battery of the UPS System removed during normal Step 3 operation this will not immediately be recognized by the PMC12 because after the startup the UPS will check only sporadically (approx. every 60 min.) if there is a battery connected.

  • Page 21: Compact

    Note! Was the used battery of the UPS System removed during normal operation this will not immediately be recognized by the PMC12 because after the startup the UPS will check only sporadically (approx. every 60 min.) if there is a battery connected.

  • Page 22: Ups Working Principle

    UPS Working Principle Paragraph 5.2 ~ 5.7 below provide detailed de- 5. UPS Working Principle scriptions of the UPS operating principle. 5.1. UPS System Block Diagram 5.2. When Mains is Available When Mains is available, the AC source is rec- tified to DC, partially fed into the charger to charge battery and partially fed into inverter.

  • Page 23: Hen Mains Is Absent

    UPS Working Principle 5.3. When Mains is Absent The working principle of the UPS under Mains absent condition is illustrated as follows: 1. When Mains absent, the UPS will direct the battery energy automatically to the Inverter without delay, and turn off the charger and AC/DC converter.

  • Page 24: Inverter/Internal Over Temperature

    Maintenance Guide 6. Maintenance Guide 5.5.2. Inverter/Internal Over temperature 6.1. Trouble Shooting If the UPS experiences internal over-tempera- ture when Utility is normal, it will switch to by- When the UPS becomes faulty or malfunctions pass loop. The UPS will switch back to inverter during operation, you may check the fault lists mode when the over-temperature situation is below for respective solutions.
  • Page 25 Allow the battery to recharge if the batter is weak. If problem persist UPS is unable to after recharging, provide backup replace the power source battery. If problem persist, consult your local dealer, Rittal or customer service for technical assistance. UPS-Manual...

  • Page 26: Aintenance

    (<170V) & Er24 Battery Disconnect Er28 Bypass overload Note! Does the PMC12 show an Error Code that is not described in the above table please contact the Rittal Service. 6.3. Maintenance Clean the dust from the ventilation openings and intakes on the rear panel.

  • Page 27: Optional Communication Card

    RCCMD send function, for an automatic net- http://www.rimatrix5.com work wide shut down or just for informing con- E-mail: info@rittal.de nected users. The shut down procedure can be initiated on a low residual battery autonomy time (downtime) or by a countdown timer which is started at the beginning of the alarm.

  • Page 28: Technical Specifications

    Technical Specifications Technical Specifications Model 1KVA 2KVA 3KVA VA Rating Apparent Output Power 1000VA 2000VA 3000VA Active Output Power 800 Watts 1600 Watts 2400 Watts Power Factor Topology Double conversion On-Line Type Rack/Tower Agency Approvals 230V Models: CE Input Voltage Window 230V 120/140/160 - 288Vac Base on load percentage (0~33/33~66/66~100%)

  • Page 29: Battery System

    Technical Specifications Model 1KVA 2KVA 3KVA Battery System Type 12V/7,2Ah 12V/7,2Ah 12V/9Ah Numbers of Batteries Backup Time(100%) >7min. >7min. >5min. Backup Time(80%) >9min. >10min. >9min. Backup Time(60%) >14min. >14min. >12min. Backup Time(40%) >27min. >22min. >19min. Backup Time(20%) >55min. >66min. >45min. Recharging Time 4 Hours to 90% Charging Current (Max.)

  • Page 30: Audible Alarm

    Overload Sounding once every 3 second Fault Continuously Sounding (or Sounding once every 3 second) Physical Dimensions mm (HxWxD) 88(2U)x440x 650 88.8(2U)x440x 650 PMC12 Standard Design 88(2U)x440x405 Dimensions mm (HxWxD) 176(4U)x440x420 176(4U)x440x420 PMC12 compact Design Weights 15,7kg (34,5Ib) 29,4kg (64,7Ib)
  • Page 31 Technical Specifications Model 1KVA 2KVA 3KVA Backup Time with Extended Battery Module Load 100% >28min. >17min. >12min. >35min. >24min. >17min. 1 extended Battery module >55min. >32min. >24min. >110min. >50min. >37min. >155min. >105min. >88min. Load 100% >55min. >29min. >20min. >68min. >38min. >26min.
  • Page 32 Technical Specifications This side is intentionally empty. UPS-Manual...
