Page 1

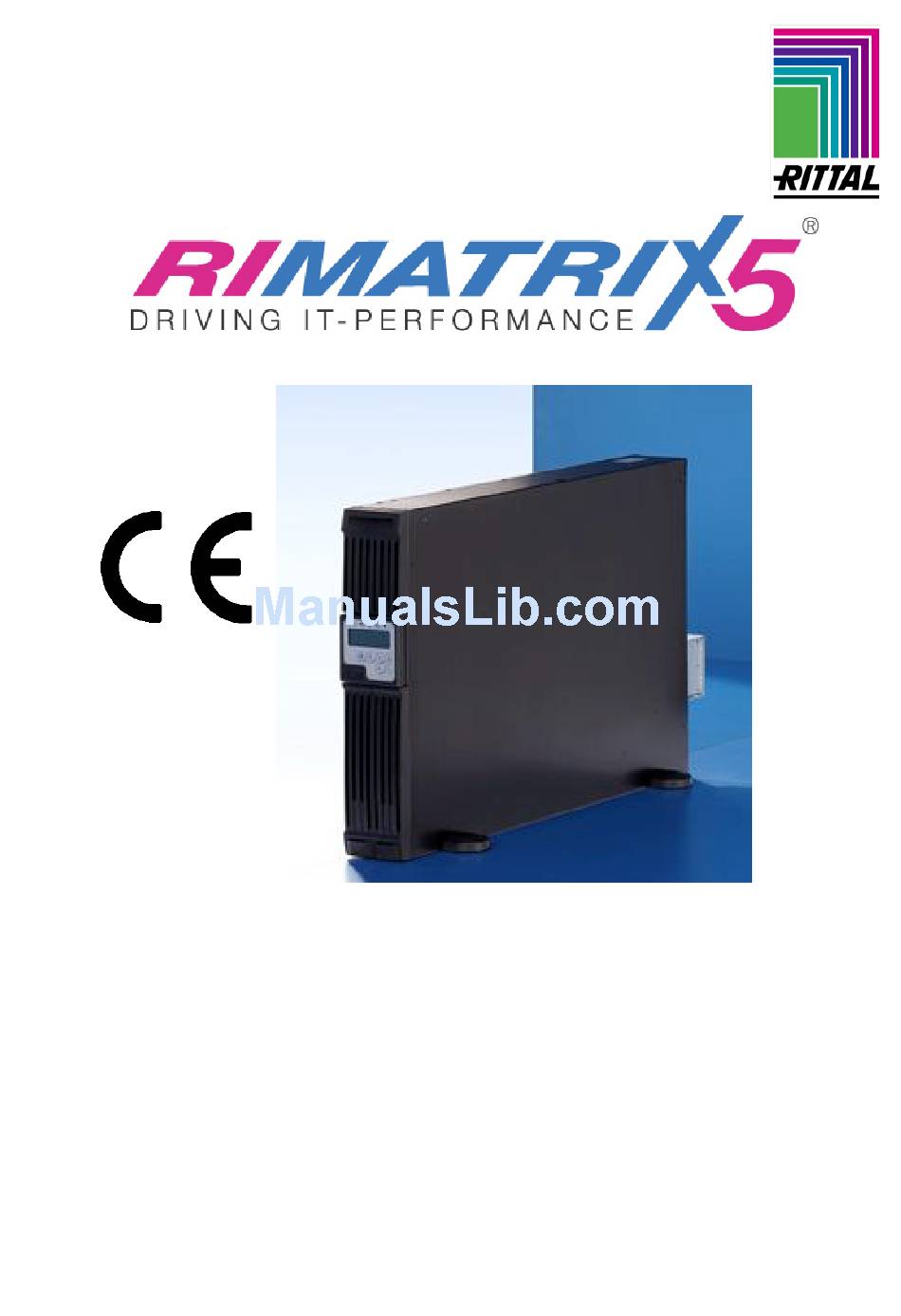

D – 3 5 7 4 5 H e r b o r n Deutschland Germany Email: Info@rittal.de http://www.rittal.com Service -Tel. : (+49) - (0)2772 / 505 - 0 Service - Fax : (+49) - (0)2772 / 505 - 2319 Rittal PMC12 UPS-Manual 7857.430 7857.431 7857.432 1phase double conversion true online UPS System...
Page 2
Microsoft Windows is a registered trademark of Microsoft Corporation. Acrobat Reader is a registered trademark of Adobe Systems Incorporated.
5.5.3. Inverter Over-current and Inverter Output Voltage Out of tolerance..20 Table of Contents MAINTENANCE GUIDE ........20 6.1........20 IMPORTANT SAFETY INSTRUCTION ..4 ROUBLE HOOTING 6.2. RROR ODES AND HEIR ESCRIPTIONS 1.1......4 OCUMENTATION OTES 6.3...........21 AINTENANCE 1.2....
When installed and being used, the tion of the PMC12 UPS-System may be batteries will be automatically recharged performed only by instructed personnel. and kept in top condition.
1.5. Proper This UPS is designed for providing power to IT systems. A use different from that described here is considered to be an improper use. Rittal cannot accept any liability for damage resulting from the improper use or the non-observance of this guide.
Product Introduction the UPS to integrate even in the most difficult of 2. Product Introduction environments with space constraints. 2.1. General Characteristics This UPS is equipped with fully digitalised control logic for greater functionality and True online technology continuously supplies enhanced high level of power protection.
UPS Functional Descriptions 3.1.1. Symbols on the LCD Display Panel 3. UPS Functional Descriptions 3.1. UPS Front Panel Display Item Symbol Description Utility or Bypass LINE Source Battery Low Battery Abnormal UPS Overloading Site Wiring Fault Working Service Mode UPS Shutoff UPS Abnormal FAIL Lock...
UPS Functional Descriptions 3.2. Rear Panel Descriptions 230V 1KVA 2KVA 3KVA USB Port RS232 Port Emergency Power Off (EPO) Dry Contact Signal inputs Communication Card Options Slot External Battery Connector AC power connection socket AC Outlets Two programmable outlets Utility Input fuse holder 10.
UPS Functional Descriptions **Sensitivity Low : 184~260V, 3.3. Operating Modes & Voltage System High: 194~260V Configurations Download from 3.3.2. Programmable Outlet Setting www.rimatrix5.com/dl_power.htm the “Setting The UPS is equipped with 2 programmable Tool” and open the Software to see the screen outlets for use to supply to less critical loads.
UPS Functional Descriptions Outlet Turn Off When Battery Lower than 3.4.1. True RS232 Port Descriptions - select this option to automatically disable The RS232 interface shall be set as follows: the outlet at the specified remaining battery power capacity(%) during battery mode to Baud Rate 2400 bps shed the less critical loads to prolong battery...
Installation and Operation 5. This UPS is not designed for outdoor use. 4. Installation and Operation Warning! Read the Safety Instruction guide (page 5 to 6) before installing the UPS! 4.1. Unpacking Inspect the UPS upon receipt. The manufac- turer designed robust packaging for your prod- uct.
Installation and Operation 4.4. Operation 4.4.1. Start Up In Normal Mode 1. Make sure the voltage of Utility matches with the input voltage window of the UPS. 2. Connect the UPS to the wall Receptacle of the Utility. Turn on the UPS “ON” switch to drawing D start up the UPS.
Installation and Operation drawing L drawing H drawing M drawing I 4.4.3. Check Measured Values & Figures detected by UPS If you would like to check the measured values & messages, please use scroll up and scroll down key pads. When you use scroll down drawing N key pad, the LCD display will illustrate in se- quence from drawing E(Input Voltage)
Page 15
Installation and Operation drawing P2 drawing S 2. Press key pad to scroll down the LCD screen, then check the UPS settings. The LCD display will show in sequence: drawing P1(buzzer) drawing Q1(self test) drawing R1(Bypass Voltage) drawing S(Output Fre- quency Synchronized Window) drawing T (Inverter Output Voltage) drawing U1(UPS Operation Mode) drawing V(Output Voltage...
Installation and Operation 3. Press scroll up key pad, you may exe- vated only when the UPS is re-turned on. cute special functions. The functions include The LCD screen will be back to the original Buzzer ON (as drawing Q1) or buzzer OFF screen before setting.
Installation and Operation (d) Turn off the Breaker of the Utility Input. 4.6. Battery Replacement (e) The UPS lock problem is solved now. Step 1 4.4.7. Shut Off 1. Press key pad for about 5 seconds, the Inverter output will be turned off, then the output load is supplied by Bypass loop and the LCD screen shows as Drawing B.
UPS Working Principle Step 4 The table below provide a summery guide to 1KVA the UPS operating modes against the Utility AC Power Source conditions. Utility UPS Operating LEDs Conditions Modes Display indications Rectifier convert AC to DC, battery charging, Inverter convert DC to Mains Available LEDs remain...
UPS Working Principle prevent severe damage to its Inverter cause 5.3. When Mains is Absent by the inrush produce by the loads, the UPS is equipped with electronics overload protec- The working principle of the UPS under Mains tion feature as standard. If the UPS loading is absent condition is illustrated as follows: >105~120% of its capacity, it will switch to bypass mode in 30 seconds to protect the In-...
Maintenance Guide 6. Maintenance Guide 5.5.2. Inverter/Internal Over temperature 6.1. Trouble Shooting If the UPS experiences internal over-tempera- ture when Utility is normal, it will switch to by- When the UPS becomes faulty or malfunctions pass loop. The UPS will switch back to inverter during operation, you may check the fault lists mode when the over-temperature situation is below for respective solutions.
If problem persist after recharging, replace the battery. If problem persist, consult your local dealer, Rittal or customer service for technical assistance. Note! When the Fault LED illuminated, the error code is shown in the LCD display. Check the error code.
Bundle Software Installation Guide consistent for the whole parallel system - or 7. Bundle Software Installation specific values from the single modules. Guide External SNMP-Adapter 7.1. Hardware Installation 1. Connect the male connector of RS232/USB cable to the UPS communication port. Ethernet 2.
Systems, analogous to PMC-Software. Our SNMP Interfaces are compatible to RCCMD. 9. Customer Service If you have any technical questions or ques- tions concerning our product spectrum, contact the following service address: Tel.: +49 (0)2772/505-1855 http://www.rimatrix5.com E-mail: info@rittal.de UPS-Manual...
Technical Informations Technical Informations Model 1KVA 2KVA 3KVA VA Rating Apparent Output Power 1000VA 2000VA 3000VA Active Output Power 700Watts 1400Watts 2100Watts Power Factor Topology Double conversion On-Line Type Rack/Tower Agency Approvals 230V Models: CE Input Voltage Window 230V 120/140/160 - 288Vac Base on load percentage (0~33/33~66/66~100%) Low Line 230V...
Technical Informations Model 1KVA 2KVA 3KVA (Bypass Mode) <105% continuous >106% ~ 120% for 250 seconds shuts down 121% ~ 130% for 125 seconds shuts down > >131% ~ 135% for 50 seconds shuts down >136% ~ 145% for 20 seconds shuts down >146% ~ 148% for 5 seconds shuts down >149% ~ 157% for 2 seconds shuts down >158% ~ 176% for 1 seconds shuts down...
