INTERNAL CONTROLS

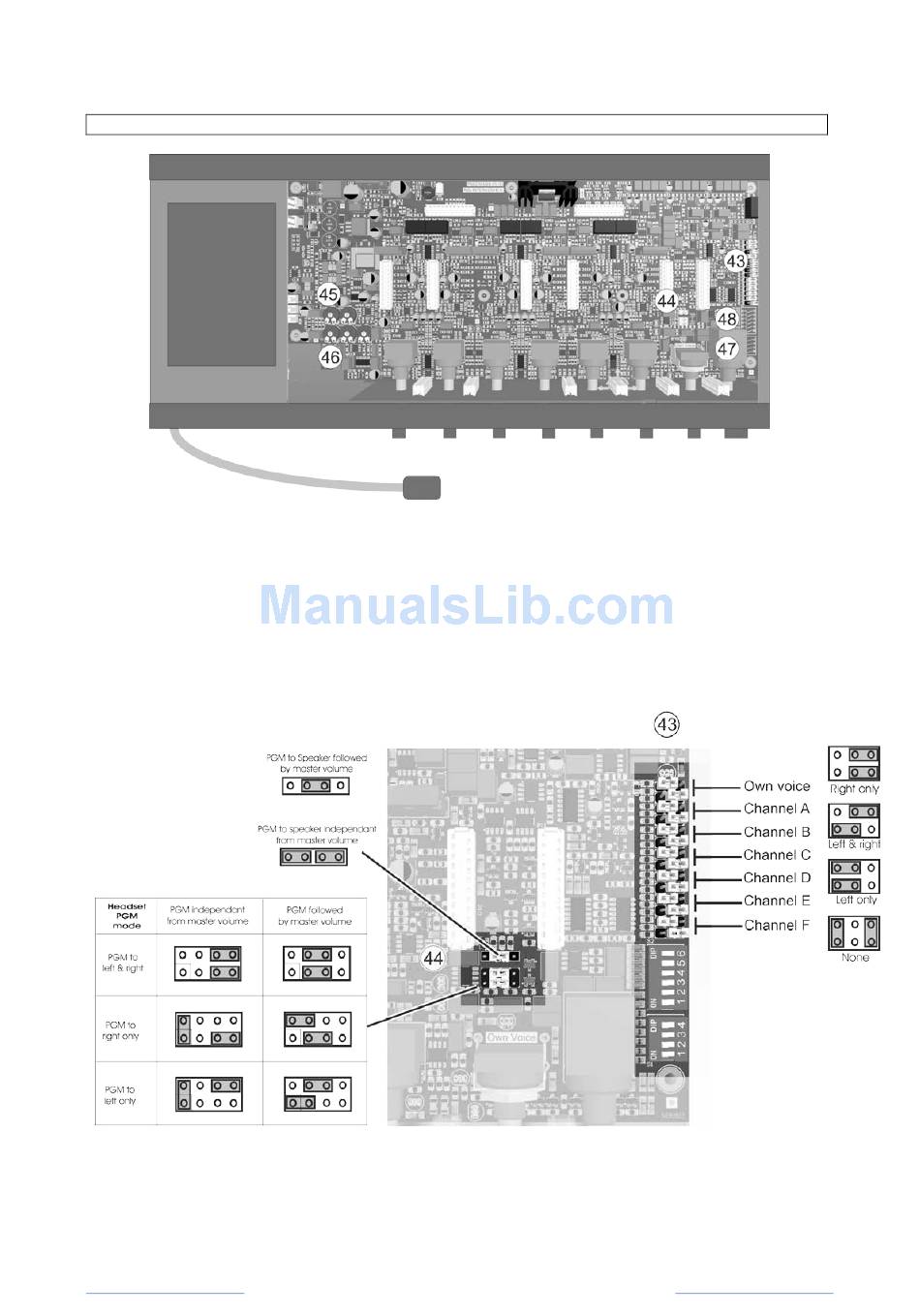

Binaural Jumper Settings

The PS 6379 Mk2 can optionally be equipped

with an XLR-5 headset connector for binaural

use. In that case the position of jumpers

determine - for each channel separately - the

routing of the audio to the headset cans: either

to the left can, or to the right can, or to both

cans or not to any can.

User Manual PS 6379 Mk2 / February 2013 © ASL Intercom BV

PGM ROUTING jumpers

With these three jumpers one determines

whether the PGM (program audio) listen level

is also controlled by the Master Volume knob

(see #6) and – in case of binaural use of the

PS 6379 Mk2 – the routing of the PGM signal

to the headset cans.
