4.2.

Transmitter

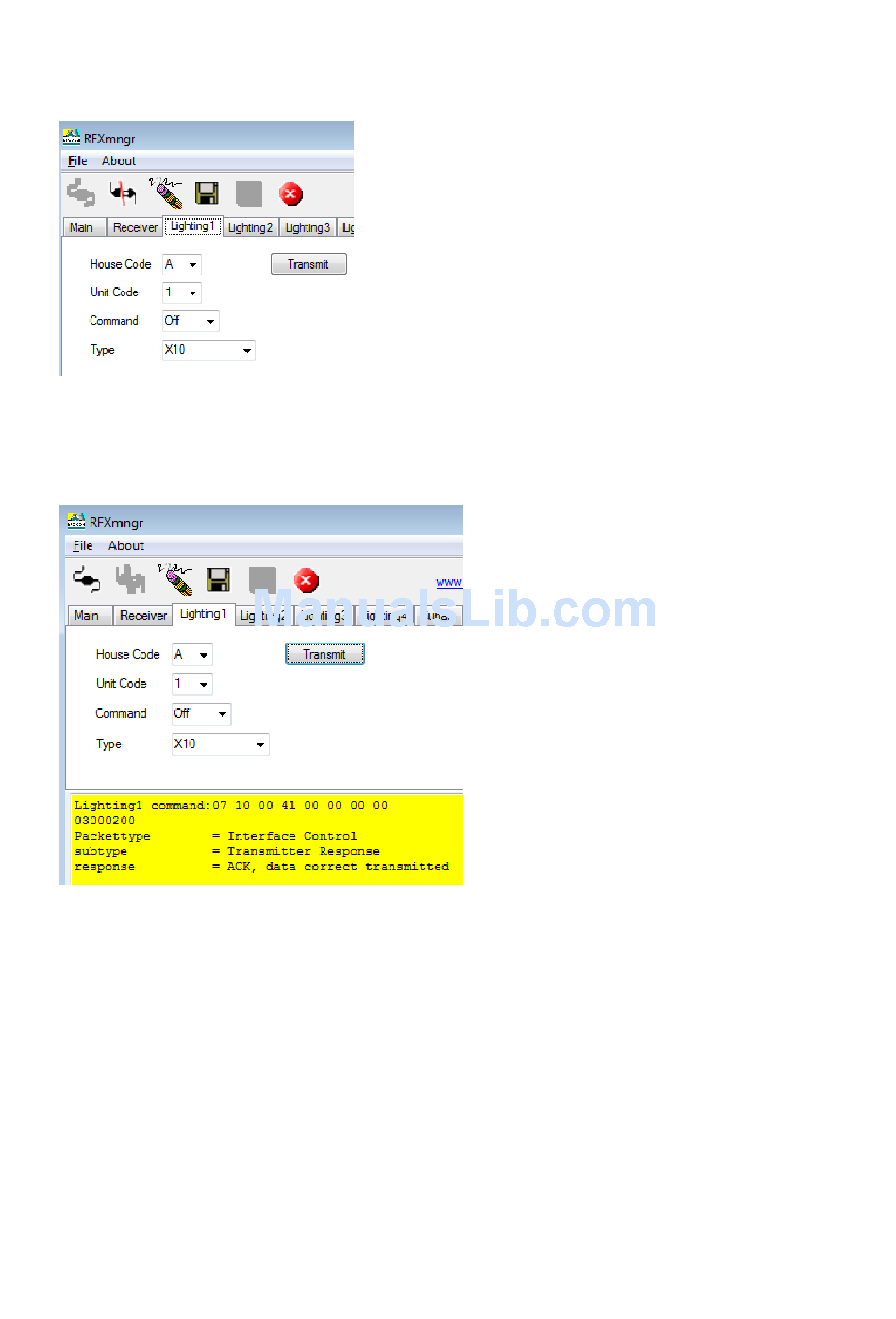

The tabs after Receiver are used to send commands to the transmitter.
For example Lighting1 is used to send X10, ARC and some more.
See the SDK which protocols are supported on the different tabs.
The transmitted commands are displayed in the yellow window including the acknowledge send by
the RFXtrx, in the example below the 030000200 = ACK, data correct transmitted.
