Python 881 XP Installation Manual page 26

r r e e m m o o t t e e s s t t a a r r t t s s e e c c o o n n d d a a r r y y h h a a r r n n e e s s s s ( ( H H 3 3 ) ) w w i i r r e e c c o o n n - -
n n e e c c t t i i o o n n g g u u i i d d e e
H H 3 3 / / 1 1 B B L L U U E E / / W W H H I I T T E E ( ( - - ) ) s s t t a a t t u u s s o o u u t t p p u u t t
This wire supplies a 200mA output as soon as the module begins the remote start process. It can be used with
a relay to disconnect a sensor from the system as shown below. The H3/1 BLUE wire can also be used to rearm
a factory anti-theft system when the remote start shuts down. (See the Feature Descriptions section of this

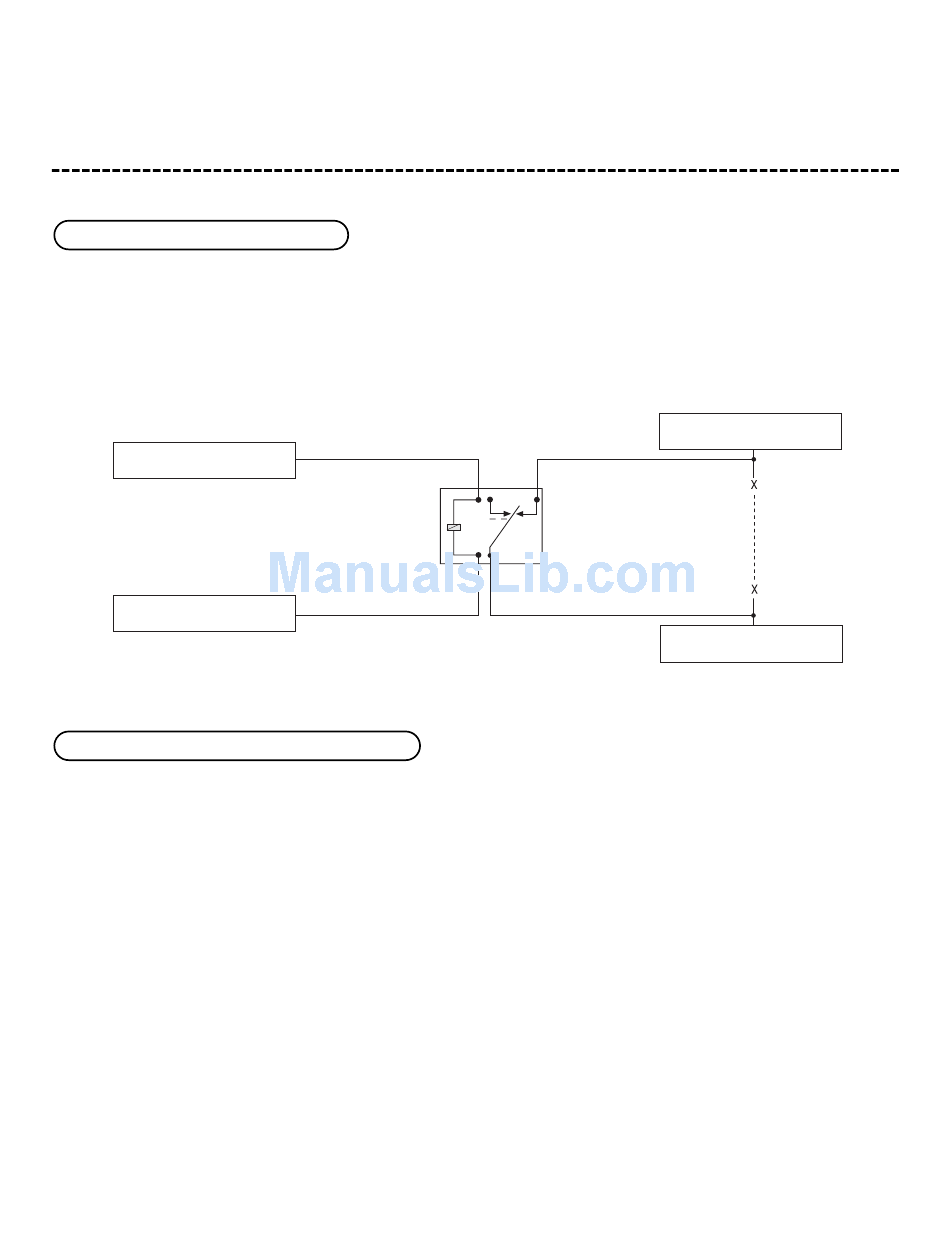

guide.) To bypass an optional sensor:
H3/1 BLUE STATUS
OUTPUT
(+) 12V FUSED
DIA-141
H H 3 3 / / 2 2 G G R R A A Y Y ( ( - - ) ) h h o o o o d d p p i i n n s s w w i i t t c c h h i i n n p p u u t t , , z z o o n n e e 1 1
This wire MUST be connected to hood pinswitch. This input will disable or shut down the remote start when the hood
is opened. It will also trigger the security system if the hood is opened while the system is armed and report Zone 1.
2 2 6 6
87 87A
85
86
30
SENSOR TRIGGER OUTPUT
CUT
SENSOR INPUT OF SYSTEM
© 2005 Directed Electronics, Inc. Vista, CA
