H H 1 1 / / 6 6 B B L L U U E E ( ( - - ) ) m m u u l l t t i i p p l l e e x x i i n n p p u u t t , , z z o o n n e e 4 4
Inputs shorter than 0.8 seconds will trigger the Warn Away response, while inputs longer than 0.8 seconds will
trigger the full alarm sequence. If installing an optional Directed Electronics dual stage sensor, connect both the
blue and the green wires of the optional sensor to this input. This wire will report Zone 4.

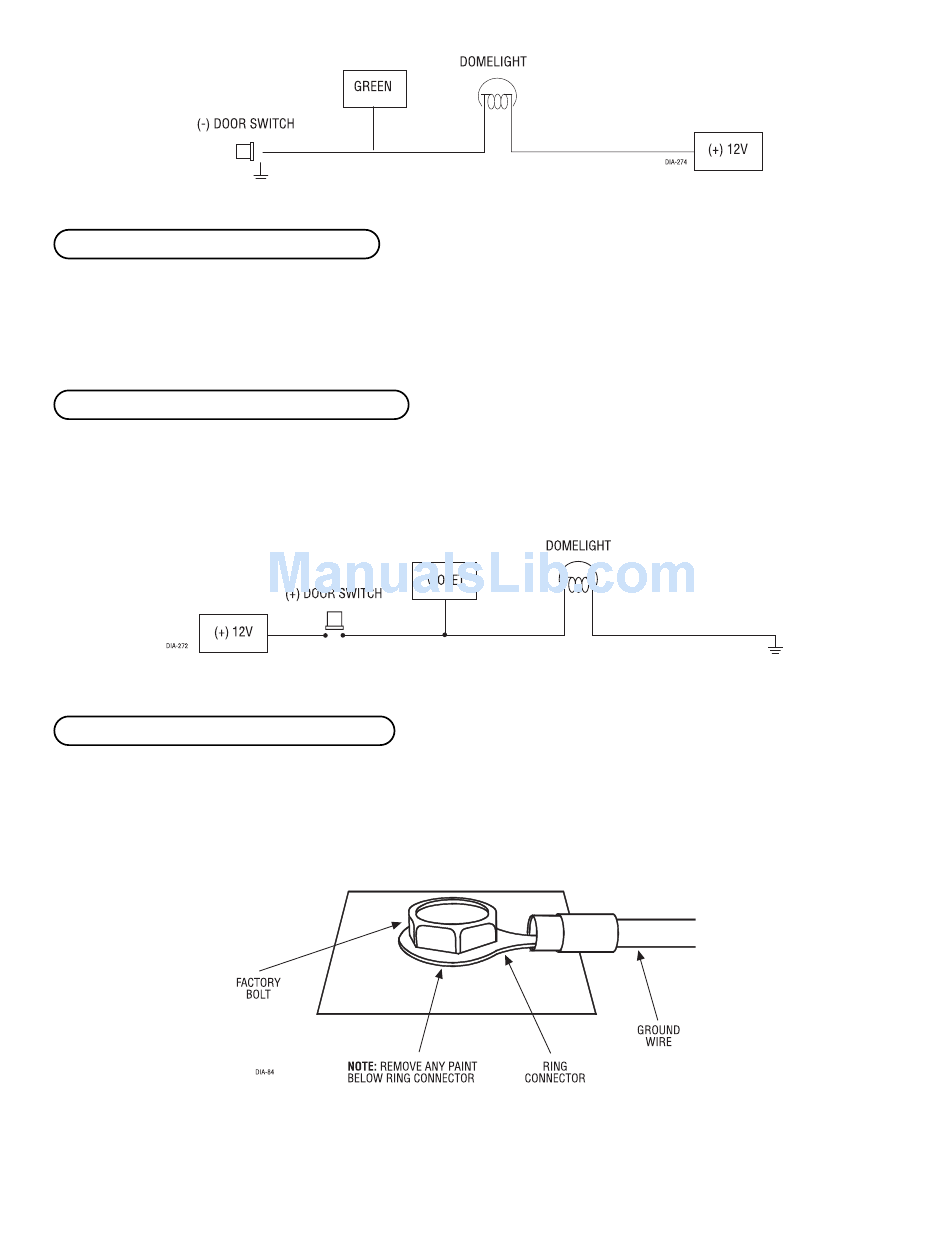

H H 1 1 / / 7 7 V V I I O O L L E E T T ( ( + + ) ) d d o o o o r r t t r r i i g g g g e e r r i i n n p p u u t t , , z z o o n n e e 3 3
This wire is used in vehicles that have a positive (+) switched dome light circuit. Connect the violet wire to a
wire that shows (+)12V when any door is opened, and ground when the door is closed. This wire will report Zone 3.
H H 1 1 / / 8 8 B B L L A A C C K K ( ( - - ) ) c c h h a a s s s s i i s s g g r r o o u u n n d d c c o o n n n n e e c c t t i i o o n n
Remove any paint and connect this wire to bare metal, preferably with a factory bolt rather than your own screw.
(Screws tend to either strip or loosen with time.) We recommend grounding all your components, including the
siren, to the same point in the vehicle.
