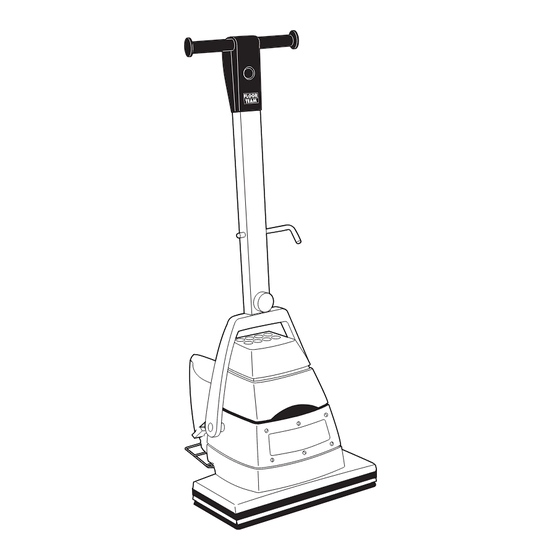

- Page 1 FLOOR SANDER MODEL HTF-2 From Serial Number 00579 (220/240 Volt) & 00579 (110/120 Volt) OWNERS MANUAL & OPERATING INSTRUCTIONS © Hiretech JULY 2003 REF.180 PART # 031390...
-
Page 2: Use And Application
NORTH AMERICAN SAFETY INSTRUCTIONS WARNING: This floor sanding machine must be grounded. This floor-sanding machine shall be grounded while in use to protect the operator from electric shock. The machine is provided with a three-conductor cord and a moulded three-contact grounding type attachment plug to fit the proper grounding type receptacle. -
Page 3: Table Of Contents
(L - LINE) SPARE PARTS Use Hiretech genuine spare parts only for service and repair. Use of non-approved parts will void the product warranty. See the back cover of this manual for the terms and conditions of the Hiretech Limited Warranty. -
Page 4: Specification
Completely self sander, replacing the dust bag or leaving the contained with a powerful dust pickup the HTF-2 is a machine unattended. high performance floor sander suitable for Always replace the dust bag when the dust in the professional and home owner use. -
Page 5: Assembly & Trasnport
ASSEMBLY & TRANSPORT by the handle assembly and body or with the handle assembly attached. Failure to The HTF-2 breaks down into two component observe this rule may result in personal parts, the main body and handle assembly for injury and/or damage to the floor sander. -
Page 6: Preparation
Never bounce or drop the floor sander on position. to the floor, always lower the machine gently. CAUTION - the HTF-2 Floor Sander is a Never dwell in one place, move steadily at powerful machine always ensure you all times. -
Page 7: Drum Floor Sander
When two thirds of the floor is sanded, turn the floor scratches or blemishes) you may re-surface the floor sander around and sand the remaining third in the using the HTF-2 Floor Sander, however, as the same way. Overlap the one third area by 0.6 to 0.9... -
Page 8: Parquet & Block Floors
This should provide access to the edge of the floor for inspection. BETWEEN COATS OF FINISH (VARNISH) Use the HTF-2 Floor Sander to sand between coats of floor finish, particularly when using water based PARQUET & BLOCK FLOORS varnishes. These types of finishes tend to raise the The grain of the wood will run in a number of wood grain when first applied to raw wood. - Page 9 HTF-2 FLOOR SANDER ABRASIVE GUIDE ABRASIVE GRADE APPLICATION FLOOR TYPE Abrasive Sheet 40G For the rapid removal of stock and Use on solid raw wood (Coarse) where a deep cut is required. floors. Not recommended for use on factory finished or laminate flooring systems.
-
Page 10: Service And Routine Maintenance
Drive The HTF-2 Floor Sander is subject to high speeds The dive gears and drive belt do not require and vibration, all screws should be fitted using a maintenance under normal operating suitable thread lock compound. -
Page 11: Setting The Wheels
Thoroughly clean the brush assembly and Place a straight edge, a steel rule is best, across housing using a soft brush and a suitable the center of one wheel and the block of wood. If vacuum cleaner. the wheels are adjusted correctly there will be no gap across the whole width of the block. -
Page 12: Fault Finding
Using a piece of insulation tape or a small soft CAUTION - when undertaking a wedge lock the bias off switch in the ‘ON’ functional (run) test make sure the position. machine is secure. Remember the sanding pad will rotate. Use the standard procedure test for electrical safety. -
Page 13: Htf-2 Parts Drawing
HTF-2 PARTS DIAGRAM FLOOR SANDER MODEL HTF-2 From Serial Number 00579 - 110/120 Volt 00579 - 220/240 Volt OWNERS MANUAL & OPERATING INSTRUCTIONS DECEMBER 2000 REF.180 PART # 031390... - Page 14 HTF-2 PARTS DIAGRAM...
-
Page 15: Htf-2 Parts List
PARTS LIST HTF-2 Ref. PSTK Pack Description Ref. PSTK Pack Description Qty. Qty. 011600 1 Switch 220/240 Volt (Bias Off) 030360 1 Brush Set 030350 1 Bumper 011610 1 Switch 110/120 Volt (Bias Off) 030425 1 Housing Switch Assembly 030300 1 Support Bag (check Serial No.) -
Page 16: Floor Sander Abrasives
PARTS LIST HTF-2 Ref. PSTK Pack Description Ref. PSTK Pack Description Qty. Qty. 145 030780 1 Screw 118 030720 1 Ballast Start 110/120 Volt 146 030520 2 Spring Sanding Pad 119 163838 2 Screw 147 980629 1 Washer 120 163808... -
Page 17: Htf-2 Circuit Diagram
HTF-2 CIRCUIT DIAGRAM HANDLE CABLE SWITCH ARMATURE (ROTOR) FIELD (STATOR) LAMP TUBE GREEN/YELLOW (GREEN - N.AMERICA) BROWN (BLACK - N.AMERICA) BLUE (WHITE - N.AMERICA) BALLAST UNIT MAIN CABLE... -
Page 18: Declaration Of Conformity
Manufacturer's Address: Chalk Hill House 8 Chalk Hill Watford Herts WD1 4BH declares that the product: Product Name: Hiretech Floor Sander Model Name: HTF-2 230 Volt 50Hz Insulation Class 1 HTF-2 110 Volt 50Hz Insulation Class 1 conforms to the following:... -
Page 19: Service & Repair
If you should have difficulty in obtaining service please contact your distributor nearest to you at the address given below. For the latest list of Hiretech dealers check on the Hiretech web site at www.hiretech biz/contact/dealerlist.html. Hiretech Pty Ltd... - Page 20 Should any part fail in the period of two years from the date ® of the original purchase as a result of a defect, Hiretech will (at it’s option) either repair or replace the part without charge provided that the machine has been operated in accordance with the Owners Manual and Operating Instructions.
