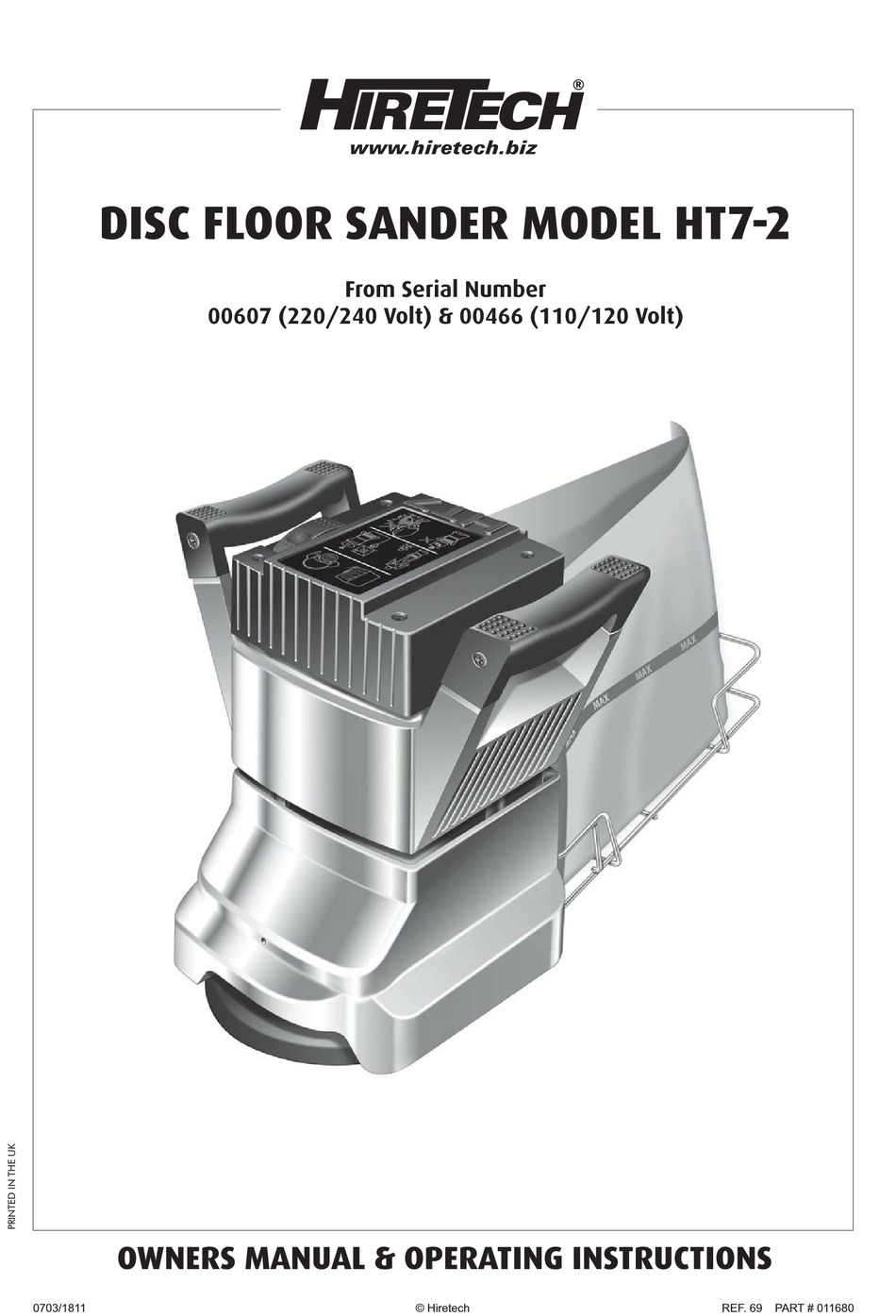

- Page 1 DISC FLOOR SANDER MODEL HT7-2 From Serial Number 00607 (220/240 Volt) & 00466 (110/120 Volt) OWNERS MANUAL & OPERATING INSTRUCTIONS 0703/1811 © Hiretech . 69 PART # 011680...
-
Page 2: Use And Application
NORTH AMERICAN SAFETY INSTRUCTIONS WARNING: This floor sanding machine must be grounded. This floor-sanding machine shall be grounded while in use to protect the operator from electric shock. The machine is provided with a three-conductor cord and a moulded three-contact grounding type attachment plug to fit the proper grounding type receptacle. -
Page 3: Table Of Contents
LINE SPARE PARTS Use Hiretech genuine spare parts only for service and repair. Use of non-approved parts will void the product warranty. See the back cover of this manual for the terms and conditions of the Hiretech Limited Warranty. ®... -
Page 4: Specification
SPECIFICATION SAFETY 7-2 Hiretech Edger (Disc Floor Sander) will For safety it is recommended that a residual current circuit breaker (ground fault interrupter) sand hard and soft wood floors, cork and is used with this machine. composition floors and any solid wood surface that requires rapid sanding and leveling to a fine finish. -
Page 5: Set Up
SET UP clamp is properly located. Heavy grit abrasive discs may not lie flat on the sanding disc, this is quite normal and the abrasive disc will flatten Assembly and Transport immediately upon operation. Always carry the floor sander by the two handles Do not use damaged or incorrectly sized with the bag frame in the up position and the abrasive discs under any circumstance, damage... - Page 6 sanding disc does not touch the floor or work When taking a break from work switch ‘O’ piece. and disconnect the power cable from the supply, remove and dispose of the paper dust bag, or Switch by pushing the ON OFF switch to (I) empty the cloth bag as detailed in 7.
-
Page 7: Floor Sanding Technique
Use the same grit abrasive as was used on the 45 cut for the first cut HT7-2 Disc Floor Sander (Edger) - a powerful disc parallel to the planks or strips. floor sander designed for sanding along the edges of... -
Page 8: Parquet & Block Floors
If there is no manufactures directions. Use Hiretech abrasive pads source of natural light sand in the direction of the to sand between each coat of varnish. -
Page 9: Abrasive Paper Guide
JOB PROGRESS FROM FIRST GRADE USED THROUGH FOLLOWING GRADES TO REMOVE ALL VISIBLE SANDING MARKS DO NOT MISS GRADE FLOOR SANDER ABRASIVES Hiretech Abrasives Hiretech recommend the following abrasive range which are suitable for all floor types and applications. 01025... -
Page 10: Service And Routine Maintenance
Hiretech genuine spare part only as the grease must be carried out by a competent person and contained in the bearings is special. A standard... -
Page 11: Sanding Pad Removal & Replacement
To replace the motor Brushes Ref.12. Sanding Pad Remove the four Screws Ref.1 from the It is very important to maintain the 7-2 Edger Cover Motor and lift the cover off. sanding pad in perfect condition for score free sanding and to maximise the life of the abrasive disc. Remove the four Spring Brush Ref.17 and set to one side. -
Page 12: Sanding Pad Trimming
To trim the sanding pad fix a piece of fine grit Reasons for Trimming the Sanding Pad floor sander abrasive (120 grit) face up to a solid As part of routine maintenance. flat board that is large enough to stand on and operate the edger. -
Page 13: Adjsuting The Castors
Adjusting the Castors Electrical Testing. The castors are set to achieve the correct contact area across the sanding pad as illustrated in the CAUTION - testing for electrical safety diagrams above. should only be undertaken by a competent person and all results To check the castor setting place a clean sheet of recorded. -
Page 14: Fault Finding
FAULT FINDING FAULT CAUSE ACTION The machine does not run. The power cable is not Connect the power cable to the connected to the power supply. power supply. The motor brushes are worn. Replace the motor brushes. The voltage is too low. Check the main power complies with the machine's serial plate data. -
Page 15: Ht 7-2 Parts Drawing
DISC FLOOR SANDER MODEL HT7-2 DISC FLOOR SANDER DISC FLOOR SANDER DISC FLOOR SANDER DISC FLOOR SANDER MODEL HT MODEL HT MODEL HT MODEL HT From Serial Number From Serial Number 00446 - 110/120 Volt 00446 - 110/120 Volt (Excl. North America) (Excl. -
Page 16: Ht 7-2 Parts List
DISC FLOOR SANDER MODEL HT7-2 Ref. PSTK Pack Description Ref. PSTK Pack Description Qty. Qty. 010010 4 Screw 010540 1 Spring Load 011600 1 Switch 220/240 Volt (Bias Off) 010550 1 Shaft Drive 011610 1 Switch 110/120 Volt (Bias Off) -
Page 17: Ht 7-2 Circuit Diagram
CIRCUIT DIAGRAM... -
Page 18: Declaration Of Conformity
8 Chalk Hill Watford Herts Wd19 4BH declares that the product: Product Name: Hiretech Disc Floor Sander Model Name: HT7.2 230 Volt 50Hz Insulation Class 1 7.2 110 Volt 50Hz Insulation Class 1 conforms to the following: Machinery Directive (Harmonised) -
Page 19: Service & Repair
If you should have difficulty in obtaining service please contact your distributor nearest to you at the address given below. For the latest list of Hiretech dealers check on the Hiretech web site at www.hiretech biz/contact/dealerlist.html. Name Addr e ss T e le phone , F acsimile , Email &... - Page 20 If the repair is non-warranty, the customer will be advised before any work is undertaken. This warranty is the sole warranty by Hiretech and is in lieu of all other warranties express or implied and releases Hiretech from all other obligations and liabilities.
