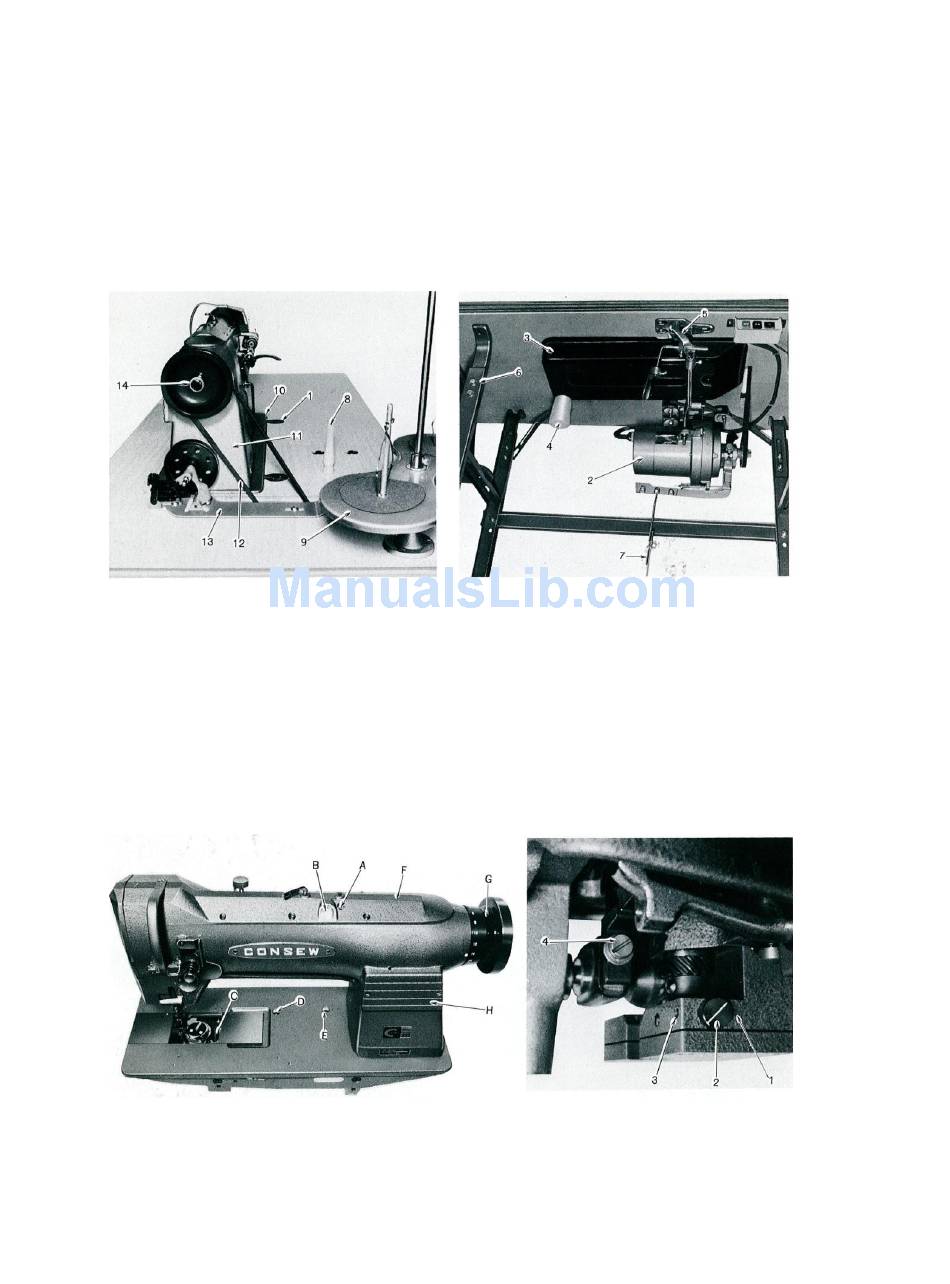

SETTING UP THE MACHINE

Before setting up the machine on the table, attach the relative parts to the table.
1. Hinge
4. Oil bottle
7. Treadle
10. Cushion rubber
13. Bobbin winder

OILING AND IT'S ADJUSTMENT

Do not operate the machine, even if for testing, unless it has been properly oiled.
(1) To fill the oil reservoir on top of the machine, pour oil through the oil filler hole (A),
until oil level reaches to the upper reference line.
Oiling is automatically made by the vibration of the machine while sewing operation
through the oiling wicks in the machine, and Oil flow stops automatically when the
operation of the machine ends.
2. Motor
5. Knee lifter
8. Machine rest pin
11. Head of machine
3. Oil pan
6. Stand
9. Cotton stand
12. V belt
