Oil Adjuster; Needle And Thread - Consew Sewing Machine User Manual

(2) The hook mechanism should receive careful attention when lubricating the machine.
Push open the slide plate in the bed (the right and left plates in case of two needle
machine) and pull out the oil gauge (C). Fill oil in the resorvior for the rotating hook
mechanism up to the level marked on the oil gauge.
Care must be taken that oil flow stops when oil level falls to the bottom.
(3) Oiling adjustment to the hook mechanism.

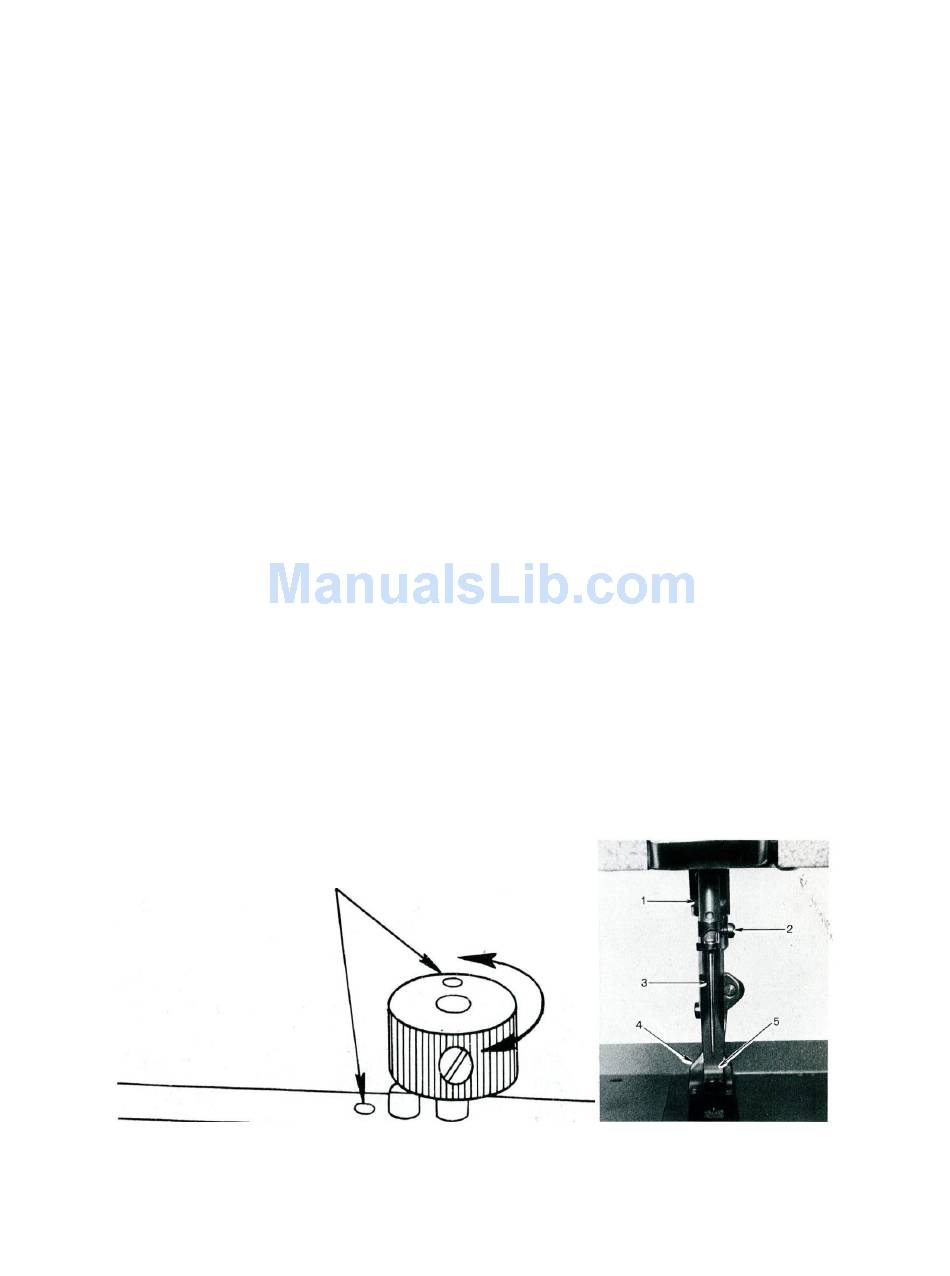

The maximum oil flow is made when the reference line on the oil adjusting knob (2) is in a
line with the point (1), and it stops when the reference line is upright.
To adjust this, loosen the pinch screw (3) and turn the oil adjusting knob, then tighten
the pinch screw.

OIL ADJUSTER

Oiling to inside of arm top cover is automatically made by the vibration of the
machine while sewing operation.
Stop oiling temporarily by the following method at your option in case of long
sewing operation.
When point of the dial enters into point of arm bed cover after turning the dial, the
dial goes down and oiling stops completely.
NEEDLE
The size of the needle to be used should be determined by the size of the thread,
which must pass freely through the eye of the needle.
To insert the needle, turn the machine pulley Over toward you until the needle bar
(1) moves up to it's highest point, loosen the needle set screw (2) and put the needle up
into the needle bar as far as it will go, with the long groove of the needle toward the left
(but, toward inside direction in case of two needle machine), and tighten the needle set
screw securely.
3
