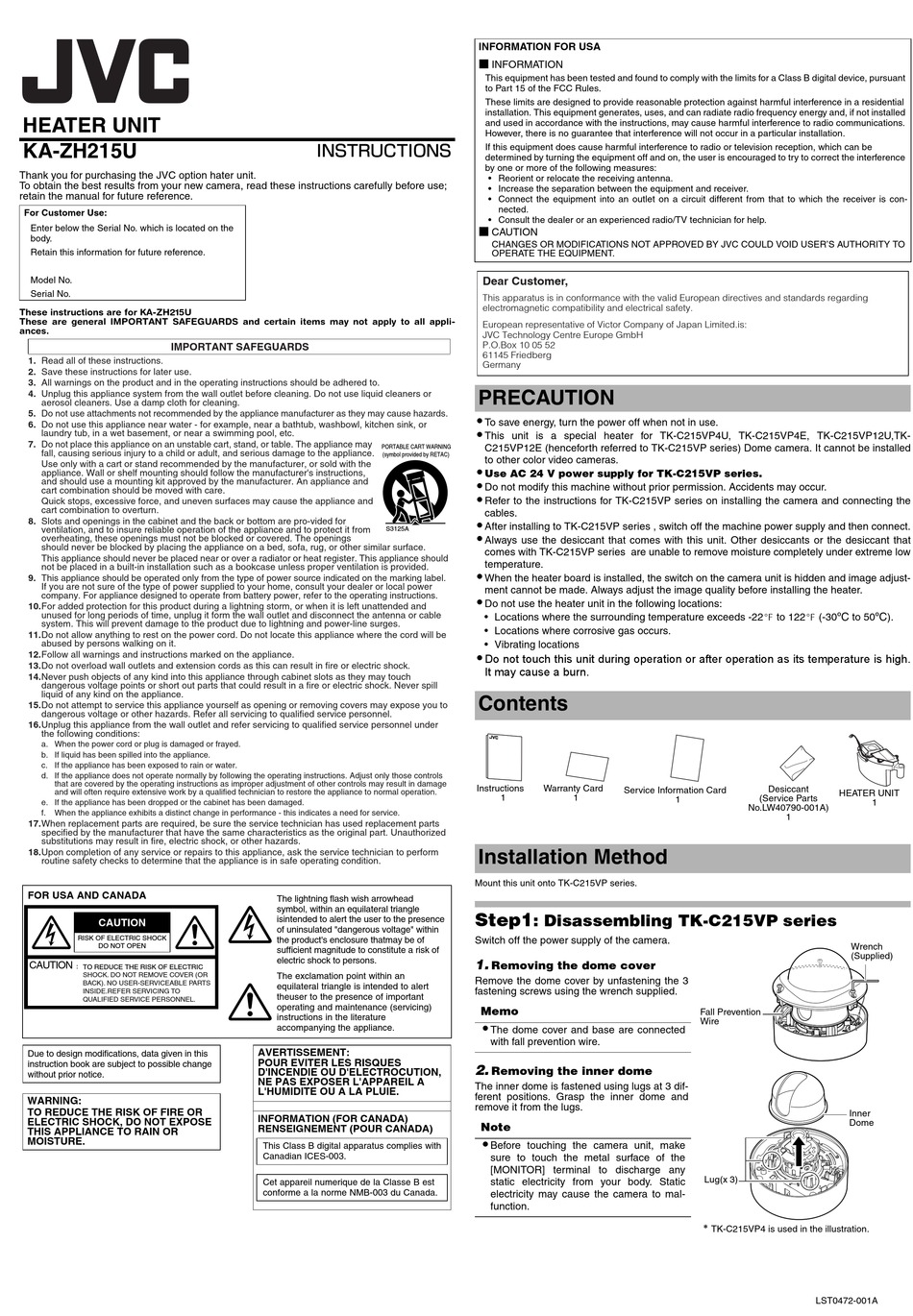

JVC KA-ZH215U Instructions

HEATER UNIT
KA-ZH215U
Thank you for purchasing the JVC option hater unit.
To obtain the best results from your new camera, read these instructions carefully before use;
retain the manual for future reference.
For Customer Use:
Enter below the Serial No. which is located on the
body.
Retain this information for future reference.
Model No.
Serial No.
These instructions are for KA-ZH215U
These are general IMPORTANT SAFEGUARDS and certain items may not apply to all appli-
ances.
IMPORTANT SAFEGUARDS
1. Read all of these instructions.
2. Save these instructions for later use.
3. All warnings on the product and in the operating instructions should be adhered to.
4. Unplug this appliance system from the wall outlet before cleaning. Do not use liquid cleaners or
aerosol cleaners. Use a damp cloth for cleaning.
5. Do not use attachments not recommended by the appliance manufacturer as they may cause hazards.
6. Do not use this appliance near water - for example, near a bathtub, washbowl, kitchen sink, or
laundry tub, in a wet basement, or near a swimming pool, etc.
7. Do not place this appliance on an unstable cart, stand, or table. The appliance may
fall, causing serious injury to a child or adult, and serious damage to the appliance.
Use only with a cart or stand recommended by the manufacturer, or sold with the
appliance. Wall or shelf mounting should follow the manufacturer's instructions,
and should use a mounting kit approved by the manufacturer. An appliance and
cart combination should be moved with care.
Quick stops, excessive force, and uneven surfaces may cause the appliance and
cart combination to overturn.
8. Slots and openings in the cabinet and the back or bottom are pro-vided for
ventilation, and to insure reliable operation of the appliance and to protect it from
overheating, these openings must not be blocked or covered. The openings
should never be blocked by placing the appliance on a bed, sofa, rug, or other similar surface.
This appliance should never be placed near or over a radiator or heat register. This appliance should
not be placed in a built-in installation such as a bookcase unless proper ventilation is provided.
9. This appliance should be operated only from the type of power source indicated on the marking label.
If you are not sure of the type of power supplied to your home, consult your dealer or local power
company. For appliance designed to operate from battery power, refer to the operating instructions.
10.For added protection for this product during a lightning storm, or when it is left unattended and
unused for long periods of time, unplug it form the wall outlet and disconnect the antenna or cable
system. This will prevent damage to the product due to lightning and power-line surges.
11.Do not allow anything to rest on the power cord. Do not locate this appliance where the cord will be
abused by persons walking on it.
12.Follow all warnings and instructions marked on the appliance.
13.Do not overload wall outlets and extension cords as this can result in fire or electric shock.
14.Never push objects of any kind into this appliance through cabinet slots as they may touch
dangerous voltage points or short out parts that could result in a fire or electric shock. Never spill
liquid of any kind on the appliance.
15.Do not attempt to service this appliance yourself as opening or removing covers may expose you to
dangerous voltage or other hazards. Refer all servicing to qualified service personnel.
16.Unplug this appliance from the wall outlet and refer servicing to qualified service personnel under
the following conditions:
a. When the power cord or plug is damaged or frayed.
b. If liquid has been spilled into the appliance.
c. If the appliance has been exposed to rain or water.
d. If the appliance does not operate normally by following the operating instructions. Adjust only those controls
that are covered by the operating instructions as improper adjustment of other controls may result in damage
and will often require extensive work by a qualified technician to restore the appliance to normal operation.
e. If the appliance has been dropped or the cabinet has been damaged.
f. When the appliance exhibits a distinct change in performance - this indicates a need for service.
17.When replacement parts are required, be sure the service technician has used replacement parts
specified by the manufacturer that have the same characteristics as the original part. Unauthorized
substitutions may result in fire, electric shock, or other hazards.
18.Upon completion of any service or repairs to this appliance, ask the service technician to perform
routine safety checks to determine that the appliance is in safe operating condition.
FOR USA AND CANADA
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION
:
TO REDUCE THE RISK OF ELECTRIC
SHOCK. DO NOT REMOVE COVER (OR
BACK). NO USER-SERVICEABLE PARTS
INSIDE.REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL.
Due to design modifications, data given in this
instruction book are subject to possible change
without prior notice.
WARNING:
TO REDUCE THE RISK OF FIRE OR
ELECTRIC SHOCK, DO NOT EXPOSE
THIS APPLIANCE TO RAIN OR
MOISTURE.
INSTRUCTIONS
PORTABLE CART WARNING
(symbol provided by RETAC)
S3125A
The lightning flash wish arrowhead
symbol, within an equilateral triangle
isintended to alert the user to the presence
of uninsulated "dangerous voltage" within
the product's enclosure thatmay be of
sufficient magnitude to constitute a risk of
electric shock to persons.
The exclamation point within an
equilateral triangle is intended to alert
theuser to the presence of important
operating and maintenance (servicing)
instructions in the literature
accompanying the appliance.
AVERTISSEMENT:
POUR EVITER LES RISQUES
D'INCENDIE OU D'ELECTROCUTION,
NE PAS EXPOSER L'APPAREIL A
L'HUMIDITE OU A LA PLUIE.
INFORMATION (FOR CANADA)
RENSEIGNEMENT (POUR CANADA)
This Class B digital apparatus complies with
Canadian ICES-003.
Cet appareil numerique de la Classe B est
conforme a la norme NMB-003 du Canada.
INFORMATION FOR USA
■ INFORMATION
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference
by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is con-
nected.
• Consult the dealer or an experienced radio/TV technician for help.
■ CAUTION
CHANGES OR MODIFICATIONS NOT APPROVED BY JVC COULD VOID USER'S AUTHORITY TO
OPERATE THE EQUIPMENT.
Dear Customer,
This apparatus is in conformance with the valid European directives and standards regarding
electromagnetic compatibility and electrical safety.
European representative of Victor Company of Japan Limited.is:
JVC Technology Centre Europe GmbH
P.O.Box 10 05 52
61145 Friedberg
Germany
PRECAUTION
● To save energy, turn the power off when not in use.
This unit is a special heater for TK-C215VP4U, TK-C215VP4E, TK-C215VP12U,TK-
●
C215VP12E (henceforth referred to TK-C215VP series) Dome camera. It cannot be installed
to other color video cameras.
Use AC 24 V power supply for TK-C215VP series.
●
Do not modify this machine without prior permission. Accidents may occur.
●
Refer to the instructions for TK-C215VP series on installing the camera and connecting the
●
cables.
After installing to TK-C215VP series , switch off the machine power supply and then connect.
●
Always use the desiccant that comes with this unit. Other desiccants or the desiccant that
●
comes with TK-C215VP series are unable to remove moisture completely under extreme low
temperature.
● When the heater board is installed, the switch on the camera unit is hidden and image adjust-
ment cannot be made. Always adjust the image quality before installing the heater.
Do not use the heater unit in the following locations:
●
• Locations where the surrounding temperature exceeds -22J to 122J (-30f to 50f).
• Locations where corrosive gas occurs.
• Vibrating locations
Do not touch this unit during operation or after operation as its temperature is high.
●
It may cause a burn.
Contents
Instructions Warranty Card
Service Information Card
1 1
Installation Method
Mount this unit onto TK-C215VP series.
Step1
: Disassembling TK-C215VP series
Switch off the power supply of the camera.
1.
Removing the dome cover
Remove the dome cover by unfastening the 3
fastening screws using the wrench supplied.
Memo
● The dome cover and base are connected
with fall prevention wire.
2.
Removing the inner dome
The inner dome is fastened using lugs at 3 dif-
ferent positions. Grasp the inner dome and
remove it from the lugs.
Note
Before touching the camera unit, make
●
sure to touch the metal surface of the
[MONITOR] terminal to discharge any
static electricity from your body. Static
electricity may cause the camera to mal-
function.
Desiccant
HEATER UNIT
(Service Parts
1
No.LW40790-001A)
1
Fall Prevention
Wire
Lug(x 3)
＊
TK-C215VP4 is used in the illustration.
LST0472-001A
1
Wrench
(Supplied)
Inner
Dome
