4. Disassembly and reassembly

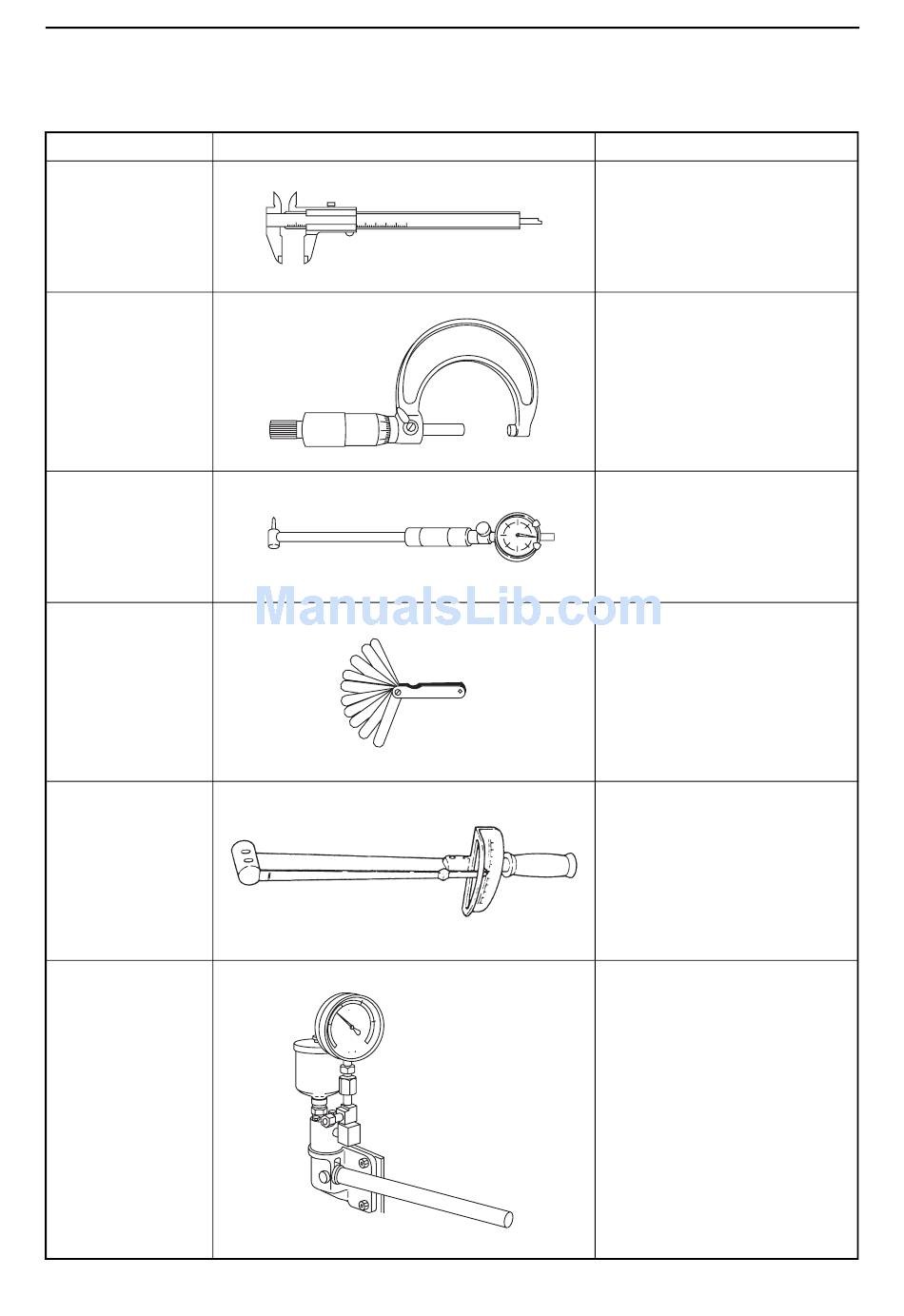

4.2.3 Measuring instruments

(1) Application of tools
Name of tool
Vernier calipers
Micrometer
Cylinder gauge
Thickness gauge
Torque wrench
Nozzle tester
Illustration Remarks
0.05 mm
0-150 mm
0.01 mm
0-25 mm
25-50 mm
50-75 mm
75-100 mm
100-125 mm
125-150 mm
0.01 mm
18-35 mm
35-60 mm
50-100 mm
0.05-2 mm
128 N•m
(0-13 kgf•m)
0-49 Mpa
(0-500 kgf/cm
