2.3.Change Network Address

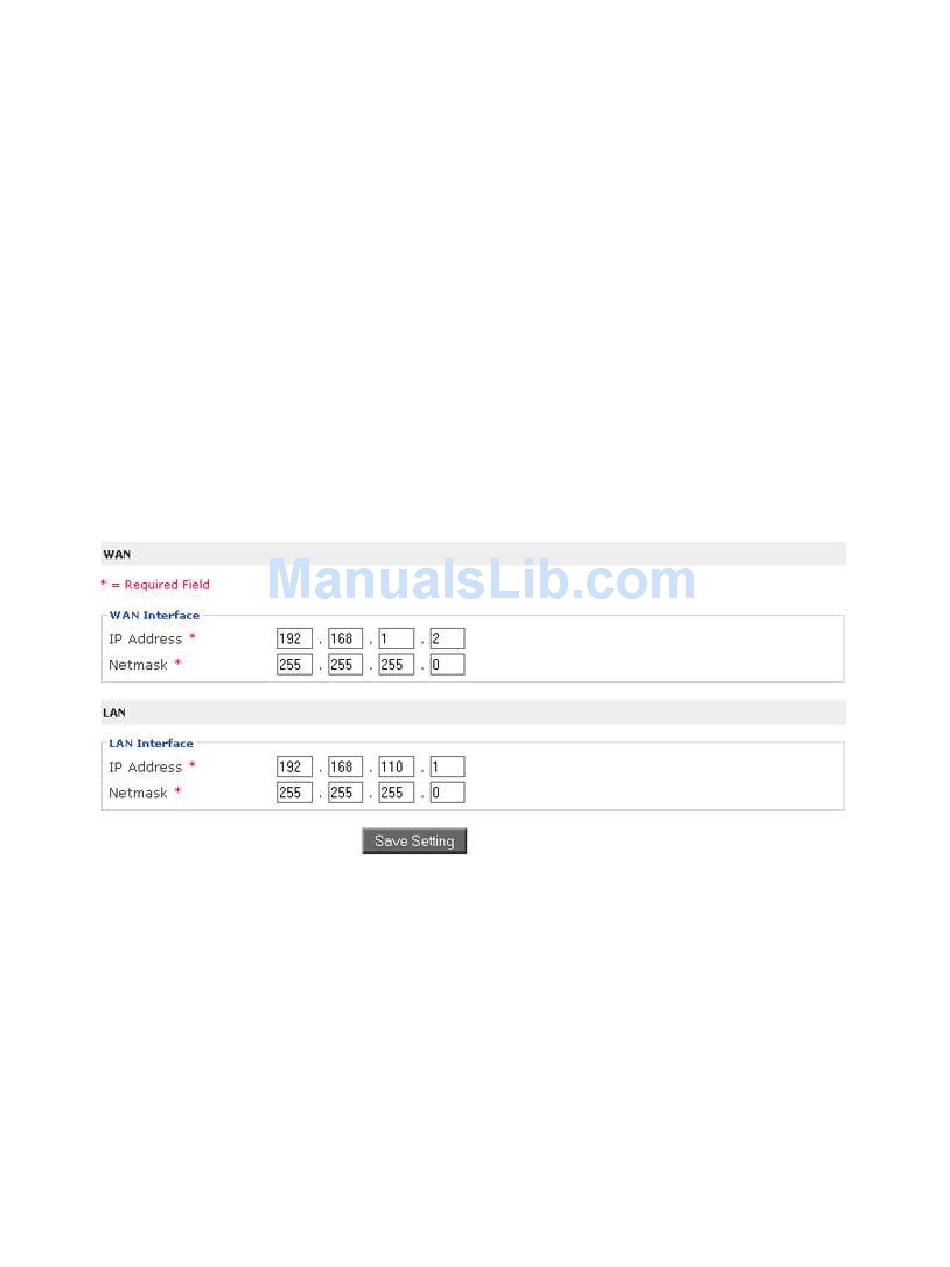

To change HotSpotEngine Network Address, you need to click networking menu at
settings tab, and point your browser to Interfaces tab, there are 2 sub items:
1. WAN Interface
Set WAN interfaces with your internet connection sources. A manual (static) IP
Address must be set on the WAN Interfaces. DHCP assignment on these
interfaces are not currently supported. If your WAN Interfaces should get an IP
Address from a DHCP server, please assign the IP Address to the interfaces
manually instead.
2. LAN Interface
In most cases, changes to the LAN interface is not necessary. If you currently
have a 192.168.110.x currently running on your network you will have to change
the LAN Interface so it will not interfere with your current network. LAN
Interface is the distribution interface that is connected to every client via Wireless
AP or Switch Hub
Once each interface is set up, click Save Setting and reboot to apply the changes.

2.3.Change Default Gateway and DNS

A correct setting of Gateway and DNS of the router is also needed. To change the default
gateway and DNS of your router, click on the Networking menu and click on Gateway
and DNS subtab. Enter the IP Address default gateway, primary DNS, and secondary
DNS on the corresponding fields. In most cases you don't have to reboot to apply the
changes, however if your hotspot client is unable to resolv the domain, you should reboot
the server. It is happened when the primary and secondary DNS IP Address is changed
rather than use its default value, since captive portal service is still using the previous
DNS IP Address .
