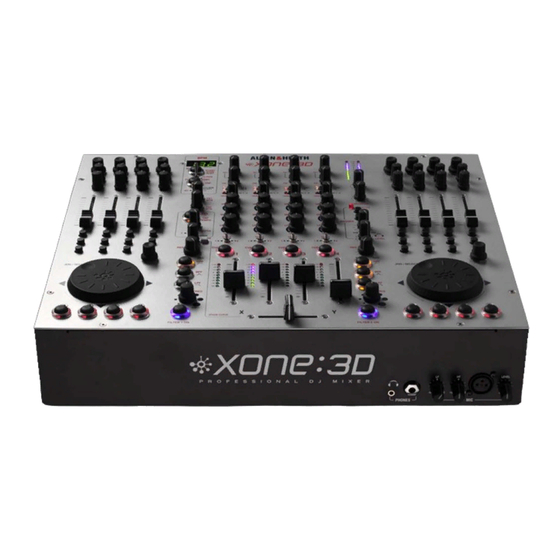

ALLEN & HEATH XONE:3D Service Manual

RCA PHONO PLUG SHORTING-
Pt No. AL4396
CAUTION
WARNING: FOR CONTINUED PROTECTION AGAINST RISK OF FIRE
REPLACE FUSE WITH SAME TYPE AND RATING.
ATTENTION: REMPLACER LE FUSIBLE AVEC
UN DES MEMES CARACTERISTIQUES.
WARNING: THIS APPARATUS MUST BE EARTHED.
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK
DO NOT EXPOSE APPARATUS TO RAIN OR MOISTURE.
AC MAINS IN ~
0 OFF
I ON
T500mAL 250V 20mm
SERIAL No:
100 - 240V~
47-63Hz ~ 30W MAX
MADE IN THE UK BY ALLEN & HEATH LIMITED
SWITCH CAP-Pt
No AJ2887
FUSE 20mm 500 mA-
Pt No. AL3534
From
AL5904- HEADPHONE ASSY
AL5904- 7 SEGMENT DISPLAY
AL5904- ANALOGUE SLAVE ASSY
AL5904- JOGWHEEL (L) ASSY
AL5904- JOGWHEEL (R) ASSY
AL4606- CONNECTOR ASSY
AL6407- MIDI SLAVE (L) ASSY
AL6592- MIDI CONTROL (R) ASSY
AL5485- ANALOGUE SLAVE ASSY
AL6098- GAMEPORT ASSY
AL3817- LINEAR FADER ASSY`S
AL3817- X FADER ASSY
AH2228 MIDI FADER ASSY`S
Allen & Heath
QUAD RCA SOCET-Pt No. AL497
SCREW-Pt No. AB2771
INPUT 4
PHONO L R
LINE L R
MIX OUT
LEFT RIGHT
FUSE
XLR MALE SKT-Pt No. AL2411
SCREW-Pt No. AB2810
CONNECTING WIREFORMS USED IN CONSOLE
INPUT 3 INPUT 2 INPUT 1
PHONO L R PHONO L R LINE L R
A
LINE L R LINE L R LINE L R
B
SOUNDCARD OUTPUTS
MONITOR FX1 SEND FX2 SEND
CH1 CH3
L L L
L
CH2 CH4
R R R
R
RCA DUAL VERTICAL SOCKET-
Pt No.AL3753
SCREW -Pt No.AB2771
-12
PHONES
JACK SOCKET-
Pt No. AL5323
JACK SOCKET-
Pt No. AL0328
to
MASTER ASSY
USB CONTROL ASSY
POWER SUPPLY ASSY
MIDI SLAVE (L) ASSY
MIDI SLAVE (R) ASSY
MASTER ASSY
USB CONTROL ASSY
USB CONTROL ASSY
USB CONTROL
USB COTROL ASSY
INPUT ASSY`S
FILTER ASSY
MIDI SLAVE ASSY`S
2
D TYPE CONNECTOR-
Pt No. AL6351
FX RETURNS
FX1 L R
FX2 L R
SPDIF
DIGITAL AUDIO
IN
CH5
OPTICAL
L L
OUT
IN OUT
CH6
R R
PHONO DUAL
SOCKET-Pt No.
AL0566
OPTICAL IN SOCKET-
Pt No. AE6096
OPTICAL OUT SOCKET-
Pt No. AE5899
OPTICAL IN/OUT BLANKING PLUG-
Pt No. AL6531
LF HF LEVEL
+12 -12 +12
0 10
MIC
KNOB-Pt No. KNOB-Pt No.
AJ4346 AJ4346
POT-Pt No. POT-Pt No.
AI8004 AI8003
XLR SOCKET-
Pt No. AL2414
SCREW-Pt No.
XONE:3D Service Manual
TERMINAL POST-PT No
AL8106
JACK SOCKET-
Pt No. AL0328
GAME/MIDI
FOOT
SWITCH
MIDI
USB
IN OUT
TO PC
5 WAY DIN-
Pt No. AL0095
USB SOCKET-
Pt No. AL6096
