ALLEN & HEATH XONE:96 Quick Start Manual
6+2 analogue dj mixer
Hide thumbs
Also See for XONE:96:
- User manual (41 pages) ,
- Assembly (7 pages) ,
- Quick start manual (4 pages)
Advertisement

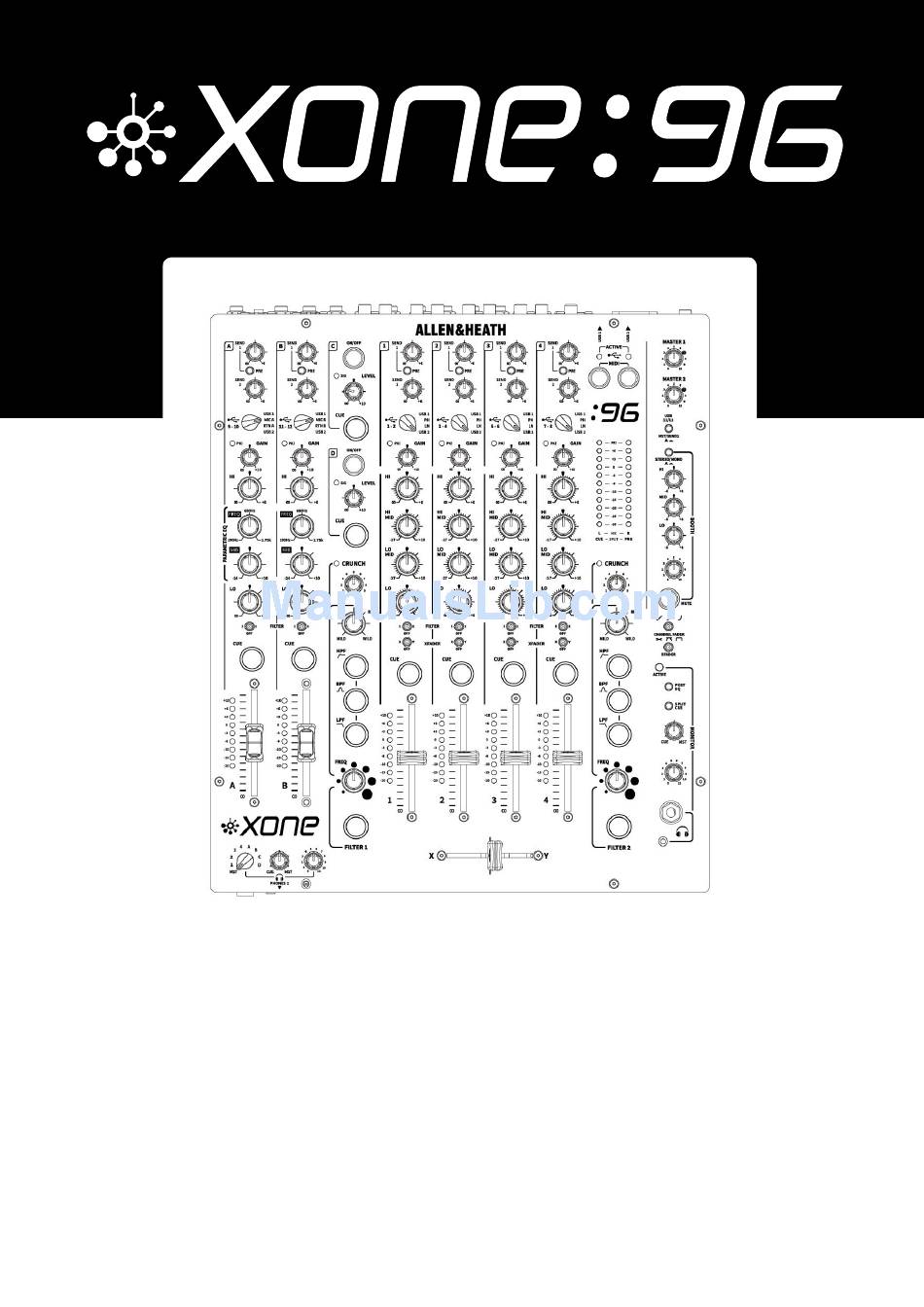

QUICK START GUIDE

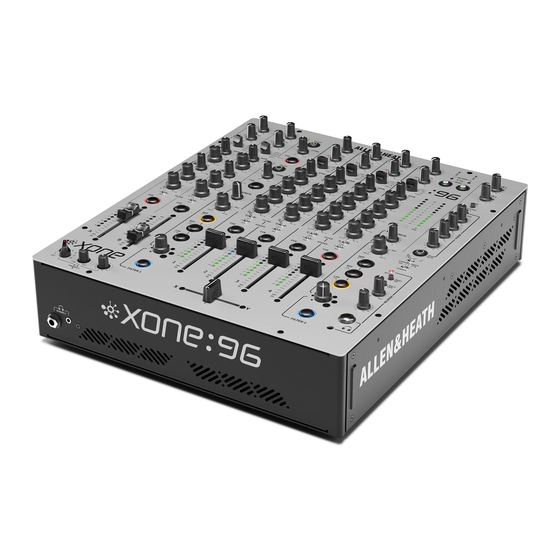

Thank you for purchasing the Allen & Heath XONE:96, 6+2 Analogue DJ mixer, featuring:
Dual 24 channel, 32Bit/96kHz, Hi-Speed USB internal soundcards with MIDI Control & X:Link connectivity
Classic dual XONE:VCF Voltage Controlled Filters now with added CRUNCH
Four stereo input channels with refined XONE 4-BAND EQ
Two stereo input channels with new 3-BAND parametric EQ for detailed creative control + two auxiliary stereo return channels
innoFADER cross-fader and new custom designed 60mm linear VCA performance channel faders
PHONES 2, a second independent Cue system allows two DJ's to monitor independently
Please take the time to read this guide and the full user manual available on the Allen & Heath website:
www.allen-heath.com/ahproducts/xone96/
ALLEN&HEATH
Publication AP11255
