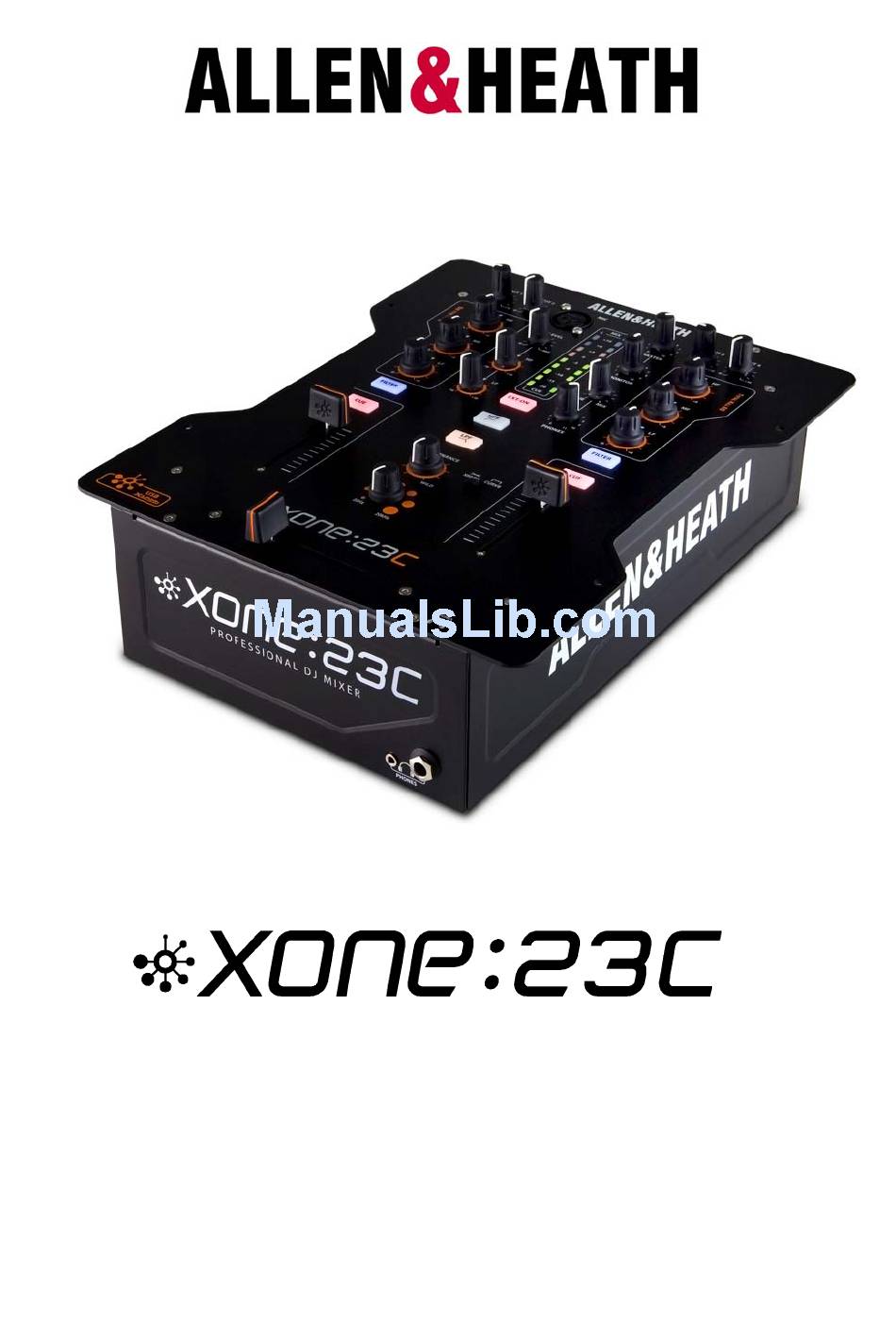

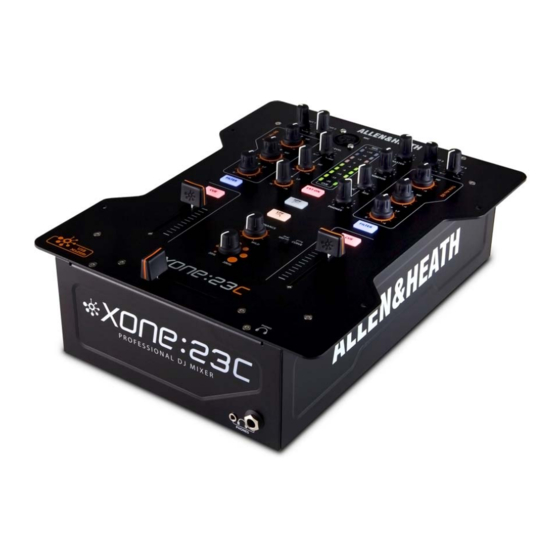

Page 1: User Guide
USER GUIDE Publication AP9433_1... -
Page 2: Warranty
Any changes or modifications to the equipment not approved by Allen & Heath could void the compliance of the product and therefore the users authority to operate it. XONE:23C User Guide AP9433 Issue 1 Copyright © 2014 Allen & Heath Limited. All rights reserved Allen & Heath Limited Kernick Industrial Estate, Penryn, Cornwall, TR10 9LU, UK http://www.allen-heath.com http//www.xone.co.uk... -
Page 3: Packed Items
Check that you have received the following: Xone:23C mixer Power Supply 12V - 2.5 Amps Type A-B USB Lead To connect the Xone:23C to your computer. Power supply IEC Lead This is country specific and will vary with mains voltage/territory Two 17cm, three-way harnesses. -
Page 4: Table Of Contents
CONTENTS Congratulations on purchasing the Allen & Heath Xone:23C performance DJ mixer. To ensure that you get the maximum benefit from the unit please spare a few minutes familiarizing yourself with the controls and setup procedures outlined in this user guide. For further information please refer to the additional information available on our web site, or contact our technical support team. -
Page 5: Connection Diagram
APPLICATION DIAGRAM... -
Page 6: Introduction
With a studio grade 20dB of signal headroom, a separate booth monitor and balanced XLR main outputs, (with an impressive +28dBu max level) the Xone:23C is ideal for the DJ who requires a high quality compact mix tool that easily interfaces with all leading DJ software. -
Page 7: Input Channel Controls
INPUT CHANNEL CONTROLS Input level controls Adjust so the average music level lights the 0 LED on the meter, with the beats lighting the +3 to +6 LED. Turn down if the +10 Red LED is illu- minated. Each input has its own separate level control, so make sure to f u l l y... -
Page 8: Master Section Controls
MASTER CONTROLS Master output Level Sets the signal level to the main XLR mix output Monitor output Level Sets the signal level for the local monitor (booth) output Cue/Mix Control When set to Cue, nothing will be sent to the headphone output unless a channel Cue is activated. -
Page 9: Mic And Filter Controls
MIC AND FILTER CONTROLS Microphone input Professional XLR balanced mic input. Use a low impedance dynamic hypercardioid Mic for best results. Microphone Level Adjusts the signal level of the mic input. If you are not using the mic, turn to minimum to prevent noise pick up. -
Page 10: Rear Panel Connections
PSU connection use pin 2 only and leave recorder computer pin 3 floating. To prevent damage to your soundcard input etc Xone:23 only use an A&H Failure to observe this approved power supply could result in damage to your Xone:23C... -
Page 11: Driver Installation Mac
Driver installation Mac Drivers Although the Xone:23C is class compliant and will work on a Mac without drivers, for best performance we recommend you download the dedicated drivers from our website: www.allen-heath.com/xone23cdrivers When the drivers have downloaded, extract them to a folder and click on the .dmg file to start installation:... - Page 12 X:LINK The Xone:23C does not send any MIDI on its own, however it is fitted with an A&H proprietary interface called X:Link. This will allow you to connect an Allen & Heath controller (such as the Xone:K2) to the mix-...
-
Page 13: Driver Installation Pc
Driver installation PC Drivers In order to access all the soundcard channels on your Xone:23C you will need to install the dedicated ASIO driver, which can be downloaded from our website: www.allen-heath.com/xone23cdrivers When the drivers have downloaded, extract them to a folder and click on the setup file to start installation:... - Page 14 Driver installation PC Checking the Audio MIDI Setup To confirm that the Xone:23C is properly installed open Windows Device Manager (click on the start button, then right click “computer” and select “properties”, then select “Device Manager”) The Xone:23C should be listed under “Sound, video and game controllers”...
-
Page 15: Filters Reference
FILTER REFERENCE The VCF Filters A voltage controlled filter is an audio filter where the cut-off frequency is altered by a DC control voltage rather than a variable resistor. This produces a much wider operating range and more control over the filter response to create unlimited combinations of tonal effect. -
Page 16: Operating Levels
OPERATING LEVELS It is most important that the system level settings are correctly set. It is well known that many DJs push the level to maximum with meters peaking hard in the belief that they are getting the best from the system. THIS IS NOT THE CASE ! The best can only be achieved if the system levels are set within the normal operating range and not allowed to peak. -
Page 17: Earthing
Do not unbalance the Xone:23C XLR outputs by shorting pin 3 to ground as this may damage the circuitry; for unbalanced operation connect the hot signal to pin 2 and the ground to pin 1. Leave pin 3 floating. -
Page 18: Servicing
SERVICING How to replace the crossfader If the crossfader is subject to a lot of use it will, in time wear out and need replacing. Intermittent or noisy operation is an indication that it is becoming worn. Using a propriety fader cleaner such as CaigLube might temporarily restore use, but DO NOT use on a new fader as it will wash away the factory applied grease. -
Page 19: Reconfiguring The Soundcard For Dvs
Reconfiguring the soundcard for use with DVS REPLACEMENT PARTS The default routing for the soundcard sends (to the computer) is for USB channel 1-2 = record output and USB 3-4 = FX send. This configuration allows you to record your set and add FX (see hints and tips on page 21). The supplied software, MixVibes Cross LE, can also be used with time-coded vinyl and to use this option the mixer soundcard routing will need to be internally reconfigured. -
Page 20: User Replaceable Spare Parts
The diagram above shows all of the replacement parts that can be ordered from your local technical support, or direct from Allen & Heath, for the Xone:23C. When ordering please quote the part number(s) of the required parts - this makes life easier for us! See page 18 for information on replacing the crossfader, and for replacement crossfader as- sembly numbers. -
Page 21: Tips And Fault Finding
Tips Using your computer for both track replay and FX The default configuration for the internal soundcard on the Xone:23C allows for two stereo channels from the computer and two stereo channels back. The channels from the computer are primarily used to replay audio files, and channel 1-2 to the computer us used to record the main mix. -
Page 22: Specification
SPECIFICATIONS Connections Inputs Connection Impedance Nominal Level Maximum Level Phono 47K/330pF 7mV-100mV Line 20K ohm -10 to +20dBu FX RTN 10K ohm 0 to +20dBu <2K ohm -42 TO –12dBu Outputs Main Mix Balanced XLR 100 ohms +4dBu +28dBu Monitor 100 ohms -2dBu +22dBu... -
Page 23: Block Diagram
BLOCK DIAGRAM... -
Page 24: Product Registration
PRODUCT REGISTRATION Registering your product Please go to www.allen-heath.com/register.asp and register your product’s serial number and your details. By registering with us and becoming an official Registered User, you will ensure that any warranty claim you might make is actioned quickly and with the minimum delay. Alternatively, you may either copy or cut off this section of the page, fill in the details, and return it by mail to: Allen &...
