Page 1: User Manual

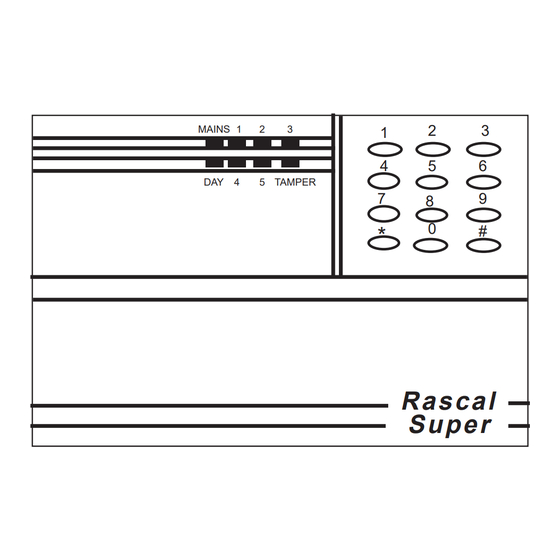

MAINS 1 DAY 4 5 TAMPER Rascal Super Rascal Super User Manual... -
Page 2: Table Of Contents
Contents Introduction Arming the System Setting with Circuits Open Keyswitch Setting Part Setting Home Setting Setting with Isolated Circuits Unsetting Unsetting after an Alarm 10. Chime Setting 11. Changing PIN 12. Reviewing the Log 13. System Test 14. System Walk Test 15. -
Page 3: Introduction
1. Introduction The Rascal Super electronic intruder alarm system uses microprocessor technology to give you a security system that is flexible to use and which is suitable for all domestic applications. The system comprises a main control unit which houses the main printed circuit board and power supply. -
Page 4: Setting With Circuits Open
3. Setting with Circuits Open Should the user try to set the system with the circuits open, the system will not set. The buzzer will emit a pulsed tone and the LED will flash for the open circuit. Enter the four digit PIN code or press the # to abort setting. -
Page 5: Part Setting
5. Part Setting The part set function allows the user to set part of the system, while leaving certain circuits isolated. Enter the four digit PIN code then press the * key followed by the '0' key. The buzzer will change tone and the LED's for the isolated circuits will flash. -
Page 6: Unsetting After An Alarm
8. Unsetting the System On entering the premises the buzzer will emit a continuous tone. Proceed immediately to the keypad via the designated entry route and unset the system as follows. Enter the four digit PIN code within the preset entry time. The buzzer will stop and the system will revert to 'DAY' mode. -
Page 7: Chime Setting
Unsetting After an Alarm via Keyswitch On entering the premises after an intrusion a full alarm condition will exist. To clear the alarm proceed immediately to the keypad via the designated entry route and proceed as follows. Insert the key and turn anticlockwise to the marking. -
Page 8: Reviewing The Log
12. Reviewing the Event Log With the system in the 'DAY' mode the user can review the event log. The event log is organised into 'SET' and 'UNSET' events. The log will show the first to alarm and subsequent alarms as well as isolated circuits. First to alarm is shown by the relevant LED being 'ON'. Subsequent alarms are shown by the relevant LED flashing and isolated circuits are shown by the relevant LED pulsing slowly. - Page 9 Daytime tamper can also be reset via a keyswitch. Proceed as follows. Insert the key and turn clockwise to the marking, then back to the marking. This will silence the buzzer. To reset the system and silence the two tone alternating sound and clear the tamper LED turn the key clockwise to the marking and then...
-
Page 10: Circuit Description
16. Your Circuit Description Part Home Isolate Circuit Alarm Fire 24 Hr Allowed Chime Installed By (Engineer Signature)..........Date Completed............Exit Time..........Entry Time......... Bell Duration........ - Page 12 Guardall Limited Lochend Industrial Estate Newbridge Edinburgh EH28 8PL Part No 320289-02 Tele: 031 333 2900...
