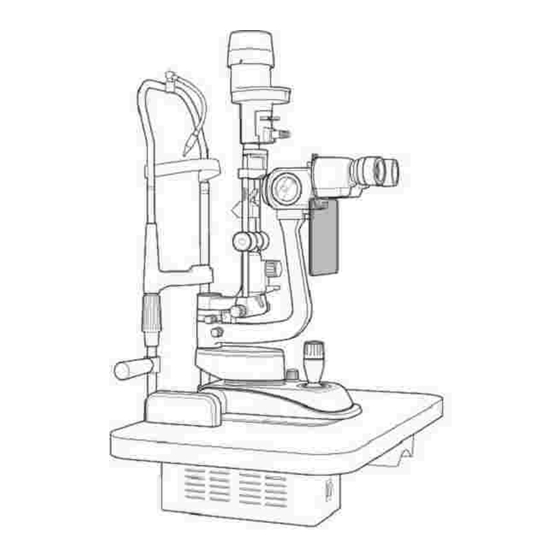

SLIT LAMP MICROSCOPE HS-7000

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HS-7000 and is the answer not in the manual?

Questions and answers

Related Manuals for Huvitz HS-7000

Summary of Contents for Huvitz HS-7000

  • Page 1 ------------------------------------------------------ -----------------------------SLIT LAMP HS-7000 Operator’s Manual SLIT LAMP MICROSCOPE HS-7000...
  • Page 2 The information in this publication has been carefully checked and is believed to be entirely accurate at the time of publication. HUVITZ assumes no responsibility, however, for possible errors o r omissions, or for any consequences resulting from the use o f the ormatio n contained herein.
  • Page 3 ------------------------------------------------------ -----------------------------SLIT LAMP HS-7000 HUVITZ reserves the right to make changes in its products or pro duct specificatio ns at any time and without prior notice, and is not required to update this documentatio n to reflect such changes. © 2009 HUVITZ Co ., Ltd.

  • Page 4: Table Of Contents

    SLIT LAMP HS- 7000------------------- ---------------------------------------------------------------- Contents Introduction ....................... 6 1.1. Indication for use ......¿À ·ù Ã¥ °¥ÇÇ °¡ Á¤ ÀÇ µÇ ¾î ÀÖ Áö ¾Ê ½ À ´Ï ´Ù 1.2. Classification.................... 6 Safety Infor mation....................6 2.1. Introduction ....................7 2.2.
  • Page 5 ------------------------------------------------------ -----------------------------SLIT LAMP HS-7000 10.1. Halogen Projection bulb ................30 10.2. Protection fuses replacement..............32 10.3. Cleaning & Disinfection ................33 11. EMC Infor mation ....................34 11.1. Guidance and manufacturer’s declaration – electromagnetic emissions..34 11.2. Guidance and manufacturer’s declaration – electromagnetic immunity ..35 11.3.

  • Page 6: Introduction

    Introduction 1.1. Indication for use (intended use) The SLIT LAMP, HS-7000 is intended for use in eye examination of the ant segments, from the cornea epithelium to the posterior capsule. It is used to aid in the diagnosis of diseases or trauma which affects the structural properties of the anterior eye segment.

  • Page 7: Safety Information

    ------------------------------------------------------ -----------------------------SLIT LAMP HS-7000 Safety Information 2.1. Introduction Safety is everyone’s responsibility. The safe use of this equipment is largely dependent upon the installer, user, operator, and maintainer. It is imperative that personnel study and become familiar with this entire manual before attempting to install use, clean, service or adjust this equipment and any associated accessories.

  • Page 8: Safety Symbols

    SLIT LAMP HS- 7000------------------- ---------------------------------------------------------------- 2.2. Safety Symbols The International Electro technical Commission (IEC) has established a set of symbols for medical electronic equipment which classify a connection or warn of any potential hazards. The classifications and symbols are shown below. This applies only to the instrument that has the certification symbol printed explicitly on the product label or sticker.
  • Page 9 ------------------------------------------------------ -----------------------------SLIT LAMP HS-7000 M EDIC AL EUIP M ENT W ITH RESP EC T TO ELEC TRIC SHOCK UL6 06 01 FIRE M E CH ANIC AL H AZ ARDS CAN/CS A C22 .2 ONLY IN ACCO RD ANCE W ITH U L 6 0601- NO.601 .1...

  • Page 10: Environment Factors

    SLIT LAMP HS- 7000------------------- ---------------------------------------------------------------- 2.3. Environment factors Avoid the following environments for operation or storage: W here the equipment is expo sed to water vapor. ’ t operate equipment with a wet hand. W here the equipment is expo sed to direct sunlight. W here the temperature changes extremely °...
  • Page 11 ------------------------------------------------------ -----------------------------SLIT LAMP HS-7000 W here equipment is exposed to chemical material or explosive gas. Be careful not to be inserted dust, especially, metal. ’ disassemble the pro duct or o pen. We aren ’ respo nsible for it fo r nothing.

  • Page 12: Safety Precautions

    The equipment must be operated only by, or under direct supervision of a properly trained and qualified person. Modifications of this equipment may only be carried out by Huvitz’s service technicians or other authorized persons. Customer maintenance of this equipment may only be performed as stated in the User’s Manual and Service Manual.
  • Page 13 This equipment may only be used together with accessories supplied by Huvitz’s. If the customer makes use of other accessories, use them only if their safe usability under technical safety aspects has been proved and confirmed by Huvitz or the manufacturer of the accessory.

  • Page 14: Features & Operating Condition

    SLIT LAMP HS- 7000------------------- ---------------------------------------------------------------- Features & Operating Condition 3.1. Brief Description The device works like all slit lamps: Stereomicroscopic examination of the eye under the slit light. Microscopic examination of the ocular fundus and posterior vitreou body (using hruby’s lens). These devices are designed for use by ophthalmologists and optometrists (within the realms of their respective professions) for specific diagnostic procedures (bio- microscopic examination of the eye)
  • Page 15 ------------------------------------------------------ -----------------------------SLIT LAMP HS-7000 CAUTION Because prolo nged intense light exposure can damage the retina, the use of the device for ocular examinatio n sho uld no t be unnecessarily prolonged, and the brightness setting sho uld not exceed what is needed to pro vide cl visualizatio n o f the target structures.

  • Page 16: Standard Components

    SLIT LAMP HS- 7000------------------- ---------------------------------------------------------------- Standard Components The instrument is delivered in package. Taking it out the package, make sure that none of the following parts is missing. A table top(N.B. the table top isn’t supplied with the slit lamp for twin table) on which are placed: A SMPS box(15) including the main switch &...

  • Page 17: Accessories

    ------------------------------------------------------ -----------------------------SLIT LAMP HS-7000 Accessories The following standard accessories are provided with the instrument; protection cover(46) a setting rod(43) spare bulbs 12V 30W Halogen bulb (53) chin-rest paper(47) spare fuses 250Vac T2.0AL a breath screen(5) power cable [ F i g u r e 1 . Ac c e sso r i e s ]...

  • Page 18: Composition

    SLIT LAMP HS- 7000------------------- ---------------------------------------------------------------- Composition Fixation point Control lever for changing enlargement Removable eye-pieces Knob for clamping the breath screen Breath screen Control handle for the slit rotation 90-0-90 Connecting plug of the projector lamp Knurled ring for filters insertion Joystick for lateral, longitudinal and vertical movements(x y z) 10) Base with orthogonal movements 11) Shaped tabletop...
  • Page 19 ------------------------------------------------------ -----------------------------SLIT LAMP HS-7000 26) Locking pins for chin rest paper 27) Chin rest 28) Knobs to change the slit width 29) Pointer for the eye positioning 30) Forehead Rest 31) Microscope 32) Lamp socket 33) Knob to lock the base of the instrument...
  • Page 20 SLIT LAMP HS- 7000------------------- ---------------------------------------------------------------- 54) Bulb fastening knob 55) Mirror 56) Capture connector ( For the image system) 57) Capture switch 58) Luminosity selector connector ( Connect the Luminosity selector to the SMPS) 59) Head rest module...
  • Page 21 ------------------------------------------------------ -----------------------------SLIT LAMP HS-7000 [ Figure 2. Composition I ]...
  • Page 22 SLIT LAMP HS- 7000------------------- ---------------------------------------------------------------- [ Figure 3. Composition ¥±]...
  • Page 23 ------------------------------------------------------ -----------------------------SLIT LAMP HS-7000 [ Figure 4. Composition ¥² ]...

  • Page 24: Installation

    SLIT LAMP HS- 7000------------------- ---------------------------------------------------------------- Installation NOTE The appliances are always supplied with excellent packaging to be able to stand up to all kinds of transport and standard storage conditio ns. P lease contact the suppliers if any irregularities are fo und in the appliance due to transpo rt after unpacking 7.1.
  • Page 25 ------------------------------------------------------ -----------------------------SLIT LAMP HS-7000 Place the head rest module (59) and make sure that its holes fit together with those of the table top. Tighten the screw with the screw driver [ Figure 6. Assembling the instrument I] Place the base with orthogonal movements on the guides situated on the upper part of the table top, checking that the wheels are in line.
  • Page 26 SLIT LAMP HS- 7000------------------- ---------------------------------------------------------------- movements (10). Then tighten the Guide screw with the screw driver(-) Put the microscope(31) in the right position making sure that it is placed well in the stop(37); then tighten it with the knob(34)situate the right side of the microscope.
  • Page 27 ------------------------------------------------------ -----------------------------SLIT LAMP HS-7000 [ Figure 7. Assembling the instrument ¥±]...

  • Page 28: Trial Operations

    SLIT LAMP HS- 7000------------------- ---------------------------------------------------------------- Trial Operations Assemble the chin-rest paper (47) on the chin-rest (27). Let the patient sit down comfortable with his chin on the chin-rest and his forehead against the forehead-rest. Lift or lower the chin-rest by moving the handle (25) so that the patient’s eyes are in line with the notches on the chin-rest(29) Switch the instruments on, press the switch (13).

  • Page 29: Main Features

    ------------------------------------------------------ -----------------------------SLIT LAMP HS-7000 Main Features Principal operative characteristics of the instrument: Observation without settling or tiring and rapid change of enlargements. Base with cross-wise movement (which can be stopped) commanded by a single joystick for all adjustments(x y z) Stereomicroscopic observation of the eye with enlargements 6X-10X-16X-25X- 40X (5 enlargements model).

  • Page 30: Ordinary Maintenance

    SLIT LAMP HS- 7000------------------- ---------------------------------------------------------------- 10. Ordinary Maintenance WARNING The repairs illustrated belo w sho uld all be carried out with the po wer cable disco nnected from the main supply plug. P lease contact the suppliers for any other problems that canno t be resolved by the o perations des ibed below.
  • Page 31 ------------------------------------------------------ -----------------------------SLIT LAMP HS-7000 Replace it with a new one(12V30W Halogen) using the pl tic envelope(never touch the bulb whit fingers) Fasten the bulb with the knob Make sure that the stems of the bulb are completely inserted; insert the plug in the main supply socket [ F ig u re 8 .

  • Page 32: Protection Fuses Replacement

    SLIT LAMP HS- 7000------------------- ---------------------------------------------------------------- 10.2. Protection fuses replacement To replace the fuses proceed as follows: The protection fuses are placed on the back of the SMPS, and inserted power socket. Before doing anything else, disconnect the plu from the main supply socket Remove the burned-out fuses Substitute the fuses and check...

  • Page 33: Cleaning & Disinfection

    ------------------------------------------------------ -----------------------------SLIT LAMP HS-7000 10.3. Cleaning & Disinfection To keep the device clean, apply clinical alcohol and cidex or cidex plus on a soft cloth and scrub the body and the probe once a month. Do not use lacquer, thinner, ethylene, or the oxidizing substance.

  • Page 34: Emc Information

    SLIT LAMP HS- 7000------------------- ---------------------------------------------------------------- 11. EMC Information 11.1. Guidance and manufacturer’s declaration – electromagnetic emissions The EUT is intended for use in the electromagnetic environment specified below. The customer or the user of the EUT should assure that it is used in such an environment.

  • Page 35: Guidance And Manufacturer's Declaration - Electromagnetic Immunity

    ------------------------------------------------------ -----------------------------SLIT LAMP HS-7000 11.2. Guidance and manufacturer’s declaration – electromagnetic immunity The EUT is intended for use in the electromagnetic environment specified below. The customer or the user of the EUT should assure that it is used in such an environment.
  • Page 36 SLIT LAMP HS- 7000------------------- ---------------------------------------------------------------- <5% U? U? ) EUT image intensifier be (<95% dip in for 5 s Powered from U? ) uninterruptible power for 5 s supply or a battery. Power frequency 3 A/m 3 A/m Power frequency (50/60Hz) magnetic fields should magnetic field...

  • Page 37: Guidance And Manufacturer's Declaration - Electromagnetic Immunity

    ------------------------------------------------------ -----------------------------SLIT LAMP HS-7000 11.3. Guidance and manufacturer’s declaration – electromagnetic immunity The EUT is intended for use in the electromagnetic environment specified below. The customer or the user of the EUT should assure that it is used in such an environment.
  • Page 38 SLIT LAMP HS- 7000------------------- ---------------------------------------------------------------- and d is the recommended separation distance in meters (m). Field strengths from fixed RF transmitters, as deter-mined by an electromagnetic site survey, should be less than the compliance level in each frequency range. Interference may occur in the vicinity of equipment marked with the following...

  • Page 39: Recommended Separation Distances Between Portable And Mobile Rf

    ------------------------------------------------------ -----------------------------SLIT LAMP HS-7000 11.4. Recommended separation distances between portable and mobile RF communications equipment and the EUT This is intended for use in an electromagnetic environment which radiated RF disturbances are controlled. The customer or the user the EUT can help Prevent...

  • Page 40: Immunity And Compliance Level

    SLIT LAMP HS- 7000------------------- ---------------------------------------------------------------- 11.5. Immunity and Compliance Level Immunity test IEC 60601 Test Actual Immunity Compliance Level Level Level Conducted RF 3Vrms 3Vrms 3Vrms IEC 61000-4-6 150kHz to 80MHz Radiated RF 3Vrms 3V/m 3V/m IEC 61000-4-3 80MHz to 2.5GHz...

  • Page 41: Guidance And Manufacturer's Declaration - Electromagnetic Immunity

    ------------------------------------------------------ -----------------------------SLIT LAMP HS-7000 11.6. Guidance and manufacturer’s declaration – electromagnetic immunity The EUT is intended for use in the electromagnetic environment specified below. The customer or the user of the EUT should assure that it is used in such an electromagnetic environment.
  • Page 42 SLIT LAMP HS- 7000------------------- ---------------------------------------------------------------- NOTE 1) These guidelines may not apply in all situatio Electromagnetic propagation is affected by absorption and reflection from structures, objects and people. NOTE 2) It is essential that the actual shielding effectiveness and filter attenuation of the shielded location be verified to assure that they meet the minimum specification.

  • Page 43: Electric Diagram

    ------------------------------------------------------ -----------------------------SLIT LAMP HS-7000 12. Electric Diagram...

  • Page 44: Technical Specifications

    SLIT LAMP HS- 7000------------------- ---------------------------------------------------------------- 13. Technical Specifications M IC R O SC O P E - H S-7000(5 x) T ype G alilean conv erging bin ocular M agnification 5 p osition s rotation drum E y epiece 12.5x(O ption 10 x) 6 x, 10x, 16 x, 25x, 40 x(12.5 x ey epiece ) T otal m ag nification or 5 x, 8 x, 12x, 20 x, 32 x( 10 x ey epiece )
  • Page 45 ------------------------------------------------------ -----------------------------SLIT LAMP HS-7000 BASE Vertical Movement Min. 28mm Longitudinal Movement Min. 78mm. Lateral Movement Min. 98mm Fine base Movement Min. 10mm Power supply 100~ 24 0 V AC 50/ 60HZ 2.0A Power consumption 70VA Instrument Voltage 12V DC Halogen Projection...

  • Page 46: Service Information

    Seri al No.: ’ If yo u can t contact with yo ur local distributo r, you can directly get in touch with the service department of the HUVITZ using the phone number and the address written in the belo w table.
  • Page 47 ------------------------------------------------------ -----------------------------SLIT LAMP HS-7000 How to Contact HUVITZ Co., Ltd Wri te us at: : +82-31 442-8 868 HUVITZ Co., Ltd. F ax : +8 2 31-442-8 619 Huvitz B/D, 6 8 9 3 Geumjeong dong URL http://www.huvi tz.co m...

  • Page 48: Particular Information

    SLIT LAMP HS- 7000------------------- ---------------------------------------------------------------- 15. Particular Information 15.1. Relative spectral output graph (1) Halogen Lamp (2) Fixat ion Lamp...
  • Page 49 ------------------------------------------------------ -----------------------------SLIT LAMP HS-7000 Note: this graph be shown for the beam after it exist the instrument, when the instrument is operating at maximum light intensity and maximum aperture. CAUTION “CAUTION – The light emitted from this instrument is potentially hazardous.
