Summary of Contents for Huvitz HSZ-700

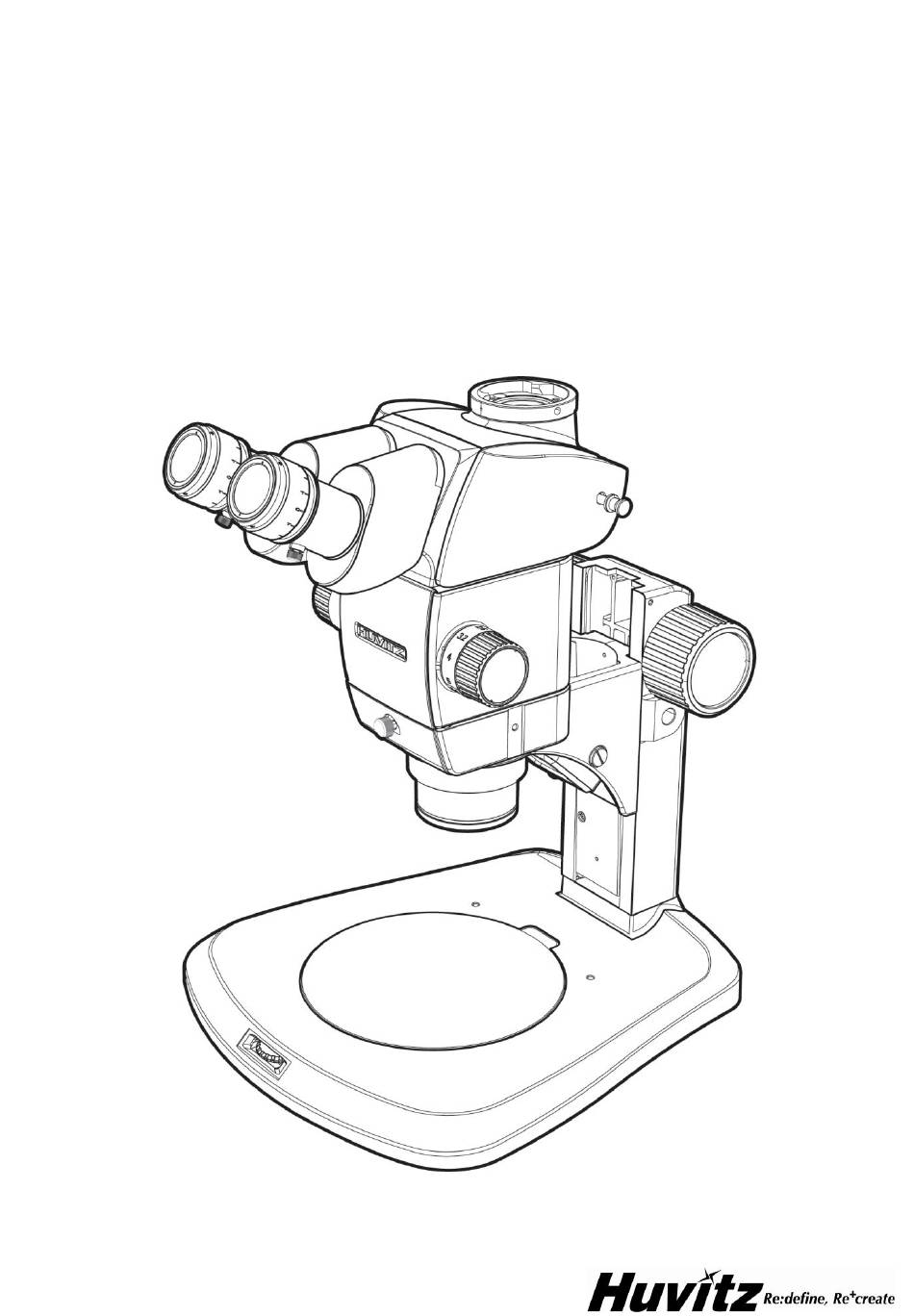

- Page 1 HSZ-700 STEREO MICROSCOPE...
- Page 2 HUVITZ reserves the right to make changes in its products or product specifications at any time and without prior notice, and is not required to update this documentation to reflect such changes.
-
Page 3: Table Of Contents
1. Introduction ······················································································ 5 1.1. Indication for use (Intended use) ·································································· 5 1.2. Classification ··············································································· 5 2. Safety Information·············································································· 5 2.1. Introduction ················································································· 5 2.2. Safety Symbols ············································································ 6 2.3. Environment factors ······································································ 7 2.4. Safety Precautions ······································································· 8 3. Operating Condition ··········································································· 10 4. - Page 4 HSZ-700 STEREO MICROSCOPE 9.4.2. Mounting the TV Adapter (Fig. 8) ··············································· 22 9.4.3. Selecting the TV Camera Light Path (Fig. 8) ································ 22 10. Troubleshooting Guide ······················································································ 23 11. Specifications ····································································································· 24 12. Assembly ············································································································ 26 12.1 Assembly Diagram ······················································································· 26 12.2.
-
Page 5: Introduction
1. Introduction 1-1. Indication for use (Intended use) This instrument has been designed to be used to observe magnified images of specimens in routine and research applications. Do not use this instrument for any purpose other than its intended use. 1-2. -
Page 6: Safety Symbols
HSZ-700 STEREO MICROSCOPE “Note” describes information for the installation, operation, or maintenance of which is important but hazard related if ignored. “Caution” indicates the presence of a hazard that could result in minor injury, or property damaged if ignored. 2-2. Safety Symbols The International Electrotechnical Commission (IEC) has established a set of symbols. -
Page 7: Environment Factors
Alternating Current 2-3. Environment factors Avoid the following environments for operation or storage: Where the equipment is exposed to water vapor. Don’t operate an equipment with a wet hand. For indoor use only Where the equipment is exposed to direct sunlight. Where the temperature changes extremely Normal operating temperature range is from 10C to 40C, Humidity is from 30% to 75%. -
Page 8: Safety Precautions
HSZ-700 STEREO MICROSCOPE Be careful not to be inserted dust, especially, metal. Don’t disassemble the product or open. We aren’t responsible for it for nothing. Don ’ t plug the AC power cord into the outlet before the connection between devices of the equipment is completed. - Page 9 The equipment must be operated only by, or under direct supervision of a properly trained and qualified person. Modifications of this equipment may only be carried out by Huvitz’s service technicians or other authorized persons. Customer maintenance of this equipment may only be performed as stated in the User’s Manual and Service Manual.
-
Page 10: Operating Condition
HSZ-700 STEREO MICROSCOPE 18. Hold the bottom of the stand with one hand while holding base column with the other hand to avoid tilting the microscope. 19. ln case the specimen is damaged by erroneous operation, promptly take the infection prevention measures. -
Page 11: Getting Ready
The device can be in the following storage conditions after unpackaged: Temperature range : from –10˚C to +55˚C; Relative humidity range: below 95%; The device is made to operate under the following environmental conditions: Temperature range : from +10˚C to +40˚C; ... -
Page 12: Standard Components
HSZ-700 STEREO MICROSCOPE Do not attempt to use organic solvents to clean the microscope components other than the glass components because they use plastic resin materials extensively To clean them, use a lint-free, soft cloth slightly moistened with a diluted neutral detergent. -
Page 13: Nomenclature & Controls
7. Nomenclature & Controls Zoom Microscope Body Eyepiece Zoom Adjustment knob Eyepiece Clamping Knob (x2) Reflected Illumination Adjustment Knob Zoom Microscope Body (Only HSZ-ILST7) Focus Adjustment Knob Body Clamping Knob (Stroke: 120mm) Objective lens thread Stand Stand Plate Transmitted Illumination Adjustment Knob Accessory Mount Hole (Only HSZ-ILST7) -
Page 14: Observation Procedure
HSZ-700 STEREO MICROSCOPE 8. Observation Procedure lf you have not assembled the microscope yet, please read “Chapter 12.Assembly". 8-1. Preparation Confirm the mounting, particularly that of the observation tube Adjust the rotation tension of the focus adjustment knob ... -
Page 15: Operation
9. Operation 9-1. Stand 9-1-1. Using the Stage When reflected light illumination is used, the stage plate can be placed either the white or black surface facing up depending on the specimen. When transmitted light illumination is used, use the transparent glass stage plate. ... -
Page 16: Observation Tube
HSZ-700 STEREO MICROSCOPE 9-2. Observation Tube 9-2-1. Adjusting the interpupillary Distance (Fig.2) Always hold the eyepiece sleeves① with both hands when adjusting the interpupillary distance. While holding the left and right eyepiece sleeves① with both hands, look through the eyepieces and adjust for binocular vision until the left and right fields of view coincide completely. - Page 17 Set the zoom adjustment knob③ for the highest magnification again and check the image focusing. The diopter adjustment is complete if the image in accurate focus. lf not, repeat steps 3 to 5 above. [Eyepieces with eyepiece micrometer disk] Look through the eyepiece with eyepiece micrometer disk and rotate its diopter adjustment ring② to bring the micrometer scale into focus.
-
Page 18: Using The Eye Shades (Fig.4)
HSZ-700 STEREO MICROSCOPE Diopter scale of the 10X eyepieces The valid range of the diopter scale is between -8 and +5 but a slight margin is added to it. Therefore, the diopter value may exceed +5 or -8 when it is adjusted to the maximum. -
Page 19: Using An Eyepiece Micrometer Disk (Fig.5)
Fig. 4 9-2-4. Using an Eyepiece Micrometer Disk (Fig.5) Rotate the disk-mounting ring① of the eyepiece counterclockwise to remove. Prepare an eyepiece micrometer disk②, remove dust and dirt from its surface, and fit it into the disk- mounting ring① so that the engraving on the micrometer disk faces downward. Gently screw in the disk-mounting ring①... -
Page 20: Selecting The Light Path (Hsz-Tr30) (Fig.6)
HSZ-700 STEREO MICROSCOPE 9-2-5. Selecting the Light Path (HSZ-TR30) (Fig.6) Slide the light path selector knob① to select the desired light path. ➊ Fig. 6 Light Path Selector Knob Indication Light Path Ratio Pushed-in position Binocular 100% Binocular 20% Pulled-in position TV &... -
Page 21: Switching The Click Stop On-Off (Fig.7)
9-3-2. Switching the Click Stop ON-OFF (Fig.7) The click stop function provides a click stop for each zoom magnification value indicated on the zoom adjustment knob. When the click stop function is switched OFF the zoom magnification can be adjusted finely around each zoom magnification value. To switch the click stop function ON, turn the click stop screw ④... -
Page 22: Tv Observation And Photomicrography
HSZ-700 STEREO MICROSCOPE 9-4. TV Observation and Photomicrography 9-4-1. Selecting TV Adapter Magnification Set the magnification of the TV adapter according to the size of the CCD in the TV camera or digital camera. The following figures show the TV observation areas when the HSZ-EPA10X eyepieces with FN 22 are used. -
Page 23: Troubleshooting Guide
Under certain conditions, performance of the microscope may be adversely affected by factors other than defects. If problems occur, Please review the following list and take remedial action as needed. If you cannot solve the problem after checking the entire list, please contact Huvitz Problem... -
Page 24: Specifications
HSZ-700 STEREO MICROSCOPE 11. Specifications... -
Page 26: Assembly
HSZ-700 STEREO MICROSCOPE 12. Assembly 12-1. Assembly Diagram The diagram below shows the sequence of assembly of the various modules. The Objective lens can do removal and assemble easily by screw type. * When assembling the microscope, make sure that all parts are free of dust and dirt, and avoid scratching any parts or touching glass surfaces. -
Page 27: Detailed Assembly Procedures
12-2. Detailed Assembly Procedures 12-2-1. Installing the Microscope Body (Fig.9) Loosen the body clamping knob① and insert the microscope body② gently into the mounting hole of the standard stand. Position the microscope body so that it faces frontward and tighten the body clamping knob①. If it is required to position the zoom adjustment knob③... -
Page 28: Mounting The Stage Plate (Fig. 11&12)
HSZ-700 STEREO MICROSCOPE 12-2-3. Mounting the Stage Plate To mount the stage plate①, fit the stage plate into the stage plate mounting hole ②.(Fig. 11) The stage plate has the milky white and black surfaces. Select the side facing up according to the specimen. -
Page 29: Service Information
Dealer’s Name Dealer Address: Dealer Phone No.: Version No.: Serial No.: ( Huvitz recommends customers to fill up the above form after purchase and retain this manual as a permanent record of purchase.) Write us at: Tel: +82-31-442-8868 HUVITZ Co., Ltd.
