Summary of Contents for Huvitz HSZ-600

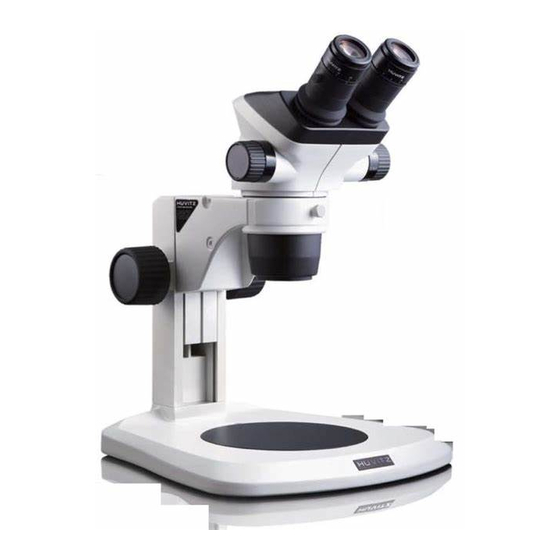

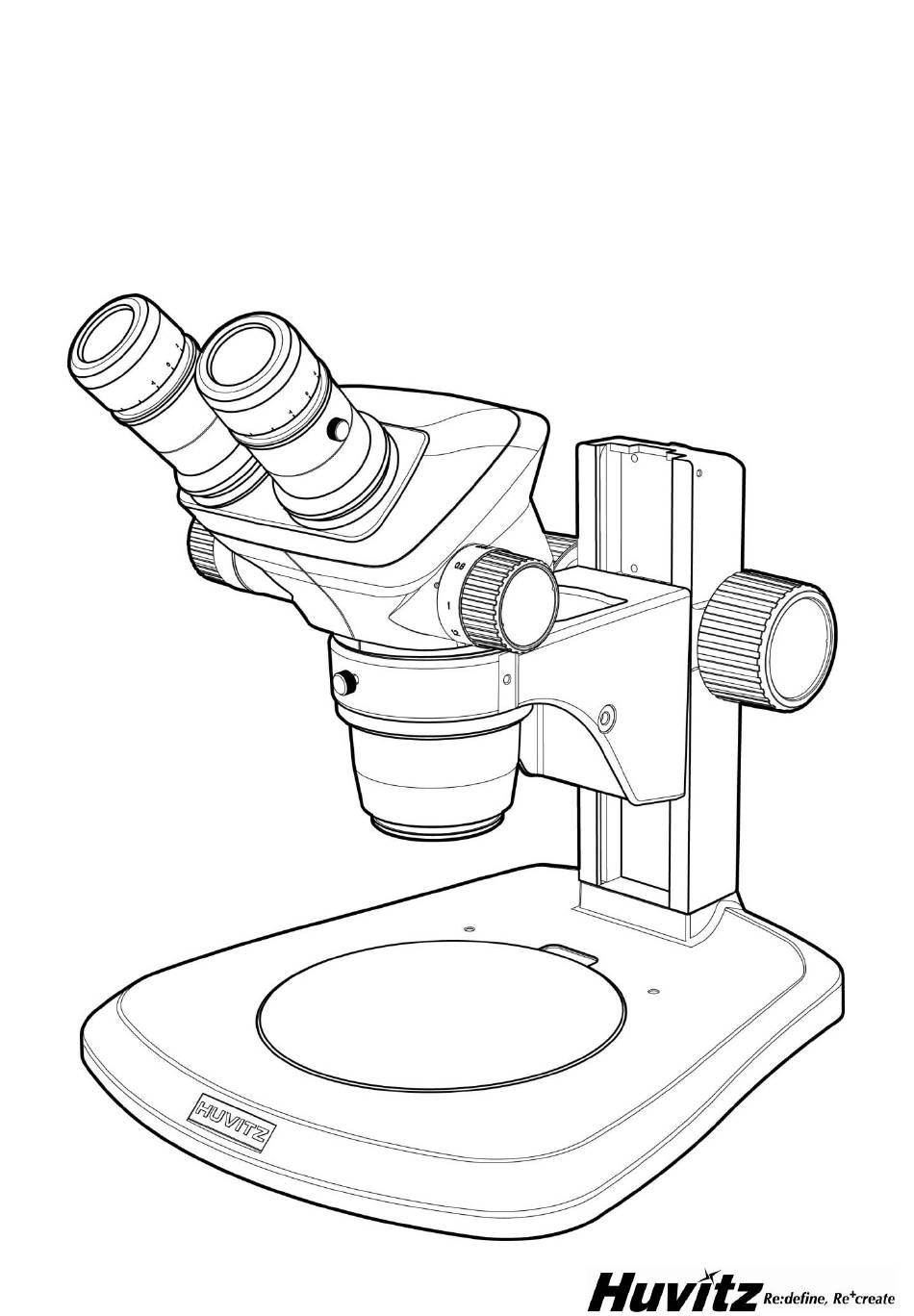

- Page 1 HSZ-600 STEREO MICROSCOPE...
- Page 2 HUVITZ reserves the right to make changes in its products or product specifications at any time and without prior notice, and is not required to update this documentation to reflect such changes.
-
Page 3: Table Of Contents
1. Introduction ······················································································ 5 1.1. Indication for use (Intended use) ·································································· 5 1.2. Classification ··············································································· 5 2. Safety Information·············································································· 5 2.1. Introduction ················································································· 5 2.2. Safety Symbols ············································································ 6 2.3. Environment factors ······································································ 7 2.4. Safety Precautions ······································································· 8 3. Operating Condition ··········································································· 10 4. - Page 4 HSZ-600 STEREO MICROSCOPE 12. Assembly ············································································································ 26 12.1 Assembly Diagram ······················································································· 26 12.2. Detailed Assembly Procedures ·································································· 27 12.2.1. Installing the Microscope Body (Fig. 9) ··············································· 27 12.2.2. Mounting the Stage Plate (Fig. 10&11) ······································ 27 13. Service Information ·········································································· 29...
-
Page 5: Introduction
1. Introduction 1-1. Indication for use (Intended use) This instrument has been designed to be used to observe magnified images of specimens in routine and research applications. Do not use this instrument for any purpose other than its intended use. 1-2. -
Page 6: Safety Symbols
HSZ-600 STEREO MICROSCOPE “Note” describes information for the installation, operation, or maintenance of which is important but hazard related if ignored. “Caution” indicates the presence of a hazard that could result in minor injury, or property damaged if ignored. 2-2. Safety Symbols The International Electrotechnical Commission (IEC) has established a set of symbols. -
Page 7: Environment Factors
Alternating Current 2-3. Environment factors Avoid the following environments for operation or storage: Where the equipment is exposed to water vapor. Don’t operate an equipment with a wet hand. For indoor use only Where the equipment is exposed to direct sunlight. Where the temperature changes extremely Normal operating temperature range is from 10C to 40C, Humidity is below 85%. -
Page 8: Safety Precautions
HSZ-600 STEREO MICROSCOPE Be careful not to be inserted dust, especially, metal. Don’t disassemble the product or open. We aren’t responsible for it for nothing. Don ’ t plug the AC power cord into the outlet before the connection between devices of the equipment is completed. - Page 9 The equipment must be operated only by, or under direct supervision of a properly trained and qualified person. Modifications of this equipment may only be carried out by Huvitz’s service technicians or other authorized persons. Customer maintenance of this equipment may only be performed as stated in the User’s Manual and Service Manual.
-
Page 10: Operating Condition
HSZ-600 STEREO MICROSCOPE 18. Hold the bottom of the stand with one hand while holding base column with the other hand to avoid tilting the microscope. 19. ln case the specimen is damaged by erroneous operation, promptly take the infection prevention measures. -
Page 11: Getting Ready
The device can be in the following storage conditions after unpackaged: Temperature range : from –10˚C to +55˚C; Relative humidity range: below 95%; The device is made to operate under the following environmental conditions: Temperature range : from +10˚C to +40˚C; ... -
Page 12: Standard Components
HSZ-600 STEREO MICROSCOPE Do not attempt to use organic solvents to clean the microscope components other than the glass components because they use plastic resin materials extensively To clean them, use a lint-free, soft cloth slightly moistened with a diluted neutral detergent. -
Page 13: Nomenclature & Controls
7. Nomenclature & Controls Eye Piece Zoom Adjustment Knob Eye Piece Clamping Knob(x2) Focus Adjustment Knob (Stroke: 120mm) Microscope Body thread Piece Body Clamping Knob Auxiliary Objective mount thread Standard base Stage Plate Plate Accessory Mount Hole C-mount C-mount clamping screw Confocality Adjustment Clamping screw Light Path Selector Lever -Pulled out: TV Path 100%... -
Page 14: Observation Procedure
HSZ-600 STEREO MICROSCOPE 8. Observation Procedure lf you have not assembled the microscope yet, please read “Chapter 12.Assembly". 8-1. Preparation Confirm the mounting, particularly that of the observation tube Adjust the rotation tension of the focus adjustment knob ... -
Page 15: Operation
9. Operation 9-1. Stand 9-1-1. Using the Stage When reflected light illumination is used, the stage plate can be placed either the white or black surface facing up depending on the specimen. When transmitted light illumination is used, use the transparent glass stage plate. ... -
Page 16: Adjusting The Light Illumination
HSZ-600 STEREO MICROSCOPE 9-1-3. Adjusting the light illumination Turn the light knob of transmitted light or reflected light to clockwise direction, the light illumination is increased(Only HSZ-ILST6) 9-2. Microscope Body 9-2-1. Adjusting the interpupillary Distance (Fig.2) Always hold the eyepiece sleeves① with both hands when adjusting the interpupillary distance. - Page 17 Set the zoom adjustment knob③ for the lowest magnification and rotate the focus adjustment knob④ to bring the specimen into focus. Set the zoom adjustment knob③ for the highest magnification and rotate the focus adjustment knob④ to bring the specimen into focus. Set the zoom adjustment knob③...
-
Page 18: Using The Eye Shades (Fig.4)
HSZ-600 STEREO MICROSCOPE ➌ ➍ ➋ ➊ Fig. 3 Diopter scale of the 10X eyepieces The valid range of the diopter scale is between -8 and +5 but a slight margin is added to it. Therefore, the diopter value may exceed +5 or -8 when it is adjusted to the maximum. -
Page 19: Using An Eyepiece Micrometer Disk (Fig.5)
[When Not Wearing Eyeglasses] Extend the folded eye shades in the direction of the arrow to prevent extraneous light from entering between the eyepieces and eyes. Fig. 4 9-2-4. Using an Eyepiece Micrometer Disk (Fig.5) Rotate the disk-mounting ring① of the eyepiece counterclockwise to remove. Prepare an eyepiece micrometer disk②, remove dust and dirt from its surface, and fit it into the disk- mounting ring①... -
Page 20: Selecting The Light Path (Only Hsz-645Tr) (Fig.6)
HSZ-600 STEREO MICROSCOPE 9-2-5. Selecting the Light Path (Only HSZ-645TR) (Fig.6) Slide the light path selector knob① to select the desired light path. ➊ Fig. 6 Light Path Selector Knob Indication Light Path Ratio Pushed-in position Binocular 100% Pulled-in position TV &... -
Page 21: Adjusting The Confocality Of Tv Camera
To prevent damaging the microscope cover and internal mechanism, do not turn the screw excessively. ➊ ➋ Fig. 7 9-2-7. Adjusting the Confocality of TV Camera (Only HSZ-645TR) (Fig.8) Adjust the dioper of the eyepiece and bring the specimen into focus. Pull out the light path selector lever①... - Page 22 HSZ-600 STEREO MICROSCOPE [Applicable camera(image pickup device size) and field numbers] The TV camera light path incorporates a 0.5X lens. 2/3 in. image pickup device (Diagonal length 22mm) 1/2 in. image pickup device (Diagonal length 16mm) FN 22 (With 10X Eyepiece)
-
Page 23: Troubleshooting Guide
Under certain conditions, performance of the microscope may be adversely affected by factors other than defects. If problems occur, Please review the following list and take remedial action as needed. If you cannot solve the problem after checking the entire list, please contact Huvitz Problem... -
Page 24: Specifications
HSZ-600 STEREO MICROSCOPE 11. Specifications Item Specifications Microscopy body HSZ-645 HSZ-660 HSZ-645TR HSZ-645 Magnification 0.67x ~ 4.5x HSZ-660 Zoom ritio 6.7 : 1 HSZ-645TR Working distance 110mm Tube inclination 45˚ 60˚ 45˚ angle Interpupillary Left/right interlocked distance adjustment Adjustment range : 55 to 75mm Viedo camera C-mount(0.5x built in) -
Page 26: Assembly
HSZ-600 STEREO MICROSCOPE 12. Assembly 12-1. Assembly Diagram The diagram below shows the sequence of assembly of the various modules. * When assembling the microscope, make sure that all parts are free of dust and dirt, and avoid scratching any parts or touching glass surfaces. -
Page 27: Detailed Assembly Procedures
12-2. Detailed Assembly Procedures 12-2-1. Installing the Microscope Body (Fig.9) Loosen the body clamping knob① and insert the microscope body② gently into the mounting hole of the standard stand. Position the microscope body so that it faces frontward and tighten the body clamping knob①. ➊... - Page 28 HSZ-600 STEREO MICROSCOPE Mounting ➊ ➋ Fig. 10 Dismounting ➊ ➋ Fig. 11...
-
Page 29: Service Information
Dealer’s Name Dealer Address: Dealer Phone No.: Version No.: Serial No.: ( Huvitz recommends customers to fill up the above form after purchase and retain this manual as a permanent record of purchase.) Write us at: Tel: +82-31-442-8868 HUVITZ Co., Ltd.
